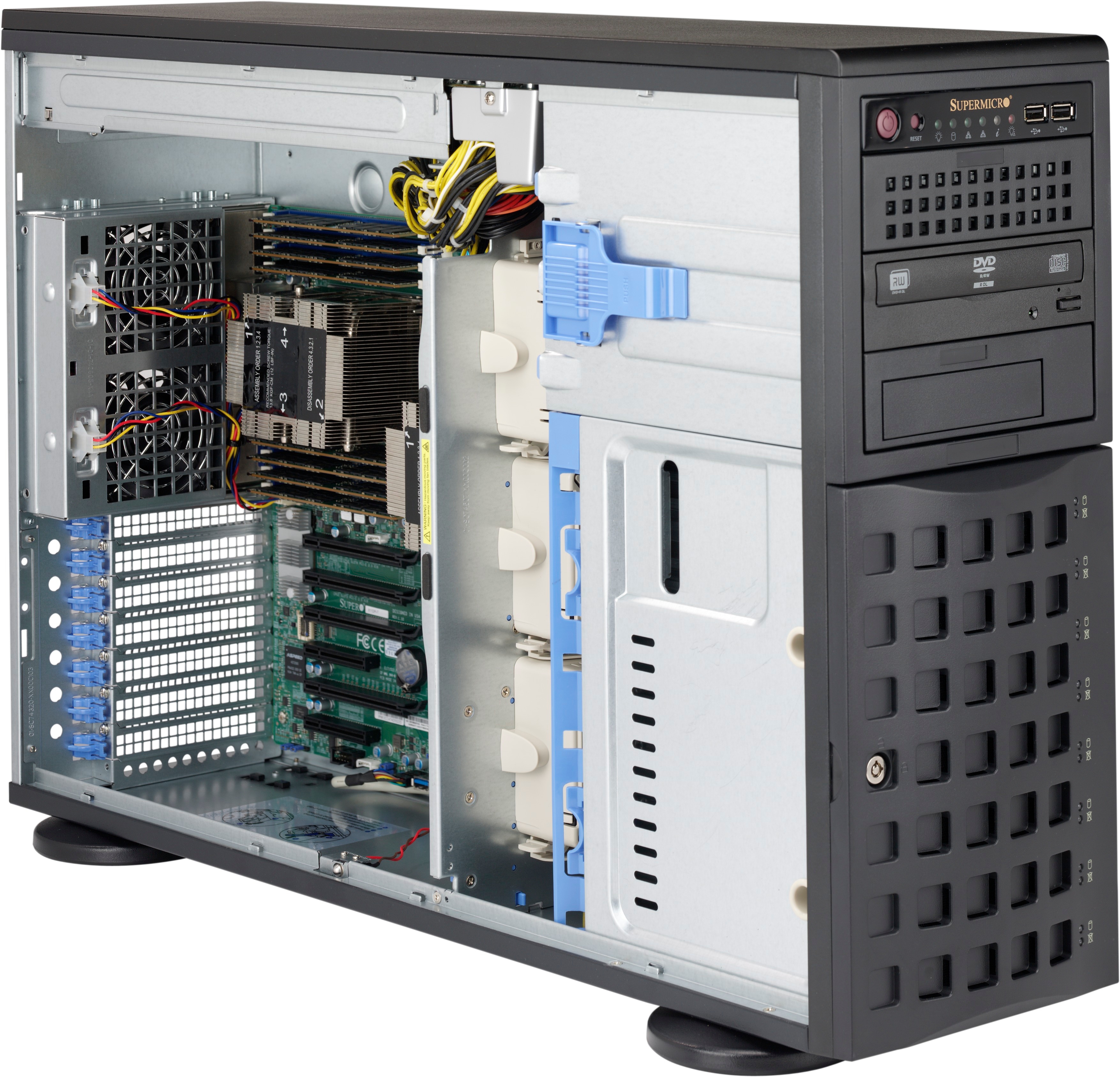

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.

Key Features
  1. 8x 3.5"/2.5" SAS/SATA Backplane for Hot-Swappable Drives
  2. Whisper-Quiet (<27dB)
  3. Front HDD Door Lock & Side Panel Intrusion Switch
  4. Front I/O Ports: 2x USB 3.0
  5. 2x 8cm (2800 rpm) PWM Fans & 1x 9cm (2400 rpm) PWM Fans
  6. 4U / Full Tower Chassis Supports max. Motherboard, Sizes: E-ATX 13.68" x 13"/ATX/Micro ATX
  7. 1280W (1 + 1) Redundant Platinum Level Certified High-Efficiency Power Supply
  8. 3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives
Specifications
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
CSE-745BTQ-R1K28B-SQ
  • SuperChassis 745BTQ-R1K28B-SQ

Form Factor
  • 4U tower chassis - supports maximum motherboard sizes up to E-ATX 13.68" x 13"
  •
    Processor Support
  • Dual, single Intel® / AMD processors
  •
    Dimensions
    Height
    • 17.8" (452 mm)
    Width
    • 7" (178 mm)
    Depth
    • 25.5" (647 mm)
    Net Weight
    • 59 lbs (26.76 kg)
    Gross Weight
    • 62 lbs (28.12 kg)
    Packaging (W x H x L)
    • 14" (356 mm) x 24.6" (625 mm) x 31.3" (795 mm)
    Available Color
    • Black

    Expansion Slots
    • 7 full-height & full-length expansion slot(s)

    Drive Bays
    • 8 x 3.5"/2.5" hot-swap SAS drive bay with SES3

    Backplane
    • 743 SAS BACKPLANE W/AMI MG9072

    Peripheral Drives
    • 3 x standard 5.25" drive bay

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • HDD activity LED
    • Power Status LED
    • Power Fail LED
    • System Information LED
    Ports
    • 2x USB 3.0 Port(s)
    Systems Cooling
    Fans
    • 2 x 2800 RPM fan(s)
    • 1 x 2700 RPM fan(s)

    System Monitoring
    • Chassis intrusion switch

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus
    Power Efficiency
    • 95%
    Total Output Power and Input
    • 1000W with Input 100 - 140Vac
    • 1280W with Input 180 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    -12V
    • Max: NAA
    +12V
    • Max: 83A / Min: 0.5A (100Vac - 140Vac)
    • Max: 106.7A / Min: 0.5A (180Vac - 240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    +12Vsb
    • Max: NAA
    Power Distributor
    • PDB-PT747-4648
    • O/P: 12/212
    • +5V Max: 30
    • +3.3V Max: 24
    • -12V Max: 0.6
    Certification
    • Platinum Certified  Platinum Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class B
    • TUV/CB
    • UL/CUL
    Components
    Standard Parts List
      Part Number Qty Description
    HD BackplaneCSE-SAS-743TQ1743 SAS BACKPLANE W/AMI MG9072
    Cable(s)CBL-0044L457.5CM SATA FLAT S-S PBF
    Cable(s)CBL-0157L18PIN TO 8PIN RIBBON CABLE FOR SGPIO, PB FREE
    Optional Parts List
      Part Number Qty Description
    Mounting Rail CSE-PT26L-(B) - 4U Chassis Rail Kit (Includes Side Handles) (B = Black), Extendable length 26"~35.9"
    LCD MCP-220-00095-0B - 5.25" USB LCD Kit
    Fan Kit MCP-320-00046-0N-KIT - Rear fan kit (8.2K RPM fan) for SC747B / 835X / 836BH
    Rear Exhaust Fan MCP-320-00047-0N-KIT - Rear fan kit (5K RPM fan) for SC745B / 835X / 836BH
    GPU/Add-on Card Dummy MCP-240-00096-0N - SC747B GPU/Add-on Card Dummy Assembly (2 slots) - single pack
    Cable CBL-0153L - 6 pin to 2x big 4 pin GPU power extension from PDB, 16cm, 20AWG
    Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis
    Peripheral Drive(s) DVM-LITE-DVDRW24-HBT - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
    HDD Tray MCP-220-00080-0B - Black hotswap gen 2 3.5 to 2.5 HDD tray
    Motherboard (for CSE- 745BTQ-R1K28B-SQ)
    X10DAi X10DAC X10DAX X10SRA-F
    X11SAE-M X11SPA-TF X11SPA-T
    = Most optimized Chassis for SuperServer Configuration
    Blue color = Compatible
    Green color = Global SKU & Compatible
    Red dot & green color = Optimized + Global SKU
    SuperChassis 745BTQ-R1K28B-SQ
