SuperStorage 1029P-NES32R (Complete System Only)

  Products  Systems   SuperStorage   [ 1029P-NES32R ]





Integrated Board

X11DSF-E
X11DSF-E

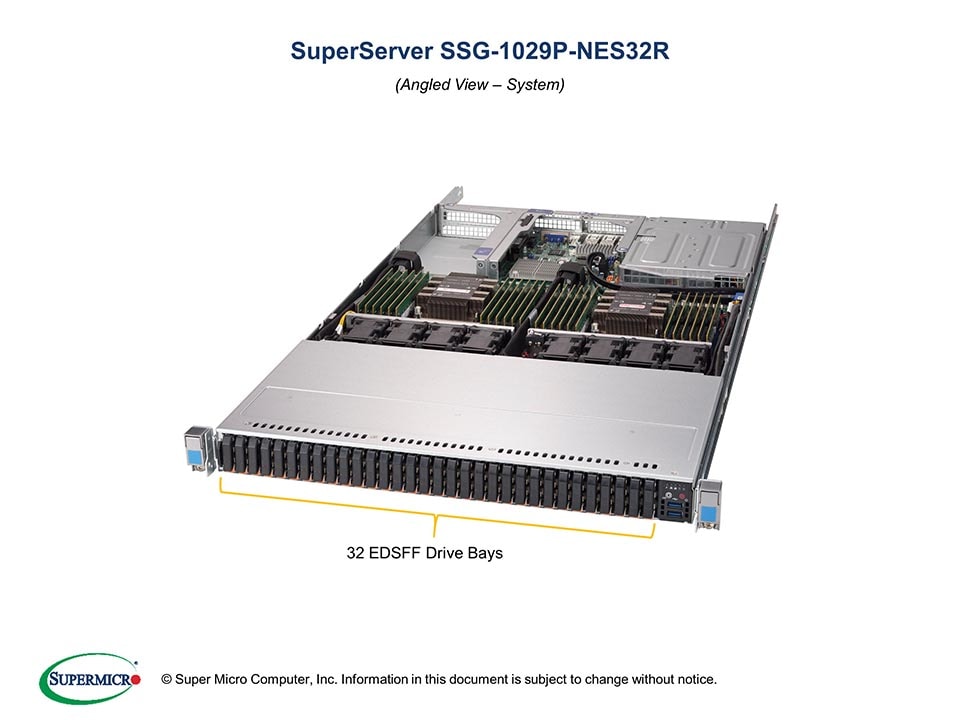

Views: | Angled View | Top View |
| Front View | Rear View |

Key Applications
  - IOPS Intensive Application
  - Database Application
  - Hyperconverged Infrastructure


Key Features
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
2. 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 2 PCI-E 3.0 x16 (FHHL) slots,
    1 PCI-E 3.0 x4 (LP) slot
4. 32 Hot-swap PCI-E E1.S or
    M.2 drive bays (M.2 is not
    hot-swappable). M.2 supports
    Form Factor 22x42/60/80/110
    (MCP-220-12106-0N tray required)
5. 2x 10GBase-T LAN ports via
    Intel X550
6. 8x 40x56mm counter-rotation
    PWM fans
7. 1600W Redundant Power Supplies
    Titanium Level (96%)



       Product Flyer



Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to 2 CPUs, 2 DIMMs, and 4 drives).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Manuals   OS Certification Matrix   Drive Options

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SSG-1029P-NES32R
  • SuperStorage 1029P-NES32R (Black)

Motherboard

Super X11DSF-E

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C627 chipset
Storage
  • PCI-E fan out switching supporting 32x E1.S
Network Connectivity
  • Intel® X550 Dual Port 10GBase-T
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (front)
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA D-Sub connector port
Serial Header
  • 1 COM port (header)

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-121EF-R1K62P

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 30" (762mm)
Weight
  • Net Weight: 40 lbs (18.1kg)
  • Gross Weight: 52 lbs (23.6kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (FHHL) slots
  • 1 PCI-E 3.0 x4 (LP) slot

Drive Bays / Storage
Hot-swap
  • 32 Hot-swap PCI-E E1.S drive slots

System Cooling
Fans
  • 8x 40x56mm counter-rotation PWM fan

Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DSF-E
CSE-121EF-R1K62P
1
1
Super X11DSF-E Motherboard
CSE-121EF-R1K62P Chassis
Backplane BPN-EDS3-121P1 1 1U EDSFF backplane for 32-slot EDSFF-Short Form NVMe dense storage system.,RoHS
Cable 1 CBL-PWEX-1026 1 GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin, -25~85C, RoHS
Cable 2 CBL-PWEX-1027 1 GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS
Cable 3 CBL-SAST-1019 2 SLIMLINE SAS, INT,34.7CM, 41.9CM, 31.5/42.2CM,RoHS
Riser Card RSC-R1UU-E8R+ 1 RSC-R1UU-E8R+ REV 1.00, PBF
Riser Card RSC-X-66 1 1U LHS Passive Storage Risercard w/ 2 PCI-E x16slots,HF,RoHS
Heatsink / Retention SNK-P0067PS 2 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
* Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
* Cable 4 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* FAN 1 FAN-0163L4 8 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
* Front Panel FPB-TMP-002 1 Thermal Sensor board with 40cm I2C cable
* Drive Tray(s) MCP-220-12105-0N 32 SC121EF EDSFF cage
* Rear Window MCP-240-12103-0N 1 Rear window for SC121M3
* Front Panel MCP-280-11605-0N 1 116U FP kit,2* USB3.0,slim bracket, 50cm cable
* Rail Set MCP-290-11814-0N 1 set Short rail set, quick/quick, auto latch, for 1U 17.2W No CMA support
* Air Shroud MCP-310-12101-0N 1 SC121 PWS Air Shroud
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
M.2 Tray (NVMe Only) MCP-220-12106-0N 1 M.2 Tray
Qualified NVMe M.2 Drives for Front Bays Using M.2 Tray (MCP-220-12106-0N) HDS-IMN0-SSDPELKX010T8
HDS-IMN0-SSDPELKX020T8
HDS-TMN-KXD51LN11T92
HDS-TMN-KXD5YLN13T84
HDS-SMN1-MZ1LB960HAJQ07
HDS-SMN1-MZ1LB1T9HALS07
HDS-SMN1-MZ1LB3T8HMLA07
Up to 32 Intel P4511 1TB 22x110mm NVMe M.2 SSD (1 DWPD)
Intel P4511 2TB 22x110mm NVMe M.2 SSD (1 DWPD)
Kioxia XD5 1.92TB 22x110mm NVMe M.2 SSD (1 DWPD)
Kioxia XD5 3.84TB 22x110mm NVMe M.2 SSD (1 DWPD)
Samsung PM983 960GB 22x110mm NVMe M.2 SSD (1.3 DWPD)
Samsung PM983 1.92TB 22x110mm NVMe M.2 SSD (1.3 DWPD)
Samsung PM983 3.84TB 22x110mm NVMe M.2 SSD (1.3 DWPD)
M.2 Add On Card (2x SATA or 2x NVMe) AOC-SLG3-2H8M2 1 Support 2x NVMe M.2 SSDs or 2x SATA M.2 SSDs with RAID1
Qualified NVMe/SATA M.2 Drives Using M.2 AOC (AOC-SLG3-2H8M2) HDS-IMT0-SSDSCKKB240G8
HDS-IMT0-SSDSCKKB480G8
HDS-IMT0-SSDSCKKB960G8
1-2 per AOC Intel S4510 240GB 22x80mm SATA M.2 SSD (1 DWPD)
Intel S4510 480GB 22x80mm SATA M.2 SSD (1 DWPD)
Intel S4510 960GB 22x80mm SATA M.2 SSD (1 DWPD)
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
