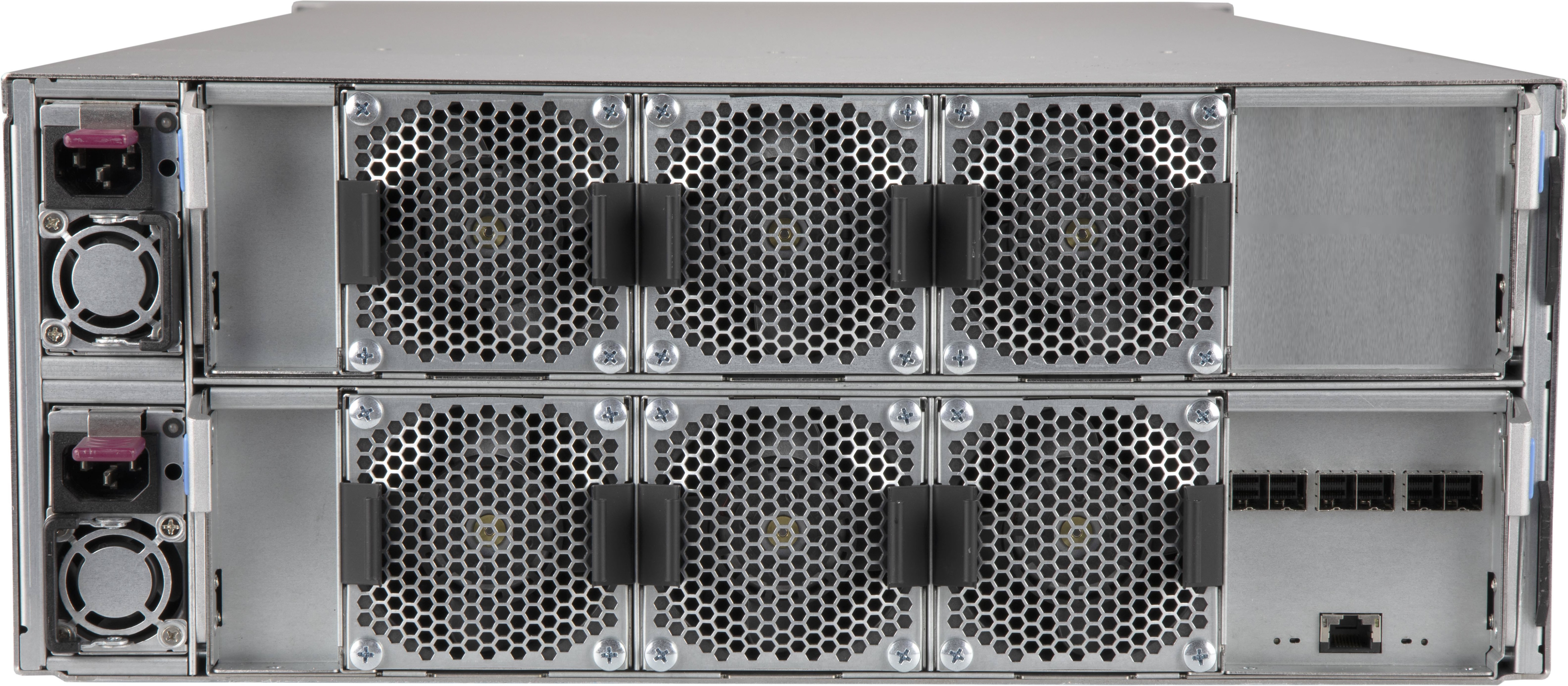

SuperChassis 947HE1C-R2K05JBODSuperChassis 947HE1C-R2K05JBOD

Key Features


  1. Single-Path Storage Enclosure
  2. Single canister controllers with field serviceable tray
  3. Support 90 3.5"/2.5" Top Loading SATA 6Gb/s / SAS3 12Gb/s Hot-Swappable HDDs
  4. 6x SAS3.0 IO ports (MiniSAS HD/SFF-8644)
  5. Dedicated IPMI RJ45 management port
  6. Redfish OOB management protocol support
  7. SCSI Enclosure Services SES-4 support
  8. Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
  9. Redundant Titanium 2000W power supply

For system validation and quality assurance purposes, system configurations require a minimum of 25% of the available drives be populated with validated Supermicro drives. Please contact your Supermicro sales rep for validated HDD.
Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 947HE1C-R2K05JBOD
Form Factor
  • 4U Rackmount Top-Load JBOD Storage Enclosure
Dimensions
Height
  • 6.96" (177 mm)
Width
  • 17.6" (447 mm)
Depth
  • 43.3" (1099 mm)
Gross Weight
  • 225 lbs (102.06 kg)
Net Weight
  • 130 lbs (58.97 kg)
Packaging (W x H x L)
  • N/A
Palletized Packing (W x H x L)
  • 35.82" (910 mm) x 29.92" (755 mm) x 53.15" (1345 mm)
Available Color
  • Black
Drive Bays
  • 90x 3.5"/2.5" hot-swap SAS drive bay with SES3
Qualified SAS Controllers
  • AOC-SAS3-9500-8E: SAS 12Gb/s PCIe 4.0 8-Port Host Bus Adapter
  • AOC-SAS3-9500-16E: SAS 12Gb/s PCIe 4.0 16-Port Host Bus Adapter
  • AOC-SAS3-9580-8I8E: SAS 12Gb/s PCIe 4.0 8-Port MegaRAID Controller
Backplane
  • Midplane for topload CSE-947 60/90-bay SBB/Twin/single-node system,RoHS
  • Adapter board between Expander and HDD BPN for CSE-947H,RoHS
  • IPMI control board for CSE-947H top-load 60/90-bay JBOD
  • 15-Port HDD Backplane for CSE-947H 60/90-bay top load chassis/server.,RoHS
  • JBOD I/O board for CSE-947H top-load 60/90-bay JBOD unit
  • SAS3 expander module for top-load 60/90-bay single/twin/SBB CSE-947 project,RoHS
Front Panel
Button
  • Power On/Off button
  • System Reset button
  • Unit Identification (UID) button
LED
  • HDD activity LED
  • 1 Network activity LEDs
  • System Information LED
  • Unit Identification (UID) LED
  • Power LED
Systems Cooling
Fans
  • 6x 8cm hot-swap redundant PWM cooling fan(s)
System Monitoring
  • IPMI
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 2000W Redundant Titanium AC Power supply, 73.5x40x265mm, CRPS
Power Efficiency
  • 96%
Total Output Power and Input
  • 1000W with Input 100 - 120Vac
  • 1980W with Input 220 - 230Vac
  • 1800W with Input 200 - 220Vac
  • 2000W with Input 200 - 240Vac
  • 2000W with Input 230 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 265 x 73.5 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 165A / Min: 0A (220Vac - 230Vac)
  • Max: 150A / Min: 0A (200Vac - 220Vac)
  • Max: 166.7A / Min: 0A (200Vac - 240Vac)(for UL/cUL only)
  • Max: 166.7A / Min: 0A (230Vac - 240Vac)
  • Max: 83.3A / Min: 0A (100Vac - 120Vac)
+12Vsb
  • Max: 2.1A / Min: 0A
Certification
  • Titanium Certified  Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • TUV/CB
  • UL/CUL
