Supermicro® Total Solution for Ceph
With the advancement of large scale cloud computing platforms like OpenStack, the business of data storage has been forever changed. Scale out software defined storage solutions are rapidly becoming pervasive as the implementation model of choice for large scale deployments. Agile business models require equally agile platforms to build upon. By replacing the proprietary data silos of the past with flexible server hardware, cloud providers have more control of their environments resulting in better value for their customers. Supermicro has embraced this change, offering the widest selection of server hardware in the industry.
|
- Role specific cluster configurations – turn-key cluster configurations offer performance, capacity, and density to fit popular application workloads. Memory and networking options are easily customized to meet specific requirements
- Optimized network configurations – cluster and rack level integration offers streamlined deployment of Red Hat Ceph Storage and infrastructure with consistency not attainable using improvised methods
- Storage/Media Ratios to fit user applications – deployment of flash and rotating magnetic media allows the solution to meet workload tuned performance and density targets
|
|
Organizations prefer object-based storage when deploying large-scale storage systems because it
stores data more efficiently. Object-based storage systems separate the object namespace from the
underlying storage hardware - This simplifies data migration.
|
|
Ceph's CRUSH algorithm liberates client access limitations imposed by centralizing the data table
mapping typically used in scale-out storage. Ceph continuously re-balances data across the
cluster-delivering consistent performance and massive scaling. The self-healing capabilities of Ceph
provide aggressive levels of resiliency. Data redundancy is achieved by replication or erasure coding
allowing for extremely efficient capacity utilization.
|
|
Supermicro's Total Solution for Ceph offers turn-key storage integration of Red Hat Ceph Storage on fully optimized SuperStorage hardware. The Total Solution for Ceph includes datacenter proven on-site service and support provided by Supermicro and is available for deployments in the US and Canada.
|
|
 |

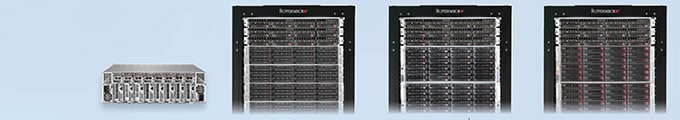

Workload /
Application |
MySQL /
Database |
Digital Media Serving - Small |
Digital Media Serving - Large |
Capacity-Archive |
| Solution SKUs |
SYS-5038MR-
OSD006P |
SRS-42E112-Ceph-05
SRS- RCS112-Ceph-05 |
SRS-42E136-Ceph-05
SRS-RCS136-Ceph-05 |
SRS-42E172-Ceph-05
SRS-RCS172-Ceph-05 |
| I/O profile / Protocol |
IOP / Block |
Throughput/Block & Object |
Capacity/Object |
Capacity/Object |
| Data Protection |
2x Replication |
3x Replication |
3x Replication and Erasure code |
Erasure code |
| Form factor |
3U |
23U (with switches and 3x Monitor nodes) |
41U (with switches and 3x Monitor nodes) |
41U (with switches and 3x Monitor nodes) |
| Usable Capacity |
3.2TB |
240TB |
1.5 PB using 7+2 Erasure Code |
2.5 PB using 7+2 Erasure Code |
| Node count |
8x OSD nodes |
3x Mon, 10x OSD nodes |
3x Mon, 9x OSD nodes |
3x Mon, 9x OSD nodes |
| Network / Switches |
10G SFP+ / NA |
10G SFP+ / 1x SSE-X3348SR, 48 port SFP+ - Reverse Air Flow, 1x SSE-G24-TG4, 24x 1G RJ45 port switch |
10G SFP+ / 2x SSE-X3348SR, 48 port SFP+ - Reverse Air Flow, 1x SSE-G24-TG4, 24x 1G RJ45 port switch |
10G SFP+ / 2x SSE-X3348SR, 48 port SFP+ - Reverse Air Flow, 1x SSE-G24-TG4, 24x 1G RJ45 port switch |
| Rack dimensions & PDU |
NA / NA |
42U (82.4"Hx 23.5"Wx 48"D) / 2x Metered Rack PDU,NEMA
L6-30P,IEC 320 C13,C19 |
42U (82.4"Hx 23.5"Wx 48"D) / 2x Metered Rack PDU,NEMA L6-
30P,IEC 320 C13,C19 |
42U (82.4"Hx 23.5"Wx 48"D) / 2x Rack PDU 208V 50A 3-Phase |
| Subscription |
Capacity based subscription for Red Hat Ceph Storage 1.3
(includes Red Hat Enterprise Linux 7.1) |
|
|
|
|
(Cluster Role: Monitor Node)
• System: Ultra SuperServer 1028U-TNRT+
• 2x Intel® Xeon® E5-2630 v4 processors
• 4x 32GB DDR4-2400 RDIMM
• 2x 2.5" 240GB Micron 5100 PRO SATA SSD for OS
• Dual 50GbE QSFP28 via 2x Mellanox MCX413A-GCAT
• 1U with redundant Hot-swap 750W power supplies
|
|
|
(Cluster Role: OSD Node)
• System: Ultra SuperServer 1029U-TN10RT
• 2x Intel® Xeon® Platinum 8168 Processors
• 12x 32GB DDR4-2666 RDIMM
• 10x 2.5" 6.4TB Micron 9200 MAX NVMe SSDs
• 1x 240GB Micron 5100 PRO SATA M.2 for OS
• Dual 100GbE QSFP28 via 2x Mellanox MCX516A-CCAT
• 1U with redundant Hot-swap 1000W power supplies
|
|
For more information about Micron’s Solid Ready reference architecture for Ceph click here:
https://www.micron.com/~/media/documents/products/other-documents/micron_9200_ceph_3,-d-,0_reference_architecture.pdf
|
Supermicro leads the industry in user friendly options for the toughest IT challenges. Ceph Ready systems and racks offer a bare metal solution - ready for the open source community and validated through intensive testing under Red Hat Ceph Storage.
|
|
|
|
(Cluster Role: Monitor Node)
• System: SuperStorage Server 6018R-TDTPR
• 2x 2.5" 80GB SSD for OS
• 1 Internal 800GB NVMe SSD
• Dual port 10G SFP+ onboard
• 1U w/ redundant Hot-swap 500W power supplies
|
|
|
(Cluster Role: OSD Node)
• System: SuperStorage Server 6028R-E1CR12L
• 12x 3.5" 6TB SATA3 HDDs
• Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD)
• Dual port 10G SFP+ via AOC-STGN-I2S
• 2U w/ redundant Hot-swap 920W power supplies
|
|
|
(Cluster Role: OSD / Throughput Optimized Node)
• System: SuperStorage Server 6028R-E1CR12L
• 12x 3.5" 6TB SATA3 HDDs + 1x 800GB NVMe SSD
• Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD)
• Dual port 10G SFP+ via AOC-STGN-I2S
• 2U w/ redundant Hot-swap 920W power supplies
|
|
|
(Cluster Role: OSD / Capacity Optimized Node)
• System: SuperStorage Server 6048R-E1CR36L
• 36x 3.5" 6TB SATA3 HDDs
• Internal 2.5" OS drives (mirrored 80GB SSD); Broadcom 3008 IT mode controller
• Quad port 10G SFP+ via 2 AOC-STGN-I2S
• 4U w/ redundant Hot-swap 1280W power supplies
|
|
|
(Cluster Role: OSD Node)
• System: SuperStorage Server 6048R-E1CR36L
• 36x 3.5" 6TB SATA3 HDDs, 2x 800GB NVMe SSD
• Internal 2.5" OS drives (mirrored 80GB SSD); 2 Broadcom 3008 IT mode controllers
• Quad port 10G SFP+ via 2 AOC-STGN-I2S
• 4U w/ redundant Hot-swap 1280W power supplies
|
|
|
(Cluster Role: OSD /Capacity Optimized Node)
• System: SuperStorage Server 6048R-E1CR72L
• 72x 3.5" 6TB SATA3 HDDs
• Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD); 3 Broadcom 3008 IT mode controllers
• Quad port 10G SFP+ via 2x AOC-STGN-I2S
• 4U w/ redundant Hot-swap 2000W power supplies
|
|
|
(Cluster Role: OSD Node)
• System: SuperStorage Server 6048R-E1CR72L
• 60x 3.5" 6TB SATA3 HDDs, 12x 2.5" 400GB SSDs
• Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD); 3 Broadcom 3008 IT mode controllers
• Quad port 10G SFP+ via 2x AOC-STGN-I2S
• Optional 40G Mellanox networking configurations available upon request
• 4U w/ redundant Hot-swap 2000W power supplies
|
|
|
Fully Integrated Rack and Servers for Ceph (X10 Generation)
Various X10 Generation models optimized for workloads and form factors
|
|
| Supermicro Model # |
Description |
| SSG-6018R-MON2 |
1U Ceph Monitor Node |
| SSG-6028R-OSD072 |
2U-12 Ceph OSD Node, 72TB, Ceph-OSD-Storage Node |
| SSG-6028R-OSD072P |
2U-12 Ceph OSD Node, 1x 800G NVMe, 72TB, Ceph-OSD-Storage Node |
| SSG-6048R-OSD216 |
4U-36 Ceph OSD Node, 216TB, Ceph-OSD-Storage Node |
| SSG-6048R-OSD216P |
4U-36 Ceph OSD Node, 2x 800G NVMe, 216TB, Ceph-OSD-Storage Node |
| SSG-6048R-OSD432 |
4U-72 Ceph OSD Node, 432TB, Capacity Optimized Ceph-OSD-Storage Node |
| SSG-6048R-OSD360P |
4U-72 Ceph OSD Node, 12x SSDs, 360TB, Ceph-OSD-Storage Node |
| Ceph Ready Racks |
| SRS-42E112-CEPH-03 |
42U-720TB Integrated Ceph Rack. 3x Mon, 10x 2U OSD, Networking & PDU |
| SRS-42E136-CEPH-03 |
42U-1.9PB Integrated Ceph Rack, 3x Mon, 9x 4U OSD, Networking & PDU |
| SRS-42E172-CEPH-03 |
42U-3.24PB Integrated Ceph Rack, 3x Mon, 9x 4U OSD, Networking & PDU |
|
|
Red Hat Ceph Storage clusters on Supermicro storage servers:
https://www.redhat.com/en/resources/red-hat-ceph-storage-hardware-selection-guide
|
|
|
 |
|
Supermicro Rack Integration Services provides a "one-stop shop" for your data center needs. Our team has the confidence, flexibility, and expertise to handle all phases of your data center integration project. From requirements gathering to the delivery of a turn-key solution - and all phases in between - you can rely on Supermicro Rack Integration Services as your central resource for project success. With our extensive portfolio of server, storage, switch and rack products, we can provide a wide range of solutions with a focus on customer satisfaction, quality, and energy efficiency. Our global footprint, dedicated and skilled professionals, and integrated supply-chain will ensure you get what you need, when you need it, no matter where in the world you are.
|
|
|
