SuperServer F628R2-FC0PT+

  Products  Systems   FatTwin™   [ F628R2-FC0PT+ ]





Integrated Board
Super X10DRFF-CTG

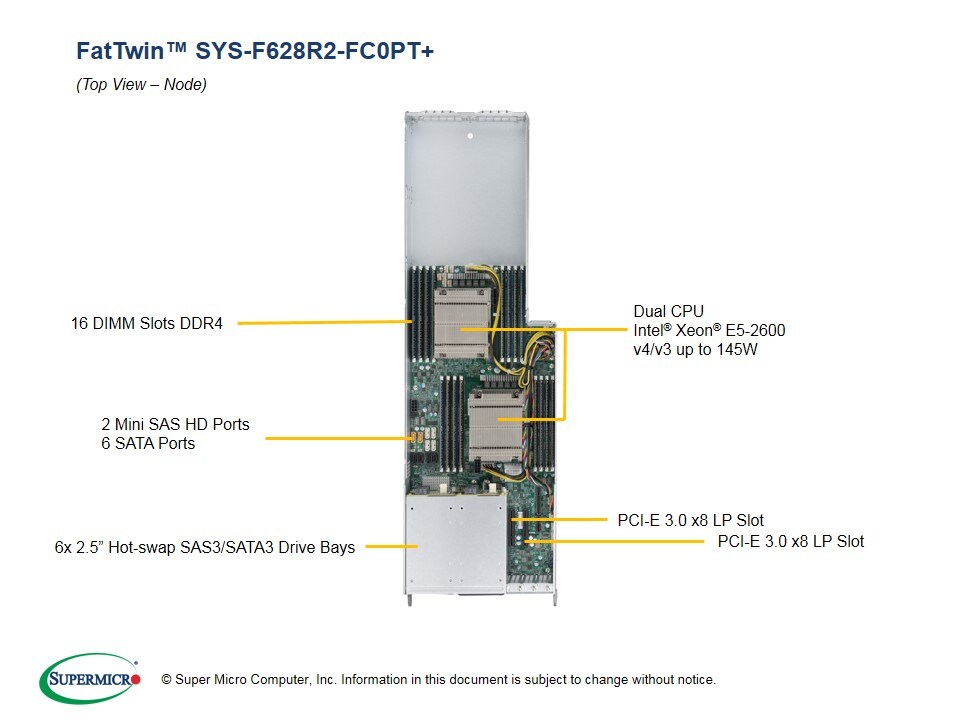

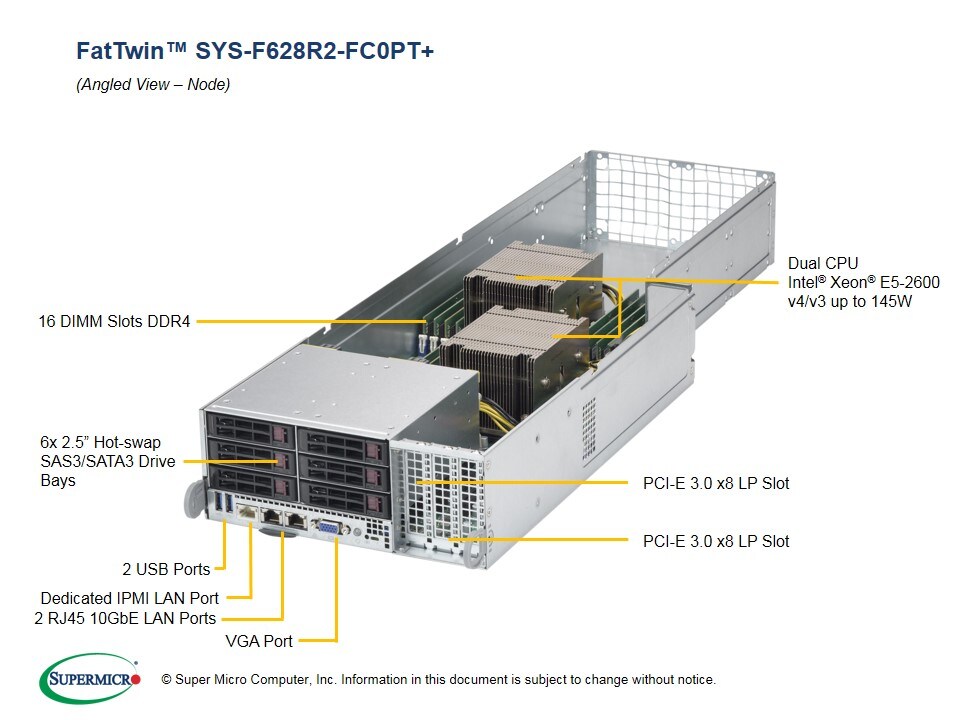

Views: | Angled (node) | Top (node) |

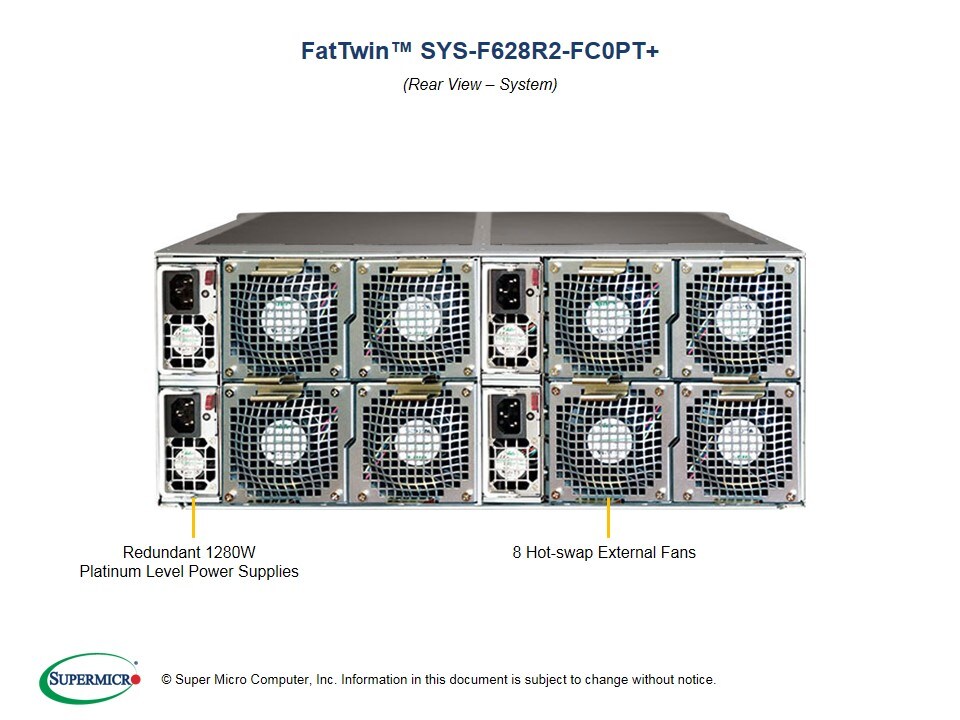

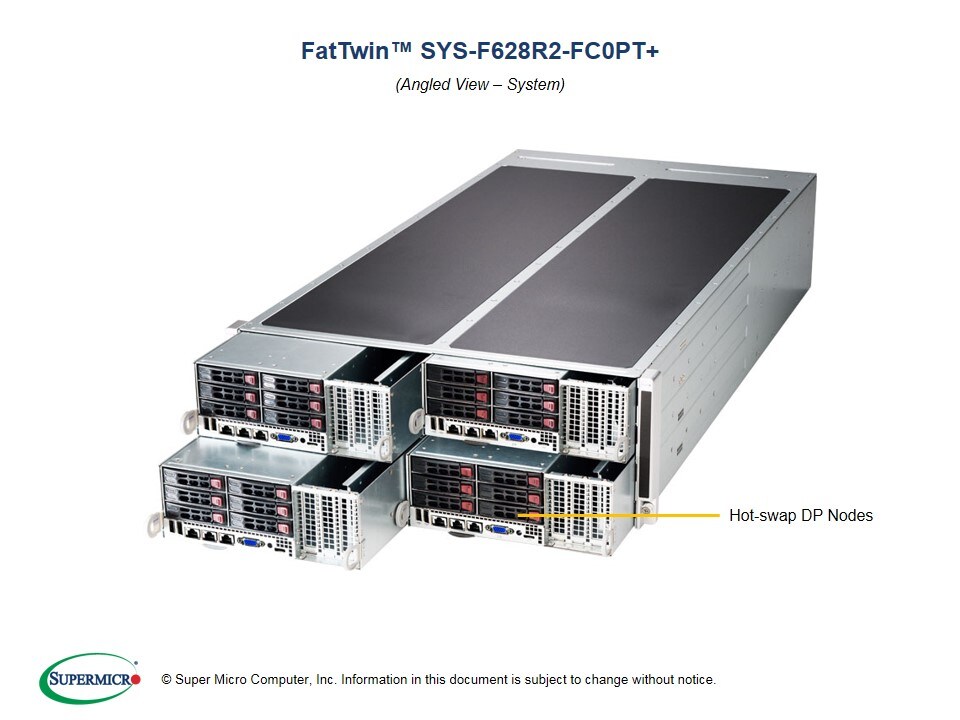

| Angled Front (system) | Rear (system) |

Key Features
4 Hot-plug System Nodes in 4U
Front I/O. Each node supports:


1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16x DIMM slots
3. 2x PCI-E 3.0 x8 (Low Profile) slots
4. Front I/O ports: 2 10GBase-T, 2 USB
    3.0, and 1 VGA connector
5. Built-in Server management tool
    (IPMI 2.0, KVM/media over LAN) with
    dedicated LAN port
6. 6x 2.5" Hot-swap SAS3 (12Gbps)
    HDDs via Broadcom 3008 controller
7. 1280W Redundant Power Supplies
    Platinum Level (95%)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options

Product SKUs
SYS-F628R2-FC0PT+
  • SuperServer F628R2-FC0PT+ (Black)

Motherboard

Super X10DRFF-CTG

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3008
  • SW RAID 0, 1, 10 support
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 100BASE-TX, 1000BASE-T, 10G Base-T; RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output (per node)
SAS
  • 6x SAS3 (12Gbps) ports
LAN
  • 2x RJ45 10GBase-T LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports
VGA
  • 1x VGA port
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F424BF-R1K28BP

Dimensions and Weight
Width
  • 17.63" (448mm)
Height
  • 6.96" (177mm)
Depth
  • 29" (737mm)
Package
  • 28.3" (W) x 15.0" (H) x 42.4" (D)
Weight
  • Net Weight: 105 lbs (47.63 kg)
  • Gross Weight: 150 lbs (68.04 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2x Network activity LEDs

Expansion Slots (per node)
PCI-Express
  • 2x PCI-E 3.0 x8 (Low Profile) slots

Drive Bays (per node)
Hot-swap
  • 6x 2.5" Hot-swap SAS3 HDD trays

Backplane
1x SAS3/SATA3 backplane

System Cooling
Fans
  • 8x 8cm 9.5K heavy duty, hot swappable fans with air shroud and PWM fan speed control

Power Supply
1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input
  • 1000W Output @ 100-140V, 8-12A, 50-60Hz
  • 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output
  • 1000W: +12V/83A; +5Vsb/4A
  • 1280W: +12V/106.7A, +5Vsb/4A
Certification Platinum Level Certified95%+
  Platinum Certified
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRFF-CTG
CSE-F424BF-R1K28BP
4
1
Super X10DRFF-CTG Motherboard
4U Chassis
Backplane BPN-ADP-F418L 4 BPN;SASADP;SAS827-H8;H8DTT;cable req
Backplane BPN-SAS3-F424-B6 4 6-port Fat Twin SAS3 12Gbps backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-0460L-02 4 8 pin Male to two 4 pin Male power cable, 10cm and 7cm. 18AWG
Cable 2 CBL-SAST-0759 8 MINI SAS HD-4 SATA,12G,INT,15CM,15CM SB,30AWG
Cable 3 CBL-PWCD-0900 4 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1755-QRG 1 A Quick Reference Guide for SYS-F628R2-FC0(PT)+,HF,RoHS/REACH
Heatsink / Retention SNK-P0048PS 8 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-1K28P-SQ 4 1U 1280W, redundant single output power supply


Optional Parts List
  Part Number Qty Description
Software SFT-OOB-LIC 4 OOB Management Package (per node license)
Software SFT-DCMS-Single 4 DataCenter Management Package (per node license)
Hide Parts List

Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Certain products may not be available in your region
