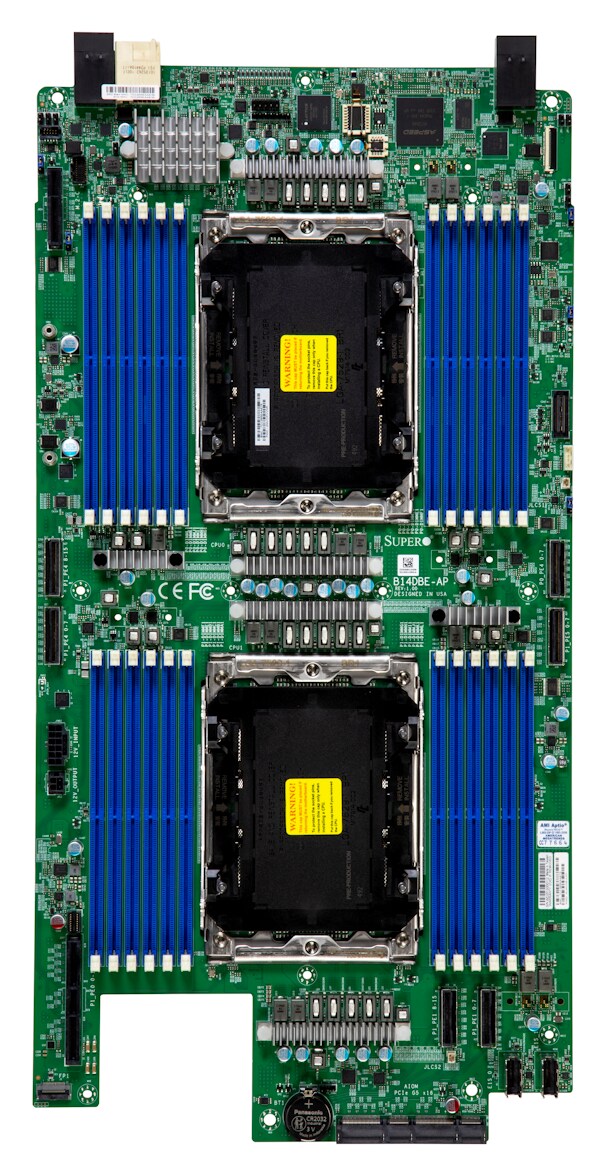

B14DBE-AP (Sólo para SuperServer)

B14DBE-AP
X14 DP SuperBlade Server Board

Key Features


  1. 6th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-7529 (Socket BR) supported, CPU TDP supports Up to 500W
  2. Support DDR5 with up to speeds of 6400MT/s (RDIMM) or 8800MT/s (MRDIMM) in 24 DIMM slots
  3. 1 PCIe 5.0 x16 AIOM slot
  4. M.2 Interface: 2 PCIe5.0 x4M.2 Form Factor: 2280, 22110M.2 Key: M-Key
  5. 7 PCIe 5.0 x8 MCIO connectors
  6. 1 PCIe 5.0 x16 riser card slot
...
...

Optimized Servers


SBI-622BA-1NE12-LCC
Specifications Resources
Specifications
Product SKUs
MBD-B14DBE-AP
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 9.57" x 19.05" (24.31cm x 48.39cm)
Processor
CPU
Core Count
  • Up to 128C
Note
  • Supports up to 500W TDP CPUs
System Memory
Memory
  • Slot Count: 24 DIMM Slots
DIMM Sizes
  • MRDIMM:32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • RDIMM:32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
Network Controller
  • Dual LAN with Intel® Ethernet Controller E810-XXVAM2
  • AIOM for LAN
Input / Output
TPM
  • 1 TPM 2.0 onboard
Expansion Slots
PCI-Express (PCIe) Configuration
  • 7 PCIe 5.0 x8 via MCIO Connector slots
  • 1 PCIe 5.0 x16 slot
M2
  • 2 M.2 PCIe 5.0 x4 slots (M-key 2280/22110; M.2 requires AOM-B-2M5 adapter card)
System BIOS
BIOS Type
  • AMI 64MB UEFI
BIOS Features
  • ACPI 6.5
  • SMBIOS 3.7 or later
  • UEFI 2.9
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +12V,+3.3V,+3.3V standby,+5V,+5V standby,ACPI power management,BMC/IPMI Heartbeat LED,DIMM temperature,NVMetemperature,PCH temperature,Peripheral temperature,Platform Environment Control Interface (PECI)/(TSI),System temperature,Vcore,Vmem
Other Features
  • Control of power-on for recovery from AC power loss
  • CPU thermal trip support
