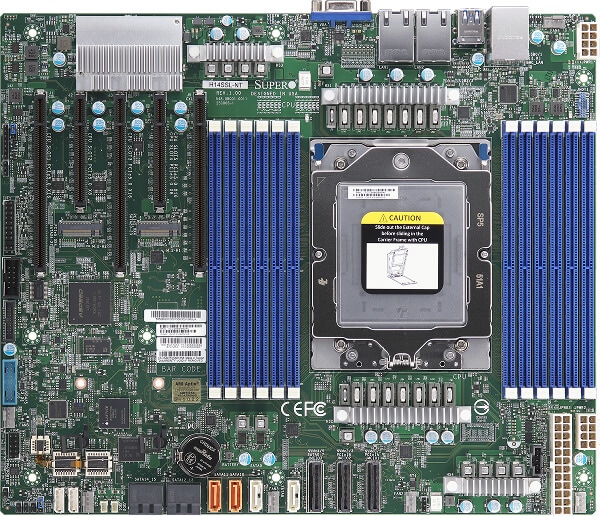

H14SSL-NT

H14 UP Mainstream Server Board

Key Features

ASPEED AST2600 BMC graphics
6 PWM 4-pin Fans with tachometer status monitoring
M.2 Interface: 2 PCIe 4.0 x4, M.2 Form Factor: 2280, 22110
AMD EPYC™ 9005/9004 Series Processors
System on Chip
Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s (Please check System Memory Section for detail)
3 PCIe 5.0 x16, 2 PCIe 5.0 x8
2x 10GBase-T LAN Ports via Broadcom BCM57416
Up to 6 USB 3.0 ports(4 rear + 2 via header)
8 SATA3

...

...

Optimized Servers

AS -2116S-TNRT AS -2116S-FTNRT

Specifications

Product SKUs
MBD-H14SSL-NT

Physical Stats
Form Factor	ATX
Dimension	12" x 10.1" (30.48cm x 25.65cm)

Processor
CPU	Procesadores AMD EPYC™ de la serie 9005/9004 Single Socket SP5 supported, CPU TDP supports Up to 500W TDP
Core	Up to 192 cores, 384 threads

System Memory
Memory Capacity	12 DIMM slots Up to 3TB 3DS ECC Registered RDIMM, DDR5-6400MT/s
Memory Type	6400 MT/s ECC DDR5 RDIMM (3DS) Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM/3DS (AMD EPYC™ 9005 Series Processor)
DIMM Sizes	16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	System on Chip
Network Controllers	Dual LAN with Broadcom BCM57416 10GBase-T

Input / Output
LAN	1 RJ45
Serial Port	1 COM
Others	1 MCIO (PCIe 5.0 x8/SATA3) Hybrid 2 MCIO (PCIe 5.0 x8/SATA3)

Expansion Slots
PCIe	3 PCIe 5.0 x16 (in x16 slot), 2 PCIe 5.0 x8
M.2	M.2 Interface: 2 PCIe 4.0 Form Factor: 2280/22110 Key: M-key

System BIOS
BIOS Type	AMI 64MB SPI Flash EEPROM AMI 64MB SPI Flash EEPROM AMI 64MB SPI Flash EEPROM
BIOS Features	SMBIOS 3.7 or later

Management
Software	SuperCloud Composer®, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) ¡Nuevo!, Plug-ins para software de terceros

Security
Hardware	Trusted Platform Module (TPM) 2.0

PC Health Monitoring
Voltage	VBAT, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 1.8V standby
LED	UID/remote UID LED BMC/IPMI Heartbeat LED
Temperature	CPU thermal trip support Memory temperature CPU temperature VRM temperature
Other Features	RoT
FAN	6x 4-pin fan headers (up to 6 fans)

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Publish Status
0	Published

Resources

Servers (Optimized for H14SSL-NT)

AS -2116S-TNRT

AS -2116S-FTNRT

...

Component Options

Software

Documentation

Parts List

Standard Parts (Bulk Package)
	Part Number	Qty	Description
I/O Shield	MCP-260-00073-0N	1	Standard I/O Shield
SATA Cables	CBL-0044L •	6	57.5CM SATA FLAT S-S PBF

Standard Parts (Retail Package)
	Part Number	Qty	Description
I/O Shield	MCP-260-00073-0N	1	STD I/O SHIELD
SATA Cables	CBL-0044L •	6	57.5 cm SATA FLAT S-S PBF

Optional Parts
	Part Number	Qty	Description
TPM security module (optional, not included)	AOM-TPM-9670V	1	SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
