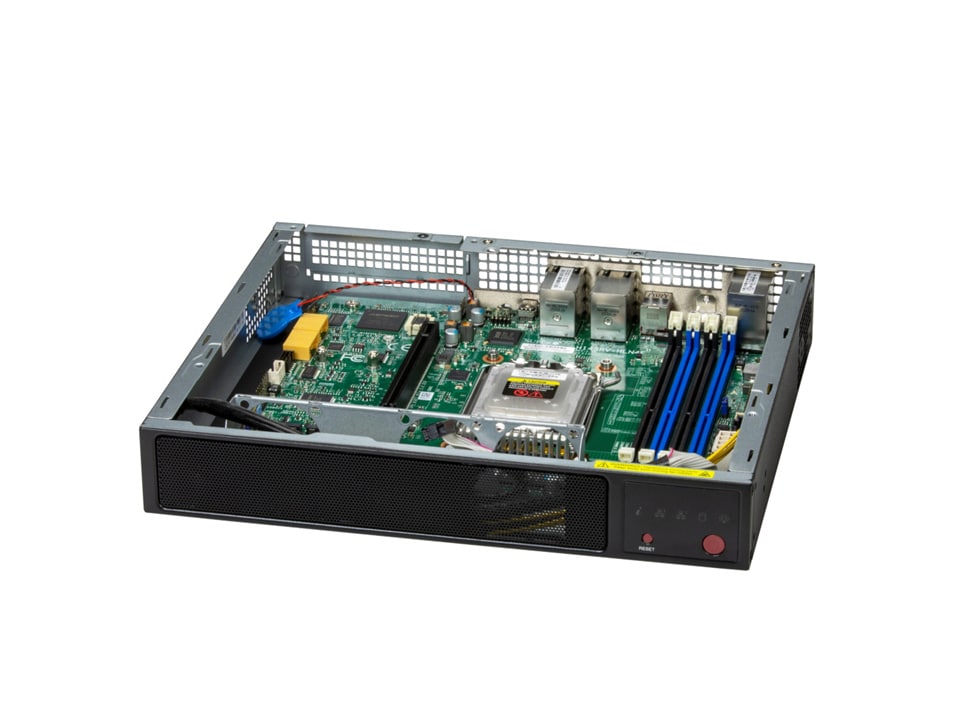

SuperServer -E300-14GR

Mini-1U Embedded System with AMD EPYC™ 4004/4005 or Ryzen™ 7000/9000 Series Processor up to 65W TDP

Integrated Board: H14SRV-HLN4F
Más información

Key Applications

  • Healthcare
  • Surveillance Security Server
  • AI Inference
  • Digital Signage / PoS

Key Features

  1. Single AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 Series Processors up to 65W with air cooling
  2. Support for PCIe GPU accelerator cards
  3. Up to 4 DIMMs supporting up to 192GB DDR5-5600 UDIMM
  4. Up to 1 PCIe 5.0 x16 LP slots
  5. Up to 1 internal fixed 2.5" SATA drive bays
  6. 1 180W power supply
  7. Fan-based Embedded chassis with 8.89" (225.8mm) depth
...
...
AS-E300-14GR
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
A+ Server AS -E300-14GR
Motherboard
Super H14SRV-HLN4F
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors
Core Count
  • 16C/32T; 64MB Cache
Note
  • Supports up to 65W TDP CPUs (Air Cooled)
System Memory
Memory
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • AMD B650
Network Connectivity

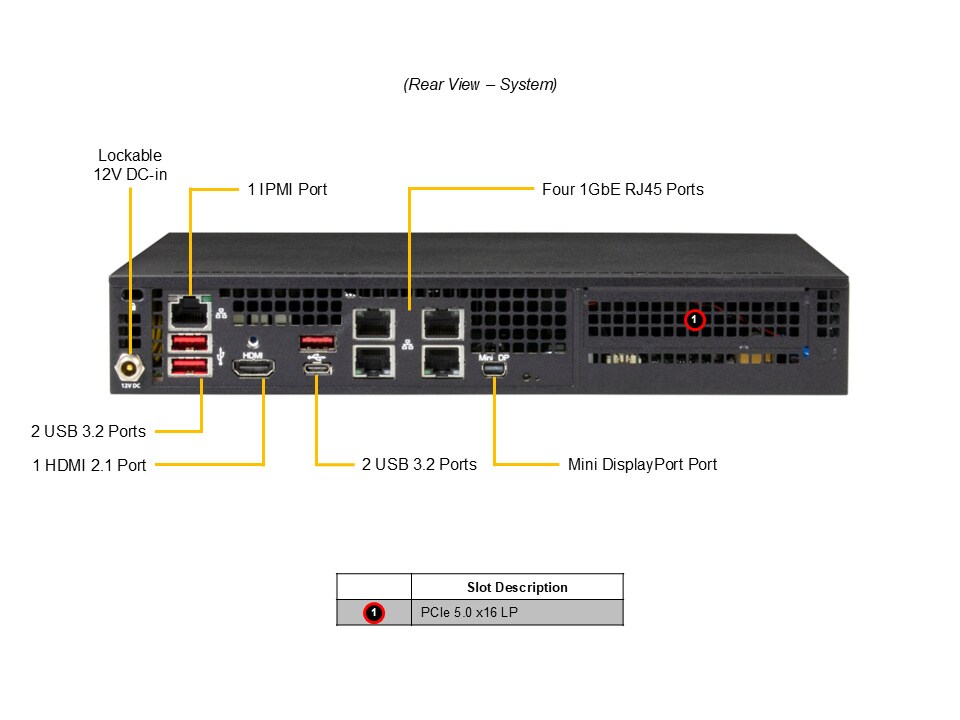

Input / Output
LAN
  • 4 RJ45 1 GbE LAN ports (Intel® I350-AM4)
  • 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600)
USB
  • 2 USB 3.2 Gen2 Type-A ports(Rear)
  • 1 USB 3.2 Gen1 Type-A port(Rear)
  • 1 USB 3.2 Gen1 Type-C port(Rear)
Video
  • 1 HDMI 2.1 port(Rear)
  • 1 Mini-DP port(Rear)
TPM
  • 1 TPM header
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 32MB UEFI
BIOS Features
  • ACPI 6.5
  • SMBIOS 3.7 or later
  • UEFI 2.9
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
FAN
  • Status monitor for speed control
Chassis
Form Factor
  • Fan-based Embedded
Model
  • CSE-E300
Dimensions and Weight
Height
  • 1.69" (43 mm)
Width
  • 10.43" (264.8 mm)
Depth
  • 8.89" (225.8 mm)
Package
  • 10.87" (H) x 15" (W) x 5.59" (D)
Weight
  • Gross Weight: 7.5 lbs (3.4 kg)
  • Net Weight: 3.7 lbs (1.6 kg)
Palletized Packing (W x H x L)
  • 54.33" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm)
Available Color
  • Black

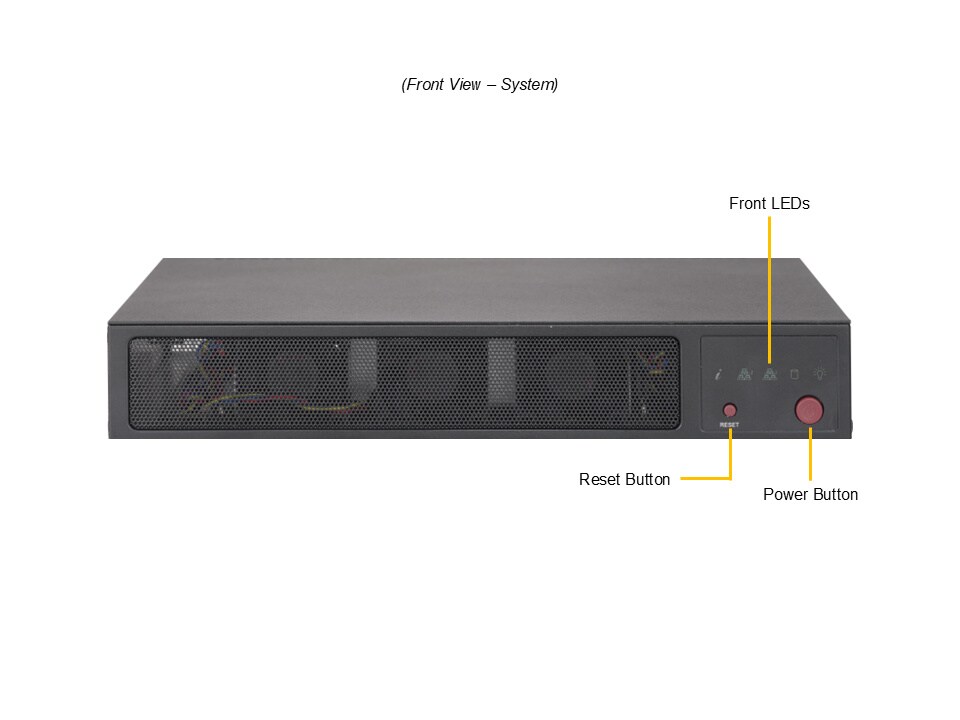

Front Panel
Buttons
  • Power On/Off
LED
  • HDD Status
  • LAN1 activity
  • LAN2 activity
  • Power status
  • WIFI activity
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default*
    • 1 PCIe 5.0 x16 (in x16) LP slot

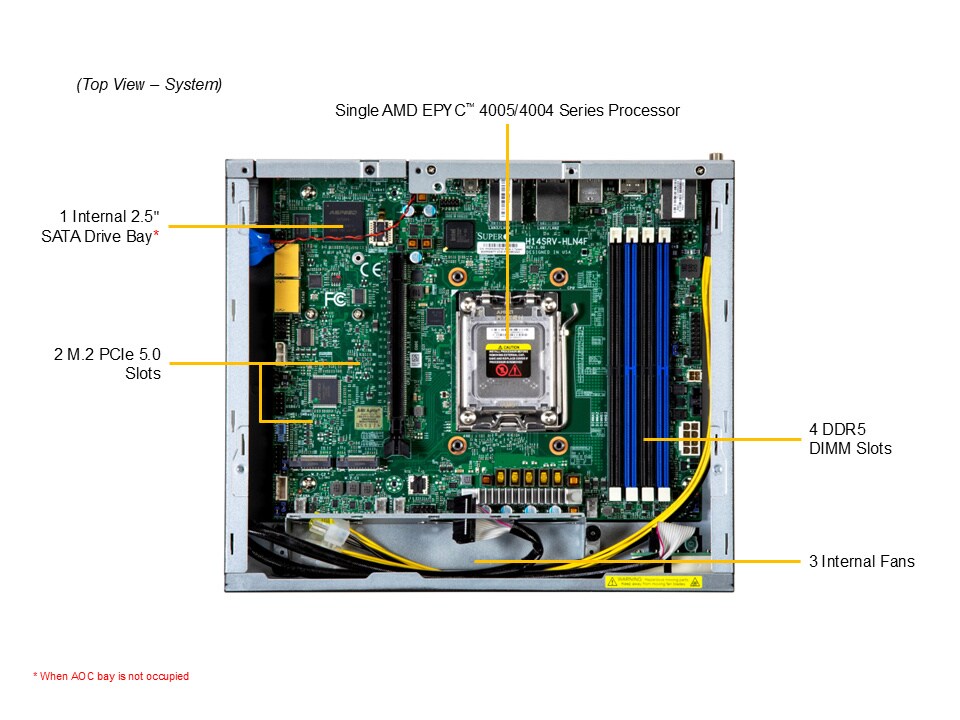

  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • Ver opciones de AOC
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 1 bay
    • 1 internal fixed 2.5" SATA* drive bay
  • (*SATA support may require additional storage controller and/or cables)
  • Ver opciones de accionamiento
M.2
  • 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280)
  • 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 22110)
System Cooling
Fans
  • Up to 1 CPU heatsink with 70x70x15mm Fan(s)
  • Up to 2x 4-PIN PWM 40x40x28mm Fan(s)
Power Supply
1x 180W
1x 180W power supply
Dimension (WxHxL)151.3 x 25.4 x 75.6 mm
Input180W: 100-240Vac / 47-63Hz
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s airflow
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Programar el acceso
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
2.5" SATA Drive kits CBL-MCIO-1250QT4Q-85 1 MCIO to SATA cable, 50CM
CBL-PWEX-1030 • 1 SATA power cable, 20CM
Expansion slot kits RSC-S-6G5 1 1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
GPU air shroud MCP-310-30001-0B 1 Air shroud for NVIDIA Low profile GPU card(T4/A2/L4)
Rackmount kits MCP-290-30002-0B • 1 CSE-E300 Rackmount kit with power adapter holder
