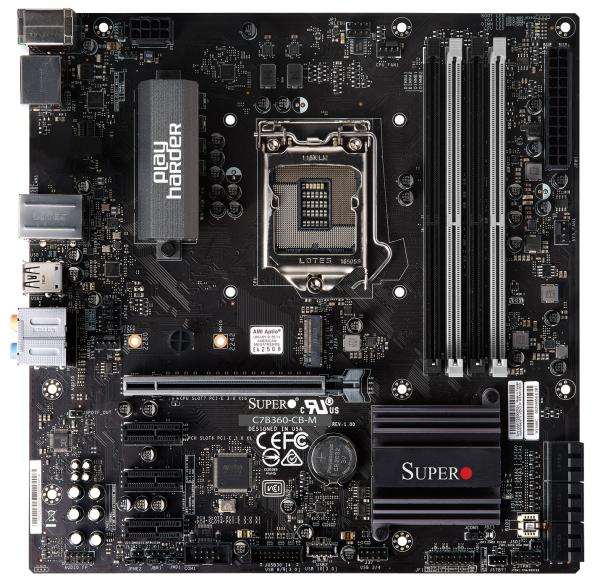

Supermicro Motherboard Xeon Boards C7B360-CB-M

Desktop
Key Features

  1. 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
  2. Intel® B360 Express
  3. Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  4. 1 PCI-E 3.0 x16 (in x16 slot),
    3 PCI-E 3.0 x1
    M.2 Interface: 1 PCI-E 3.0 x4
    M.2 Form Factor: 2242/2260/2280
    M.2 Key: M-Key
  5. 1 HDMI port, 1 DP (DisplayPort) port
  6. Single LAN with Intel® single Ethernet PHY i219V

Links & Resources

Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-C7B360-CB-M
  • C7B360-CB-M

Physical Stats
Form Factor
  • microATX
Dimensions
  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor/Cache
CPU
  • 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor
  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
  • Core i7 8086K is not supported, All of K code CPU will be supported but no overclocking function because of Intel spec. limitation

System Memory
Memory Capacity
  • Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type
  • 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • Intel® B360 Express
SATA
  • 6 SATA3 (6 Gbps) ports; Intel B360 Express Controller
Network Controllers
  • Single LAN with Intel® single Ethernet PHY i219V

Input / Output
SATA
  • 6 SATA3 (6Gbps) ports
USB
  • 5 USB 2.0 ports (3 rear + 2 via headers)
  • 4 USB 3.2 Gen1 ports (1 rear + 3 via headers)
  • 2 USB 3.2 Gen2 ports (2 rears (1 Rear Type A + 1 Rear Type C)
Video Output
  • 1 HDMI port, 1 DP (DisplayPort) port
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Others
  • RGB header (4 pins)
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x16 (in x16 slot),
  • 3 PCI-E 3.0 x1
M.2
  • M.2 Interface: 1 PCI-E 3.0 x4
  • Form Factor: 2242/2260/2280
  • Key: M-Key

System BIOS
BIOS Type
  • UEFI 256Mb
BIOS Features
  • ACPI 3.0 / 4.0

Management
Software
  • SuperDoctor® 5, Watchdog
Power Configurations
  • ACPI Power Management

PC Health Monitoring
Voltage
  • +1.8V, +3.3V, +5V, +5V standby, 3 -fan status, 3.3V standby, Chassis intrusion header, HT, Memory, VBAT
FAN
  • 3x 4-pin fan headers (up to 3 fans), PWM fan speed control
Temperature
  • CPU thermal trip support
LED
  • 12 LEDs for RGB display at board edge
Other Features
  • 12V DC or ATX Power Source, 8-pin 12v DC power connector, Chassis intrusion header, M.2 NGFF connector, RoHS
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C7B360-CB-M 1 C7B360-CB-M Motherboard

Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-C7B360-CB-M 1 C7B360-CB-M Motherboard
C.A. SATA 7P TO 7P 500MMCBL-SAST-1000-21C.A. SATA 7P TO 7P 500MM
SATA cableCBL-SAST-1001-21SATA cable
C7B360-CB-MW Back Plate (I/O Shield) MCP-260-00123-0N 1C7B360-CB-MW Back Plate (I/O Shield)
C7B360-CB-MW Giftbox 1C7B360-CB-MW Giftbox
QRG C7B360MNL-2026-QRG-1001Quick Installation Guide (B5 size / multi-language)
C7B360-CB-MW series driver CD1C7B360-CB-MW series driver CD
1

Chassis (Optimized for

C7B360-CB-M

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SCDS3A-261B
SC731i-403B
SCGS5A-753K
SCGS5A-753R

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


C7B360-CB-M

Certain products may not be available in your region
