AOC-MIBE6-m1C(M)

AOC-MIBE6-m1C

Key Features	Super I/O Module (SIOM) Form Factor Port: 1 QSFP28 port Speed: 100Gbps InfiniBand EDR/HDR-100 or 100Gbps Ethernet Controller: Mellanox® ConnectX-6 VPI

AOC-MHIBE-m1CG(M)

AOC-MHIBE-m1CG

Key Features	Super I/O Module (SIOM) Form Factor Port: 1 QSFP28 port / 1 RJ45 port Speed: 100Gbps InfiniBand EDR or 100Gbps Ethernet / 1Gbps Controller: Mellanox® ConnectX-4 VPI / Intel® i210

AOC-MHIBF-m2Q2G(M)

AOC-MHIBF-m2Q2G

Key Features	Super I/O Module (SIOM) Form Factor Port: 2 QSFP ports / 2 RJ45 ports Speed: 56Gbps InfiniBand or 40Gbps Ethernet / 1Gbps Controller: Mellanox® ConnectX-3 Pro / Intel® i350

AOC-MHIBF-m1Q2G(M)

AOC-MHIBF-m1Q2G

Key Features	Super I/O Module (SIOM) Form Factor Port: 1 QSFP port / 2 RJ45 ports Speed: 56Gbps InfiniBand or 40Gbps Ethernet / 1Gbps Controller: Mellanox® ConnectX-3 Pro / Intel® i350

AOC-MCX556A-ECAT

AOC-MCX556A-ECAT

Key Features	Standard Low-profile Mellanox EDR IB (100Gb/s) and 100GbE card with 2 QSFP28 ports Interface: PCI-E 3.0 x16 Port: 2 QSFP28 ports Speed: 100Gb IB or 100GbE per port

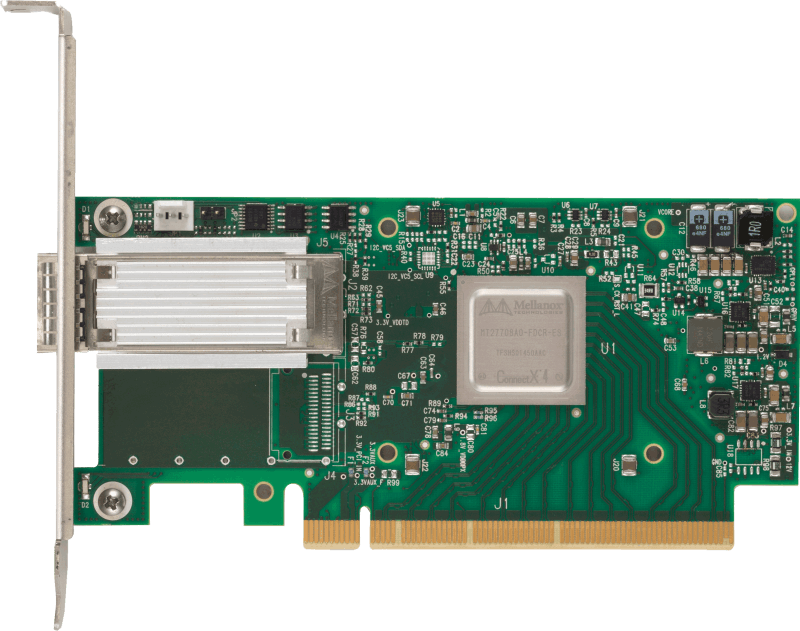

AOC-MCX455A-ECAT

AOC-MCX455A-ECAT

Key Features	Standard Low-profile Mellanox EDR IB (100Gb/s) and 100GbE card with 1x QSFP28 ports Interface: PCI-E 3.0 x16 Port: 1 QSFP28 port Speed: 100Gb IB or 100GbE/port

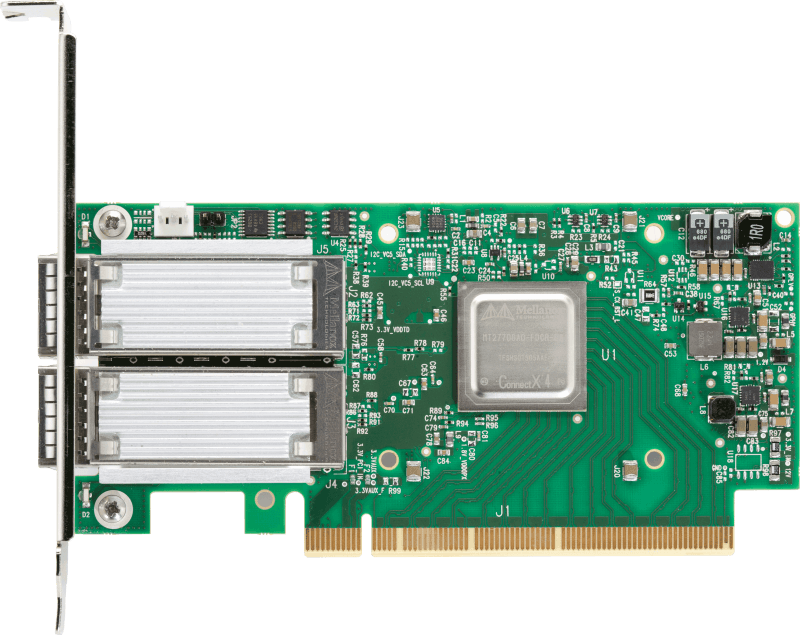

AOC-MCX456A-ECAT

AOC-MCX456A-ECAT

Key Features	Standard Low-profile Mellanox EDR IB (100Gb/s) and 100GbE card with 2x QSFP28 ports Interface: PCI-E 3.0 x16 Port: 2 QSFP28 ports Speed: 100Gb IB or 100GbE/port

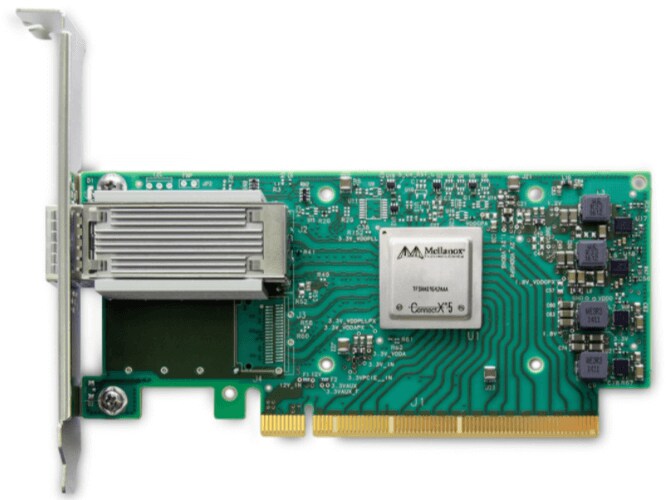

AOC-MCX555A-ECAT

AOC-MCX555A-ECAT

Key Features	Standard Low-profile Mellanox EDR IB (100Gb/s) and 100GbE card with 1 QSFP28 port Interface: PCI-E 3.0 x16 Port: 1 QSFP28 port Speed: 100Gb IB or 100GbE

AOC-653105A-ECAT

AOC-653105A-ECAT

Key Features	Standard Low-profile Mellanox EDR IB (100Gb/s) and 100GbE card with 1 QSFP56 port Interface: PCI-E 3.0/4.0 x16 Port: 1 QSFP56 port Speed: 100Gb IB or 100GbE

AOC-653106A-HDAT

AOC-653106A-HDAT

Key Features	Standard Low-profile Mellanox HDR IB (200Gb/s) and 200GbE card with 2 QSFP56 ports Interface: PCI-E 4.0 x16 Port: 2 QSFP56 ports Speed: 200Gb IB or 200GbE per port

AOC-653105A-HDAT

AOC-653105A-HDAT

Key Features	Standard Low-profile Mellanox HDR IB (200Gb/s) and 200GbE card with 1 QSFP56 port Interface: PCI-E 4.0 x16 Port: 1 QSFP56 port Speed: 200Gb IB or 200GbE

AOC-653106A-ECAT

AOC-653106A-ECAT

Key Features	Standard Low-profile Mellanox EDR IB (100Gb/s) and 100GbE card with 2 QSFP56 ports Interface: PCI-E 3.0/4.0 x16 Port: 2 QSFP56 ports Speed: 100Gb IB or 100GbE
