Maximum Compute Density for AI Training & Inferencing and Visualization
Designed for scale-up and scale-out HPC and Visualization workloads, the new Intel Data Center GPU Max Series is Intel’s highest density GPU and can be integrated into a range of Supermicro systems for maximum accelerated compute performance.
- PCIe form factor supporting up to 300W TDP, with future iterations to support Open Accelerator Module (OAM) for even greater power and performance
- 408MB of L2 cache amd 64MB of L1 cache to increase throughput
- The industry’s only HPC/AI GPU with native ray tracing acceleration
- Direct interconnect of up to 4 GPUs via Xe Link bridges
- Optimized to work with 4th Gen Intel® Xeon® Scalable processors including Intel Xeon Max CPUs

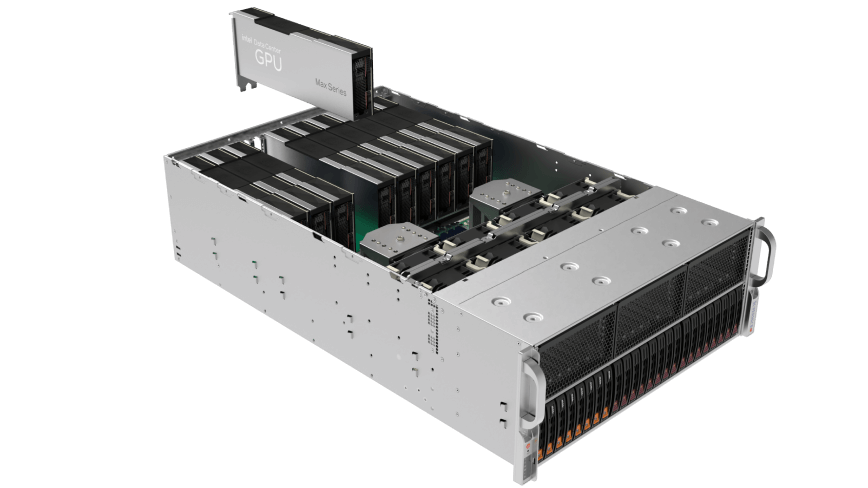

HPC-Optimized
Maximum GPU capacity for and flexibility for intensive HPC and AI applications with up to 10 GPUs in a 4U chassis
- GPU: Up to 10 Intel® Data Center GPU Max Series (in PCIe 5.0 x16)
- CPU: Dual 4th Gen Intel® Xeon® Scalable Processors
- Memory: 32 DIMMs; up to 8TB DDR5, support for with Intel® Optane® Persistent Memory
- Drives: 8x 2.5” SAS/SATA hybrid + 8x 2.5”
- U.2 NVMe direct to CPU + 8x 2.5” U.2 NVMe
- direct to storage (optional)

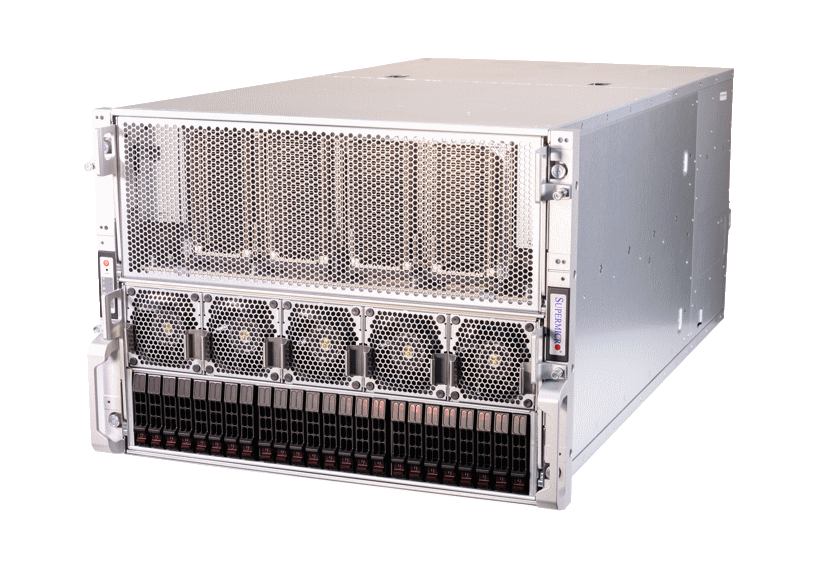

Optimized for Large-Scale AI Training, Generative AI and HPC
- GPU: 8 Intel® Data Center GPU Max 1550 (600W) OAM (Codenamed Ponte Vecchio)
- Performance: 6.7 petaFLOPS FP16/BF16
- GPU memory: 1TB HBM2
- GPU memory bandwidth: 3,276.8 GB/s
- GPU to GPU interconnect: 742 GB/s XeLink Scale Up Bandwidth
- Open ecosystem with oneAPI
- CPU: Dual 4th Gen Intel® Xeon® Scalable Processors
- Memory: 32 DIMM slots; up to 8TB DDR5
- Drives: Up to 24 hot-swap 2.5" NVMe/SATA
- Support for GPU/CPU air cooling and liquid cooling
For Media Processing & Delivery, Transcoding, Cloud gaming, AI Visual Inferencing
As demand for media and game streaming and visual inferencing continues to increase rapidly, organizations need efficient, scalable solutions that can deliver services to thousands to millions of concurrent users without affecting quality or latency. Supermicro's accelerated computing solutions feature the new Intel Data Center GPU optimized for media and cloud workloads.
Intel GPUs support an open, standards-based software stack optimized for density and quality with critical server capabilities for high reliability, availability and scalability in media processing, media delivery, AI visual inference, cloud gaming and virtualization.
- Video Transcode: 30+ 1080p Streams
- Cloud Gaming: 40+ Game Streams
- Virtual Desktop Infrastructure: 62 Virtualized Functions
- Inference: 150 AI TOPS
- Up to 4 Xe Media Engines
- Up to 32 Xe Cores & Ray Tracing Units
- Industry First AV1 HW Encode & Decode
- XMX AI Acceleration Built in
Watch the TechTalk
Supermicro’s Senior Director, Technology Enablement Thomas Jorgensen sits down to discuss the unique advantages of Supermicro systems based on Intel Data Center GPU Flex Series.
Solution Brief
Supermicro and Intel collaborated to deliver outstanding performance for a large-scale cloud gaming platform establishing over 560 1080p @60Hz transcoded streams per system.
4K Streaming Demo
This video demonstrates Supermicro's real-time 4K video streaming solution using Intel Data Center GPU Flex Series, with up to 8 simultanous streams from a single GPU.
Transcoding Optimized
High performance design for maximum media processing performance, with up to 10 GPUs in a 4U chassis
- GPU: Up to 10 Intel® Data Center GPU Flex Series (in PCI-E 4.0 x16)
- CPU: Dual 3rd Gen Intel® Xeon® Scalable Processors
- Memory: 32 DIMMs; up to 8TB, or 12TB with Intel® Optane® Persistent Memory
- Drives: 24x 2.5” hot-swap drive bays (8x NVMe/8x SATA/8x SATA/SAS)
Media Delivery Optimized
Multi-node system with high compute density optimized for media and gaming streaming at the cloud Edge
- GPU: Up to 2 Intel® Data Center GPU Flex Series per node (in PCI-E 4.0 x16)
- CPU: Dual 3rd Gen Intel® Xeon® Scalable Processors per node
- Memory: 20 DIMMs; up to 4TB, or 6TB per node with Intel® Optane® Persistent Memory
- Drives: 6x 2.5” hot-swap NVMe/SATA drive bays per node
Cloud Gaming Optimized
Multi-node system designed for high-density GPU configurations in a 2U form factor
- GPU: Up to 3 Intel® Data Center GPU Flex Series per node (in PCI-E 4.0 x16)
- CPU: Single 3rd Gen Intel® Xeon® Scalable Processor per node
- Memory: 8 DIMMs; up to 2TB per node
- Drives: 2x 2.5” hot-swap U.2 NVMe drive bays per node
Visual Inferencing Optimized
Scalable platform with up to 6 GPUs designed for image AI processing in the cloud
- GPU: Up to 6 Intel® Data Center GPU Flex Series per node (in PCI-E 4.0 x16/x8)
- CPU: Dual 3rd Gen Intel® Xeon® Scalable Processors
- Memory: 16 DIMMs; up to 4TB, or 6TB with Intel® Optane® Persistent Memory
- Drives: 12x 2.5”/3.5” hot-swap NVMe/SAS/SATA hybrid drive bays
Visual Inferencing Optimized
Compact edge platform with up to 2 GPUs
- GPU: Up to 2 Intel® Data Center GPU Flex Series
- CPU: Single 3rd Gen Intel® Xeon® Scalable processor up to 32 cores
- Memory: 8 DIMMs
- Drives: 4x 2.5” internal SATA drive bays
Visual Inferencing Optimized for Edge
1U compact edge platform with up to 2 GPUs
- GPU: Up to 2 Intel® Data Center GPU Flex Series
- CPU: Single 3rd Gen Intel® Xeon® Scalable processor up to 32 cores
- Memory: 8 DIMMs
- Drives: 2x 2.5" drive bays & 1x M.2 NVMe or 1x M.2 SATA3
For Cloud Scale AI Training
Demand for high-performance AI/Deep Learning (DL) training compute has doubled in size every 3.5 months since 2013 (according to OpenAI) and is accelerating with the growing size of data sets and the number of applications and services based on computer vision, natural language processing, recommendation systems, and more. With the increased demand for greater training performance, throughput, and capacity, the industry needs training systems that offer increased efficiency, lower cost, ease of implementation, flexibility to enable customization, and scaling of training systems. AI has become an essential technology for diverse areas such as virtual assistants, manufacturing operations, autonomous vehicle operations, and medical imaging, to name a few. Supermicro has partnered with Habana Labs to address these growing requirements.

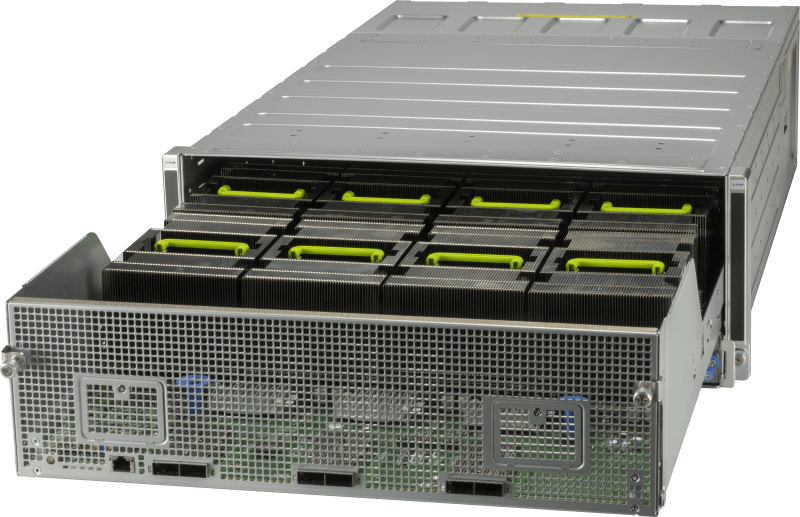

AI Training Optimized
The Supermicro X12 Gaudi AI Training System prioritizes two key real-world considerations: training AI models as fast as possible, while simultaneously reducing the cost of training with unprecedented scale-out bandwidth.
- GPU: 8 Gaudi HL-205 mezzanine cards
- CPU: Dual 3rd Gen Intel® Xeon® Scalable Processors
- Memory: 32 DIMMs: up to 8TB registered ECC DDR4-3200MHz SDRAM
- Drives: 4 hot-swappable NVMe/SATA hybrid hard drives
- Power: 4x 3000W Titanium Level redundant power supplies
- Networking: 24x 100GbE RDMA (6 QSFP-DDs)
- Workloads: AI Training and Inferencing
Computer Vision Applications:
- Manufacturing defect detection, resulting in better products with fewer warranty issues
- Fraud detection, saving billions of dollars annually
- Inventory management, allowing enterprises to become more efficient
- Medical imaging to detect abnormalities
- Identification of photos and videos to enhance security
Language Applications
- Question answering
- Subject matter queries
- Chatbots and translations
- Sentiment analysis for recommendation systems
Supermicro Gaudi®2 AI Training Server (SYS-820GH-TNR2)
Building on the success of the original Supermicro Gaudi AI training system, the Gaudi2 AI Training Server prioritizes two key real-world considerations: integrating multi AI training system to analyze diverse AI models faster, while simultaneously multiple scalability function and price advantages.
- GPU: 8 Gaudi2 HL-225H mezzanine cards
- CPU: Dual 3rd Gen Intel® Xeon® Scalable processors
- Memory: 32 DIMMs - up to 8TB registered ECC DDR4-3200MHz SDRAM
- Drives: up to 24 hot-swappable hard drives (SATA/NVMe/SAS)
- Power: 6x 3000W High efficiency (54V+12V)
- Networking: 24x 100GbE (48 x 56Gb) PAM4 SerDes Links by 6 QSFP-DDs
- Expansion Slots: 2x PCI Gen4 switches
- Workloads: AI Training and Inferencing
| Habana Gaudi AI Training System Specifications | X12 Gaudi AI Training Server | Gaudi2 AI Training Server |
|---|---|---|
| Processor Support | Dual 3rd Gen Intel® Xeon® Scalable processors, Socket P+ (LGA-4189), up to 270W TDP | Dual 3rd Gen Intel® Xeon® Scalable processors, Socket P+ (LGA-4189), up to 270W TDP |
| Serverboard | X12DPG-U6 | X12DPG-OA6-GD2 |
| System Memory | 32x DIMM slots, 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIM | 32x DIMM slots, 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIM |
| AI Processors | 8x Habana Gaudi AI processors on OAM mezzanine cards, 350W TDP, passive heatsinks | 8x Habana Gaudi2 AI processors on OAM mezzanine cards, 600W TDP, passive heatsinks |
| Expansion Slots | Dual x16 PCIe AIOM (SFF OCP 3.0 superset) plus single x16 PCIe 4.0 full height, half-length expansion slot | Dual x16 PCIe 4.0 Full height, Dual x8 PCIe 4.0 Full height |
| Connectivity | 1x 1GbE dedicated IPMI LAN via RJ45, 6x 400Gb QSFP-DD ports, 2x USB 3.0 | 1x 1GbE dedicated IPMI LAN via RJ45, 6x 400Gb QSFP-DD ports, 2x USB 3.0 |
| VGA/Audio | VGA via BMC | VGA via BMC |
| Drive Bays | 4x internal 2.5" hot-swap NVMe/SATA/SAS Drive Bays. | 4x 2.5" hot-swap NVMe, 8 x SATA, 8 x SAS Drive Bays. |
| Storage | 2x M.2 NVMe OR 2x M.2 SATA3 | 2x M.2 PCIe 3.0 x4 slots |
| Power Supply | 4x 3000W redundant power supplies, 80+ Titanium level Tested power draw: 4922W* | 6x 3000W High efficiency (54V+12V) Tested Power draw: 5750W* |
| Cooling System | 5x removable heavy-duty fans | 12x removable 8cm fans |
| Operating Temperature | 10°C ~ 35°C (50°F ~ 95°F) | 10°C ~ 35°C (50°F ~ 95°F) |
| Form Factor | 178 x 447 x 813mm (7" x 17.6" x 32") | 447 x 356 x 800mm (17.6” x 14” x 31.5”) |
| Weight | Gross weight: 137lbs (62kg) | Gross weight: 282lbs (128kg) |
| Tested configuration* |
Superior Media Processing and Delivery Solution Based On Supermicro Servers W/ Intel® Data Center GPU Flex Series
Supermicro Systems with Intel® Data Center GPU Flex Series
Supermicro TECHTalk: New Media Processing Solutions Based on Intel Data Center GPU Flex Series
Watch as our product experts discuss the new Supermicro solutions based on the just announced Intel Data Center GPU Flex Series. Learn how these solutions can help benefit you and your company.
Delivering Scalable Cloud-Gaming
Supermicro Systems with Intel® Data Center GPU Flex Series
Supermicro offers all the system components for cloud service providers to build green, cost-effective, and profitable cloud gaming infrastructure.
Innovative Solutions for Cloud Gaming, Media, Transcoding, & AI Inferencing
Sep 08 2022, 10:00am PDT
Supermicro and Intel product and solution experts will discuss, in an informal session, the benefits of the solutions in the areas of Cloud Gaming, Media Delivery, Transcoding, and AI Inferencing using the recently announced Intel Flex Series GPUs. The webinar will explain the advantages of the Supermicro solutions, the ideal servers and the benefits of using the Intel Flex Series GPUs.
Supermicro and Habana® High-Performance, High-Efficiency AI Training System
Enabling up to 40% better price/performance for Deep Learning training than traditional AI solutions
