Supermicro® Total Solution for Canonical OpenStack

The fully managed private cloud service from Supermicro in partnership with Canonical is the fastest and most cost-effective path to a private OpenStack cloud.

Supermicro and Canonical partnered to deliver Ubuntu OpenStack, the most popular platform for OpenStack deployments. Canonical is committed to OpenStack by producing high-quality releases of OpenStack on a cadence with OpenStack Foundation releases.

Canonical OpenStack provides the easiest way to design, deploy, manage and scale OpenStack clouds.

Supermicro Canonical OpenStack Certified Platforms

Join more than 70% of production OpenStack clouds by building yours with Supermicro and Canonical.

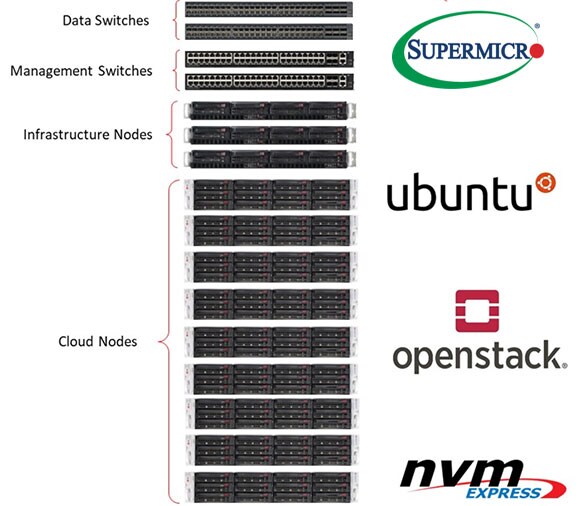

OpenStack rack diagram

Highlights

  • Validated reference architectures
  • Certified components
  • Fully managed cloud on your servers, at your location
  • Built in two weeks using a proven reference architecture
  • Customize the architecture in iterations based on workload
  • Scale out - One rack to many racks
  • Greenest Servers for the Cloud - Save hundreds of dollars per server
  • Lowest Cost - Best Performance / Watt / $ / ft²
  • Start as a pro by leveraging expertise support and services
  • Enterprise SLA for your cloud API services
  • Robust, OpenStack native data protection capabilities
  • Your team has access to all machines at all times
  • Modern monitoring and log management
  • We will hand over the keys when you are ready

Enterprise support is provided by Canonical in partnership with Supermicro where you gain access to a global pool of knowledge & expertise. The partnership offers:

  • Discovery and design service - Together, we design your cloud to the required size and specifications — on premise or hosted or hybrid.
  • Bootstack service - Our experts will deploy, manage and monitor 24/7 availability of your new cloud
  • Transfer Control - will train and ensure a smooth transition
  • Focus on your business while Supermicro and Canonical takes care of your first OpenStack.

SKU Details

  Value Option Performance Option Secure Option Single Socket Performance Option Qty
Components Used
Infrastructure Node SYS-6019U-TN4RT SYS-6019U-TN4RT SYS-6019U-TN4RT AS -1114S-WTRT 3
Cloud Node SYS-6029U-TR4T* SYS-6029U-TR4T* SYS-2029U-TR4T* AS -2013S-C0R* 9
Cloud Node Data Disks SATA 7200 RPM U.2 NVMe SATA SSD SAS 7200RPM

54 (6 Per Value Node)
or
27 (3 Per Peformance Node)
or
216 (24 Per Secure Node)
or
54 (6 Per UP Performance Node)

HDD-A6TB-HUS726T6TAL4204
(6TB 3.5" SATA3 7200RPM)
HDS-IUN0-SSDPE2KE064T8
(6.4TB NVMe)
HDS-I2T0-SSDSC2KB960G8 HDD-A8000-ST8000NM0075
(8TB 3.5" SAS3 7200RPM)
Services
Ubuntu Advantage for OpenStack 12
Supermicro Cloud DataCenter Design, Validation and Bootstrapping Service 12
Supermicro Rack Integration Service** 1
Supermicro Onsite Support 1
* Please consult "Certified Node Configuration" details, below, for exact CPU, memory and other system requirements for each option
** Rack & Cable (with 3rd party switches); Rack & Cable Engineering Drawing; Supermicro will not be responsible for 3rd party switch configuration

Networking Options (with 10, 25, or 40GB Data Switches)

Standard configuration include two types of Ethernet switches - one for consolidation of management/IPMI traffic and other for data traffic. The management switch is common to all three system options. The data switch options are ranging from 10Gbps to 100Gbps switch.

  10 GbE Data Network with Cumulus OS3 25 GbE Data Network with SMIS OS 40 GbE Data Network with Cumulus OS3 Qty
Management Switch SSE-G3648BR SSE-G3648BR SSE-G3648BR 2 (per rack)
Data Switch SSE-X3648SR SSE-F3548SR SSE-C3632SR 2 (per rack)
Infrastructure Node NICs AOC-STGF-I2S-O AOC-S25G-M2S AOC-S40GI2Q 6
(2 Per Node x3)
Cloud Node NICs AOC-STGF-I2S-O AOC-S25G-M2S AOC-S40GI2Q 18
(2 Per Node x9)
Software Licenses (for networking)
Management Switch Software perpetual license with 3 yr service /support SFT-CLSNWPL-1G-3Y1 SFT-SMCPL1G2 SFT-CLSNWPL-1G-3Y1 2
Data Switch Software perpetual license with 3 yr service /support SFT-CLSNWPL-10G-3Y1 Included with switch2 SFT-CLSNWPL-100G-3Y1 2

1 – The 10 GbE and above Data switch options require a Cumulus OS and obtained through Supermicro.

2 – The 25 GbE Data switch option requires the Supermicro (SMIS) OS.

3 – Cumulus Linux is a powerful open network operating system that allows you to automate, customize and scale for more details visit
www.cumulusnetworks.com/products/cumulus-linux/

Additional Services that can be purchased

Additional Services
Supermicro Onsite Integration Service*
Ubuntu Advantage Server - Essential / Standard / Advanced Server
Ubuntu Advantage OpenStack Cloud Region
Ubuntu Advantage Professional Service
Ubuntu Bootstack Program
Ubuntu BootStack Professional Services
Ubuntu Advantage Travel & Expenses

*Requires SOW Onsite Survey; Onsite logistics; Rack & Cable (with 3rd party switches); Rack & Cable Engineering Drawing

Please consult with Supermicro for all Canonical OpenStack related solutions. Any parts purchased individually without testing and certification may not function as expected. Above mentioned Services and warranty are recommended purchase to avoid compatibility issues. For more details and follow up reach your Supermicro Sales team.

Network Component Details

(Cluster Role: Data Switch)
  • 48x 10Gb Ethernet ports - SFP+
  • 6x 40 Gb Ethernet ports - QSFP+
  • RJ-45 (for console cable)
  • RJ-45 1G Ethernet Management Port
  • USB
  • Switching Capacity: 1440 Gbps
  • Wire-speed Layer 3 Routing
  • 1:1 Non-blocking connectivity
  • Regular Airflow option available
  • Dual redundant hot-swappable power supplies
  • 1U form factor
(Cluster Role: Data Switch)
  • 48x 25Gb Ethernet ports - SFP28
  • 6x 100Gb Ethernet ports - QSFP28
  • RJ-45 (for console cable)
  • RJ-45 1G Ethernet Management Port
  • USB
  • Switching Capacity: 3.6 Tb
  • 1:1 Non-blocking connectivity
  • Regular Airflow option available
  • Dual redundant hot-swappable power supplies
  • 1U form factor
(Cluster Role: Data Switch)
  • 32x Ethernet QSFP28 ports – either 40Gbps or 100Gbps
  • 1x 10Gb Ethernet SFP+ port
  • RJ-45 Gb Ethernet management port
  • RJ-45 serial console
  • Type A USB 2.0 port
  • Full Duplex 3.2Tbps Switching Capacity
  • Regular Airflow option available
  • Dual redundant hot-swappable power supplies
  • 1U form factor
(Cluster Role: Management Switch)
  • 48x 1Gbps Ethernet RJ45 ports
  • 4x 10Gbps Ethernet SFP+ ports
  • RJ-45 Gb Ethernet management port (for console cable)
  • Type A USB 2.0 port
  • Aggregated switching Capacity - 176 Gbps
  • Non-blocking, wire-speed Layer 3 Routing
  • Regular Airflow option available
  • Second (redundant) hot-swappable power supply - optional
  • 1U form factor

The Supermicro Canonical OpenStack cloud supports various configurations beyond the tested and validated reference architecture. Canonical guarantees OpenStack operation when deployed on any certified Supermicro platform. BootStack is a turnkey, fully managed OpenStack operation for those just getting up to speed with OpenStack. For experienced OpenStack customers, we offer training services on how to use Canonical tooling to build, manage, scale & upgrade the OpenStack cloud.

Certified Nodes for Canonical OpenStack

(Cluster Role: Infrastructure Node)
  • 28 (2 * 14) Cores
  • 384 (12 * 32) GB RAM
  • 12 TB (2x 6TB) SATA HDD
  • Intel DC P4510 500GB, NVMe PCI-E 3.1 (Cache)
  • 2 RJ45 10GBase-T Ethernet ports
(Cluster Role: "Performance" Cloud Node)
  • 36 (2 * 18) Cores
  • 512 (16 * 32) GB RAM
  • 12TB (2x 6TB) SATA HDD
  • Intel DC P4610 1.6TB NVMe PCI-E 3.1 (Cache)
  • 4 RJ45 10GBase-T Ethernet ports
  • Make sure to add data disks and "NICs for data" separately, per above chart
(Cluster Role: "Value" Cloud Node)
  • 32 (2 * 16) Cores
  • 384 (12 * 32) GB RAM
  • 12 TB (2x 6TB) SATA HDD
  • Intel DC P4610 1.6TB NVMe PCI-E 3.1 (Cache)
  • 4 RJ45 10GBase-T Ethernet ports
  • Make sure to add data disks and "NICs for data" separately, per above chart
(Cluster Role: "Secure" Cloud Node)
  • 40 (2 * 20) Cores
  • 1536 (24 * 64) GB RAM
  • 1 TB (2x 512GB) NVMe SSD
  • 4 RJ45 10GBase-T Ethernet ports
  • Make sure to add data disks and "NICs for data" separately, per above chart
(Cluster Role: Single Socket Performance Infrastructure Node)
  • 48 Cores
  • 128 (8 * 16) GB RAM
  • 15.2 TB (2x 7.6TB) SAS SSD
  • 3.8 TB (1x 3.8TB) NVMe SSD
  • 2 RJ45 10GBase-T Ethernet ports
(Cluster Role: Single Socket Performance Cloud Node)
  • 48 Cores
  • 512 (8 * 64) GB RAM
  • 16 TB (2x 8TB) SAS3 HDD
  • 2 TB (1x 2TB) M.2 NVMe SSD
  • 2 RJ45 1GBase-T Ethernet ports
  • Make sure to add data disks and "NICs for data" separately, per above chart

Supermicro® Secure OpenStack Solution

Protecting sensitive data against cybersecurity threats is becoming a daunting task for every IT professional. Software-only defense options such as perimeter firewalls are no longer sufficient against threats that target deeper layers of the platform stack. A comprehensive, multi-layered full-stack approach is needed to safeguard high-value, sensitive data by ensuring every component of the platform is in a trusted state.

Supermicro, Intel, Lockheed Martin, and Canonical have partnered to create a unique Secure OpenStack Solution that offers robust security from boot through runtime with high Quality of Service (QoS) and deterministic performance supporting virtualized environments. This hyper-converged solution provides end users with the full range of attribute based security controls and security policies that can be signed by individual tenants or cloud service providers. This solution is based on the Intel Select Solution for Hardened Security with Lockheed Martin, the entire cluster (compute/storage) is secured from boot to application by Chain of Trust and provides a strengthened approach to:

  • Protect the most sensitive applications and data at the edge of cloud and in data centers
  • Address a broad class of threats with growing sophistication by utilizing proactive security isolation
  • Provides preservation of performance while maximizing security through tenant isolation

This solution, which combines Security and QoS is best suited for secure, deterministic workloads often found in federal and financial services as well as critical infrastructures.

Supermicro Secure OpenStack

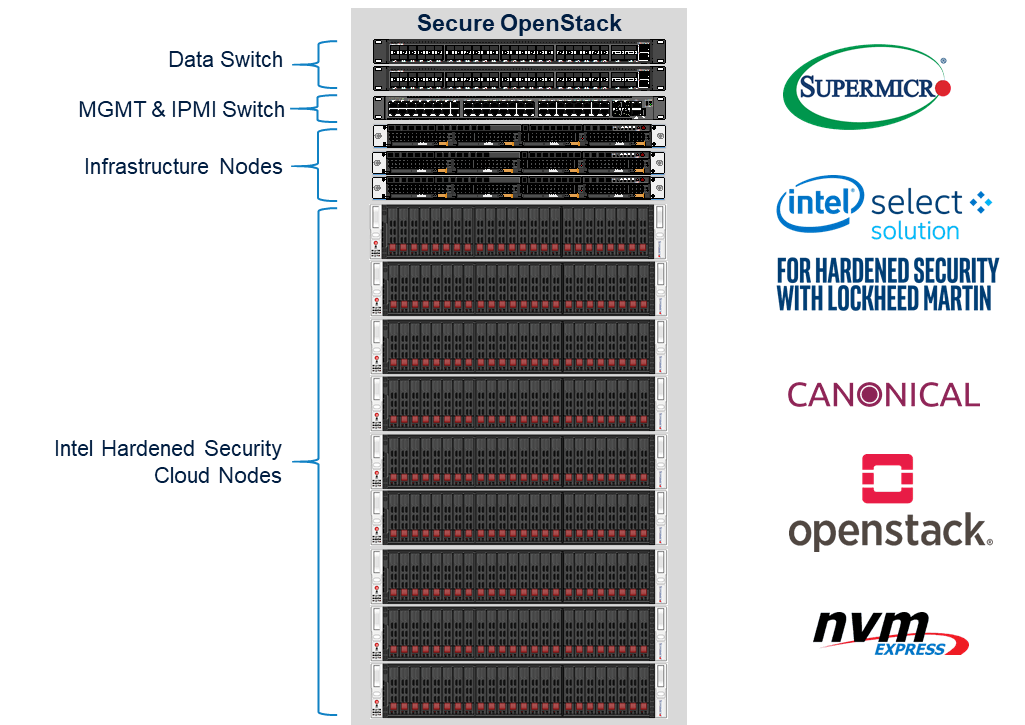

Secure OpenStack rack diagram

Highlights

  • Intel Hardened Security nodes are fully integrated into OpenStack
  • Attributes Based Security Controls Compliant (NIST 800-53 Draft R5)
  • Systems are secured from boot
  • System integrity is maintained at start/reset
  • Virtualized workloads are isolated & protected
  • Security policies can be signed by tenants or Cloud Service Providers

Compatible CPUs for Intel Hardened Security Cloud Node

Processor Number # of Cores Cache Base Frequency Max Turbo TDP tCase
CLX-SP 6248 20 27.50 MB 2.50 Ghz 3.90 GHz 150 W 86°C
CLX-SP 8260 24 35.75 MB 2.40 GHz 3.90 GHz 165 W 90°C
CLX-SP 8268 24 35.75 MB 2.90 GHz 3.90 GHz 205 W 84°C
CLX-SP 8280 28 38.50 MB 2.70 GHz 4.00 GHz 205 W 84°C

SKU Details

  Secure Option Qty
Components Used
Infrastructure Node SYS-6019U-TN4RT 3
Cloud Node SYS-2029U-TR4T* 9
Cloud Node Data Disks SATA SSD

216
(24 Per Secure Node)

HDS-I2T0-SSDSC2KB960G8
(960GB SATA SSD)
Services
Ubuntu Advantage for OpenStack 12
Supermicro Cloud DataCenter Design, Validation and Bootstrapping Service 12
Supermicro Rack Integration Service** 1
Supermicro Onsite Support 1
* Please consult ‘Certified Node Configuration’ details, below, for exact CPU, Memory and other system requirements for each option
** Rack & Cable (with 3rd party switches); Rack & Cable Engineering Drawing; Supermicro will not be responsible for 3rd party switch configuration

Networking Options

Standard configuration include two types of Ethernet switches - one for consolidation of management/IPMI traffic and other for data traffic. The management switch is common to all three system options. The data switch options are ranging from 10Gbps to 100Gbps switch.

  40 GbE Data Network with Cumulus OS2 Qty
Management Switch SSE-G3648BR 1 (per rack)
Data Switch SSE-C3632SR 2 (per rack)
Infrastructure Node NICs AOC-S40GI2Q 6
(2 Per Node x3)
Cloud Node NICs AOC-S40GI2Q 18
(2 Per Node x9)
Software Licenses (for networking)
Management Switch Software perpetual license with 3 yr service /support SFT-CLSNWPL-1G-3Y1 2
Data Switch Software perpetual license with 3 yr service /support SFT-CLSNWPL-100G-3Y1 2

1 – The 10 GbE and above Data switch options require a Cumulus OS and obtained through Supermicro.

2 – Cumulus Linux is a powerful open network operating system that allows you to automate, customize and scale for more details visit
www.cumulusnetworks.com/products/cumulus-linux/

Additional Services that can be purchased

Additional Services
Supermicro Onsite Integration Service*
Ubuntu Advantage Server - Essential / Standard / Advanced Server
Ubuntu Advantage OpenStack Cloud Region
Ubuntu Advantage Professional Service
Ubuntu Bootstack Program
Ubuntu BootStack Professional Services
Ubuntu Advantage Travel & Expenses

*Requires SOW Onsite Survey; Onsite logistics; Rack & Cable (with 3rd party switches); Rack & Cable Engineering Drawing

Please consult with Supermicro for all Canonical OpenStack related solutions. Any parts purchased individually without testing and certification may not function as expected. Above mentioned Services and warranty are recommended purchase to avoid compatibility issues. For more details and follow up reach your Supermicro Sales team.

Network Component Details

(Cluster Role: Data Switch)
  • 32x Ethernet QSFP28 ports – either 40Gbps or 100Gbps
  • 1x 10Gb Ethernet SFP+ port
  • RJ-45 Gb Ethernet management port
  • RJ-45 serial console
  • Type A USB 2.0 port
  • Full Duplex 3.2Tbps Switching Capacity
  • Regular Airflow option available
  • Dual redundant hot-swappable power supplies
  • 1U form factor
(Cluster Role: Management Switch)
  • 48x 1Gbps Ethernet RJ45 ports
  • 4x 10Gbps Ethernet SFP+ ports
  • RJ-45 Gb Ethernet management port (for console cable)
  • Type A USB 2.0 port
  • Aggregated switching Capacity - 176 Gbps
  • Non-blocking, wire-speed Layer 3 Routing
  • Regular Airflow option available
  • Second (redundant) hot-swappable power supply - optional
  • 1U form factor

The Supermicro Canonical OpenStack cloud supports various configurations beyond the tested and validated reference architecture. Canonical guarantees OpenStack operation when deployed on any certified Supermicro platform. BootStack is a turnkey, fully managed OpenStack operation for those just getting up to speed with OpenStack. For experienced OpenStack customers, we offer training services on how to use Canonical tooling to build, manage, scale & upgrade the OpenStack cloud.

Certified Nodes for Secure OpenStack

(Cluster Role: Infrastructure Node)
  • 28 (2 * 14) Cores
  • 384 (12 * 32) GB RAM
  • 12 TB (2x 6TB) SATA HDD
  • Intel DC P4510 500GB, NVMe PCI-E 3.1 (Cache)
  • 2 RJ45 10GBase-T Ethernet ports
(Cluster Role: "Secure" Cloud Node)
  • 40 (2 * 20) Cores
  • 1536 (24 * 64) GB RAM
  • 1 TB (2x 512GB) NVMe SSD
  • 4 RJ45 10GBase-T Ethernet ports
  • Make sure to add data disks and "NICs for data" separately, per above chart
