X13/H13/X12 All-Flash NVMe

X13/H13/X12 All-Flash NVMe

Revolutionary storage density, performance and capacity

  • Storage: Up to 24 E1.S (9.5mm or 15mm) or 16 E3.S
  • CPU: Dual 4th Gen Intel® Xeon® Scalable or Single AMD EPYC™ 9004 Series processors
  • Memory: Up to 32 DIMMs, 8TB DDR5
  • Expansion: Up to 2 PCIe 5.0 FH slots + 2 PCIe 5.0 AIOM slots
Show Models
X13 2U/3U Front Loading

X13 2U/3U Front Loading

High capacity with front drive access

  • Storage: Up to 16 3.5" SAS/SATA (up to 6 optional NVMe hybrid)
  • CPU: Dual 4th Gen Intel® Xeon® Scalable processors
  • Memory: Up to 16 DIMMs, 4TB DDR5
  • Expansion: Up to 5 PCIe 5.0 FH slots
Show Models

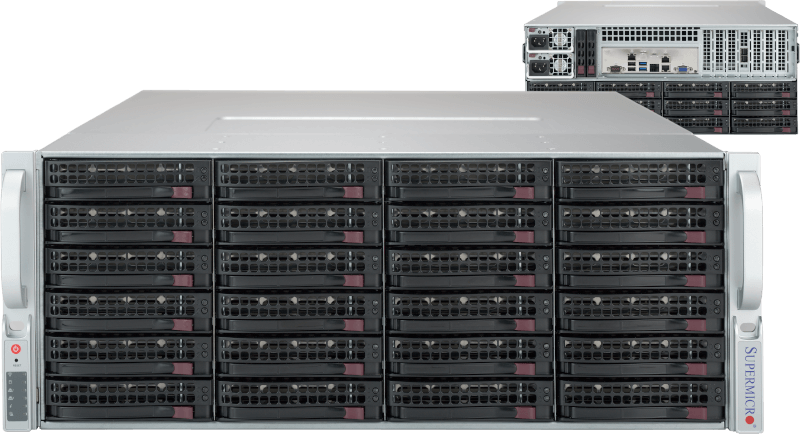

X13 4U Front Loading/Double-Sided

X13 4U Front Loading/Double-Sided

High capacity with front-only and front/rear drive access

  • Storage: Up to 36 3.5" SAS/SATA (up to 6 optional NVMe hybrid)
  • CPU: Dual 4th Gen Intel® Xeon® Scalable processors
  • Memory: Up to 16 DIMMs, 4TB DDR5
  • Expansion: Up to 4 PCIe 5.0 FH slots
Show Models
X13/H13 Simply Double High Density

X13/H13 Simply Double High Density

Dual-loading design to maximize storage capacity in a 2U chassis

  • Storage: Up to 24 3.5" SAS/SATA
  • CPU: Single 4th Gen Intel® Xeon® Scalable processor or AMD EPYC™ 9004 Series processor
  • Memory: Up to 16 DIMMs, 4TB DDR5
  • Expansion: Up to 6 PCIe 5.0 FH slots + 2 PCIe 5.0 AIOM slots
Show Models

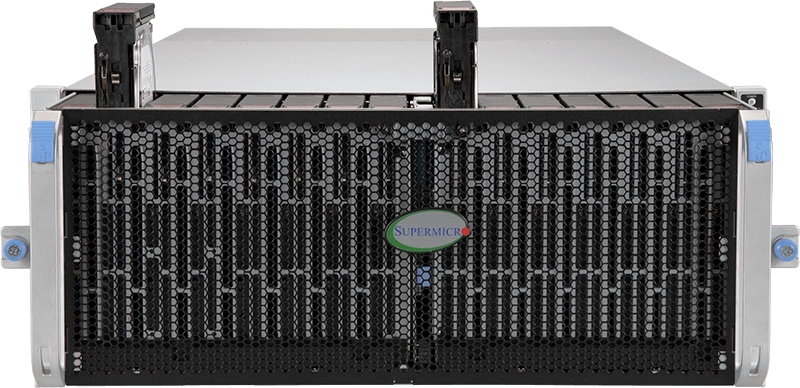

X12 4U Top-Loading Single/Multi Node

X12 4U Top-Loading Single/Multi Node

Maximum capacity for large-scale object storage

  • Storage: Up to 90 3.5" SAS/SATA
  • CPU: Single or dual 3rd Gen Intel® Xeon® Scalable processors
  • Memory: Up to 16 DIMMs, 4TB DDR4
  • Expansion: Up to 4 PCIe 4.0 LP slots
Show Models
X12 Simply Double High Density

X12 Simply Double High Density

Dual-loading design to maximize storage capacity in a 2U chassis

  • Storage: Up to 24 3.5" SAS/SATA
  • CPU: Dual 3rd Gen Intel® Xeon® Scalable processors
  • Memory: Up to 16 DIMMs, 4TB DDR4
  • Expansion: Up to 2 PCIe 4.0 LP slots + 1 PCIe 4.0 AIOM slot
Show Models
X12 2U/4U Front-Loading

X12 2U/4U Front-Loading

Cost-effective, highly serviceable storage for database and enterprise applications

  • Storage: Up to 24 3.5" SAS/SATA with direct-attached options
  • CPU: Single or dual 3rd Gen Intel® Xeon® Scalable processors
  • Memory: Up to 16 DIMMs, 4TB DDR4
  • Expansion: Up to 5 PCIe 4.0 LP slots
Show Models

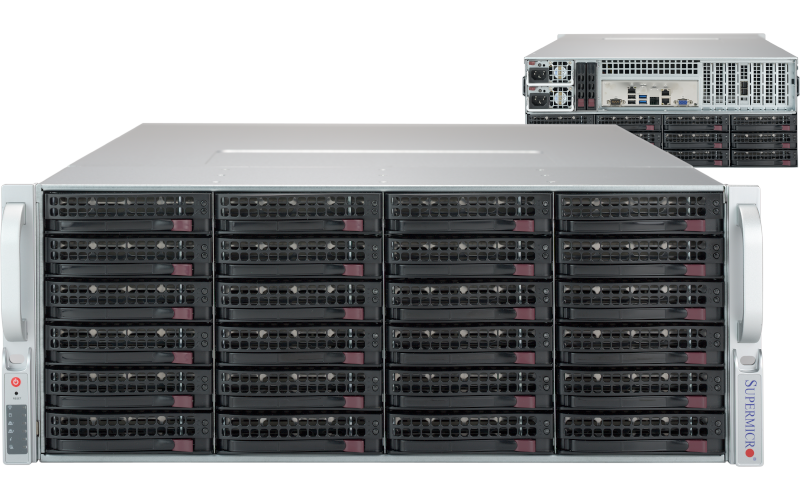

X12 4U Double-Sided (Front/Rear Loading)

X12 4U Double-Sided (Front/Rear Loading)

High capacity with front and rear access

  • Storage: 36 3.5" SAS/SATA
  • CPU: Single or dual 3rd Gen Intel® Xeon® Scalable processors
  • Memory: Up to 16 DIMMs, 4TB DDR4
  • Expansion: Up to 4 PCIe 4.0 LP slots
Show Models
X12/H12 1U Storage Server

X12/H12 1U Storage Server

High capacity with internal mounted storage and front NVMe flash options

  • Storage: Up to 12 3.5" SATA with optional hot-swap NVMe
  • CPU: Single AMD EPYC™ 7003 series or dual 3rd Gen Intel® Xeon® Scalable processors
  • Memory: Up to 16 DIMMs, 4TB DDR4
  • Expansion: Up to 3 PCIe 4.0 slots + 1 AIOM
Show Models
Resources

High Performance Storage for AI Applications

Create an Effective and Responsive Complete Solution for Demanding AI Environments

View the datasheet

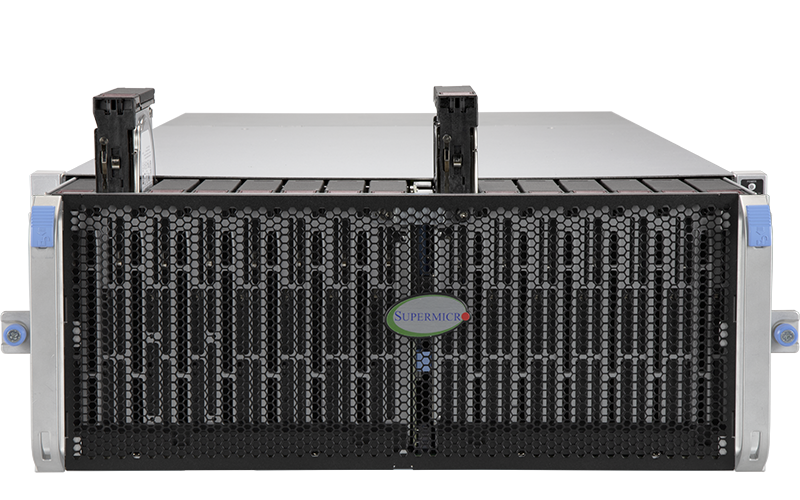

Supermicro SuperMinute: 60-Bay and 90-Bay Top-Loading Storage Systems

Supermicro unveils new-generation, flexible 60-bay and 90-bay top-loading storage systems, available in single-node, dual-node, SBB, or JBOD configurations. This new top-loading architecture delivers the improved flexibility, modularity, and serviceability that customers need.

Play the video

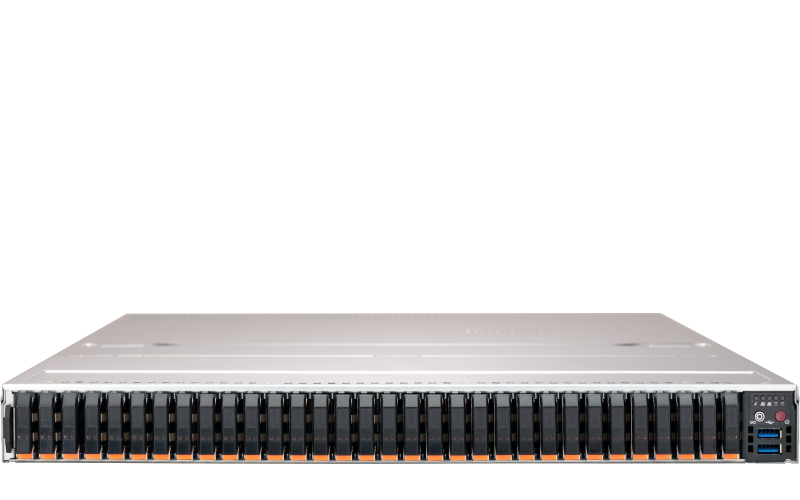

Supermicro SuperMinute: U.2

Supermicro introduces its all new 1U 32 NVMe U.2 SuperStorage system, the Petascale U.2 Server. With its extremely dense design, it is the industry’s only 1U system with 32 NVMe U.2 SSDs.

Play the video

Supermicro Storage SuperServer SSG-121E-NES24R Review (24x E1.S)

By Lyle Smith -

The Supermicro Storage SuperServer SSG-121E-NES24R is a dual-socket server that supports the latest 4th generation Intel Xeon Scalable processors, up to 32 DIMMs, and support for 24 E1.S SSDs.

See the product review

Broadberry CyberStore Xeon SP2-490-G3 review: Super-massive storage

By Dave Mitchell -

A big storage appliance for big data with a powerful hardware package and great performance

See the product review

Supermicro X13 Petascale Storage Servers Embrace Advanced Storage Technology

E1.S and E3.S Drives Deliver the Performance and Packaging Required for Next Generation Compute and Storage Systems

View the white paper

Supermicro Storage SuperServer Review (36-Bay, 3rd Gen Xeon)

By Brian Beeler -

In this review, we take a look at Supermicro’s latest mainstream storage server that features 36 3.5″ hard drive bays and Intel’s latest 3rd Gen Scalable CPU.

See the product review

Supermicro Storage Server Review (36 Bay, Intel 3rd Gen Xeon)

By StorageReview -

Everyone knows Supermicro makes a server for almost every use case imaginable. Their extremely dense 3.5" platforms have been a favorite for any organization wrestling with expanding data footprints. The 36-bay storage server though, has for years hit the sweet spot in terms of capacity and price.

See the product review

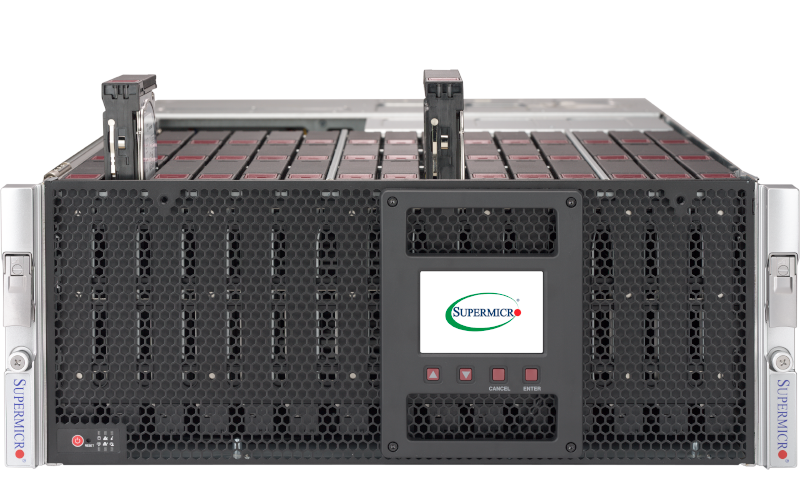

New Supermicro 60-Bay Top Loading Storage Server Hands-on

By Patrick Kennedy -

In the world of storage, perhaps nothing says built for a specific purpose like the top-loading storage server segment. When I heard that Supermicro had a new and updated design, and I knew we would be doing a day at Supermicro looking at products, I thought this is a platform we needed to look at.

See the product review

Innovations in High Performance Storage Solutions in HPC - Supermicro SC21 TECHTalk with IDC

Presented by Mike Scriber, Sr. Director, Server Solution Management, Supermicro and Peter Rutten, Research Director, Infrastructure Systems, IDC

Play the video

Supermicro TECHTalk: Highly-Serviceable Cloud Density Storage System


New cloud-based services generate massive amounts of new data and require extreme reliability. This TECHTalk will demonstrate how Supermicro's new Top-Loading storage systems support high drive density per rack with effortless tool-less serviceablity.

Play the video

Data Centers Embrace Advanced Storage Technology

E1.S and E1.L Drives Deliver the Performance and Packaging Required for Next Generation Compute and Storage Systems

View the white paper

Storage Systems

Optimize Your Cloud, AI, and 5G Infrastructure with the Industry's Broadest Portfolio of All-Flash NVMe, Top-Loading, and High-Density Storage Systems

View the brochure

Supermicro Software Defined Storage Solutions

Supermicro’s storage systems can be seamlessly combined with software platforms from leading vendors to build compelling and efficient solutions for a range of extensible data center applications.

View the page

Supermicro Solution for High-Performance Visual Cloud Delivery Network

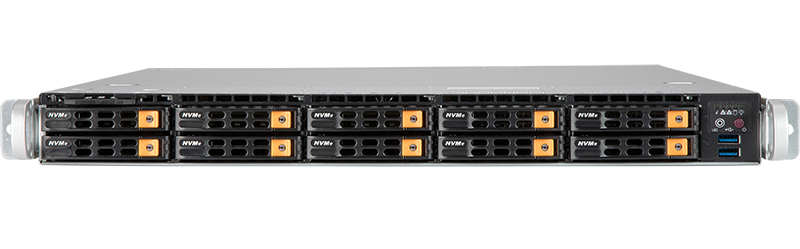

X12 Single-Socket All-Flash NVMe Storage 1U System SSG-110P-NTR10 Certified as an Intel® Select Solution for Visual Cloud Delivery Network (VCDN)

View the white paper

Accelerate Delivery of Visual Services

Supermicro solution for service provider Visual Cloud Delivery Network (VCDN) verified by Intel

View the solution brief

High-Density NVMe Systems

Supermicro Introducing New Generation High-Density, High-Capacity, and High-Performance All-Flash NVMe Server Solutions
View the brochure
