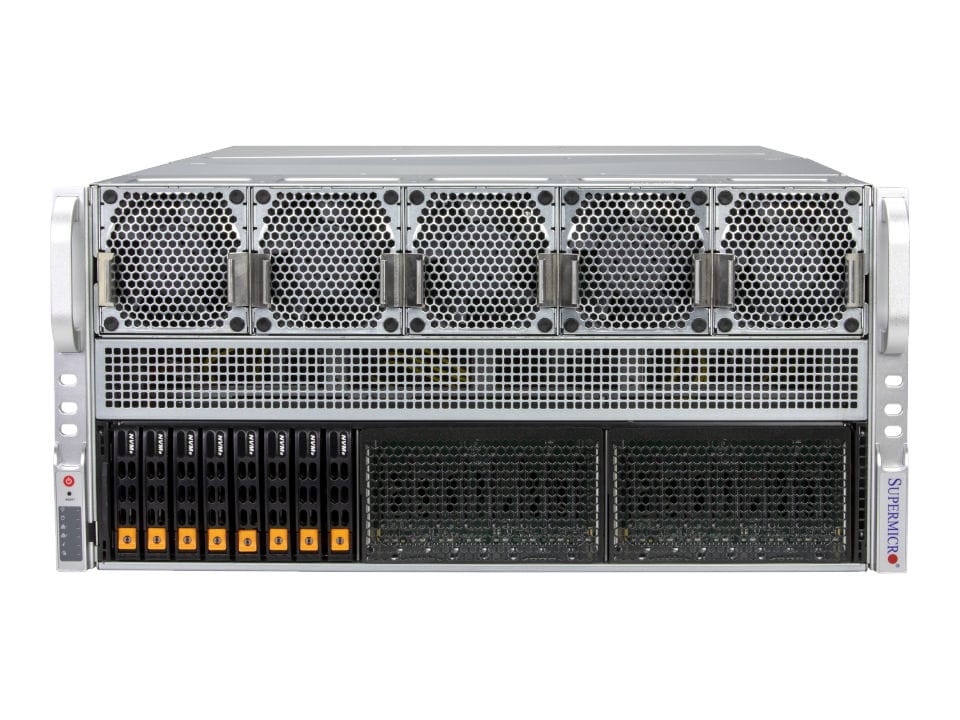

SuperServer ARS-522GP-NR

5U AI server with Arm AGI CPU Neoverse V3 64, 128, or 136 cores, up to 8 double-width GPUs, 24 DDR5-8400 DIMMs, and 8 NVMe drives

Integrated Board: AR3DPD

Key Applications

  • Enterprise Applications
  • HPC
  • AI / Deep Learning
  • Rendering
  • Big Data Analytics
  • Cloud Gaming
  • AI Inference

Key Features

  1. 5U AI server supporting up to 8 double-width GPUs
  2. Dual Arm AGI CPU Neoverse V3 with 64, 128, or 136 cores and up to 350W each with air-cooling
  3. Up to 24 DIMMs supporting up to 6TB DDR5-8400 MT/s (1DPC)
  4. 8 PCIe 5.0 x16 DW-FHFL slots + 4 PCIe 5.0 x16 FHFL slots + 1 PCIe 6.0 x16 FHFL slot + 1 PCIe 5.0 x8 AIOM slot
  5. Flexible networking with OCP 3.0 compatible AIOM
  6. Up to 8 front hot-swap 2.5" NVMe drive bays
  7. Up to 6x N+N redundant 2700W AC hot-swappable power supplies (Titanium Level
...
...
ARS-522GP-NR
Specifications Free Remote Testing Resources & Downloads
Specifications
Product SKUs
ARS-522GP-NR
Motherboard
Super AR3DPD
Processor
CPU
  • Dual processor(s)
  • Arm AGI CPU Neoverse V3 with 64, 128, or 136 cores
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 8 double-width GPUs
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): 6TB ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 2 RJ45 1 GbE Dedicated BMC LAN ports
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port(Rear)
Serial
  • 1 COM port(rear)
System BIOS
BIOS Type
  • AMI 1024MB SPI Flash
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 5U Rackmount
Model
  • CSE-528G2TS-R000NDP
Dimensions and Weight
Height
  • 8.75" (222.5 mm)
Width
  • 17.2" (438 mm)
Depth
  • 31" (786.1 mm)
Package
  • 17.32" (H) x 28.34" (W) x 42.51" (D)
Weight
  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Black Front & Silver Body
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 8 PCIe 5.0 x16 (in x16) FHFL double-width slots
    • 4 PCIe 5.0 x16 (in x16) FHHL slots
    • 1 PCIe 6.0 x16 (in x16) FHFL slot
    • 1 PCIe 5.0 x8 (in x8) AIOM slot (OCP 3.0 compatible)
M.2
  • 1 M.2 PCIe 4.0 x1 NVMe slot (M-key 22110(default)/2280)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 2.5" NVMe drive bays
M.2
  • 1 M.2 PCIe 4.0 x1 NVMe slot (M-key 2280(default)/22110)
System Cooling
Fans
  • Up to 10 Heavy duty counter-rotating 8cm Fan(s)
Air Shroud
  • 2 Air Shrouds
Power Supply
6x 2700W
6x 2700W Redundant (3 + 3) Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
Input2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12VMax: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SBMax: 3.5A / Min: 0A
Max: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
