SuperServer AS -2024US-TRT

2U Ultra with 12 SATA bays and 4 PCIe 3.0 x16 slots

Integrated Board: H12DSU-iN
Learn more

Key Applications

  • Virtualization
  • Cloud Computing
  • High End Enterprise Server
  • Hyperconverged Storage
  • Flexible Networking Options

Key Features

  1. Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  3. 2 PCIe 4.0 x16 (FH, 10.5" L) slots,
    1 PCIe 4.0 x16 (FH, 9.5" L) slot,
    1 PCIe 4.0 x16 (LP) slot,
    1 PCIe 4.0 x8 (FH, 9.5" L, in x16) slot,
    1 PCIe 4.0 x8 (internal proprietary LP in x16) slot
  4. Dual 10GBase-T LAN ports via Intel® X710-AT2
  5. 12 SATA3 by default
    or 8 SATA3 + 4 NVMe via optional tray
    or 12 SAS3 via optional SAS kit
...
...
AS-2024US-TRT
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
A+ Server AS -2024US-TRT
Motherboard
Super H12DSU-iN
Processor
CPU
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 4 single-width GPUs
Supported GPU
  • NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, RTX A2000, RTX 8000, RTX 6000, RTX 4000, A40, A16, A2, A100, A10
  • AMD PCIe: Instinct™ MI210, Instinct™ MI100
  • View GPU Options
System Memory
Memory
  • Slot Count: 32 DIMM slots/8 Channels
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 3 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • USB Keyboard support
  • ACPI 5.1
  • DMI 2.3
  • PCI 2.2
  • SMBIOS 3.1.1
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal control for 8x Fan connectors
  • I²C Temperature Sensing Logic
FAN
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Up to 8-fan status tachometer monitoring
  • Up to eight 4-pin fan headers
CPU
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Chassis
Form Factor
  • 2U Rackmount
Model
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 28.46" (723 mm)
Package
  • 10.28" (H) x 24.65" (W) x 45.39" (D)
Weight
  • Gross Weight: 72 lbs (32.7 kg)
  • Net Weight: 36 lbs (16.4 kg)
Available Color
  • N/A
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 4.0 x16 FH/10.5"L slots
    • 1 PCIe 4.0 x16 LP slot
    • 1 PCIe 4.0 x8 LP slot
    • 1 PCIe 4.0 x16 FH, 9.5"L slot
    • 1 PCIe 4.0 x8 (in x16) FH, 9.5"L slot
  • View AOC Options

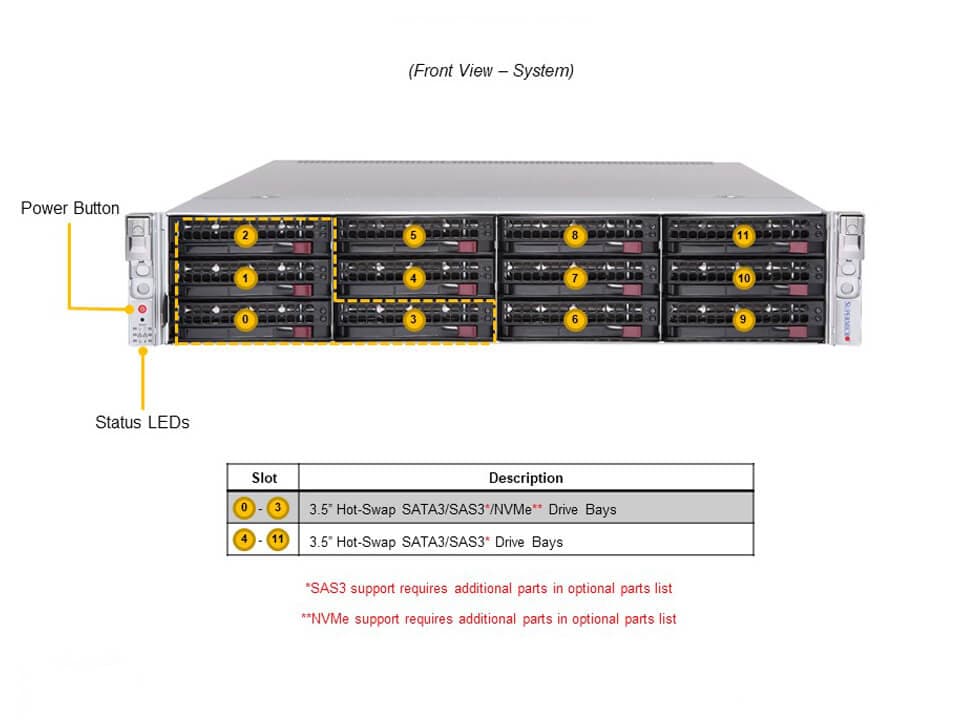

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays
    • 12 front hot-swap 3.5" SATA drive bays
  • Option A: Total 12 bays
    • 8 front hot-swap 3.5" SATA drive bays
    • 4 front hot-swap 3.5"/2.5" NVMe* drive bays
  • Option B: Total 12 bays
    • 12 front hot-swap 3.5" SAS* drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
System Cooling
Fans
  • Up to 4 heavy duty fans with optimal fan speed control
Power Supply
2x 1600W
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
2U Cable Management Arm MCP-290-00128-0N + MCP-290-00127-0N 1 2U Supermicro Cable Management Arm 2nd Gen + rail set
Additional HDD Kit MCP-240-82922-0N-OEM - Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U
CacheVault(s) BTR-TFM8G-LSICVM02 + BKT-BBU-BRACKET-05 - CacheVault for Broadcom 3108 + Supercap mounting bracket for PCIe location
BTR-CVPM05 + BKT-BBU-BRACKET-05 - Cache Vault for 3908/3916 controller + Supercap mounting bracket for PCIe location
BTR-CVPM05 + MCP-240-00127-0N + MCP-220-00043-0N - Cache Vault for 3908/3916 controller + Supercap mounting bracket for 2.5" HDD location + 3.5"-to-2.5" converter drive tray
BTR-TFM8G-LSICVM02 + MCP-240-00127-0N + MCP-220-00043-0N - CacheVault for Broadcom 3108 + Supercap mounting bracket for 2.5" HDD location + 3.5"-to-2.5" converter drive tray
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
GPU Kit MCP-310-00091-0B 1 Ultra 2U GPU Air Shroud Kit for AMD
SNK-P0062P 2 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
MCP-220-00118-0B - STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray
M.2 via AOC AOC-SLG3-2M2 1 LP, PCIe3 x8, Dual port NVMe M.2 carrier
AOC-SLG3-2H8M2 1 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS
Optional Kit for NVMe solution MCP-220-00138-0B 1~4 Black gen-5.5 tool-less NVMe 3.5"-to-2.5" drive tray, Orange tab
MCP-220-00116-0B 1~4 Black gen-5 3.5"-to-2.5" NVMe drive tray, Orange tab (for hotswap NVMe drive)
Riser Card RSC-W2-8888G4 - 2U LHS WIO Riser card with four PCIe 4.0 x8 slots,HF,RoHS
SATADOM MEM-IDSAVS3-032G - SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710)
SSD-DM128-SMCMVN1 - SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH
SSD-DM480-SMCMVN1 - SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS
SSD-DM064-SMCMVN1 - SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
SSD-DM032-SMCMVN1 - SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
MEM-IDSAVE1-064G - SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i)
MEM-IDSAVT1-256G - IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP
MEM-IDSAVM8A-256G - SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411)
MEM-IDSAVM8A-128G - SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411)
MEM-IDSAVS4-032G - SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Storage Controller Card and Cable(s) AOC-S3008L-L8e + 2x CBL-SAST-1285-100 (support up to 8 SAS3 HDD) - CARD: Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA; CABLE: Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
AOC-S3008L-L8i + 2x CBL-SAST-1285-100 (support up to 8 SAS3 HDD) - CARD: Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; CABLE: Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
AOC-S3916L-H16iR-32DD + 1x CBL-SAST-1264F-100 + 1x CBL-SAST-1265F-100 (support up to 12 SAS3 HDD) - CARD: 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS; CABLE 1: Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM; CABLE 2: Slimline x8 (STR) to Slimline x4 (STR),64CM,100 OHM,RoHS
AOC-S3816L-L16iT + 1x CBL-SAST-1264F-100 + 1x CBL-SAST-1265F-100 (support up to 12 SAS3 HDD) - CARD: 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS; CABLE 1: Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM; CABLE 2: Slimline x8 (STR) to Slimline x4 (STR),64CM,100 OHM,RoHS
AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1264F-100 (support up to 8 SAS3 HDD) - CARD: 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS; CABLE: Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM
AOC-S3808L-L8iT + 1x CBL-SAST-1264F-100 (support up to 8 SAS3 HDD) - CARD: 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS; CABLE: Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM
AOC-S3616L-L16IT + 3x CBL-SAST-1285-100 (support up to 12 SAS3 HDD) - CARD: 16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP; CABLE: Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
AOC-SAS3-9361-16I + 3x CBL-SAST-1285-100 (support up to 12 SAS3 HDD) - CARD: MegaRAID SAS 9361-16i; CABLE: Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
AOC-S3108L-H8iR/16DD + 2x CBL-SAST-1285-100 (support up to 8 SAS3 HDD) - CARD: Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; CABLE: Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
TPM AOM-TPM-9665H - Horizontal TPM using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
Ultra 2U Front Bezel MCP-210-82601-0B - Black Front Bezel for 826 chassis

Ultra A+ Server AS -2024US-TRT
