Model Form Factor Controller Type Chipset Port # Connector PCI-E Slot NVMe Ports Compatible Motherboards Compatible Systems
AOC-UR-i4G 1U Ultra Riser GbE Intel® i350 4 RJ45 1x PCI-E 3.0 x8 (internal) 0 X11DPU
H11DSU-iN
X10DRU-i+
X10DRU-X
SYS-1029U-TR4
SYS-1029U-E1CR4
SYS-6019U-TR4
AS-1023US-TR4
AS-1123US-TR4
SYS-1028U-TR4+
SYS-6018U-TR4+
SYS-1028U-E1CR4+
AOC-UR-i4XT 1U Ultra Riser 10GBase-T Intel® X540 4 RJ45 1x PCI-E 3.0 x8 (internal) 0 X11DPU
X10DRU-i+
X10DRU-X
SYS-1029U-TR4T
SYS-1029U-E1CR4T
SYS-6019U-TR4T
SYS-6019U-TN4R4T
SYS-1028U-TR4T+
SYS-6018U-TR4T+
AOC-UR-i2XT 1U Ultra Riser 10GBase-T Intel® X540 2 RJ45 1x PCI-E 3.0 x8 (internal) 0 X11DPU
H11DSU-iN
X10DRU-i+
X10DRU-X
SYS-1029U-TRT
SYS-1029U-E1CRT
SYS-6019U-TRT
SYS-6019U-TN4RT
AS-1123US-TN10RT
SYS-1028U-TRT+
SYS-6018U-TRT+
AOC-URN2-i4XT 1U Ultra Riser 10GBase-T Intel® X540 4 RJ45 1x PCI-E 3.0 x8 (internal) 2 X10DRU-i+
X10DRU-X
SYS-1028U-TNR4T+

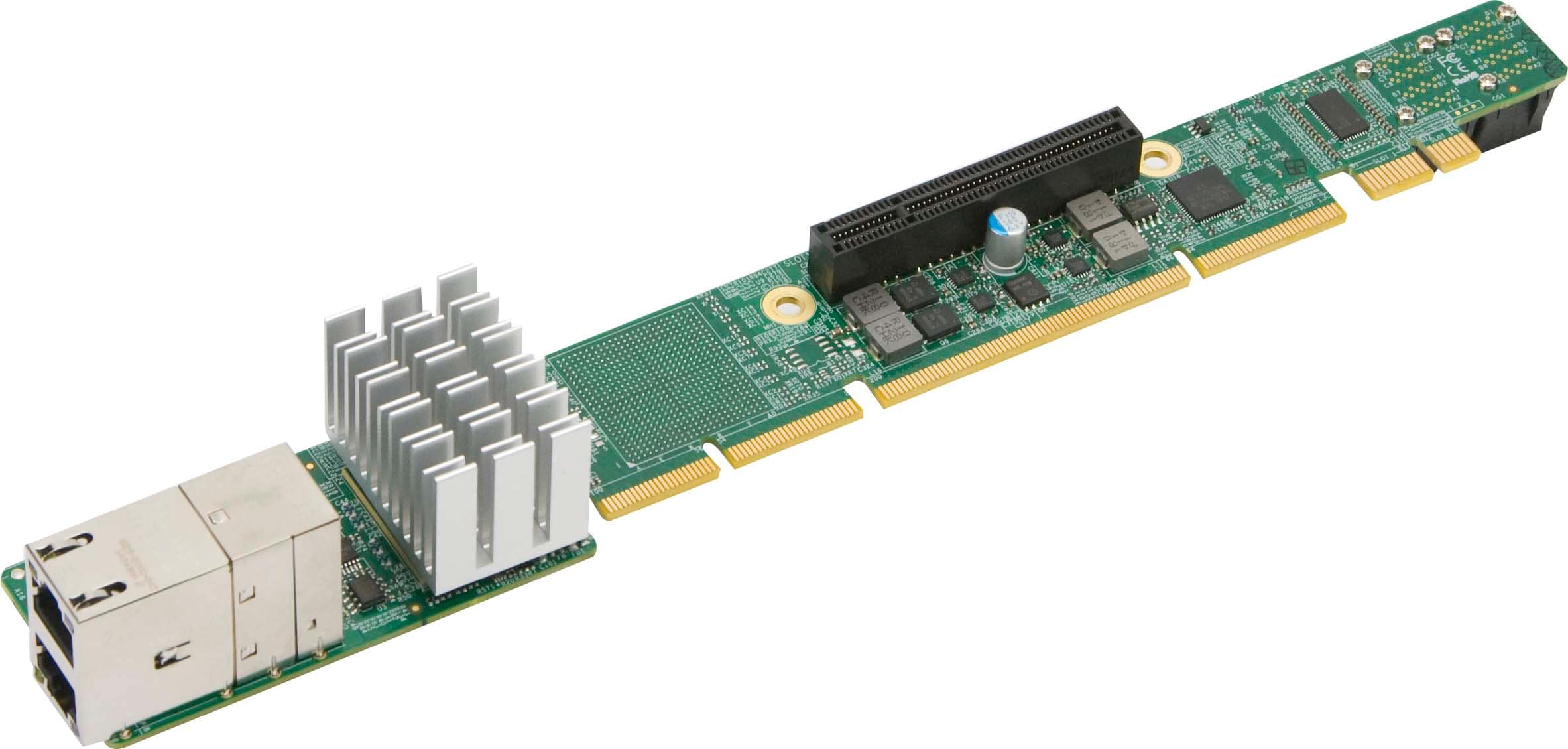

AOC-URN2-i2XT 1U Ultra Riser 10GBase-T Intel® X540 2 RJ45 1x PCI-E 3.0 x8 (internal) 2 X10DRU-i+
X10DRU-X
SYS-1028U-TNRT+
AOC-URN4-b2TS 1U Ultra Riser 25GbE Broadcom® BCM57414 2 SFP28 1x PCI-E 3.0 x16 (internal) 4 X11DPU TBD
AOC-URN6-i2XT 1U Ultra Riser 10GBase-T Intel® X540 2 RJ45 n/a 6 X11DPU
X10DRU-i+
SYS-1029U-TN10RT
SYS-1028U-TN10RT+
AOC-2UR668G4 2U Ultra Riser N/A N/A N/A 0 2x PCI-E 4.0 x16
1x PCI-E 4.0 x8 (internal in x16)
0 H12DSU-iN
TBD
AOC-URN4-b2XT 1U Ultra Riser 10GBase-T Broadcom® BCM57416 2 RJ45 1x PCI-E 3.0 x16 (internal) 4 X11DPU TBD
AOC-URN2-i2XS 1U Ultra Riser 10G SFP+ Intel® 82599ES 2 SFP+ 1x PCI-E 3.0 x8 (internal) 2 X11DPU
X10DRU-i+
X10DRU-X
SYS-1029U-TRTP
SYS-1029U-E1CRTP
SYS-6019U-TRTP
SYS-6018U-TRTP+
SYS-1028U-TNRTP+
AOC-URN2-i4GXS 1U Ultra Riser 10G SFP+
GbE
Intel® X710 + i350 2
2
SFP+
RJ45
1x PCI-E 3.0 x8 (internal) 2 X11DPU
X10DRU-i+
X10DRU-X
SYS-1029U-TRTP2
SYS-1029U-E1CRTP2
SYS-6019U-TRTP2
SYS-1028U-E1CRTP+

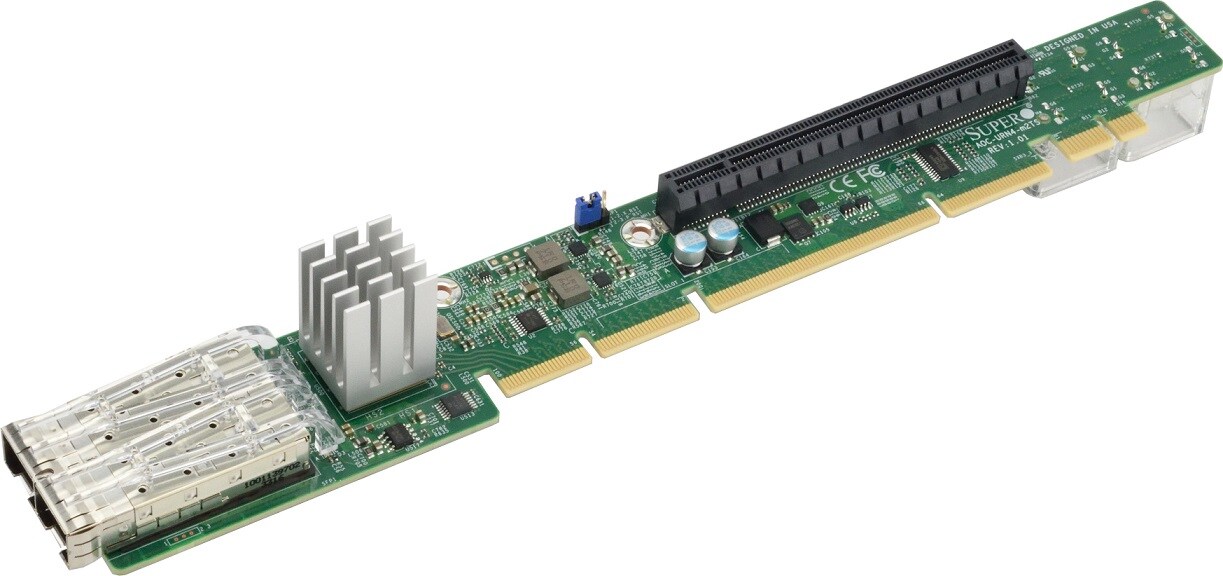

AOC-URN4-m2TS 1U Ultra Riser 25GbE Mellanox® ConnectX-4 LX EN 2 SFP28 1x PCI-E 3.0 x16 (internal) 4 X11DPU
X11DPU-Z+
X10DRU-i+
SYS-1029U-TR25M
SYS-1029U-E1CR25M
SYS-6019U-TR25M
SYS-1029UZ-TN20R25M
AOC-URN4-i2TS 1U Ultra Riser 25GbE Intel® XXV710 2 SFP28 1x PCI-E 3.0 x16 (internal) 4 X11DPU
X11DPU-Z+
TBD
AOC-2UR66-i4G 2U Ultra Riser GbE Intel® i350 4 RJ45 2x PCI-E 3.0 x16 0 X11DPU
X10DRU-i+
X10DRU-X
X10QRH+
SYS-2048U-RTR4
SYS-6028UX-TR4
AOC-2UR68-i4G 2U Ultra Riser GbE Intel® i350 4 RJ45 1x PCI-E 3.0 x8 (in x16)
1x PCI-E 3.0 x16
1x PCI-E 3.0 x8 (internal)*
0 X11DPU
X11DPU-Z+
H11DSU-iN
X10DRU-i+
X10DRU-X
SYS-2029U-TR4
SYS-2029U-E1CR4
SYS-6029U-TR4
SYS-6029U-E1CR4
SYS-2029UZ-TR4+
SYS-6029U-TR4+
AS-2023US-TR4
SYS-2028U-TR4+
SYS-6028U-TR4+
AOC-2UR6-i4XT 2U Ultra Riser 10Gbase-T Intel® X540 4 RJ45 1x PCI-E 3.0 x16
1x PCI-E 3.0 x8 (internal)*
0 X10DRU-i+
X10DRU-X
X10QRH+
SYS-2028U-TR4T+
SYS-6028U-TR4T+
SYS-2048U-RTR4
AOC-2UR68-i2XT 2U Ultra Riser 10Gbase-T Intel® X540 2 RJ45 1x PCI-E 3.0 x8 (in x16)
1x PCI-E 3.0 x16
1x PCI-E 3.0 x8 (internal)*
0 X11DPU
X10DRU-i+
X10DRU-X
X10QRH+
SYS-2029U-TRT
SYS-2029U-E1CRT
SYS-6029U-TRT
SYS-6029U-E1CRT
SYS-2028U-TRT+
SYS-6028U-TRT+
SYS-2048U-RTR4
AOC-2URN4-i4XT 2U Ultra Riser 10Gbase-T Intel® X540 4 RJ45 1x PCI-E 3.0 x8 (internal) 4 X10DRU-i+
X10DRU-X
SYS-2028U-TNR4T+
SYS-2028U-E1CNR4T+
SYS-6028U-TNR4T+
SYS-6028U-E1CNR4T+
AOC-2UR8N4-i2XT 2U Ultra Riser 10Gbase-T Intel® X540 2 RJ45 1x PCI-E 3.0 x8 (in x16)
1x PCI-E 3.0 x8 (internal)
4 X10DRU-i+
X10DRU-X
SYS-2028U-TNRT+
SYS-2028U-E1CNRT+
SYS-6028U-TNRT+
SYS-6028U-E1CNRT+
AOC-2UR6N4-i4XT 2U Ultra Riser 10Gbase-T Intel® X550 4 RJ45 1x PCI-E 3.0 x16 4 X11DPU
X10DRU-i+
SYS-2029U-TN24R4T
SYS-2028U-TN24R4T+
AOC-2UR68-i2XS 2U Ultra Riser 10G SFP+ Intel® 82599ES 2 SFP+ 1x PCI-E 3.0 x8 (in x16)
1x PCI-E 3.0 x16
1x PCI-E 3.0 x8 (internal)*
0 X11DPU
X10DRU-i+
X10DRU-X
X10QRH+
SYS-2029U-TRTP
SYS-2029U-E1CRTP
SYS-6029U-TRTP
SYS-6029U-E1CRTP
SYS-2028U-TRTP+
SYS-6028U-TRTP+
SYS-2048U-RTR4
AOC-2UR66-i4XTF 2U Ultra Riser 10GBase-T Intel® XL710 + X557 4 RJ45 2x PCI-E 3.0 x16 0 X11DPU
X10DRU-i+
SYS-2029U-TR4T
SYS-2029U-E1CR4T
SYS-6029U-TR4T
SYS-6029U-E1CR4T

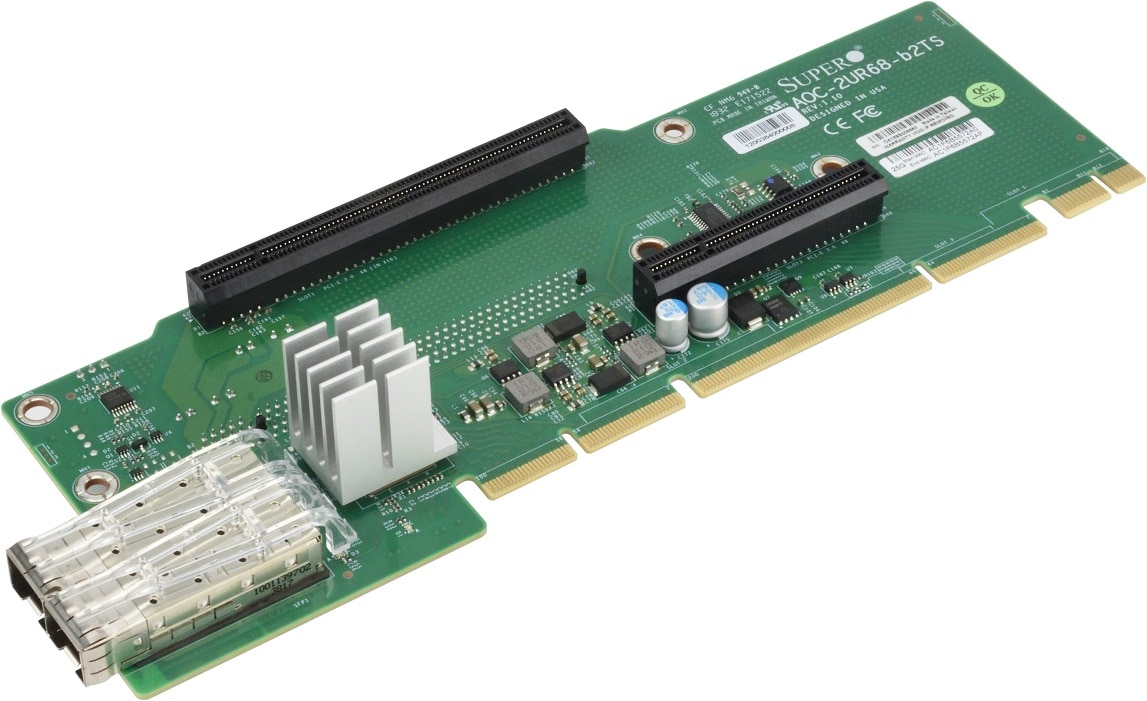

AOC-2UR68-b2TS 2U Ultra Riser 25GbE Broadcom® BCM57414 2 SFP28 1x PCI-E 3.0 x8 (in x16)
1x PCI-E 3.0 x16
1x PCI-E 3.0 x8 (internal)*
0 X11DPU
TBD
AOC-2UR68-m2TS 2U Ultra Riser 25GbE Mellanox® ConnectX-4 Lx EN 2 SFP28 1x PCI-E 3.0 x8 (in x16)
1x PCI-E 3.0 x16
1x PCI-E 3.0 x8 (internal)*
0 X11DPU
X11DPU-Z+
H11DSU-iN
SYS-2029U-TR25M
SYS-2029U-E1CR25M
SYS-6029U-TR25M
SYS-6029U-E1CR25M
SYS-2029UZ-TN20R25M AS-2123US-TN24R25M
AOC-URG4N4-i4XTS 1U Ultra Riser 10Gbase-T
10G SFP+
Intel® X710-TM4 4 2x RJ45
2x SFP+
1x PCI-E 4.0 x16 (internal) 4 H12DSU-iN
AS-1124US-TNRP
AOC-URG4N4-i2XT 1U Ultra Riser 10Gbase-T Intel® X710-AT2 2 RJ45 1x PCI-E 4.0 x16 (internal) 4 H12DSU-iN
AS-1024US-TRT
AOC-URG4N4 1U Ultra Riser N/A N/A 0 N/A 1x PCI-E 4.0 x16 (internal) 4 H12DSU-iN

NOTE: SYS-2048U-RTR4 can't support 1x PCI-E 3.0 x8 (internal)
