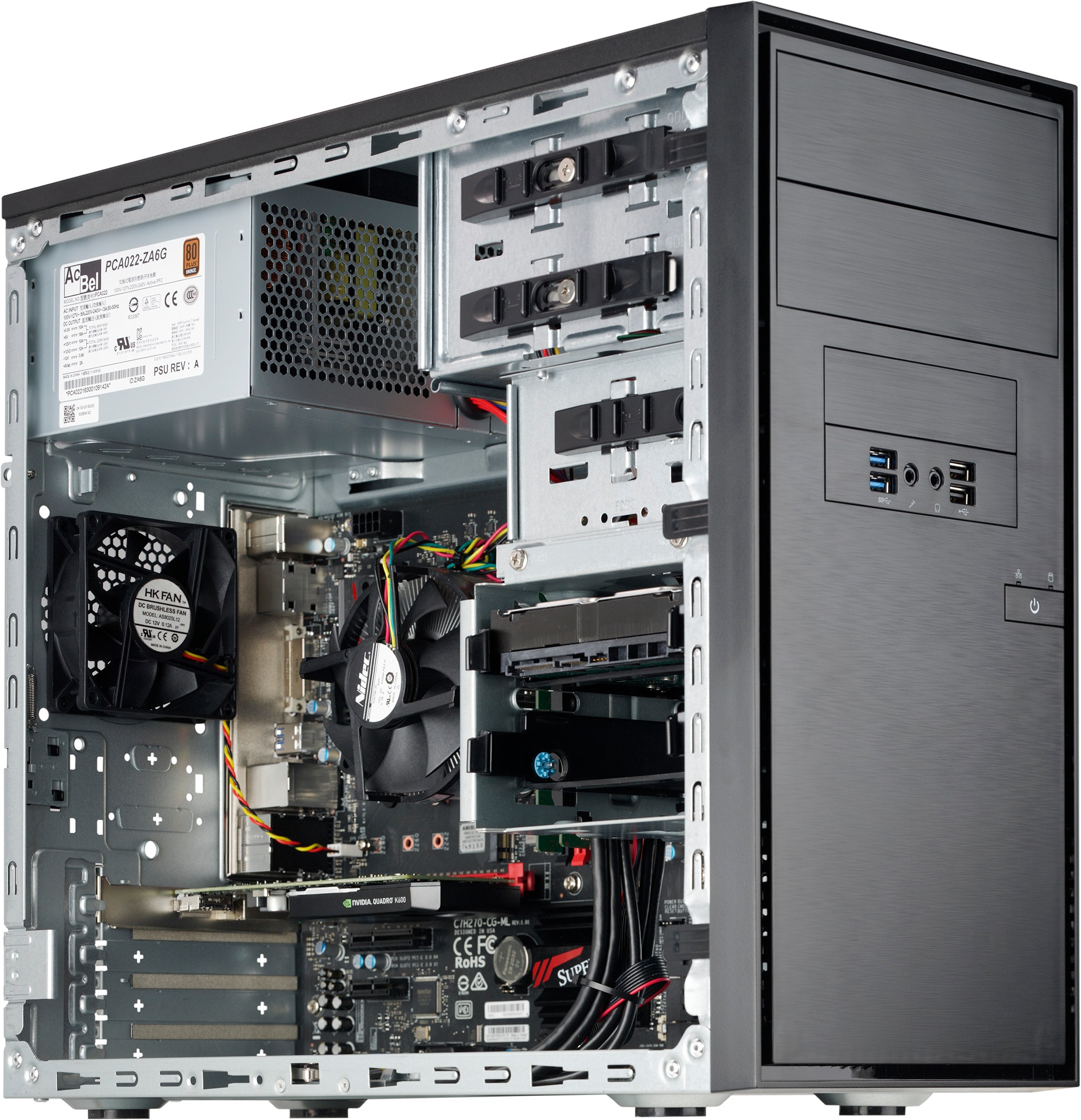

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.

Key Features
  1. Rich Front I/O: 2 USB 3.0, 2 USB 2.0, Headphone jacks
  2. Security: Chassis Intrusion sensor and Kensington Lock Support
  3. Easy Access: Tool-less side panel, PCI-E card, and HDD installations.
Specifications
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
CSE-DS3A-261B
  • SuperChassis DS3A-261B

Form Factor
  • Mini-Tower Chassis - supports for maximum motherboard sizes of 9.6" x 9.6"
    •
    Processor Support
  • Single Intel® and AMD processors
    		•

    Dimensions
    Height
    • 14.65" (372 mm)
    Width
    • 6.89" (175 mm)
    Depth
    • 16.85" (428 mm)
    Net Weight
    • 13.45 lbs (6.1 kg)
    Gross Weight
    • 15.87 lbs (7.2 kg)
    Packaging (W x H x L)
    • 10.63" (270 mm) x 18.7" (475 mm) x 20.08" (510 mm)
    Available Color
    • Black

    Expansion Slots
    • 4 full-height & full-length expansion slot(s)

    Drive Bays
    • 2 x 5.25" drive bay
    • 2 x 3.5" fixed drive bay
    • 1 x 2.5" fixed drive bay

    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • 1 Network Activity LEDs
    • HDD activity LED
    • Power LED
    Ports
    • 2x USB 2.0 Port(s)
    • 2x USB 3.0 Port(s)
    • 2x Audio Jack(s)
    Systems Cooling
    Fans
    • 1 x 80mm Rear fan(s)

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    PS2/ATX 260W/300W Multi-output power supply 80Plus Bronze, with 24pin Cable
    Power Efficiency
    • 85%
    Total Output Power and Input
    • 300W with Input 100 - 127Vac
    • 300W with Input 220 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 140 x 149.4 x 86 mm
    Output Type
    • 24pin ATX
    -12V
    • Max: 0.8A / Min: 0A
    +12V
    • Max: 10A / Min: 0.3A (100 - 127)
    • Max: 10A / Min: 0.3A (220 - 240)
    • Max: 12A / Min: 0.3A (100 - 127)
    • Max: 12A / Min: 0.3A (220 - 240)
    +5V
    • Max: 18A / Min: 0.3A
    +3.3V
    • Max: 10A / Min: 0.3A
    +5Vsb
    • Max: 2A / Min: 0A
    Certification
    • Bronze Certified  Bronze Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • TUV/CB
    • UL/CUL
    Components
    Standard Parts List
      Part Number Qty Description
    Drive Tray(s)MCP-220-DS301-0B2DS3 Tool-less Internal 3.5inch HDD Tray, Black
    Drive Tray(s)MCP-220-DS302-0N1
    Optional Parts List
      Part Number Qty Description
    Cable CBL-0158L - PWCD,EU,CEE 7/7 Schuko TO C13,1830mm,0.75mm^2,10A,250V,Black,RoHS
    Cable CBL-0249L - China power cord 18AWG 6ft, 1.0mm^2
    Cable CBL-0260L - US power cord 18AWG 6ft, PBF (default for low watt)
    Cable CBL-0345L - POWER CORD 14AWG 125V 15A FOR JAPAN (UP TO 1400W) L=1.83m 2.00mm^2
    Cable CBL-PWCD-0647 - Korea/Europe Power Cord, KSC8305/CEE 7/7 To C13, 2.5m, 1.00mm^2, 10A/250V,RoHS/REACH
    Chassis parts MCP-220-73102-0N - 2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
    Cable CBL-0084 - Front control cable for C7C232-CB-ML and non-Supermicro motherboards
    Motherboard (for CSE- DS3A-261B)
    X11SSL-F X11SSL X11SSM-F X11SSM
    X11SSQ X11SAE-M X11SSQ-L C7C232-CB-ML
    C7H270-CG-MLC7Q270-CB-MLC7B250-CB-MLC7Z270-CG-M
    C7B250-CB-MKC7Z370-CG-IW
    = Most optimized Chassis for SuperServer Configuration
    Blue color = Compatible
    Green color = Global SKU & Compatible
    Red dot & green color = Optimized + Global SKU
    Servers (for CSE- DS3A-261B)
    5130DQ-IL 5130DB-IL
