Key Features


  1. 15" Mini 1U chassis support for maximum motherboard size - 12" x 13" E-ATX
  2. 1x Full-height & Half-length expansion slot(s)
  3. 2 x 2.5" hot-swap drive bay, optional 4 x 2.5" fixed Internal Drive with bracket
  4. Power Switch, UID Button & LED Indicators
  5. 4 x 40mm x28mm PWM fan(s)
  6. 1U 350W Multi-output Power Supply Platinum Level
Resources
Specifications
Product SKUs
CSE-513BTQC-350B
  • SuperChassis 513BTQC-350B

Form Factor
  • 15" Mini 1U chassis support for maximum motherboard size - 12" x 13" E-ATX

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 15" (381 mm)
Gross Weight
  • 14.5 lbs (6.58 kg)
Packaging (W x H x L)
  • 19.5" (495 mm) x 6.9" (175 mm) x 22.4" (569 mm)
Available Color
  • Black

Expansion Slots
  • 1x Full-height, Half-length expansion slot(s) (Riser Card Required)

Drive Bays
  • Optional up to 4x 2.5" fixed drive bay with bracket
  • 2x 2.5" hot-swap drive bay
  • SAS or enterprise SATA HDD only recommended

Backplane
  • 2-Port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD

Front Panel
Button
  • Power On/Off button
  • Unit Identification (UID) button
LED
  • Power status LED
  • HDD activity LED
  • System Information LED
  • 2 Network Activity LEDs
Port
  • 4x LAN Port(s)
  • 1x VGA
  • 4x USB Port(s)
  • 1x IPMI
Systems Cooling
Fans
  • Optional 2x 40x28mm PWM fan(s)
  • 4x 40x28mm PWM fan(s)

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 350W Multi-output power supply Platinum level
Power Efficiency
  • 93%
Total Output Power and Input
  • 350W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 180 x 100 x 40 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.2A / Min: 0A
+12V
  • Max: 29A / Min: 0.5A (100Vac - 240Vac)
+5V
  • Max: 15A / Min: 0.2A
+3.3V
  • Max: 12A / Min: 0.2A
+5Vsb
  • Max: 3A / Min: 0A
Certification
  • Platinum Certified  Platinum Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
Components
Standard Parts List
  Part Number Qty Description
Bracket MCP-240-51302-0N 1 Riser Card Bracket for STD MB in SC513B (default)
HD Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Cable(s) CBL-0160L 1 US POWER CORD 16AWG, PB FREE
Cable(s) CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
Part(s) MCP-220-82618-0N 1 Metal cage for MCP-220-82616-0N (12G Drive Kit)
Part(s) MCP-230-51302-0N 1 Top Cover for CS513B, with # 6-32 screws
Part(s) MCP-270-51301-0N 1 1U SC513B single PWS chassis base
Part(s) MCP-290-00088-0N 1 SC119 Intrusion assembly
Fan(s) FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
Front Panel MCP-280-80901-0N 1 SC809 FRONT CONTROL PANEL ASSY
Cooling Fan & Accessory MCP-320-00060-0N 1 Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15")
Drive Tray(s) MCP-220-00180-0B 2 2.5
Part(s) MCP-260-00078-0B 1 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
Part(s) MCP-340-00001-01 2 Dummy fan 40x28mm
Power Supply & Accessory PWS-350-1H 1 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
Mounting Rail(s) MCP-290-00102-0N 1 set Outer rail, quick-release type, 25.6" to 33.05"
Mounting Rail(s) MCP-290-00108-0B 1 set Inner rail, front, short (quick) for 1U 17.2
Rear Window MCP-240-51301-0N 1 Rear window for SC513B single PWS chassis
Optional Parts List
  Part Number Qty Description
2.5" HDD Bracket MCP-220-00137-0N - Dual 2.5 HDD bracket
Cable CBL-CDAT-0662 - CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
CBL-0206L - SATA,INT,ROUND,ST-ST,48CM,26AWG
CBL-0234L - 4-PIN POWER SUPPLY Y-CABLE FOR HDD, 15CM, 20AWG
CBL-0481L - SATA,INT,ROUND,ST-ST,81CM,30AWG
Servers (for CSE-513BTQC-350B)

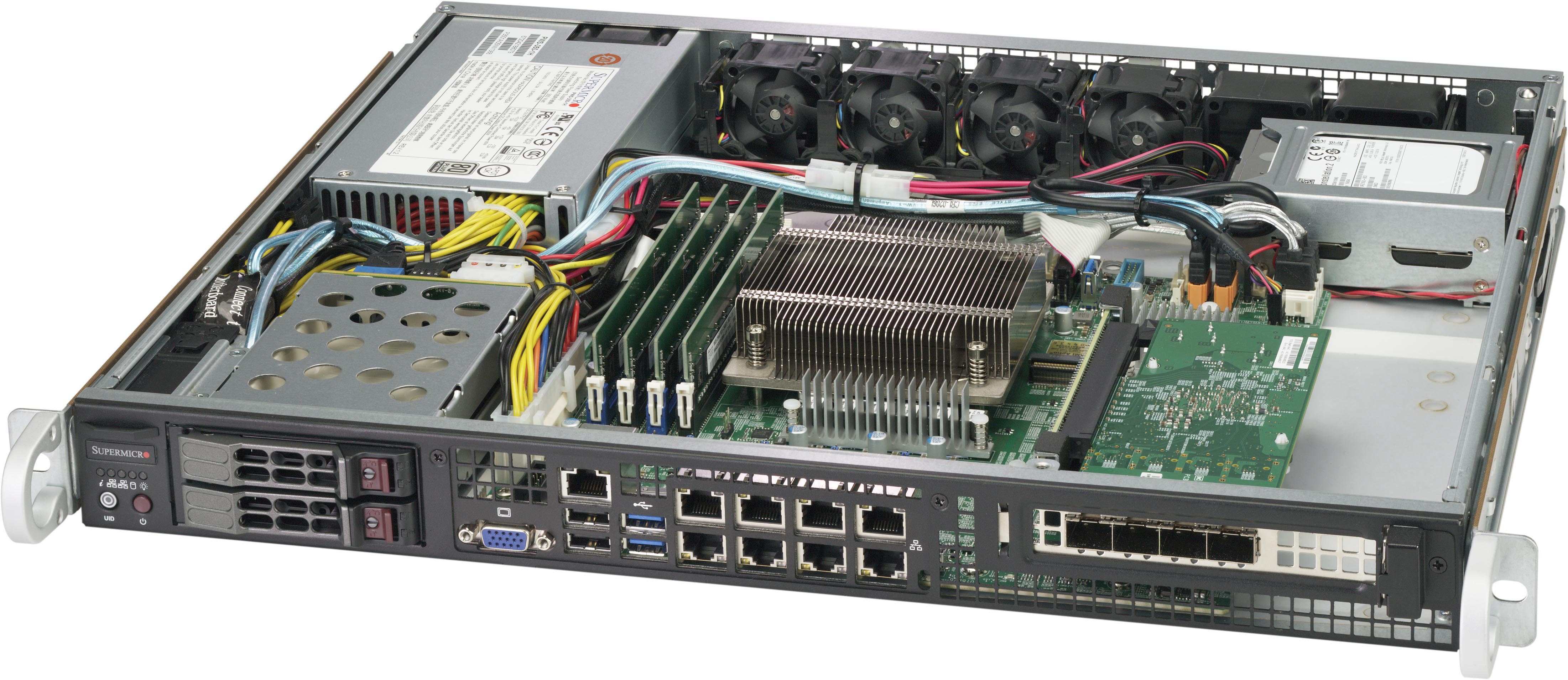

SYS-1019C-FHTN8
