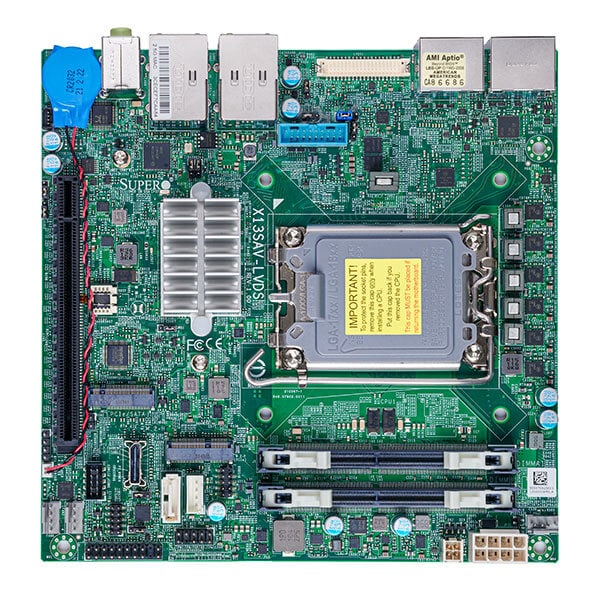

X13SAV-LVDS

X13SAV-LVDS
Mini-ITX Embedded Motherboard
Intel Core Processors Series 2 & 14th/13th/12th Gen Core i Processor

Key Features


  1. 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 65W TDP (**bios v3.1 or above)
  2. Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MHz, in 2 SODIMM slots
  3. 1 PCIe 5.0 x16 slot (16/NA or 8/8)
    1 M.2 M-Key 2280 (PCIe 4.0 x4)
    1 M.2 E-Key 2230 (PCIe 3.0 x1/USB)
  4. Single 1 Gigabit LAN with Intel® Ethernet i210-AT LAN controller
    Single 2.5 Gigabit LAN with Intel® Ethernet i225LM LAN controller [AMT/vPro]
  5. Intel® Q670E Controller for 5 SATA3 (1 header, 4 via Oculink) ports; RAID 0,1,5,10
  6. 4 Independent Displays (2 DP ports, 1 HDMI 2.0b port, 1 HDMI 1.4a port, LVDS)
  7. Supports 12V DC power input
  8. Onboard TPM2.0
...
...

Optimized Servers


SYS-E300-13AD SYS-521AD-TN2
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X13SAV-LVDS
Physical Stats
Form Factor
  • Mini-ITX
Dimension
  • 6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU
  • Single Socket V0
  • 14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Core Count
  • Up to 24C
System Memory
Memory
  • Slot Count: 2 DIMM Slots
  • Max Memory (2DPC): Up to 64GB 3200MT/s non-ECC DDR4 SO-DIMM
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel Q670E
SATA
  • 5 SATA (6Gbps) via Intel Q670E; RAID 0/1/5/10 support ; OCuLink Internal Port(s)
Graphic
  • 1 Intel® UHD Graphics port(s)
Network Controller
  • Single LAN with Intel® Ethernet i225LM
  • Single LAN with Intel® Ethernet Controller I210-AT
Input / Output
USB
  • 2 USB 2 port(s) (Header)
  • 4 USB 3.2 Gen2 Type-A port(s) (Rear)
  • 2 USB 3.2 Gen1 port(s) (Header)
Video
  • 1 HDMI 2.0b port(s)
  • 2 Display Port Video port(s)
  • 1 HDMI port(s)
  • 1 LVDS port(s)
Serial
  • 1 COM port(s) (Header)
Audio
  • ALC 888S HD Audio
TPM
  • 1 TPM Header & Chip both
Expansion Slots
PCI-Express (PCIe) Configuration
  • 1 PCIe 5.0 x16 slot
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1;SMBIOS 3.0 or later;PCI FW 3.0;UEFI 2.7;RTC (Real Time Clock) Wakeup
Management
Software
System Management Software
  • Wake-on-LAN
  • Watchdog
Power Configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
  • ATX Power connector
  • CPU thermal trip support for processor protection
  • +12V DC Power Input
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +1.8V,+3.3V,3 -fan status,Chipset voltage,CPU temperature,HT,Monitors CPU Core Voltages,PCH temperature,System level control,System temperature,VBAT
LED
  • Power LED
Temperature
  • Thermal control for 3 fan connectors
FAN
  • 3x 4-pin fan headers (up to 3 fans)
  • 3 fans with tachometer monitoring
  • Fan speed control
  • PWM fan speed control
  • System level control
Other Features
  • 12V DC or ATX Power Source
  • 8-pin 12v DC power connector
  • ACPI power management
  • ATX power connector
  • Chassis intrusion header
  • M.2 NGFF connector
  • RoHS
  • System level control
  • WOL
Resources
Servers (Optimized for X13SAV-LVDS)
SYS-E300-13AD
SYS-521AD-TN2
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List
Standard Parts (Bulk Package)
Part Number Qty Description
I/O Cables CBL-0044L • 1 57.5CM SATA FLAT S-S PBF
CBL-PWEX-1066 1 4-pin ATX Power Signal Cable
I/O Shield MCP-260-00166-0N 1 Standard I/O Shield
Standard Parts (Retail Package)
Part Number Qty Description
I/O Cables CBL-0044L • 1 57.5CM SATA FLAT S-S PBF
CBL-PWEX-1066 1 4-pin ATX Power Signal Cable
CBL-SAST-0933 • 1 OcuLink v 1.0 to 4x SATA 7-pin,INT, 50CM
I/O Shield MCP-260-00166-0N 1 Standard I/O Shield
QRG MNL-2439-QRG 1 Motherboard Quick Reference Guide
Optional Parts
Part Number Qty Description
Active Heatsink SNK-P0085A4 - 1U Active CPU Heat Sink for Intel Socket LGA1700 Platform
SNK-P0092AP4-1 - 2U Active CPU Heat Sink for Intel Socket LGA1700 Platform
I/O Cables CBL-CUSB-0621-1 1 Dual USB 3.0 (F) Type A Cable 70cm
CBL-OTHR-1061-15 1 Serial Port Cable 15cm
I/O Shield MCP-260-00167-0B - 1U I/O Shield For E300
Riser card RSC-S-6G5 - 1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
TPM security module AOM-TPM-9670V-C-O 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
