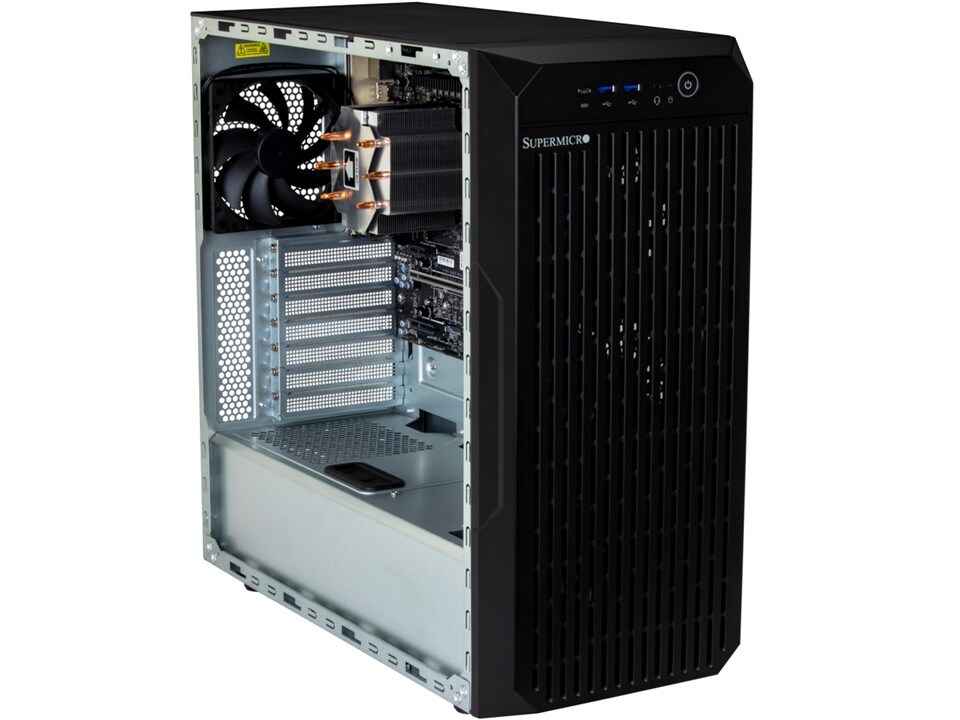

SuperServer SYS-C542i-11302U

High-performance mid-tower AI PC for SMBs, creators, and AI developers

Integrated Board: C9B860-MW
Learn more

Key Applications

  • Artificial Intelligence (AI)
  • 3D Graphics / Workstation
  • Small Business
  • IT Infrastructure
  • 2D/3D Content Creation
  • Edge AI Inferencing

Key Features

  1. Intel® Core™ Ultra 7 265 Processor with Built-in NPU (13 TOPS)
    – Accelerates on-device AI workloads for faster, smarter computing
  2. Windows 11 Pro Pre-loaded
    – Business-ready OS for productivity and enterprise security
  3. 32GB DDR5-5600 High-Speed Memory
    – Smoother multitasking and enhanced responsiveness
  4. – Ultra-fast storage for quicker boot, load, and content creation
    1TB NVMe PCIe 5.0 SSD
  5. – Wi-Fi 7, Bluetooth® 5.4, and Intel® Gigabit LAN for seamless networking
    Next-gen Connectivity
  6. – 1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 PCIe 4.0 x1 for add-in cards
    – Versatile Storage Expansion: 4 hot-swap SATA bays + dual M.2 NVMe slots
    Flexible Expansion Options
  7. PCIe 5.0 GPU Support
    – Ready for NVIDIA RTX 5080 or dual professional GPUs
  8. 1x 1000W Gold Level Power Supply
    – Reliable and efficient for high-performance configurations
...
...
SYS-C542i-11302U
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SYS-C542i-11302U
Motherboard
Super C9B860-MW

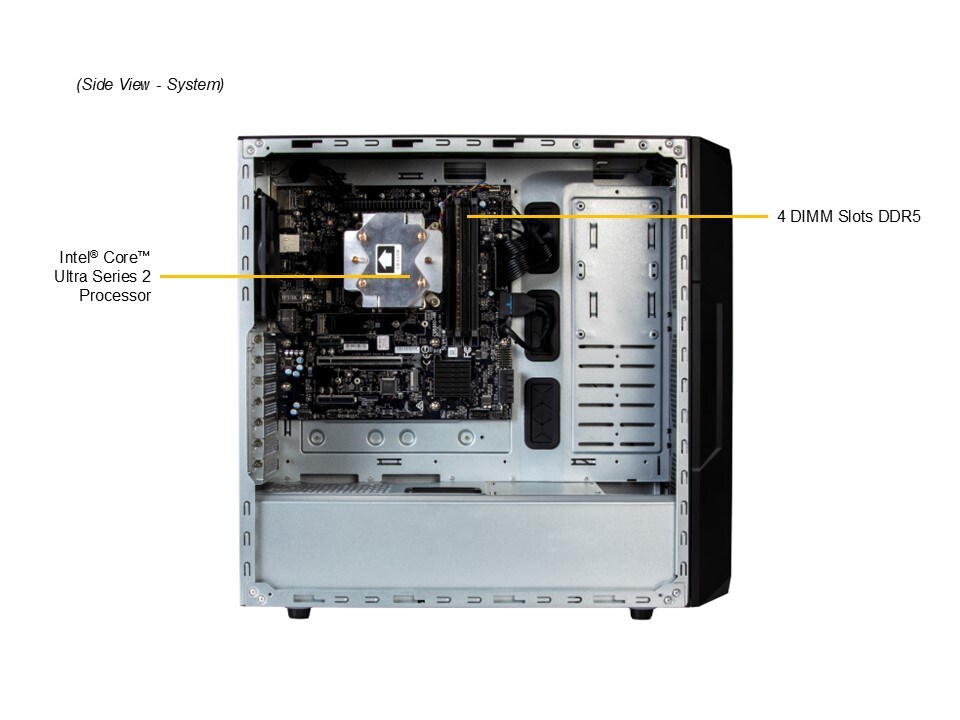

Processor
CPU
  • Single LGA-1851
  • Intel® Core™ Ultra (Series 2) U7-265
Core Count
  • P-cores: 8C/20T; 30MB Cache
  • E-cores: 12C/20T
Note
  • Supports up to 65W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 4 DIMM slots/2 Channels
  • Max Memory (1DPC): 32GB 5600MT/s non-ECC DDR5 UDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • System on Chip
Network Connectivity
  • 1 RJ45 1GbE with Intel® PHY I219-V

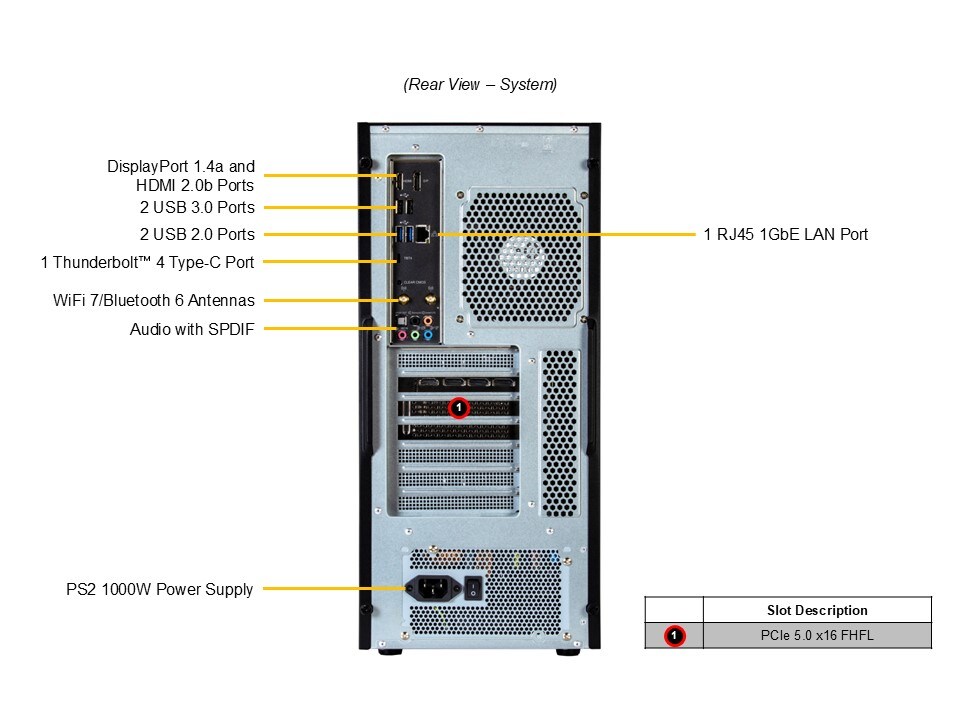

Input / Output
LAN
  • 1 RJ45 1 GbE LAN port
USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 Type-A ports(front)
  • 1 Thunderbolt™ 4 Type-C port(Rear)
  • 1 USB 3.2 Gen2x2 Type-C port(Front)
Video
  • 1 HDMI 2.1 port(Rear)
  • 1 DisplayPort 2.1 port(Rear)
  • 1 DisplayPort over USB Type-C port(Rear)
Audio
  • 7.1 HD Audio
  • Front Audio
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • Riser Card audio detection support
  • SMBIOS 3.0 or later
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • System Lockdown
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Chassis
Form Factor
  • Mid-Tower
Model
  • CSE-GS3B-000NBP

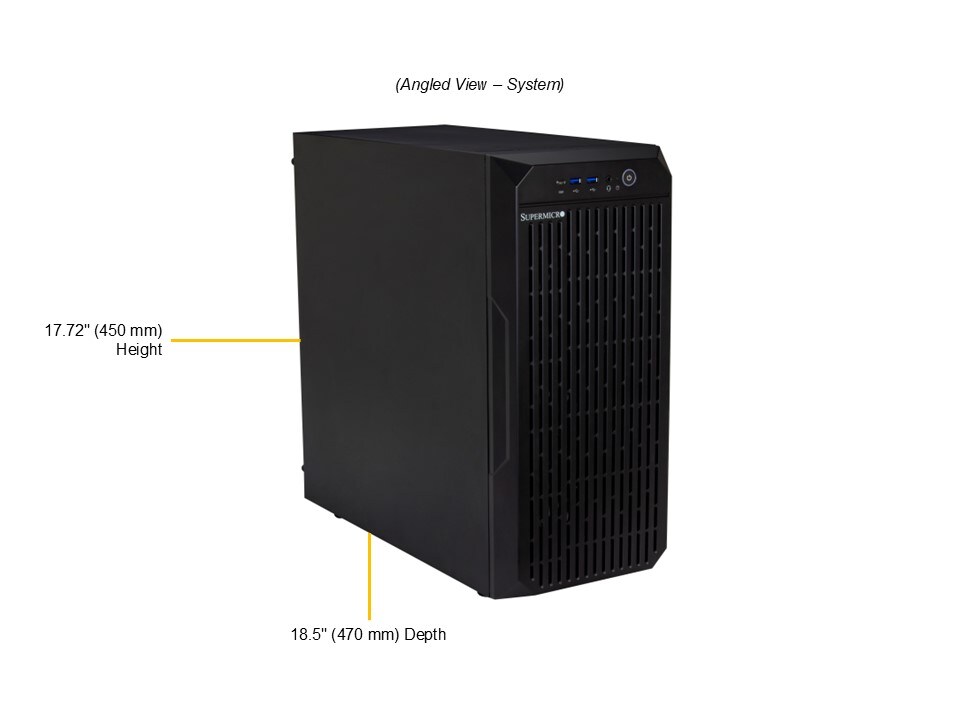

Dimensions and Weight
Height
  • 17.72" (450 mm)
Width
  • 8.07" (205 mm)
Depth
  • 18.5" (470 mm)
Package
  • 24.29" (H) x 12.8" (W) x 23.23" (D)
Weight
  • Gross Weight: 30 lbs (13.61 kg)
  • Net Weight: 28 lbs (12.7 kg)
Available Color
  • Black

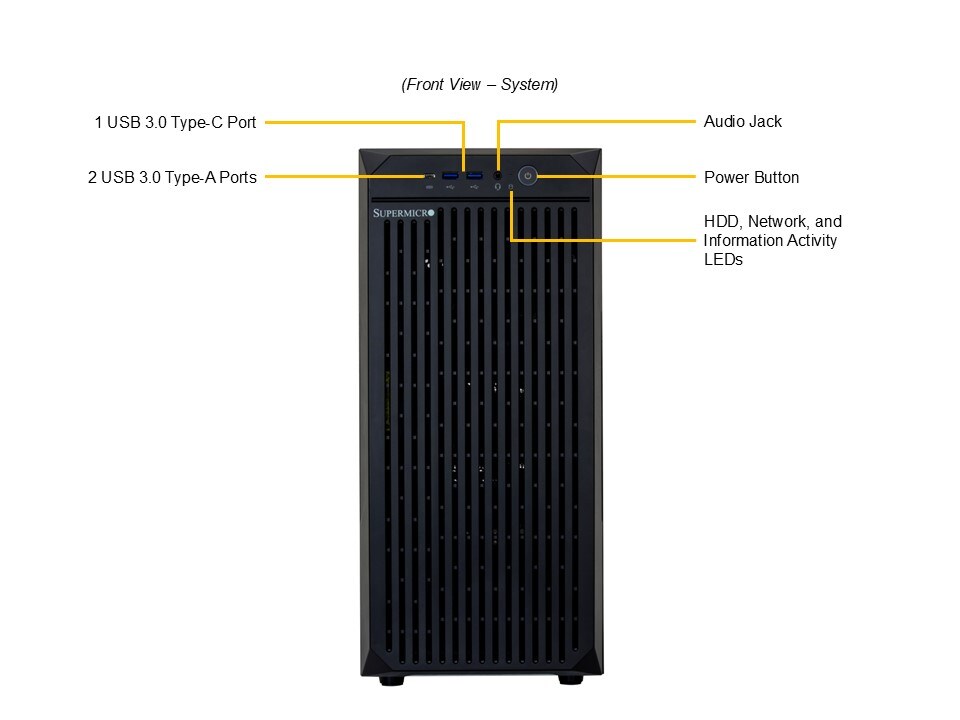

Front Panel
Port
  • Audio Jack-Combo microphone input / audio output port
  • USB Type-A Ports-USB 3.2 Gen 1 ports  (5G)
  • USB Type-C-USB 3.2 Gen 2 port (20G)
LED
  • HDD activity
  • Power status LED
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 (in x16) FHFL slot
  • Option A
    • 1 PCIe 4.0 x4 LP slot
  • Option B
    • 1 PCIe 4.0 x1 LP slot
M.2
  • 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default)/22110)
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280(default)/2260)
Drive Bays / Storage
Drive Bays Configuration
  • Option A: Total 4 bays
    • 2 internal hot-swap 2.5" SATA drive bays
    • 2 internal hot-swap 3.5" SATA drive bays
  • Option B: Total 4 bays
    • 4 internal hot-swap 2.5" SATA drive bays
M.2
  • 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default); Capacity 1TB)
System Cooling
Fans
  • Up to 3 Front 120mm Fan(s)
  • Up to 1 Rear 120mm Fan(s)
  • Up to 3 Top 120mm Fan(s) (optional)
Power Supply
1x 1000W
1x 1000W Gold Level (90%) power supply
Dimension (WxHxL)150 x 86 x 140 mm
Input1000W: 100-240Vac / 47-63Hz
+12VMax: 83.3A / Min: 0A (100Vac-240Vac)
5V SBMax: 3A / Min: 0A
Output Type24pin ATX
Certification  Gold Level
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
HDD Converter MCP-220-73102-0N • 1 2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
Heatsink SNK-P0093AP4 • 1 High Performance CPU Heatsink
Mobile Rack CSE-M14TQC 1 SAS3/SATA mobile rack for 4x 2.5" drives
