SuperServer SYS-C542i-11682U

UP mid-tower workstation for SMB and content creation

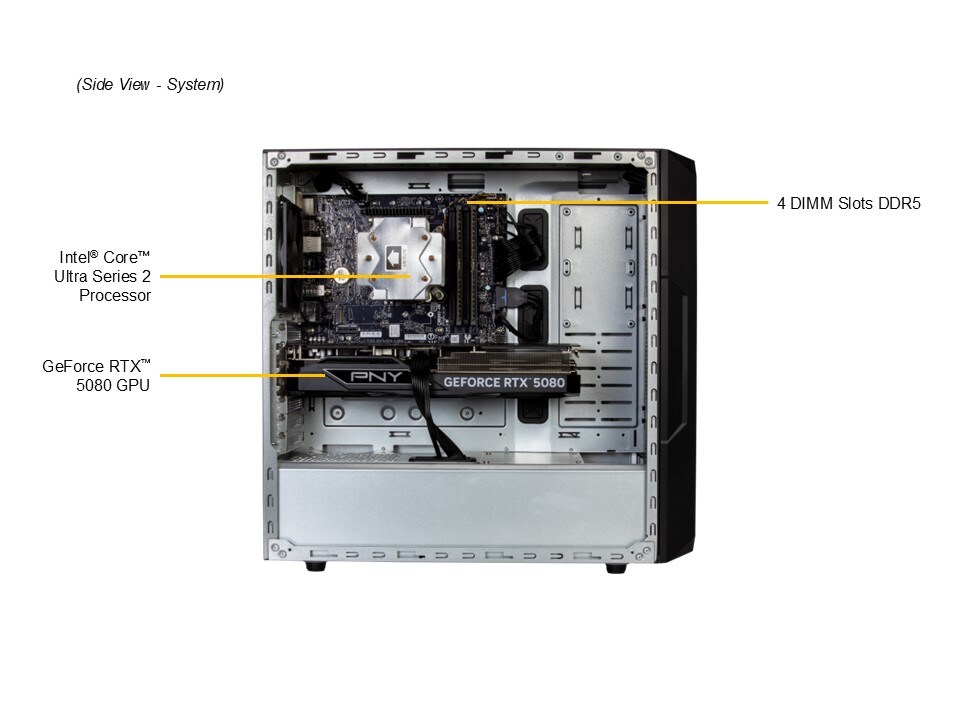

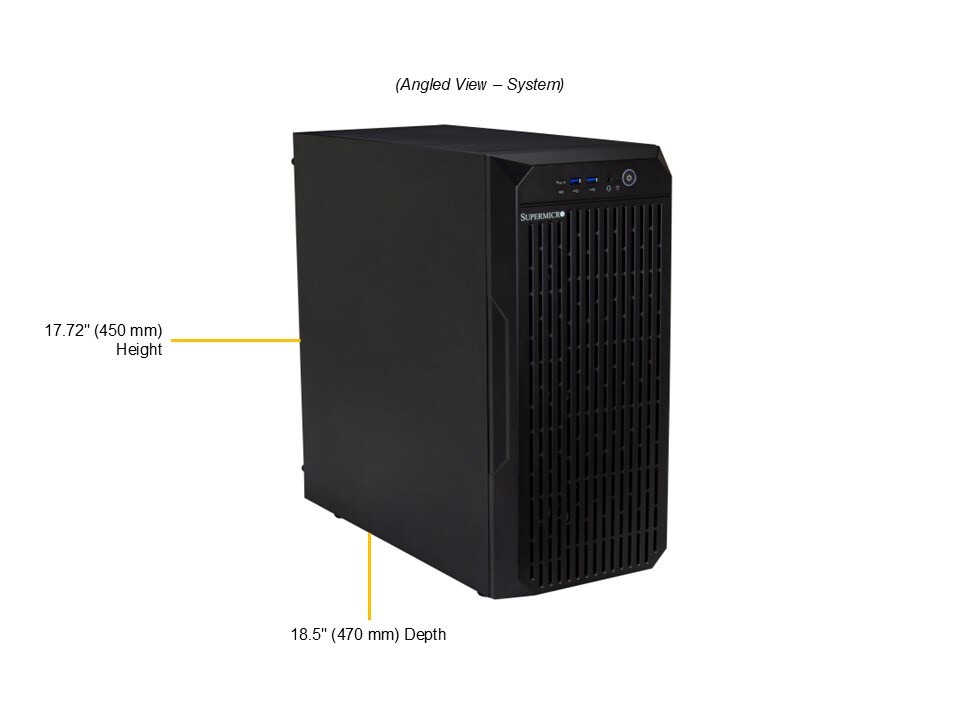

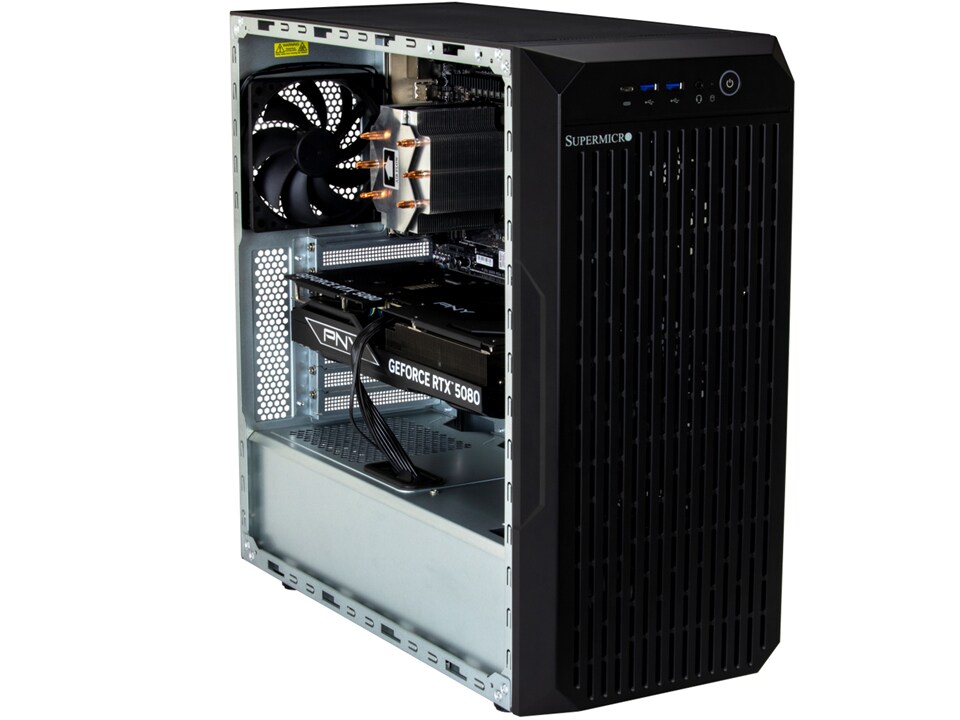

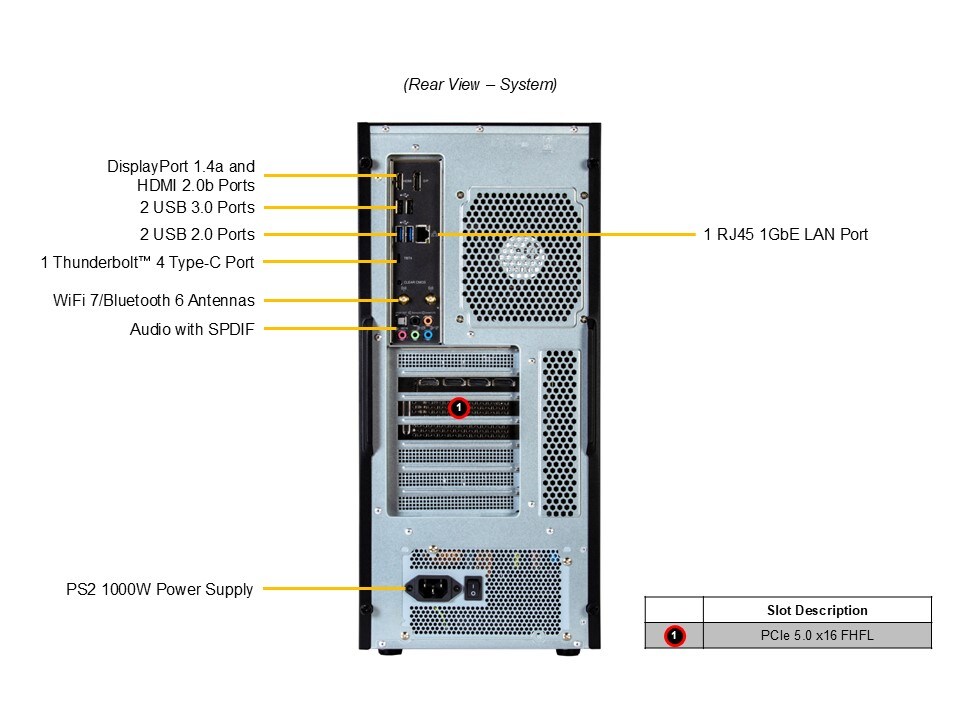

SYS-C542i-11682U Main SYS-C542i-11682U Angle SYS-C542i-11682U Front SYS-C542i-11682U Rear SYS-C542i-11682U Side
Integrated Board: C9B860-MW
Learn more

Key Applications

  • Artificial Intelligence (AI)
  • 3D Graphics / Workstation
  • Visualization / Simulation
  • 2D/3D Content Creation

Key Features

  1. Single LGA-1851 Intel® Core™ Ultra 9/7/5 (Series 2) processors up to 65W with air cooling
  2. Includes 1 RTX 5080 GPU
  3. Up to 4 DIMMs supporting up to 256GB DDR5-5600 in 1DPC
  4. Single LAN with Intel® Ethernet I219-VWi-Fi 7 + Bluetooth® 5.4
  5. Up to 1 PCIe 5.0 x16 FHFL slots
  6. Up to 4 front hot-swap 3.5" SATA drive bays
  7. 1 1000W Gold Level Power Supply
...
...
SYS-C542i-11682U
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SYS-C542i-11682U
Motherboard
Super C9B860-MW
Processor
CPU
  • Single LGA-1851
  • Intel® Core™ Ultra 9/7/5 (Series 2) processors
Core Count
  • P-cores: 8C/20T; 30MB Cache
  • E-cores: 12C/20T
Note
  • Supports up to 65W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 triple-width or 1 double-width or 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: RTX 5000, RTX 4000
System Memory
Memory
  • Slot Count: 4 DIMM slots/4 Channels
  • Max Memory (1DPC): 256GB 5600MT/s non-ECC DDR5 UDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • System on Chip
Network Connectivity
  • 2 RJ45 10GbE with Intel® X710
Input / Output
USB
  • 2 USB 2.0 ports(header)
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 ports(Header)
  • 1 Thunderbolt™ 4 Type-C port(Rear)
  • 1 USB 3.2 Gen2x2 Type-C port(Header)
Video
  • 1 VGA port
  • 1 HDMI 2.0b port
  • 1 DisplayPort 1.4a port
Audio
  • Rear Audio
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • Riser Card audio detection support
  • SMBIOS 3.0 or later
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • System Lockdown
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Chassis
Form Factor
  • Mid-Tower
Model
  • CSE-GS3B-000NBP
Dimensions and Weight
Height
  • 17.72" (450 mm)
Width
  • 8.07" (205 mm)
Depth
  • 18.5" (470 mm)
Package
  • 24.29" (H) x 12.8" (W) x 23.23" (D)
Weight
  • Gross Weight: 30 lbs (13.61 kg)
  • Net Weight: 28 lbs (12.7 kg)
Available Color
  • Black

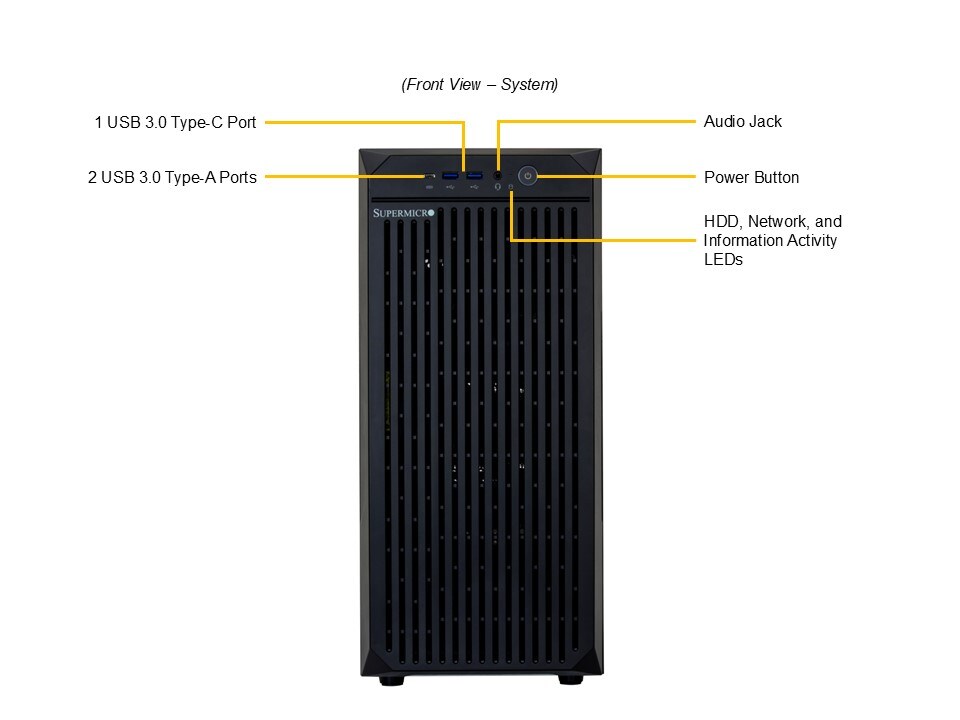

Front Panel
Port
  • Audio Jack-Combo microphone input / audio output port
  • USB Type-A Ports-USB 3.2 Gen 1 ports  (5G)
  • USB Type-C-USB 3.2 Gen 2 port (20G)
LED
  • HDD activity
  • Power status LED
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 FHFL slot
  • Option A
    • 2 PCIe 5.0 x8 FHFL slots
M.2
  • 2 M.2 PCIe 4.0 x1 NVMe slots (M-key 2280(default))
PCI
  • 1 PCI 5V 32-bit slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 3.5" SATA drive bays
  • Option A: Total 4 bays
    • 4 front hot-swap 2.5" SATA drive bays
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
System Cooling
Fans
  • 1 Rear 120mm Fan(s)
  • 3 Front 120mm Fan(s)
  • 3 Top 120mm Fan(s)
Power Supply
1x 1000W
1x 1000W Gold Level (90%) power supply
Dimension (WxHxL)150 x 86 x 140 mm
Input1000W: 100-240Vac / 47-63Hz
+12VMax: 83.3A / Min: 0A (100Vac-240Vac)
5V SBMax: 3A / Min: 0A
Output Type24pin ATX
Certification  Gold Level

[ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
HDD Converter MCP-220-73102-0N • 1 2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
Heatsink SNK-P0093AP4 • 1 High Performance CPU Heatsink
Mobile Rack CSE-M14TQC 1 SAS3/SATA mobile rack for 4x 2.5" drives

AI PC Client System SYS-C542i-11682U Coming Soon

Certain products may not be available in your region
