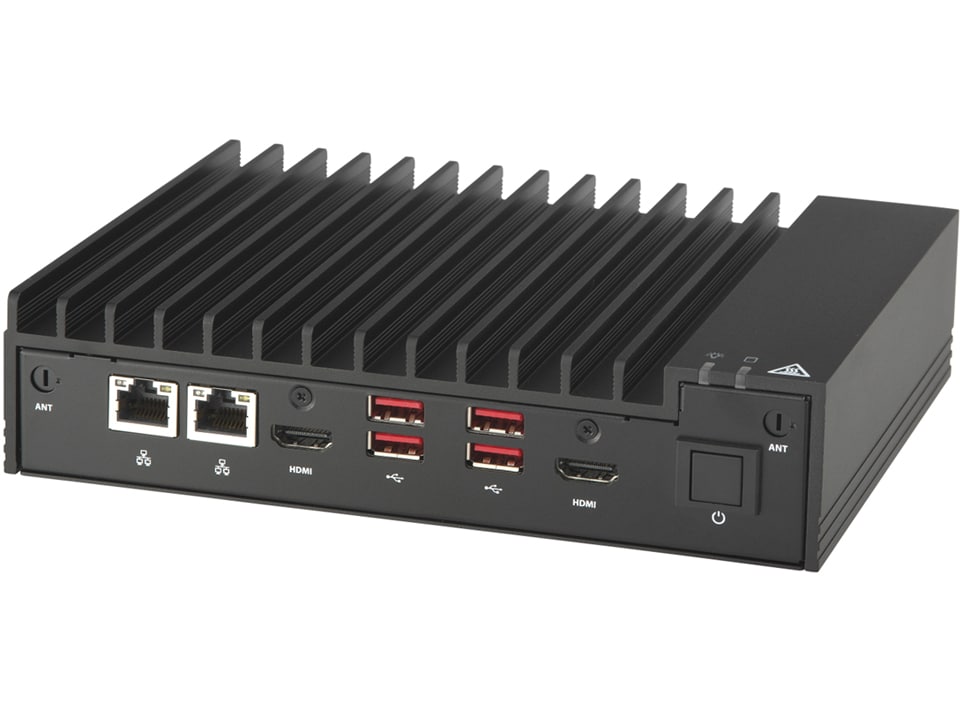

SuperServer SYS-E100-14AM-H

Compact fanless embedded system with 8-core CPU

Integrated Board: A4SAN-H-WOHS
Learn more

Key Applications

  • Industrial / Automation
  • Healthcare
  • Digital Signage Kiosk, Interactive info system
  • Retail

Key Features

  1. Intel® Atom® x7835RE (TDP 12W / 8C)
  2. DDR5-4800MT/s 1 DIMM max 16GB
  3. M.2:1x M-Key 2242 / 2280 ,1x B-Key 2242 / 2280 /3052 (NANO SIM slot),1x E-Key 2230
  4. 2x RJ45 2.5GbE (Intel i226-IT)
  5. Fanless supporting max 60°C with Fin Bottom Cover (Optional accessory)
  6. DC Jack lockable 9V~36V
  7. 2x HDMI 1.4 ports,4x USB3.2 ports and 2x USB2.0 ports,4x COM ports (COM1/2 RS232/422/485 + COM3/4 RS232)
...
...
SYS-E100-14AM-H
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SYS-E100-14AM-H
Motherboard
Super A4SAN-H-WOHS
Processor
CPU
  • Intel® Atom® x7835RE
Core Count
  • Up to 8C/8T; Up to 6MB Cache
Note
  • Supports up to 12W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 1 DIMM slots/1 Channels
  • Max Memory (1DPC): Up to 16GB 4800MT/s non-ECC DDR5 SO-DIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • 2 RJ45 2.5GbE with Intel® I226-IT
Input / Output
LAN
  • 2 RJ45 2.5 GbE LAN ports (Intel® I226)
USB
  • 2 USB 2.0 Type-A ports(rear)
  • 4 USB 3.2 Gen2 Type-A ports(Front)
Video
  • 2 HDMI 1.4 ports(Front)
Serial
  • 4 COM ports(Rear)
System BIOS
BIOS Type
  • AMI 256MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Force power-on by jumper
  • +9~36V DC Power Input
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Features
  • Secure Boot
Chassis
Form Factor
  • Fanless Embedded
Model
Dimensions and Weight
Height
  • 1.73" (44 mm)
Width
  • 7.68" (195 mm)
Depth
  • 5.94" (150 mm)
Package
  • 5.12" (H) x 11.81" (W) x 11" (D)
Weight
  • Gross Weight: 4.3 lbs (1.95 kg)
  • Net Weight: 2.16 lbs (0.98 kg)
Palletized Packing (W x H x L)
  • 54.3" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm)
Available Color
  • Black
Expansion Slots
M.2
  • 1 M.2 slot (E-key 2230(default))
  • 1 M.2 PCIe 3.0 x1 SATA slot (M-key 2242/2280)
  • 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280/3052)
Drive Bays / Storage
M.2
  • 1 M.2 PCIe 3.0 x1 NVMe slot (M-key 2242/2280)
  • 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280/3052)
  • View M.2 Options
System Cooling
Fans
  • N/A
Power Supply
1x 60W
1x 60W power supply
Dimension (WxHxL)110 x 31.5 x 62 mm
Input60W: 100-240Vac / 47-63Hz
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: -20°C to 50°C (-4°F to 122°F) with 0.7 m/s airflow
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-A4SAN-H-WOHS

CSE-E101-05 		1

1 		Super A4SAN-H-WOHS Motherboard

Fanless Embedded Chassis
Power Supply MCP-250-10134-0N 1 60W Lockable Power Adapter w/o power cord - EN62368
Optional Parts List
Part Number Qty Description
Audio Kit MCP-280-10001-0B 1 Audio Cable Phone Jack and Plug(3.5mm) L:100mm,HF,RoHS
Din Rail Kit MCP-290-10201-0N • 1 CSE-E101/E102/E50 Mounting Hardware Clip for 35mm DIN Rail
Thermal Solution MCP-270-10105-0B 1 FIN base bottom cover for M.2 NMVe
MCP-270-10105-1B 1 FIN base bottom cover for HAILO-8 M.2 Module

IoT SYS-E100-14AM-H New
