SuperServer SYS-212B-LN2T

X14 2U compact front I/O edge AI system with up to 8 PCIe 5.0 slots and redundant AC/DC PSU

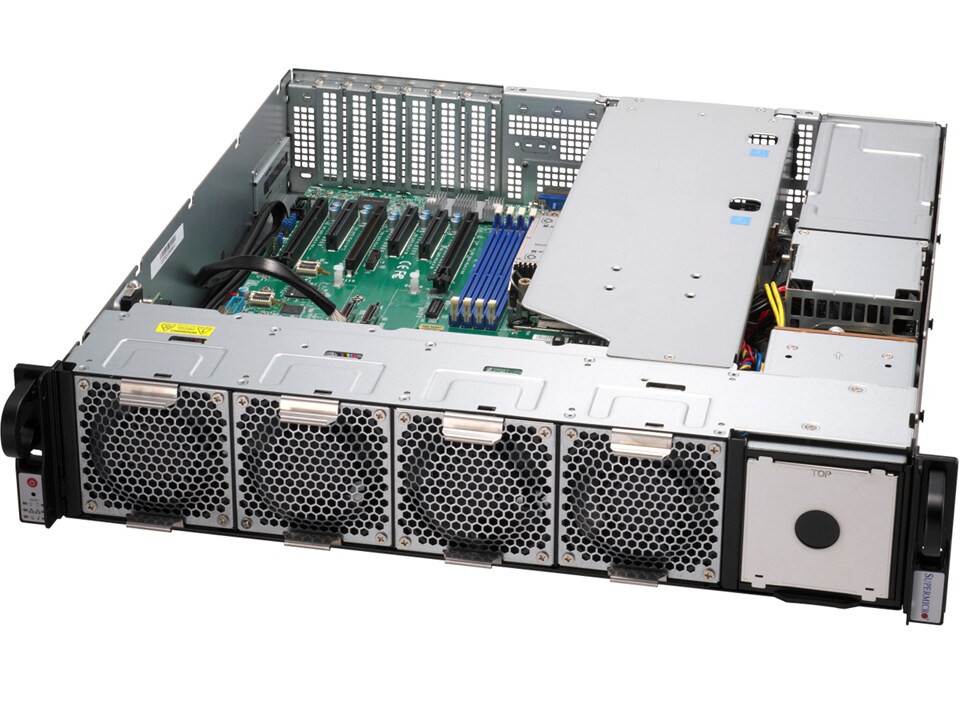

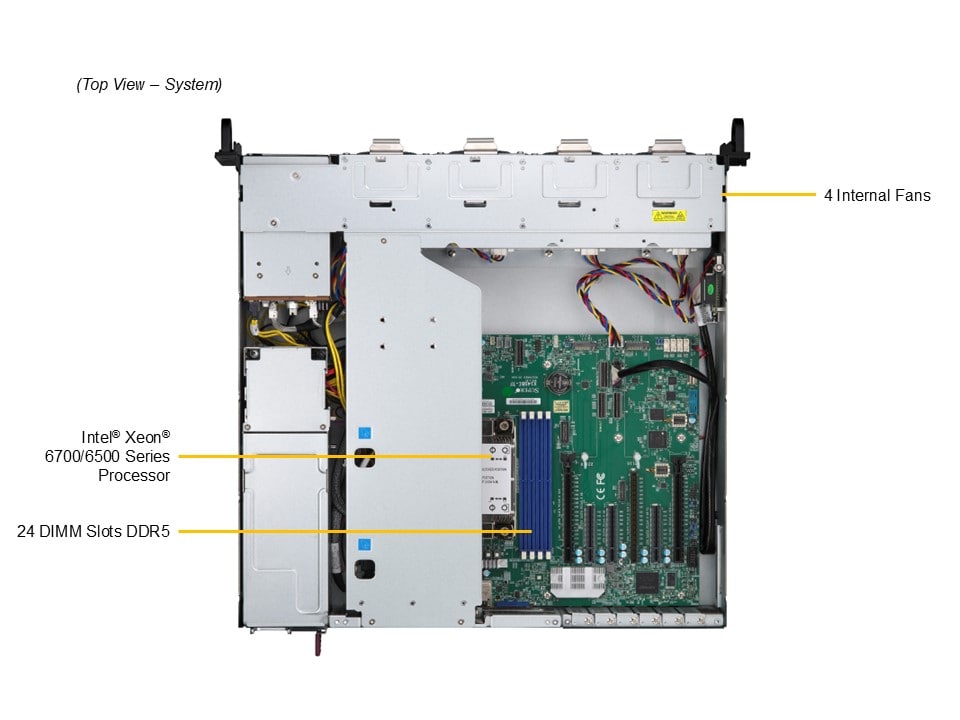

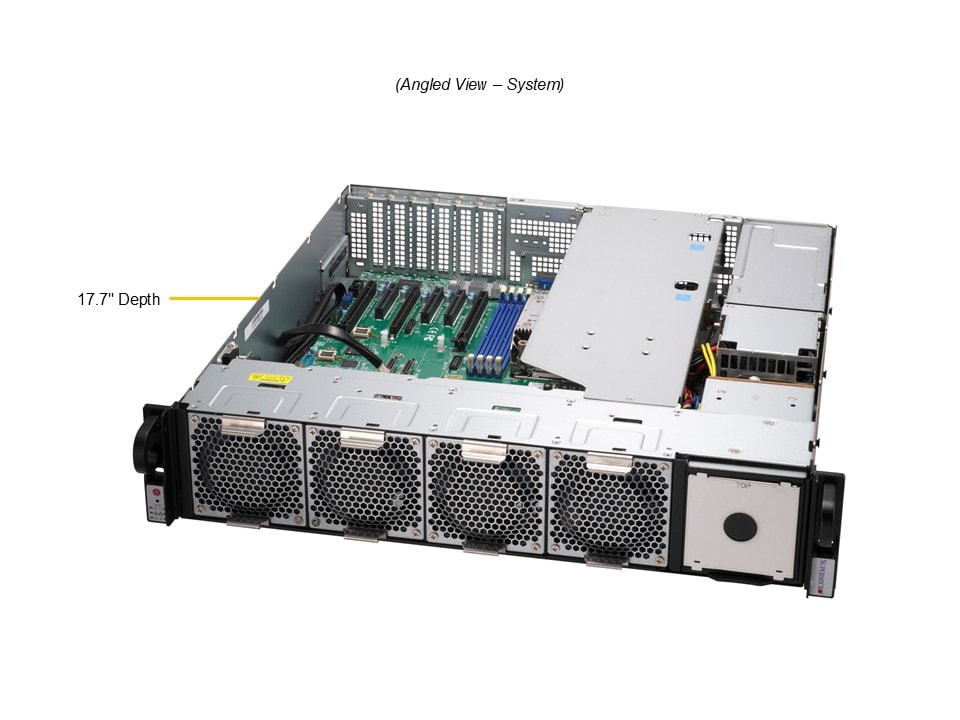

SYS-212B-LN2T Main SYS-212B-LN2T Angle SYS-212B-LN2T Top SYS-212B-LN2T Front SYS-212B-LN2T Rear
Integrated Board: X14SBI-TF
Learn more

Key Applications

  • 5G Core and Edge
  • AI Inference and Machine Learning
  • Network Function Virtualization
  • Cloud Computing

Key Features

  1. Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores up to 350W with air cooling
  2. Support for up to 4 single-width GPU accelerator cards
  3. Up to 8 DIMMs supporting up to 1TB DDR5-6400 in 1DPC
  4. 2 RJ45 10GBASE-T
  5. Up to 3 PCIe 5.0 x16 HHFL + 3 PCIe 5.0 x8 HHFL slots
  6. Up to 4 rear hot-swap 2.5" NVMe drive bays
  7. 1 Redundant 2000W Titanium Level power supply
...
...
SYS-212B-LN2T
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-212B-LN2T
Motherboard
Super X14SBI-TF
Processor
CPU
Core Count
  • P-cores: Up to 86C/172T; Up to 336MB Cache
  • E-cores: Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 4 single-width GPUs
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
NVMe
  • NVMe; RAID 0/1 support(Intel® VROC RAID key required)
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports
USB
  • 2 USB 3.2 Gen1 Type-A ports(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB UEFI
BIOS Features
  • ACPI 6.5
  • SMBIOS 3.7 or later
  • UEFI 2.9
Management
Software
Power configurations
  • ACPI Power Management
  • Power-on mode for DC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support, PEPI
FAN
  • Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-223M2-R000LPNDP
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 17.72" (450 mm)
Package
  • 14.57" (H) x 23.23" (W) x 26.18" (D)
Weight
  • Gross Weight: 23 lbs (10.43 kg)
  • Net Weight: 17 lbs (7.7 kg)
Available Color
  • Black

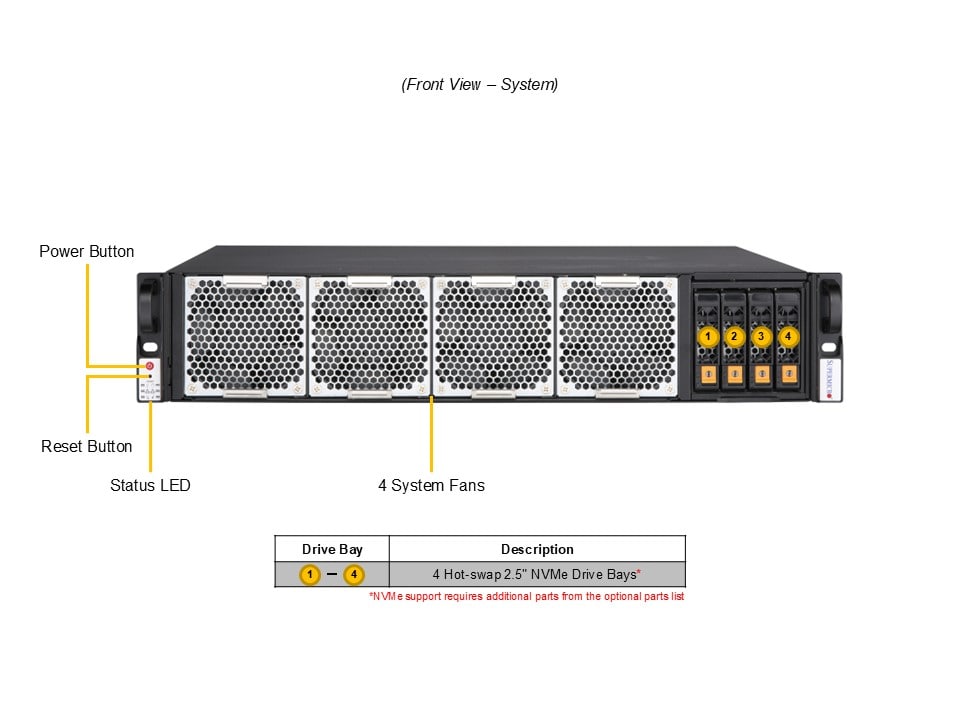

Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots

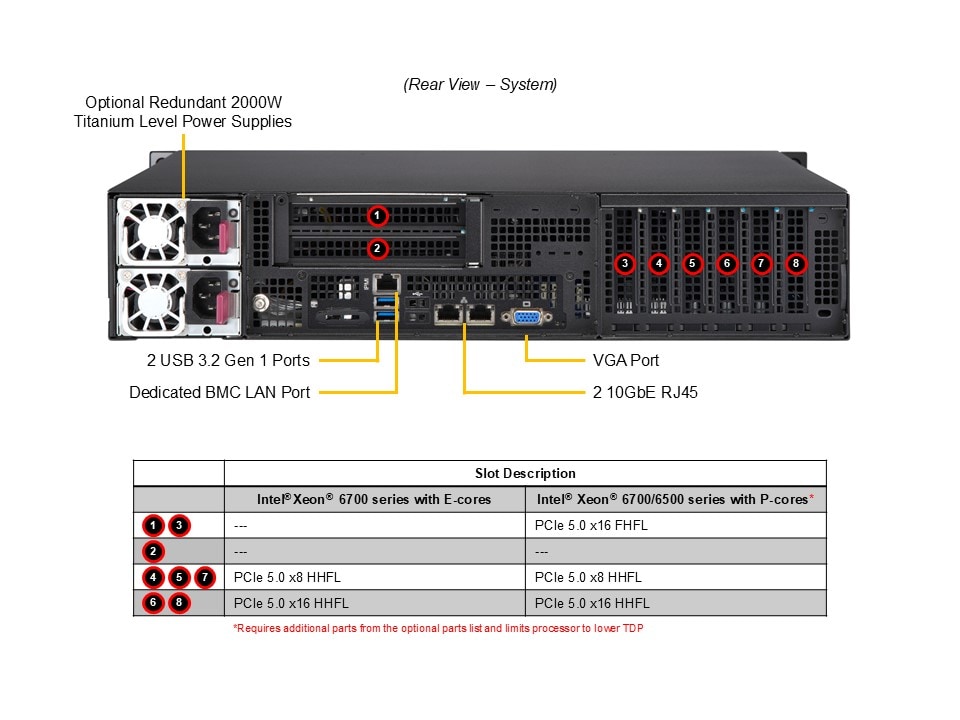

PCI-Express (PCIe) Configuration
  • Default*
    • 3 PCIe 5.0 x16 (in x16) HHFL slots
    • 3 PCIe 5.0 x8 (in x8) HHFL slots
  • Option A*
    • 3 PCIe 5.0 x16 (in x16) HHFL slots
    • 3 PCIe 5.0 x8 (in x8) HHFL slots
    • 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • View AOC Options
M.2
  • 2 M.2 NVMe slots (M-key 22110)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 rear hot-swap 2.5" NVMe* drive bays
  • (*NVMe support may require additional storage controller and/or cables)
  • View Drive Options
M.2
System Cooling
Fans
  • 4x 4-PIN PWM 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
1x 2000W
1x 2000W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)73.5 x 40 x 185 mm
Input1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Output TypeBackplanes (gold finger)
1x 1000W
1x 1000W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)73.5 x 40 x 185 mm
Input800W: 100-127Vac / 50-60Hz
1000W: 200-240Vac / 50-60Hz
+12VMax: 66.7A (100Vac-127Vac)
Max: A (100Vdc-240Vdc)
Max: 83A (200Vac-240Vac)
12V SBMax: 2.1A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Air Shroud MCP-310-22304-0B 1 2U air shroud
MCP-310-22303-0B 1 1U air shroud
Cable CBL-PWCD-0160-IS • 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG
CBL-PWEX-1137YB-30 1 MicroHi(2x4 to 2x2Y),Ph3.0
Heatsink / Retention SNK-P0088P 1 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
SNK-P0087V 1 1U Passive CPU VC HS for X13 and X14 Intel Eagle Stream Platform
Power supply PWS-2K09A-1R 1 AC-DC 1U 2000W 80 Plus Titanium CRPS, reverse airflow, W73.5
PWS-1K04A-1R 1 1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm)
