SuperServer SYS-741A-T

DP full rackmount tower workstation for 3D design and content creation

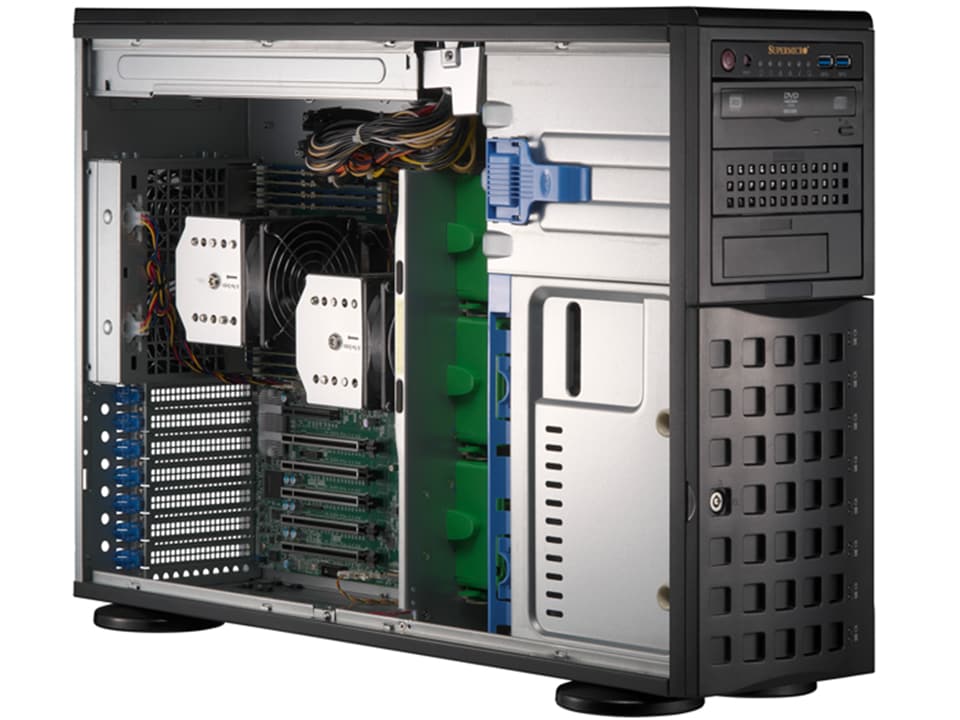

SYS-741A-T Main SYS-741A-T Angle SYS-741A-T Front SYS-741A-T Rear SYS-741A-T Side
Integrated Board: X13DAI-T
Learn more

Key Applications

  • Virtualization
  • High Performance Computing
  • VDI
  • AI Inference and Machine Learning
  • CDN Optimized
  • CAD
  • Multimedia/Digital Content creation
  • Animation and Modeling
  • 3D Rendering

Key Features

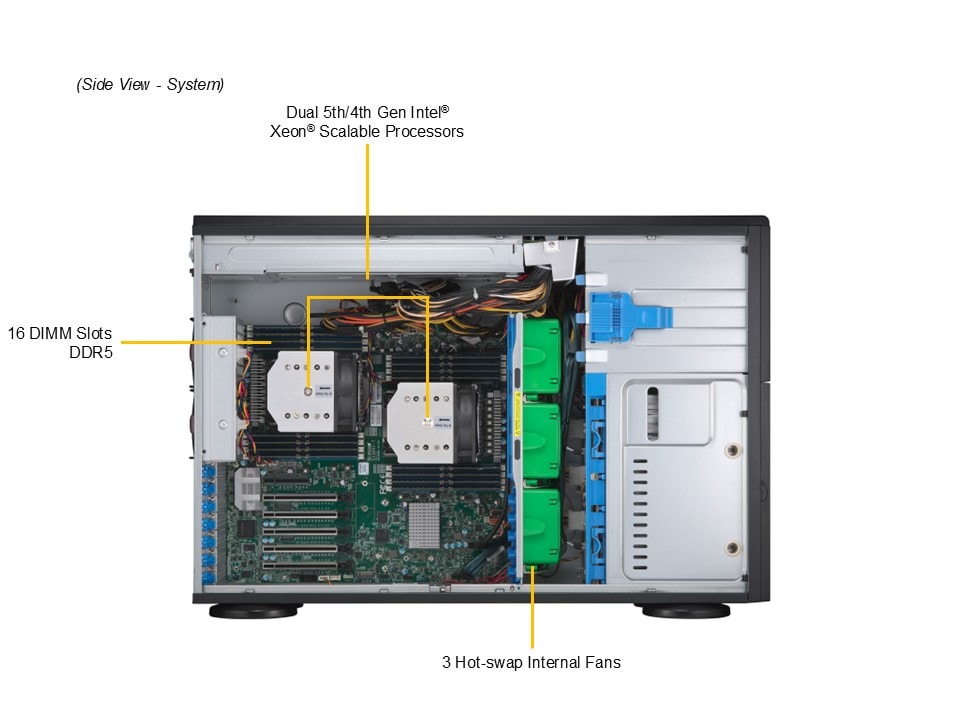

  1. Dual 5th/4th Gen Intel® Xeon® Scalable processors up to 350W with air cooling
    Supports CXL
  2. 16x DIMM Slots: up to 4TB RDIMM DDR5 ECC with 5600MT/s
  3. Support for up to 2x double-width PCIe GPU accelerator cards
    5 PCIe 5.0 x16 FHFL + 1 PCIe 5.0 x8 FHHL slots
    NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition supported
  4. 2x PCIe5.0 M.2 2280/22110
    Default: 8x hot-swap front 3.5/2.5" NVMe/SATA/24G SAS4 drive bays (24G SAS4 support requires optional add-on card)
    Optional: Up to 16x hot-swap front 3.5"/2.5" NVMe/SATA/24G SAS4 drive bays (with 8x U.2 drives optional 2.5" mobile cage and 8x NVME support requires optional add-on card)

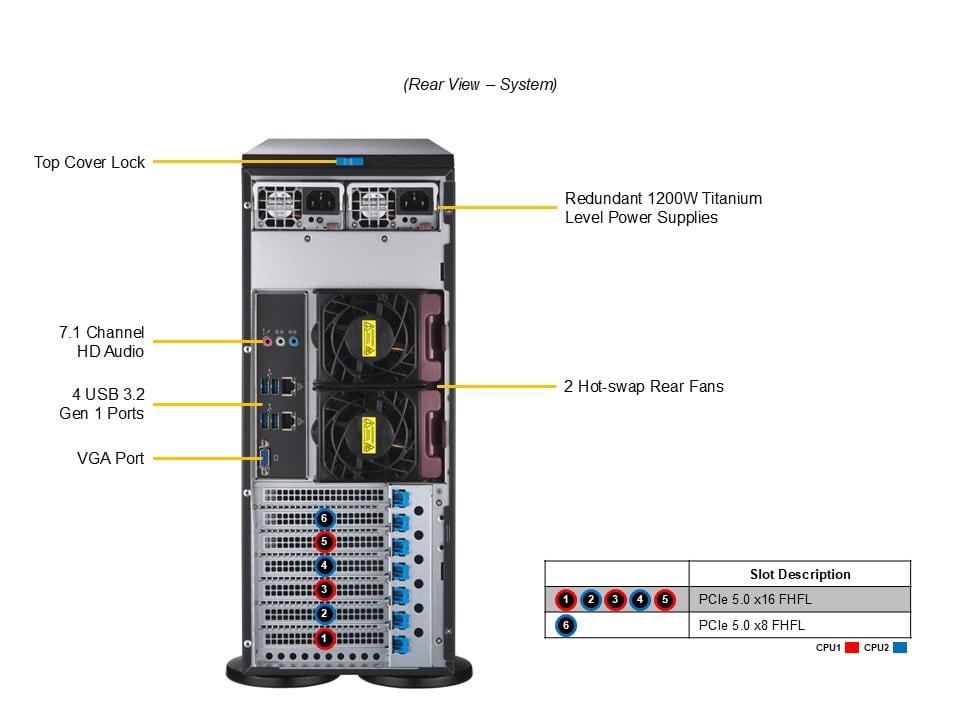

  5. 2x 10GbE LAN (BMC shared LAN support with first LAN port)
    Onboard Trusted Platform Module (TPM) 2.0
  6. 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
...
...
SYS-741A-T
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SuperWorkstation SYS-741A-T
Motherboard
Super X13DAI-T
Processor
CPU
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width GPUs
Supported GPU
  • NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, T400, RTX A5500, T1000, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, RTX 6000 Ada Generation
  • View GPU Options
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C741
Network Connectivity
Input / Output
LAN
  • 2 RJ45 10 GbE LAN ports (IPMI shared on LAN port 1)
USB
  • 2 USB 3.2 Gen1 Type-A ports(front)
  • 4 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
DOM
  • 2 SATA DOM (Disk on Module) ports
Audio
  • 7.1 HD Audio
  • Line Out
  • Mic in
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
FAN
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
Chassis
Form Factor
  • 4U Tower Rackmount
Model
  • CSE-745BTS-R1K23BP3

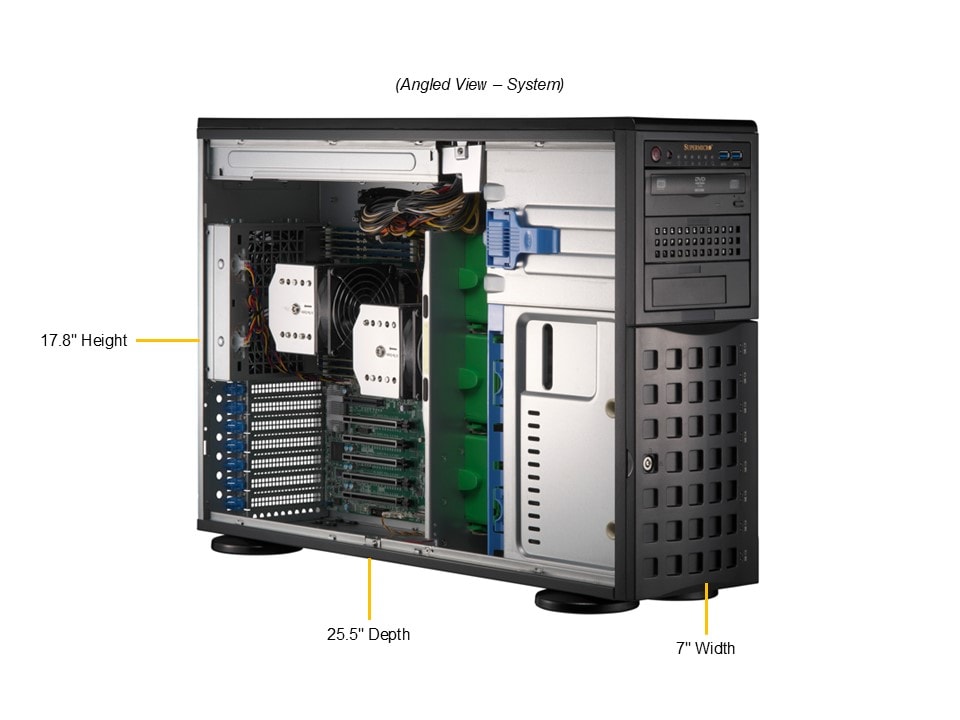

Dimensions and Weight
Height
  • 17.8" (452 mm)
Width
  • 7" (178 mm)
Depth
  • 25.5" (647 mm)
Package
  • 24.6" (H) x 14" (W) x 31.3" (D)
Weight
  • Gross Weight: 62 lbs (28.12 kg)
  • Net Weight: 59 lbs (26.76 kg)
Available Color
  • black

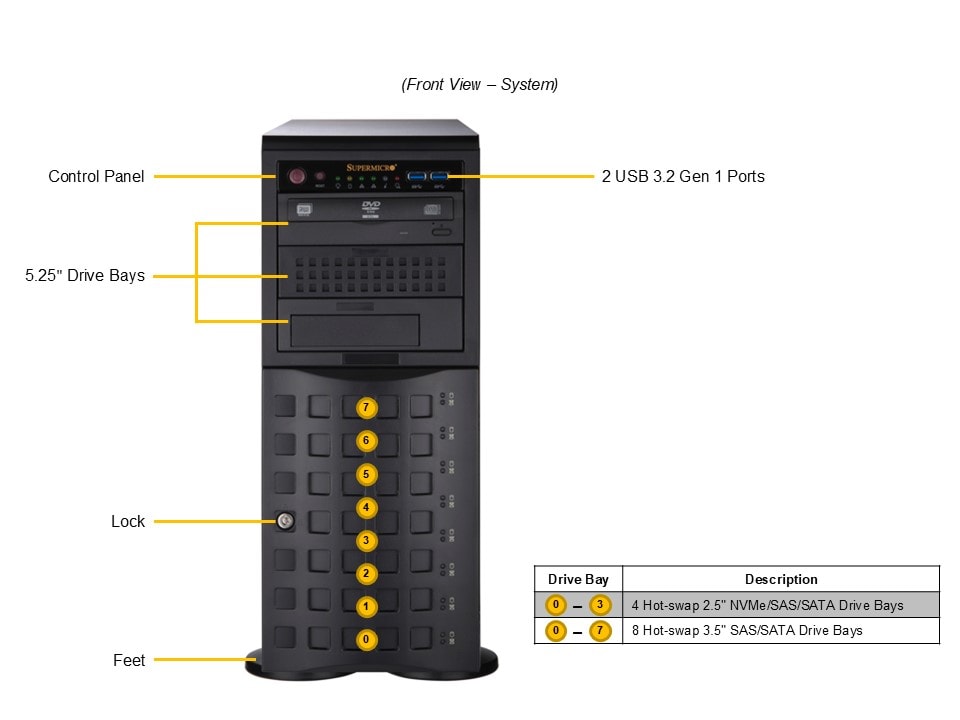

Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
Buttons
  • Power On/Off button
  • Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
M.2
  • 2 M.2 PCIe 5.0 x4 slots (M-key 2280/22110)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front fixed 3.5"/2.5" NVMe/SAS*/SATA drive bays
  • Option A: Total 16 bays
    • 8 front fixed 3.5"/2.5" SAS/SATA drive bays
    • 8 front fixed 2.5" NVMe/SAS/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View Drive Options
M.2
Peripheral Bays
  • 1 DVD bay
System Cooling
Fans
  • 5x 8cm heavy duty fans with optimal fan speed control
Power Supply
2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
DVD-RW Drive DVM-LITE-DVDRW24-HBT1 - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE
Gen4 8-ports SAS Raid controller kit AOC-S3908L-H8IR-16DD-O - 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
M.2 RAID 0/1 Carrier AOC-SLG4-2H8M2-P 1 2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier
Management Software SFT-DCMS-SINGLE • - Supermicro System Managment Software Suite - 1 per node
Mobile Rack CSE-M28SACB - SAS3/SATA3 Mobile Rack for 8x 2.5" HDD
NVMe cable CBL-MCIO-1245U2Y-E • - MCIO x8 to 2x SFF-8639/U.2+Pwr,45cm,G5,RoHS
OOB License SFT-OOB-LIC - License for out of band management
SAS cable CBL-SAST-1264-100 - Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS
SATA Cable CBL-SAST-0624 - 70cm SATA Cable (1pc required for DVD Drive)
SATA Power adapter CBL-0082L - Y SPLIT SATA POWER ADAPTER (1pc required for DVD Drive)
SuperCap kit for AOC-S3908L-H8IR-16DD BTR-CVPM05 - Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender

SuperWorkstation SYS-741A-T Coming Soon
