Supermicro Solution for Rozo Systems: RozoFS®

RozoFS streamlines hardware resources for the most efficient software defined storage available on the market today.

Unparalleled Cost to Performance

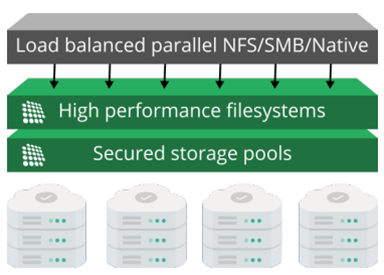

RozoFS Diagram

RozoFS® is a software-defined storage solution that delivers high performance storage at a low cost for the private, hybrid or public cloud. RozoFS supports the most demanding workloads with patented data protection and easy management. It reduces the Total Cost of Ownership by at least 10x when compared to traditional storage arrays by offering a software platform that runs on industry-standard x86 compute nodes and automates standard management storage tasks.

Artificial Intelligence and Machine Learning Directly from the Edge over WAN

Comcast Innovation Center uses Rozo Storage Software to Stream ML data from coast to coast.

When Comcast Communications needed a storage partner to build out their coast-to-coast, edge-to-core datacenter infrastructure to enable machine learning against large compressed image data, they tested IBM GPFS, AWS S3, and RozoFS. Only one file storage technology was capable of feeding the GPUs the massive amounts of data required, and that victor was RozoFS. Not only was RozoFS faster than GPFS, and S3, Rozo was also lower in cost, from initial purchase to TCO. And as Rozo storage is deployed across standard commoditized hardware, Comcast was able to achieve dramatic savings over other high performance storage options.

The ability to store and stream large object files directly from the edge, over large geographies appeal particularly to media and entertainment, oil and gas, and medical research industries.

Scalability: Up, Out, or Down

RozoFS’ storage architecture enable it to scale up by adding capacity to the nodes, or scale-out by adding nodes to increase both capacity and performance. It can also scale-down by removing devices from servers. All the operations are performed without service interruption.

High Performance

RozoFS is built around a powerful erasure code algorithm, the Mojette Transform. Combined with a parallel networking architecture, it offers a storage system that handles real-time constraints of the applications. Rozo optimizes your hardware performance whatever your media choice - HDD or flash. Each node in Rozo can sustain really high performance for sequential or random I/Os. Of course, the more nodes you add, the more performance you get.

Data and System Protection

RozoFS provides data and system protection by applying erasure coding at the file system block level and by storing data chunks on different storage servers. The number of servers is configured based on the required redundancy level. RozoFS provides data protection equivalent to three copies with only 50% redundancy overhead. The data protection method used by RozoFS makes disk and server failures transparent to the application. Data integrity is achieved by applying a CRC-32 to each block stored on disk. In case of a data integrity violation, RozoFS has a self-healing capability that transparently corrects and re-writes the faulty block on disk without disturbing the application. RozoFS provides an automatic disk self-healing capability that maintains the expected level of redundancy by redistributing the data of a faulty device within the remaining devices of a storage node.

Easy Management

RozoFS provides a single point of management via CLI or web applications. Soft and hard quotas are provided. Nodes at different performance levels can be aggregated for tiering using RozoFS’ management tools. In the same way, thin provisioning is made as easy as creation, deletion, sharing and resizing of managed file systems. RozoFS supports standard monitoring tools such as Nagios.

Supermicro RozoFS Reference Architectures

RozoFS AMD Configurations

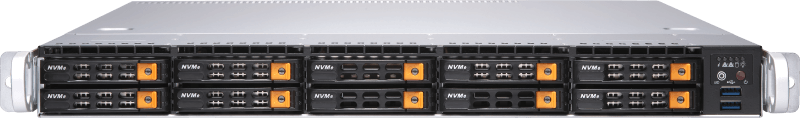

AS -1114S-WN10RT
RozoFS AMD Configurations Small Qty Medium Qty Large Qty
Usable Capacity 50 TB   230TB   460TB
Platform AS -1114S-WN10RT 4 AS -1114S-WN10RT 4 AS -1114S-WN10RT 8
CPU AMD EPYC 72F3 DP/UP 8C/16T 3.7G 1 (4) AMD EPYC 7313 DP/UP 16C/32T 3.0G 1 (4) AMD EPYC 7313 DP/UP 16C/32T 3.0G 1 (8)
Memory 8GB DDR4 1.2V 3200 ECC 8 (32) Micron 16GB DDR4-3200 2RX8 ECC RDIMM 8 (32) Micron 16GB DDR4-3200 2RX8 ECC RDIMM 8 (64)
M.2 Boot Drive Toshiba XG6 256GB NVMe M.2 22x80mm <1DWPD 2 (8) Toshiba XG6 256GB NVMe M.2 22x80mm <1DWPD 2 (8) Toshiba XG6 256GB NVMe M.2 22x80mm <1DWPD 2 (16)
NVMe Storage Drive Micron 9300 PRO 3.8TB NVMe PCIe 3.0 3D TLC U.2 15mm,1DWPD 6 (24) Micron 9300 PRO 15.3TB NVMe PCIe 3.0 3D TLC U.2 15mm 1DWPD 7 (28) 9300 PRO 15.3TB NVMe PCIe 3.0 3D TLC U.2 15mm 7 (56)
MetaData Drive Intel DC P4510 1TB NVMe PCIe 3.1 3D TLC 2.5"" 15mm 1DWPD Rev. 1 (4) Micron 7300 PRO 1.92TB NVMePCIe 3.0 1 (4) Micron 7300 PRO 1.92TB, PCIe NVMe, M.2 22x110mm 3D TLC, 1DWPD 1 (8)
Network 2-port 25G SFP28, Mellanox ConnectX-4 1 (4) 2-port 25G SFP28, Mellanox ConnectX-4 1 (4) Mellanox ConnectX-5 Ex EN network interface card, 100GbE dual-port QSFP28 1 (8)
Infrastructure Support TCP/IP; RoCEv2; Infiniband   TCP/IP; RoCEv2; Infiniband   TCP/IP; RoCEv2; Infiniband
Operating System Support Linux   Linux   Linux
Available Rozo Service Rozo Lic per device & 1 YR Standard support 1 Rozo Lic per device & 1 YR Standard support 1 Rozo Lic per device & 1 YR Standard support 1
Available Supermicro Service 3-year onsite 24x7x4 service / 3-year onsite next business day service   3-year onsite 24x7x4 service / 3-year onsite next business day service   3-year onsite 24x7x4 service / 3-year onsite next business day service

RozoFS Intel Configurations

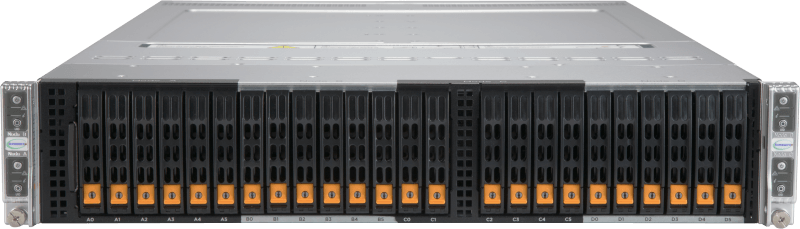

SYS-220BT-HNTR
RozoFS Intel Configurations Small Qty Medium Qty
Usable Capacity 45 TB   180TB
Platform SYS-220BT-HNTR 1 SYS-220BT-HNTR 4
CPU ICX 4310 2P 12C/24T 2.1G 8 ICX 4310 2P 12C/24T 2.1G 8
Memory 8GB DDR4 1.2V 3200 ECC 32 Micron 16GB DDR4-3200 2RX8 ECC RDIMM 32
Boot Drive Intel D3 S4510 240GB M.2 SATA 6Gb/s 3D TLC 22x80mm 1DWPD 8 Toshiba XG6 256GB NVMe M.2 22x80mm <1DWPD 8
NVMe Storage Drive Micron 9300 PRO 3.8TB NVMe PCIe 3.0 3D TLC U.2 15mm,1DWPD 20 Micron 9300 PRO 15.3TB NVMe PCIe 3.0 3D TLC U.2 15mm 1DWPD 20
MetaData Drive Intel DC P4510 1TB NVMe PCIe 3.1 3D TLC 2.5" 15mm 1DWPD Rev. 4 Micron 7300 PRO 1.92TB NVMePCIe 3.0 4
Network SIOM 2+2-port 25G & 10G, SFP28 & RJ45, Mellanox (Retail) 4 SIOM 2+2-port 25G & 10G, SFP28 & RJ45, Mellanox (Retail) 4
RAID Card SATA M.2 RAID adapter for Big Twin,HF,RoHS 4 SATA M.2 RAID adapter for Big Twin,HF,RoHS 4
Infrastructure Support TCP/IP; RoCEv2; Infiniband   TCP/IP; RoCEv2; Infiniband
Operating System Support Linux   Linux
Available Rozo Service Rozo Lic per device & 1 YR Standard support 1 Rozo Lic per device & 1 YR Standard support 1
Available Supermicro Service 3-year onsite 24x7x4 service / 3-year onsite next business day service   3-year onsite 24x7x4 service / 3-year onsite next business day service
