Supermicro Solutions for Microsoft Azure Stack HCI
Microsoft Logo

Introducing the new Azure Stack HCI for your hybrid cloud

Microsoft Azure Stack HCI is a powerful new hyperconverged infrastructure (HCI) cluster solution for hybrid cloud environments. The new Azure Stack HCI OS, delivered as an Azure service, enables you to run virtualized workloads on Microsoft-certified Supermicro HCI hardware solutions, on-premises in your control, while gaining the Azure Cloud efficiency and capability.

Azure Stack HCI Solution diagram

Benefits of the new Azure Stack HCI Supermicro Solutions

  • Microsoft-certified hardware solution from Supermicro
    • Industry-leading performance
    • Quality delivered by pre-validation and optimization
    • High availability and easy to scale out from 2 nodes up to 16 nodes in a cluster
    • Flexibility options of Intel and AMD platforms, All-flash and Hybrid, with multiple form factors, drive combinations, and network bandwidths to choose from
  • Native Azure Hybrid capabilities
    • Delivered as an Azure Service, always up to date with latest security and features
    • Manage your on-premise HCI cluster from Azure Portal
    • Natively integrated with Azure services such as Azure Monitor, Azure Backup, and Azure Security Center
  • Price-performance of HCI
    • Flexible per core subscription model for cost optimization
    • No upfront license cost for Azure Stack HCI OS
      • Note: Customers running Windows Server VMs on Azure Stack HCI need to procure an appropriate license. Windows Server 2022/2019 license, or Windows Server subscription will be required. Please refer to the following link for more details about the license options:
        License Windows Server VMs on Azure Stack HCI
  • Easy to manage with no learning curve
    • Easy to deploy and manage using both GUI and scripts
    • Integrate into your existing IT environment
    • Familiarity with existing virtualization and storage concepts and skills

When to use the new Azure Stack HCI*

icon
Datacenter Modernization
icon
Virtual Desktop Infrastructure (VDI)
icon
High-Performance MS SQL Server
icon
Branch Office and Edge
icon
Trusted Enterprise Virtualization
icon
Azure Kubernetes Service

* Refer to technical use case briefs for more details

Intel-based Solution

Supermicro Intel-based Hardware solutions for Azure Stack HCI are designed to deliver the highest performance, flexibility, scalability and serviceability to demanding IT environments, and optimized for mission-critical enterprise workloads.

The Supermicro solution is pre-validated/certified and optimized for running an Azure Stack HCI cluster, starting from 2 server nodes and support up to 16 nodes in a cluster. Each server node in the cluster is equipped with latest Intel® Xeon® Scalable processors, DDR4 memory, NVMe as caching devices, with flexible options of different drive combinations including All-NVMe, NVMe+HDD, NVMe+SSD, NVMe+SSD+HDD, and RDMA enabled high-speed networks.

We currently offer the following Microsoft certified Azure Stack HCI solutions SKUs based on Supermicro Mainstream, Ultra, BigTwin and 1U 12 Bay Drawer platforms:

Supermicro X12 BigTwin® 2U4N All-flash/Hybrid Solution:
  • SYS-220BT-HNC8R-HCI
SYS-220BT-HNC8R-HCI (angled view)SYS-220BT-HNC8R-HCI (rear view)
Best ForHigh-density 4-node HCI deployment scenario for balanced workloads
Server SKUSYS-220BT-HNC8R
ProfileAll-flash, Hybrid
Form Factor2U
Nodes in a cluster4-16 (1-4 systems)
ProcessorsDual 3rd Gen Intel® Xeon® Scalable Processors
Memory128GB to 4TB DDR4
Storage TypeNVMe, SSD + HDD
NetworksUp to 100GbE RoCE RDMA
Supermicro X12 UP Mainstream 1U All NVMe/SATA SSD Solution:
  • SYS-510P-MR-HCI
SYS-510P-MR (angled view)SYS-510P-MR (rear view)
Best ForWorkloads for small footprint HCI deployment in limited spaces
Server SKUSYS-510P-MR
ProfileAll-flash
Form Factor1U
Nodes in a cluster2-4
ProcessorsSingle 3rd Gen Intel® Xeon® Scalable Processor
Memory64GB to 256GB DDR4
Storage TypeNVMe, SSD SATA
Networks25GbE RoCE RDMA
Supermicro X12 Ultra 1U All-flash Solution:
  • SYS-120U-TNR-HCI
SYS-120U-TNR (angled view)SYS-120U-TNR (rear view)
Best ForFlexible and scalable HCI for high-performance or balanced workloads
Server SKUSYS-120U-TNR
ProfileAll-flash
Form Factor1U
Nodes in a cluster2-16
ProcessorsDual 3rd Gen Intel® Xeon® Scalable Processors
Memory128GB to 4TB DDR4
Storage TypeNVMe + SSD
Networks25GbE (Up to 100GbE) RoCE RDMA
Supermicro Ultra 1U All-flash NVMe Solution:
  • SYS-1029U-TN10RT-HCI
SYS-1029U-TN10RT-HCI (angled view)SYS-1029U-TN10RT-HCI (rear view)
Best ForHigh-performance compute and high-speed storage
ProfileAll-flash NVMe
Form Factor1U
Nodes in a cluster2-16
ProcessorsDual Intel® Xeon® Scalable Processors
Memory128GB to 6TB DDR4
Storage TypeNVMe
NetworksUp to 100GbE RoCE DRMA
Supermicro Ultra 1U All-flash/Hybrid Solution:
  • SYS-1029U-TRT-HCI
SYS-1029U-TRT-HCISYS-1029U-TRT-HCI (rear view)
Best ForWork loads with balanced performance in a cost-optimized two-node cluster
ProfileAll-flash, Hybrid
Form Factor1U
Nodes in a cluster2-4
ProcessorsDual Intel® Xeon® Scalable Processors
Memory128GB to 6TB DDR4
Storage TypeNVMe +SSD, NVMe + SSD + HDD
NetworksUp to 40GbE RoCE RDMA
Supermicro Ultra 2U All-flash NVMe Solution:
  • SYS-2029U-TN24R4T-HCI

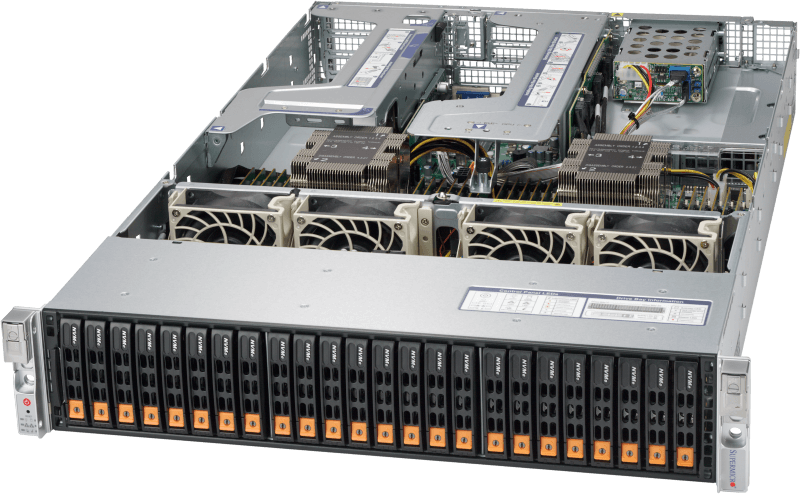

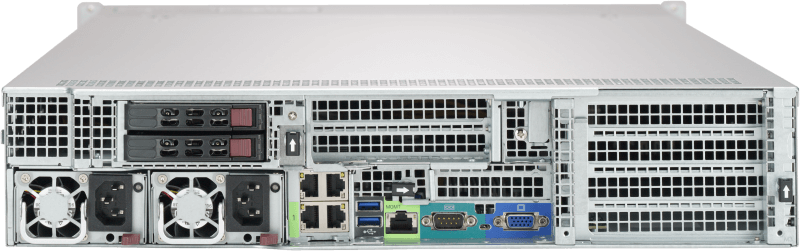

SYS-2029U-TN24R4T-HCI (angled view)SYS-2029U-TN24R4T-HCI (rear view)
Best ForHigh-performance mission critical workloads with large storage capacity
ProfileAll-flash NVMe
Form Factor2U
Nodes in a cluster2-4
ProcessorsDual Intel® Xeon® Scalable Processors
Memory128GB to 6TB DDR4
Storage TypeNVMe
NetworksUp to 100GbE RoCE DRMA
Supermicro Ultra 2U All-flash/Hybrid Solution:
  • SYS-6029U-E1CR4-HCI

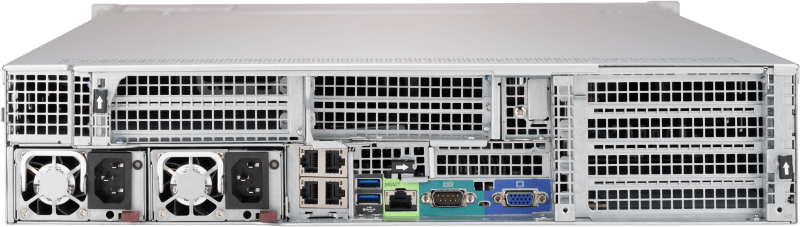

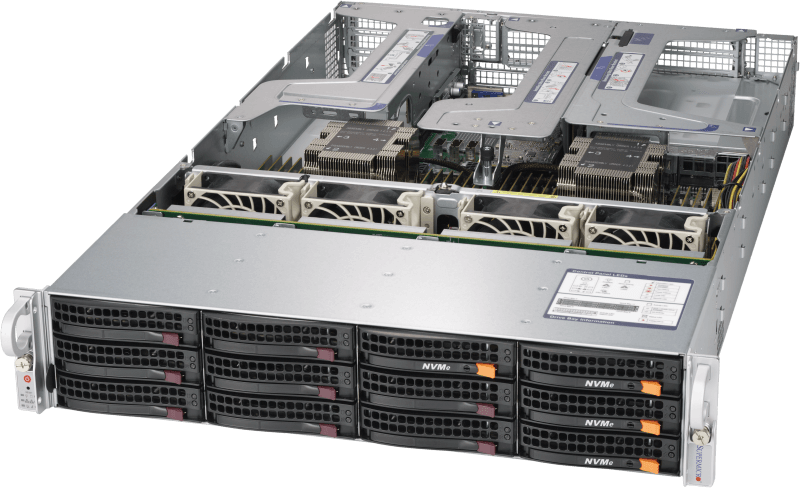

SYS-6029U-E1CR4-HCI (angled view)SYS-6029U-E1CR4-HCI (rear view)
Best ForWork loads needing balanced performance and high storage capacity
ProfileAll-flash, Hybrid
Form Factor2U
Nodes in a cluster2-16
ProcessorsDual Intel® Xeon® Scalable Processors
Memory128GB to 6TB DDR4
Storage TypeNVMe +SSD, NVMe + SSD + HDD
NetworksUp to 100GbE RoCE RDMA
Supermicro 2U 2 node BigTwin All-flash/Hybrid Solution:
  • SYS-2029BT-DNC0R-HCI
SYS-2029BT-DNC0R-HCI (angled view)SYS-2029BT-DNC0R-HCI (rear view)
Best ForTwo nodes optimized in a 2U form factor for balanced work loads
ProfileAll-flash, Hybrid
Form Factor2U
Nodes in a cluster2-4 (1-2 systems)
ProcessorsDual Intel® Xeon® Scalable Processors
Memory128GB to 6TB DDR4
Storage TypeNVMe +SSD, NVMe + SSD + HDD
NetworksUp to 100GbE RoCE RDMA
Supermicro 1U 12 Bay Drawer Hybrid Solution:
  • SSG-6119P-ACR12N4L-HCI
SSG-6119P-ACR12N4L-HCI (angled view)SSG-6119P-ACR12N4L-HCI (rear view)
Best ForBalanced performance work loads and high storage density
ProfileHybrid
Form Factor1U
Nodes in a cluster2-4
ProcessorsDual Intel® Xeon® Scalable Processors
Memory128GB to 3TB DDR4
Storage TypeNVMe + HDD
NetworksUp to 100GbE RoCE RDMA

AMD EPYC™-based Solution

Supermicro A+ servers based Azure Stack HCI solutions are optimized for AMD EPYC 7003/7002 series processors and deliver excellent core density, memory bandwidth and I/O capacity.

Supermicro A+ H12 1U Ultra All-Flash Solution:
  • AS -1124US-TNRP-HCI
  • 1U
AS -1124US-TNRP (angled view)AS -1124US-TNRP (rear view)
Best ForBoth high-performance and balanced workloads
Server SKUAS -1124US-TNRP
ProfileAll-flash
Form Factor1U
Nodes in a cluster2-16
ProcessorsDual AMD EPYC™ 7003 Series Processors
Memory128GB to 8TB DDR4
Storage TypeNVMe
NetworksUp to 100GbE RoCE RDMA
Supermicro A+ H12 1U WIO All NVMe/SATA SSD Solution:
  • AS -1114S-WN10RT-HCI
  • 1U
AS -1114S-WN10RT (angled view)AS -1114S-WN10RT (rear view)
Best ForCost-effective and flexible HCI solution for both balanced and high-performance workloads
Server SKUAS -1114S-WN10RT
ProfileAll-flash
Form Factor1U
Nodes in a cluster2-16
ProcessorsSingle AMD EPYC™ 7003 Series Processor
Memory128GB to 4TB DDR4
Storage TypeNVMe, SSD
NetworksUp to 100GbE RoCE RDMA
Supermicro A+ Ultra 2U All-flash/Hybrid Solution:
  • AS -2023US-TR4-HCI

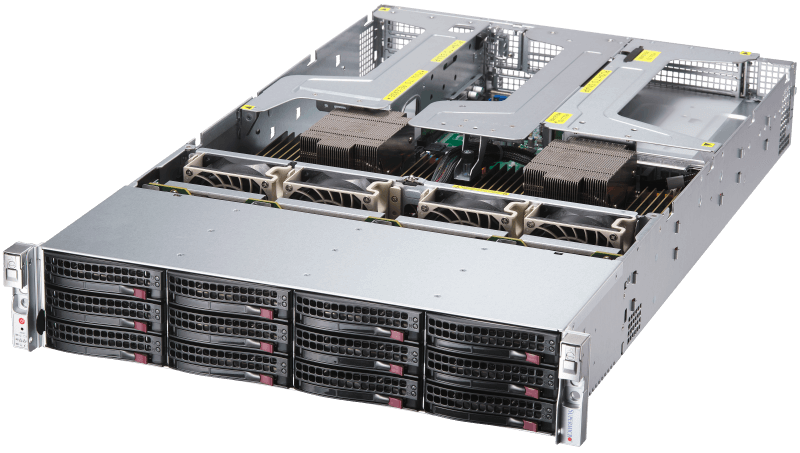

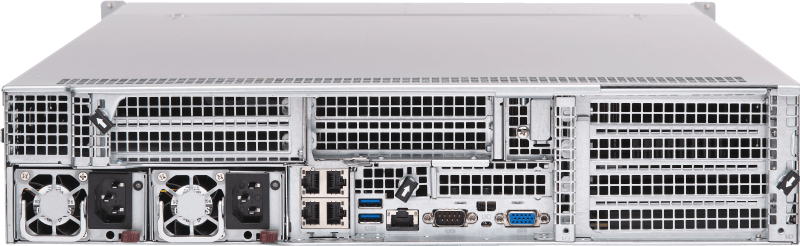

AS -2023US-TR4-HCI (angled view)AS -2023US-TR4-HCI (rear view)
Best ForWork loads that need high CPU core counts and high storage capacity
ProfileAll-flash, Hybrid
Form Factor2U
Nodes in a cluster2-4
ProcessorsDual AMD EPYC™ 7000 Series Processors
Memory128GB to 8TB DDR4
Storage TypeNVMe +SSD, NVMe + SSD + HDD
NetworksUp to 100GbE RoCE RDMA
