Add-on Module AOM-S3808NI-4NM
Products Accessories [ AOM-S3808NI-4NM ]
Add-on Module

Supermicro OS boot storage adapter for 4U X14/H14 Liquid-Cooled NVIDIA HGX™ 8-GPU Systems

The Supermicro AOM-S3808NI-4NM is a PCIe Gen 4.0 x4 M.2 OS boot storage RAID adapter that enables the user to add up to two NVMe M.2 SSDs and supports M.2 hot-swappable with converter. M.2 solid state technology is an optimized, high-performance, scalable storage solution, effectively streamlined for enterprise and client systems that leverage the cutting-edge power of PCI Express 4.0 technology. AOM-S3808NI-4NM supports hot-swappable M.2 with converter, in 22110 and 2280 M.2 SSD form factors with RAID 0 and RAID 1.

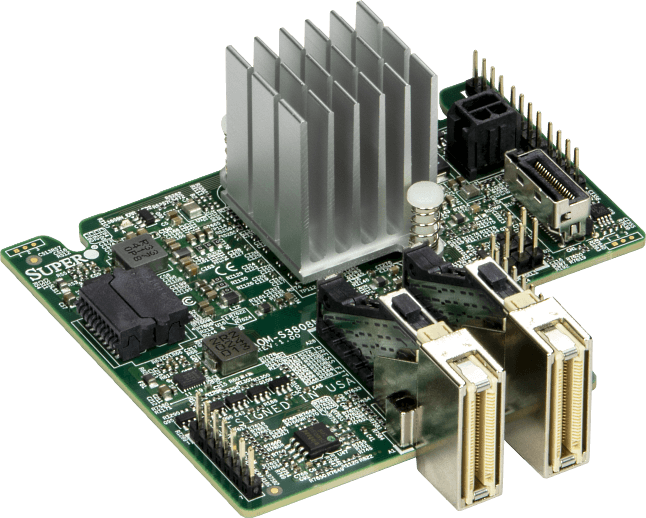

AOM-S3808NI-4NM

This product is only available through Supermicro.

Supermicro recommends that you use AOM-S3808NI-4NM ONLY as an operating system boot device. 2 pcs MCP-220-12108-0N (the M.2 Converter Tray) are needed.

Compatible with Supermicro systems and motherboards only.
Compliance
RoHS
  • RoHS Compliant 6/6, Pb Free

Key Features

  • OS boot storage adapter for 4U X14/H14 Liquid-Cooled NVIDIA HGX 8-GPU Systems
  • Broadcom SAS 3808N, supporting RAID 0, 1 or JBOD
  • Supports two NVMe in M.2 form factor with Converter
    • M.2 to E1.S Converter (MCP-220-12108-0N)
    • 22*110, 22*80 mm M.2 SSD Form Factor
  • PCIe Gen 4 x4 host interface with MCIO connector
  • Management:
    • LSI Storage Authority, LSA
    • StorCLI (command-line interface)
    • UEFI HII Configuration Utility
    • BMC-enabled management
  • OS support: Windows, Linux, VMware
  • Power Consumption: 9W
  • Thermal operating range: System dependent (55°C or higher w/ enough airflow)
  • Weight: 80g
Dimensions
W x D
3.43" x 3.35"

Qualified Platforms
Servers
[Qualified Platform List]
Qualified Drives
Tested M.2
[ View List ]
Downloads
User's Guide [ Download ]
Driver [ Download ]
Firmware [ Download ]
Parts List - (Items Included)
Part Number Qty Description
Add-on Card AOM-S3808NI-4NM 1 OS boot storage RAID adapter
