Key Features


  1. 4U chassis - supports for maximum motherboard sizes: 13.68" x 13", E-ATX, ATX motherboards

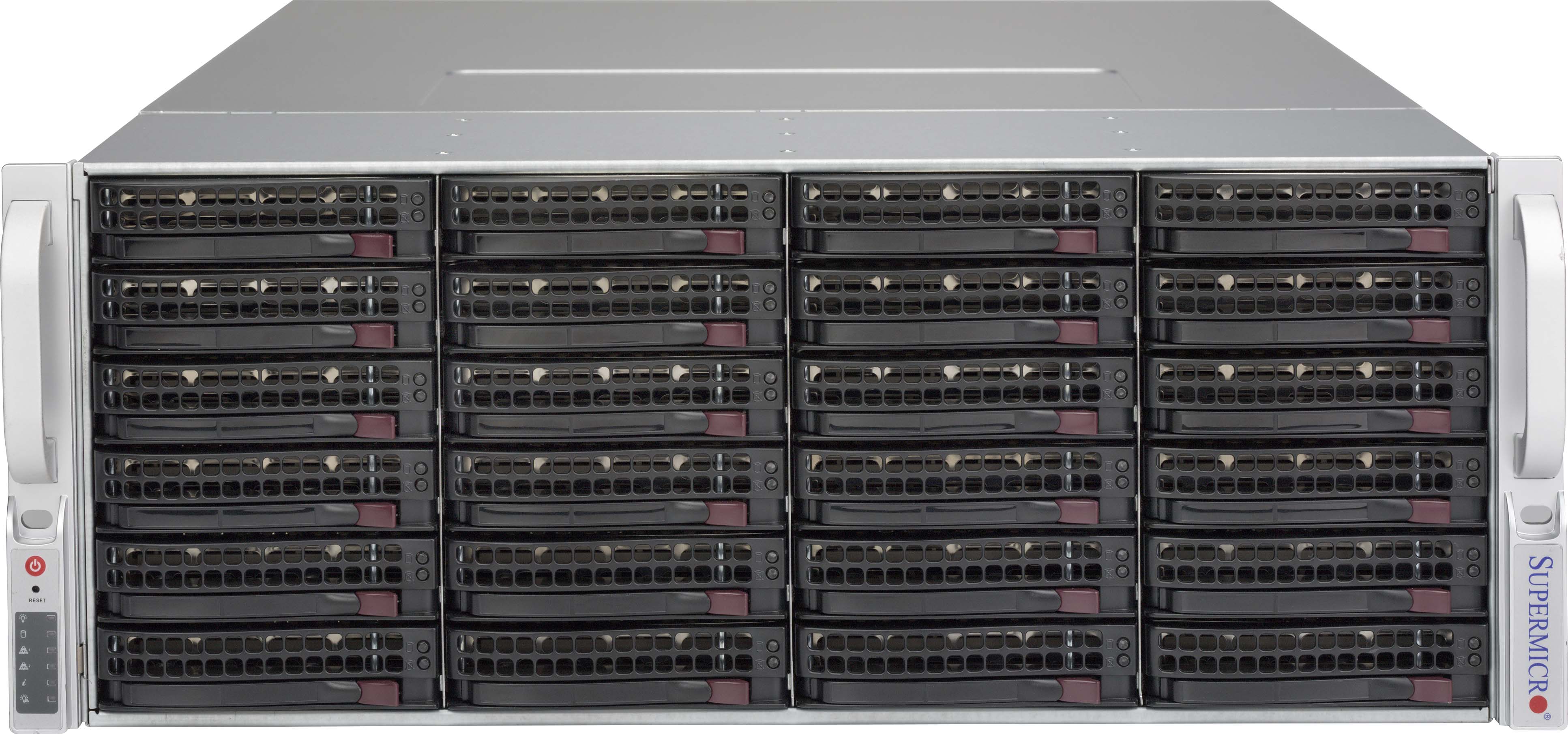

  2. 36 x 3.5" hot-swap HDD bays for server chassis
  3. 12-port 2U SAS 6Gbps direct-attached backplane, support up to 12x 3.5-inch SAS2/SATA3 HDD/SSD
    24-port 4U SAS 6Gbps direct-attached backplane, support up to 24x 3.5-inch SAS2/SATA3 HDD/SSD
  4. 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm

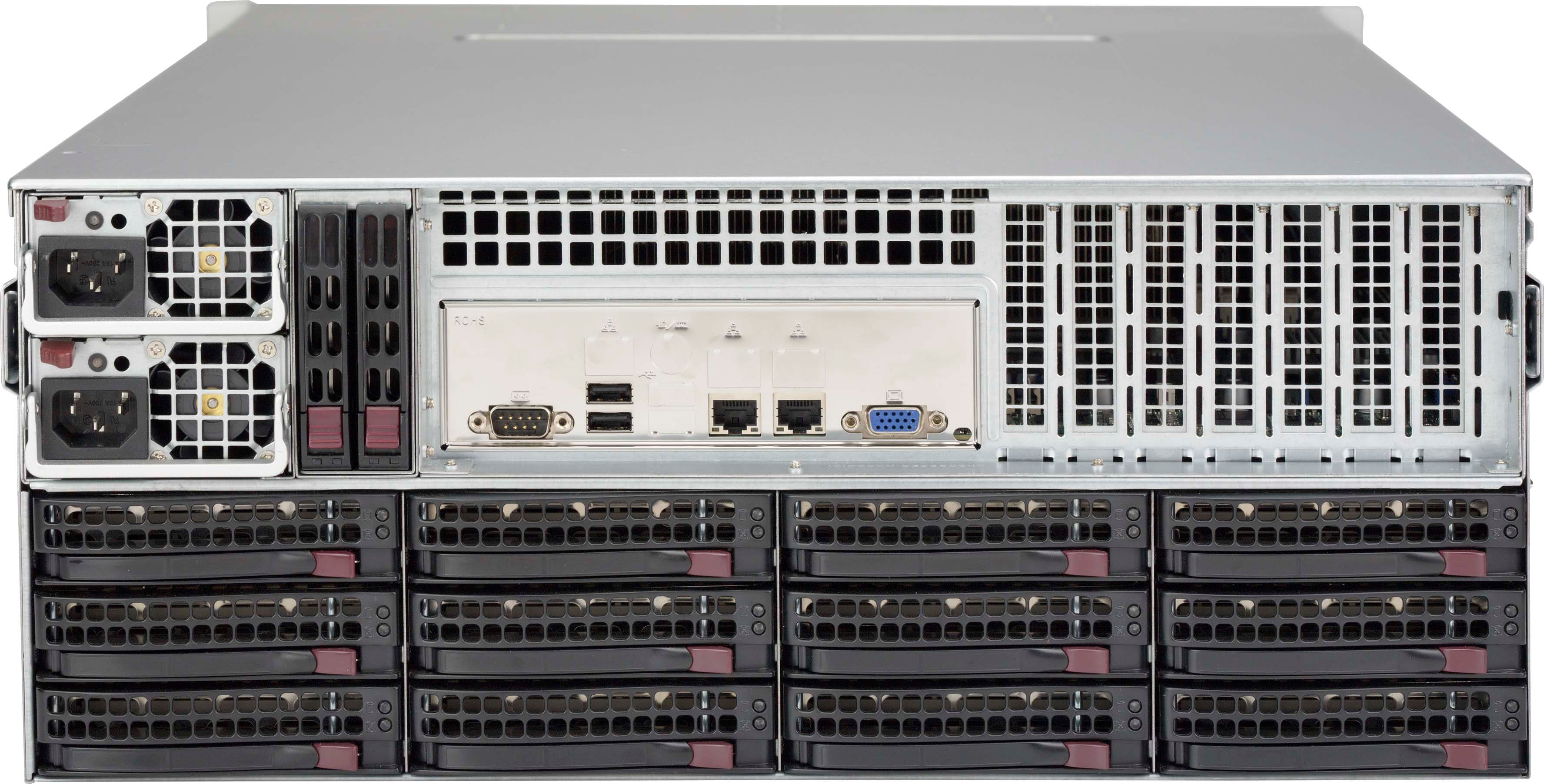

  5. 7 low-profile expansion slot(s)
  6. 7 x 8cm hot-swap redundant PWM cooling fan(s)
Resources
Specifications
Product SKUs
CSE-847BA-R1K23LPB
  • SuperChassis 847BA-R1K23LPB

Form Factor
  • 4U chassis - supports for maximum motherboard sizes: 13.68" x 13", E-ATX, ATX motherboards

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 27.5" (699 mm)
Gross Weight
  • 91 lbs (41.28 kg)
Packaging (W x H x L)
  • 27.2" (691 mm) x 21" (533 mm) x 39.6" (1006 mm)
Available Color
  • Black

Expansion Slots
  • 7x Low-profile expansion slot(s)

Drive Bays
  • 36x 3.5" hot-swap drive bay for server chassis

Backplane
  • 12-Port 2U SAS 6Gbps direct-attached backplane, support up to 12x 3.5-inch SAS2/SATA3 HDD/SSD
  • 24-Port 4U SAS 6Gbps direct-attached backplane, support up to 24x 3.5-inch SAS2/SATA3 HDD/SSD

Peripheral Drives
  • Optional 2x 2.5" hot-swap drive bay

Front Panel
Button
  • Power On/Off button
  • System Reset button
  • Unit Identification (UID) button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 7x 8cm hot-swap redundant PWM cooling fan(s)

System Monitoring
  • Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency
  • 96%
Total Output Power and Input
  • 1200W with Input 200 - 240Vac
  • 1000W with Input 100 - 127Vac
  • 1200W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 100A / Min: 0A (200Vdc - 240Vdc)
  • Max: 100A / Min: 0A (200Vac - 240Vac)
  • Max: 83A / Min: 0A (100Vac - 127Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT847-8824
  • O/P: 12V/135
  • +5V Max: 100A
  • +3.3V Max: 30A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Components
Standard Parts List
  Part Number Qty Description
HD Backplane BPN-SAS-826A 1 12-port 2U SAS 6Gbps direct-attached backplane, support up to 12x 3.5-inch SAS2/SATA3 HDD/SSD
HD Backplane BPN-SAS-846A 1 24-port 4U SAS 6Gbps direct-attached backplane, support up to 24x 3.5-inch SAS2/SATA3 HDD/SSD
Power Distributor PDB-PT847-8824 1 24pin standard output with 5V high current 100Amp power distributor board for SC847
Power Supply & Accessory PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
Optional Parts List
  Part Number Qty Description
Cable CBL-0352L-LP - External IPASS to Internal IPASS 85CM 2-PORT LP. 26AWG
CBL-0108L-02 - IPASS TO IPASS 39CM PBF
CBL-0281L - IPASS TO IPASS 75CM PBF. 26AWG
MCP-220-84701-0N - SC847 internal drive tray for one 3.5
CBL-0351L-LP - External IPASS to Internal IPASS 85CM 1-PORT LP. 26AWG
Front Bezel CBL-0166L - external IPASS mini SAS x4 cable. 1M. 28AWG
HDD Kit MCP-210-84601-0B - Black Front Bezel For SC846 Chassis
MCP-220-00043-0N - Black hotswap gen 4 3.5 to 2.5 HDD tray
HDD Tray Converter MCP-290-00060-0N - Threaded rail adapter default for round hole rack
Rail MCP-220-82609-0N - Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B
MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
