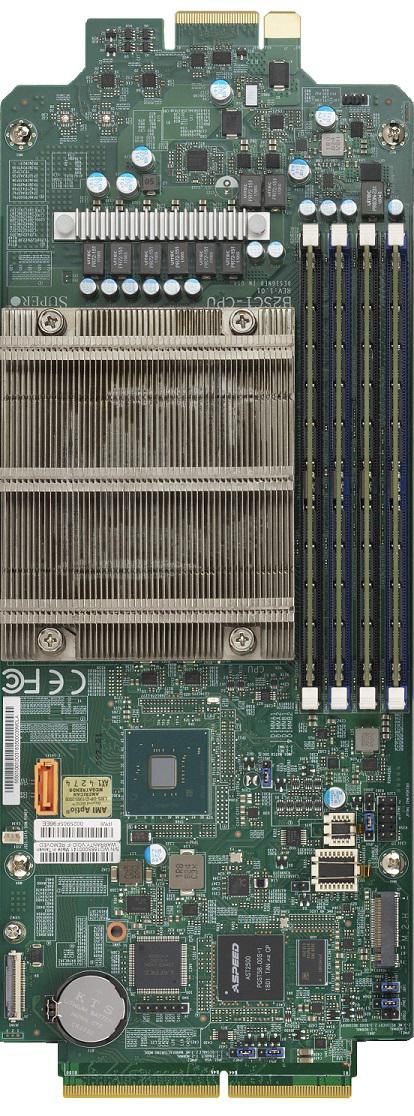

B2SC1-CPU

B2SC1-CPU

Key Features


  1. 8th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
    Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
  2. Intel® C246
  3. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

  4. 1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110
  5. 1 SATA3 (6 Gbps) ports;
  6. Dual LAN with 1GbE LAN via Intel® i350-AM2
...
...

Optimized Servers


MBI-6119M-C2 MBI-6119M-T2N MBS-314E-6119M
Specifications Resources Parts List
Specifications
Product SKUs
MBD-B2SC1-CPU
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 4.8" x 12.6" (12.19cm x 32cm)
Processor
CPU
  • Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz
Memory Type
  • 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C246
SATA
  • 1 SATA3 (6 Gbps) ports
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Dual LAN with 1GbE LAN via Intel® i350-AM2
Input / Output
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • N/A
M.2
  • M.2 Interface: 1 SATA/PCIe 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • 128MB SPI Flash EEPROM with UEFI BIOS
BIOS Features
  • ACPI 6.1
  • DMI (SMBIOS) 2.7
  • UEFI 2.6
Management
Software
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
PC Health Monitoring
Voltage
  • System temperature, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
  • Power LED
Temperature
  • Monitoring for CPU and chassis environment
Other Features
  • System level control
  • RoHS
  • M.2 NGFF connector
  • ACPI power management
Resources
Servers (Optimized for B2SC1-CPU)
MBI-6119M-C2
MBI-6119M-T2N
MBS-314E-6119M
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List
B2SC1-CPU (For SuperServer Only)
