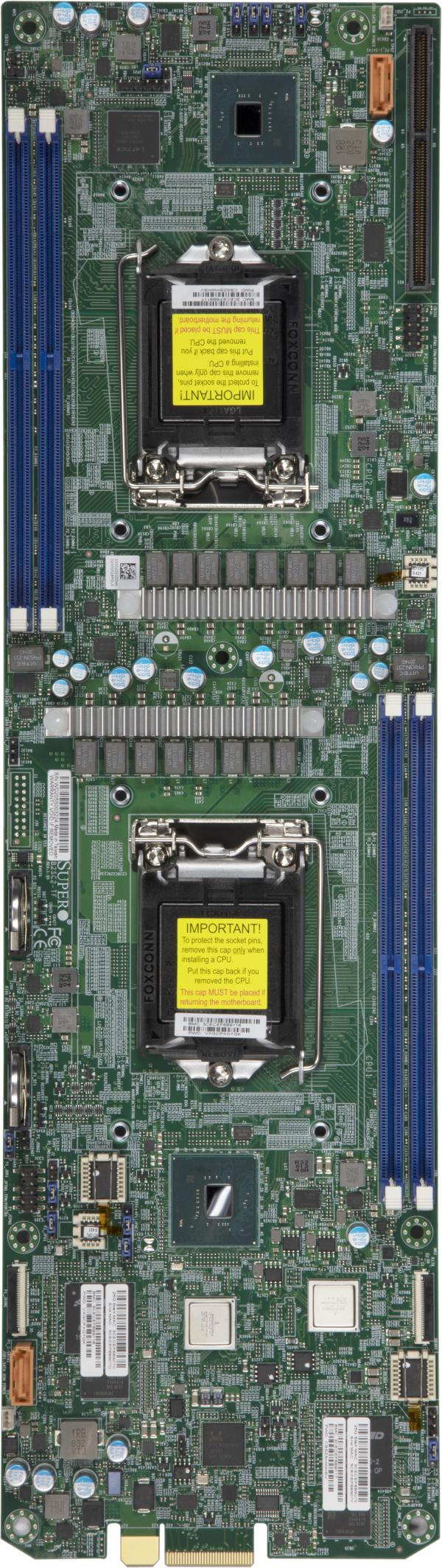

B2SC2-TF

B2SC2-TF

Key Features


  1. Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
    Dual Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
  2. Intel® C246
  3. Up to 64GB DDR4 ECC/non-ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
    Up to 64GB ECC VLP UDIMM DDR4-2666Mhz support in 2 DIMM slots per node

  4. 2x U.2 (PCIex4 only) via backplane per node_x000D_
    U.2 Interface: 2 PCIe 3.0 x4
  5. Dual LAN with 10Gbase-T
    Two(2)10GbE Ethernet ports from KR interface to BP
...
...

Optimized Servers


MBI-6219M-2N MBS-314E-6219M
Specifications Resources Parts List
Specifications
Product SKUs
MBD-B2SC2-TF
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 4.8" x 17" (12.19cm x 43.18cm)
Processor
CPU
  • Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
  • Dual Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
Core
  • Up to 8 cores
Note
  • BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processors
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 64GB ECC/non-ECC , DDR4-2666MHz
  • Up to 64GB ECC VLP UDIMM DDR4-2666Mhz support in 2 DIMM slots per node
Memory Type
  • 64GB DDR4-2666MHz in 4 DIMM slots
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C246
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Dual LAN with 10Gbase-T, Two(2)10GbE Ethernet ports from KR interface to BP
Input / Output
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Others
  • 1 SATA DOM and TPM header per node
Expansion Slots
PCIe
  • 2x U.2 (PCIex4 only) via backplane per node
System BIOS
BIOS Type
  • 128MB SPI Flash EEPROM with AMI BIOS
BIOS Features
  • ACPI 6.1
  • UEFI 2.7
  • SMBIOS 2.8
  • SMBIOS 3.1
  • PCI FW 3.2
  • Plug and Play (PnP)
Management
Software
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • +12V DC Power Input
PC Health Monitoring
Voltage
  • VBAT, Monitors CPU voltages, +12V, Memory Voltages
LED
  • UID/Remote UID
  • Power LED
Other Features
  • Control of power-on for recovery from AC power loss
  • ACPI power management
Resources
Servers (Optimized for B2SC2-TF)
MBI-6219M-2N
MBS-314E-6219M
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List
B2SC2-TF (For SuperServer Only)
