H13SSH

H13SSH

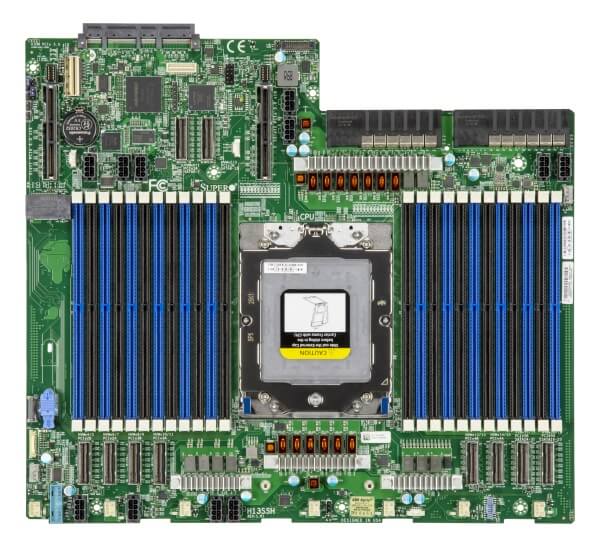

H13 UP Hyper Server Board

Key Features


  1. AMD EPYC™ 9004/9005* Series Processors (*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
  2. System on Chip
  3. Support up to DDR5 24 DIMM slots (2DPC), speed up to 5200MT/s (Please check System Memory Section for detail)
  4. 2 PCIe 5.0 x16 Molex Impel plus connector
  5. 24 NVMe (PCIe 5.0 x8), 32 SATA 3.0 Hybrid ports
  6. 4 USB 3.0 ports (2 rear via riser + 2 via header)
  7. M.2 Interface: 1 PCIe 3.0 x4, 1 PCIe 3.0 x2; M.2 (22110)
...
...

Optimized Servers


AS -1115HS-TNR AS -2015HS-TNR AS -2115HS-TNR
Specifications Resources Parts List
Specifications
Product SKUs
MBD-H13SSH
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 13" x 11" (33.02cm x 27.94cm)
Processor
CPU
Core Count
  • Up to 160C/320T
Note
  • Supports up to 400W TDP CPUs
System Memory
Memory
  • Slot Count: 24 DIMM Slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • Max Memory (1DPC): Up to 3TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • Max Memory (2DPC): Up to 6TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 port(s)
  • 4 USB 3.0 port(s) (Header)
Video
  • 1 Aspeed AST2600 BMC port(s)
TPM
  • 1 TPM 2.0 Header
Others
  • 10 MCIO (PCIe 5.0 x8) port(s)
Expansion Slots
PCI-Express (PCIe) Configuration
  • 1 PCIe 5.0 x16 Right Riser slot
  • 1 PCIe 5.0 x16 Left Riser slot
M2
  • 1 M.2 PCIe 3.0 x4 slot (M-key 22110)
  • 1 M.2 PCIe 3.0 x2 slot (M-key 22110)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +12V
  • +3.3V
  • +5V
  • +5V standby
  • 3.3V standby
  • CPU temperature
  • CPU thermal trip support
LED
  • BMC/IPMI Heartbeat LED
  • CPU/system overheat LED
  • UID/remote UID LED
FAN
  • 7x 6-pin fan headers (up to 7 fans)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F )
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources
Servers (Optimized for H13SSH)
AS -1115HS-TNR
AS -2015HS-TNR
AS -2115HS-TNR
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List
Optional Parts
Part Number Qty Description
TPM security module (optional, not included) AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor

H13SSH

Certain products may not be available in your region
