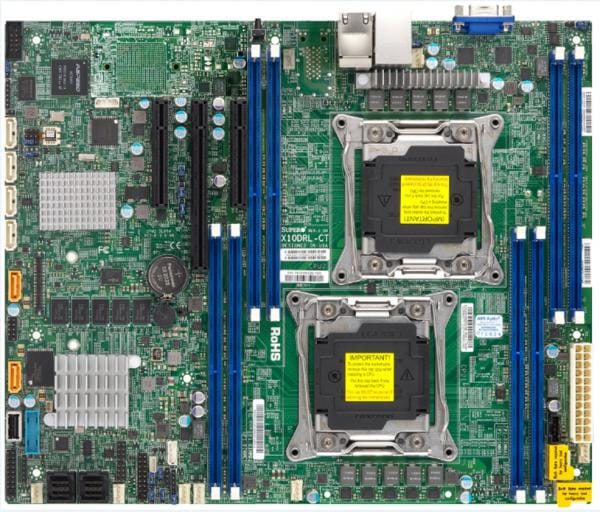

Supermicro Motherboard Xeon Boards X10DRL-C
Key Features

  1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; UPI up to 9.6GT/s
  2. Intel® C612 chipset
  3. Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
  4. 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8
  5. Intel® i210 Dual GbE LAN ports
  6. Integrated IPMI 2.0 and KVM with Dedicated LAN
  7. 8 SAS3 (12Gbps) via Broadcom® 3108; HW
    RAID 0, 1, 5, 6, 10, 50, 60
    SuperCap Option support
  8. 6 SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10
  9. 4 USB 3.0 (2 rear, 2 via header)
    3 USB 2.0 (2 via header, 1 Type A)

Links & Resources

Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X10DRL-C
  • X10DRL-C

Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 10" (30.48cm x 25.4cm)

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
  • Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s
Cores / Cache
  • Up to 22 cores † / Up to 55MB† cache
Note
  • † BIOS version 2.0 or above is required
Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory
Memory Capacity
  • 512GB ECC RDIMM, DDR4-2400MHz, in 8 DIMM slots
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB
  • LRDIMM: 32GB, 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612
SATA
  • Broadcom® 3108 HW with 2G Cache controller for 8 SAS3 (12Gbs) ports; RAID 0,1,5,6,10,50,60
SAS
  • Broadcom 3108 SAS3 (12Gbps) controller;
    2GB cache with SuperCap backup option; HW RAID 0, 1, 5, 6, 10, 50, 60
    Supports up to 16 devices as default, more HDD devices support is also available as an option *
    For special SKU, please contact your Supermicro Sales.
AHCI SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210
    Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • Aspeed AST2400 BMC

Input / Output
SATA
  • 6 SATA3 (6Gbps) port
  • 1 I-SATA 4 and I-SATA 5 support SATA DOM
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 2.0 ports (2 headers, 1 Type A)
  • 4 USB 3.0 ports (2 rear + 2 headers)
Video Output
  • 1 VGA port
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 2 PCI-E 3.0 x8,
  • 1 PCI-E 3.0 x16

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.3
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • ACPI 3.0 / 4.0

Management
Software
  • Intel® Node Manager, IPMI2.0, SPM, SUM, SuperDoctor® 5, Watchdog
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, +5V standby, 5 Phase-switching voltage regulator, Memory, Memory Voltages, VBAT
FAN
  • 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for speed control
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI
LED
  • CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features
  • Chassis intrusion detection, Chassis intrusion header, RoHS

Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
X10DRL-CMBD-X10DRL-C1X10DRL-C Motherboard
I/O CablesCBL-0044L2SATA CABLE 61CM FLAT S-S PBF
I/O ShieldMCP-260-00062-1N1Standard I/O shield for X10DRL-CT with EMI Gasket

Parts List (Retail Package)
Name Part Number Qty Description
X10DRL-CMBD-X10DRL-C1X10DRL-C Motherboard
I/O CablesCBL-0044L2SATA CABLE 61CM FLAT S-S PBF
I/O CablesCBL-SAST-0531 2Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s, HF
I/O ShieldMCP-260-00062-1N1Standard I/O shield for X10DRL-CT with EMI Gasket
Quick Reference Guide MNL-1620-QRG1Quick Reference Guide

Optional Parts List
Name Part Number Qty Description
Heat Sink----CPU Heat Sink reference
TPM security moduleAOM-TPM-9655V
AOM-TPM-9655H 		--TPM module with Infineon 9655, RoHS/REACH,PBF;
TPM security module (optional, not included)AOM-TPM-9655V-S
AOM-TPM-9655H-S		--TPM 1.2 module with Infineon 9655, RoHS/REACH, PBF; Vertical or Horiztonal depends on the server, provision for TXT
TPM security module (optional, not included)AOM-TPM-9665V
AOM-TPM-9665H		--TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server
TPM security module (optional, not included)AOM-TPM-9665V-S
AOM-TPM-9665H-S		--TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server, provisioned for TXT
SuperDOM----Supermicro SATA DOM Solutions [Details]
1U I/O ShieldMCP-260-00061-0N --1U I/O Shield for X10DRL-CT with EMI Gasket
SuperCapBTR-TFM8G-LSICVM02--SuperCap
SuperCap BracketMCP-240-00127-0N--SuperCap bracket, include screw, same size as 2.5" HDD

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


Server (Optimized for X10DRL-C)
Server Name
X10DRL-C

Certain products may not be available in your region
