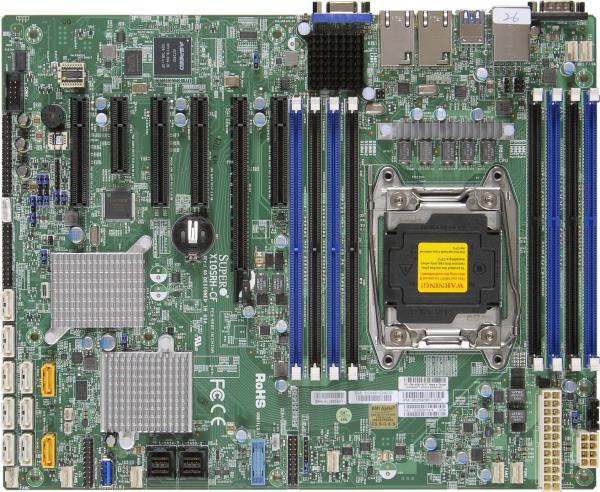

Supermicro Motherboard Xeon Boards X10SRH-CF
Key Features

  1. Single socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600 v4†/ v3 and E5-1600 v4†/ v3 family
  2. Intel® C612 chipset
  3. Up to 1TB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz; 8 DIMM slots
  4. 1 PCI-E 3.0 x4 (in x8), 1 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x8, 1 PCI-E 2.0 x2 (in x4), 1 PCI-E 2.0 x4 (in x8)
  5. Intel® i350-AM2 Dual port GbE LAN
  6. 10 SATA3 (6Gbps) via C612
  7. 8x SAS3 (12Gbps) via Broadcom 3008 SW controller; RAID 0, 1, 10
  8. 1 VGA, 2 COM, 1 TPM
  9. 4 USB 3.0 ports, 8 USB 2.0 ports

Links & Resources

Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X10SRH-CF
  • X10SRH-CF

Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache
CPU
  • Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4
  • Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP supports Up to 145W TDP
Cores / Cache
  • Up to 22 cores † / Up to 55MB† cache
Note
  • † BIOS version 2.0 or above is required
Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory
Memory Capacity
  • Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB Registered ECC LRDIMM, DDR4-2400MHz, in 8 DIMM slotsUp to 1TB ECC 3DS LRDIMM
Memory Type
  • 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB
  • LRDIMM: 32GB, 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C612
SATA
  • Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
SAS
  • SAS3 (12Gbps) via LSI 3008
    SW RAID 0, 1, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I350-AM2Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 10 SATA3 (6Gbps) port
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 8 USB 2.0 ports (2 rear + 6 via headers)
  • 4 USB 3.2 Gen1 ports (2 rear + 1 via header + 1 Type A)
Video Output
  • 1 VGA port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
    2 fast UART 16550 serial
TPM
  • TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x8 (in x16 slot),
  • 2 PCI-E 3.0 x8,
  • 1 PCI-E 3.0 x4 (in x8 slot)
  • 1 PCI-E 2.0 x2 (in x4 slot)
  • 1 PCI-E 2.0 x4 (in x8 slot)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup

Management
Software
  • IPMI2.0, SuperDoctor® 5, Watchdog
Power Configurations
  • ACPI Power Management
  • Keyboard Wakeup from Soft-Off
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, HT, VBAT
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, I2C temperature sensing logic, Thermal Monitor 2 (TM2) support, PECI
LED
  • CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features
  • Chassis intrusion detection, Chassis intrusion header, Chipkill support, RoHS

Operating Environment
Operating Temperature Range
  • 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range
  • -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X10SRH-CF 1 X10SRH-CF Motherboard
I/O Cables CBL-0044L257.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N1STD I/O SHIELD


Chassis (Optimized for

X10SRH-CF

)

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


Server (Optimized for X10SRH-CF)
Server Name
X10SRH-CF

Certain products may not be available in your region
