X14DBT-FLAP2 (For SuperServer Only)

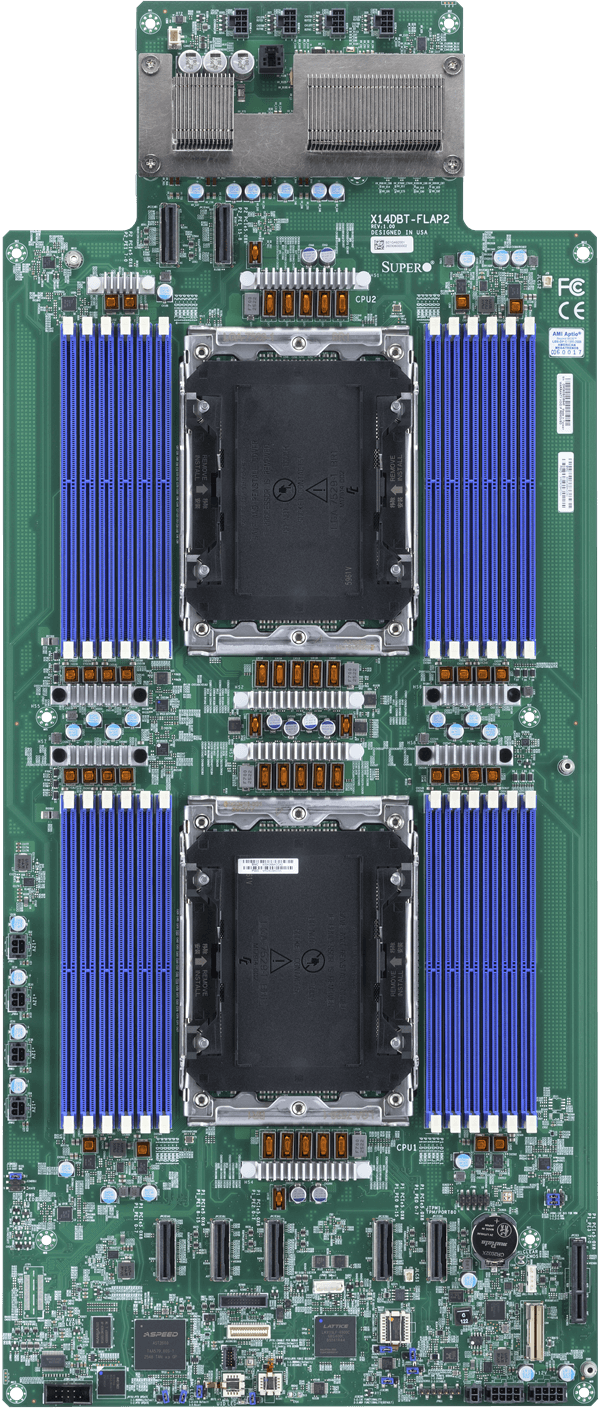

X14DBT-FLAP2
X14 DP FlexTwin

Key Features


  1. One 1Gbps dedicated IPMI port via DC-SCM card
  2. three Network card, each AOC/AIOM PCIe5.0 x16 via 2 MCIO
  3. one PCIe5,0 x2 for DC-SCM card
  4. two PCIe5.0 x4 for E1.S Storage
  5. three PCIe5.0 x16 for AOC/AIOM Network cards
  6. one USB 3.0 via DC-SCM card
  7. 2 slots via PCIe5.0 x2
  8. Intel® Xeon® 6+ processors, Dual Socket LGA-7529 (Socket BR) supported, CPU TDP supports up to 500W
  9. Support DDR5-8000 RDIMM up to 24 slots
...
...

Optimized Servers


SYS-122FT-DEO-LCC
Specifications Resources
Specifications
Product SKUs
MBD-X14DBT-FLAP2
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 23.6" x 9.9" (60cm x 25.2cm)
Processor
CPU
  • Dual Socket BR (LGA-7529)
  • Intel® Xeon® 6+ processors
  • *BIOS 1.5 or above is required to support Intel® Xeon® 6+ processors
Core Count
  • Up to 288C/288T
System Memory
Memory
  • Max Memory (1DPC): Up to 3TB 8000MT/s ECC DDR5 RDIMM
DIMM Sizes
  • RDIMM:24GB, 32GB, 48GB, 64GB, 96GB, 128GB
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
IPMI
  • ASPEED AST2600 BMC
Network Controller
  • Single LAN with ASPEED AST2600 BMC, Dedicated LAN for IPMI
Input / Output
LAN
  • 1 RJ45 1 GBASE-T Dedicated IPMI LAN port(s) (ASPEED AST2600 BMC) (IPMI shared on LAN port 1) (via DC-SCM)
USB
  • 1 USB 3.0 Type-A port(s) (Front) (via DC-SCM)
Video
  • 1 VGA port(s) (Front) (via DC-SCM)
Serial
  • 1 COM port(s) (header)
TPM
  • 1 TPM Onboard/port 80
Expansion Slots
PCI-Express (PCIe) Configuration
  • 2 PCIe 5.0 x16 (in x16) via MCIO Connector slots , support FHHL PCIe card
  • 1 PCIe 5.0 x16 (in x16) via MCIO Connector slot , support LP PCIe card
  • 2 PCIe 5.0 x4 (in x4) via MCIO Connector slots
M2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default))
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
BIOS Features
  • ACPI 6.5
  • SMBIOS 3.7 or later
  • UEFI 2.9
Management
Software
Power Configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
  • S5 Power State
PC Health Monitoring
Voltage
  • +12V,+3.3V,+3.3V standby,+5V,+5V standby,CPU thermal trip support,Veore,Vmem
LED
  • BMC/IPMI Heartbeat LED
  • CPU/system overheat LED
  • Fan failed LED
  • LAN activity LED
  • Power/suspend-state indicator LED
  • UID/remote UID LED
Temperature
  • Memory temperature
  • Support to monitor Supermicro AOC temperatures from IPMI or SD 5
  • VRM temperature
FAN
  • 4x 8-pin fan headers (up to 4 fans)
Other Features
  • ACPI power management
  • CPU thermal trip support
  • PECI
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Name:A2
  • Operating Temperature: 10°C to 35°C (50°F to 95°F )
  • Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Resources
Servers (Optimized for X14DBT-FLAP2)
SYS-122FT-DEO-LCC
...
Parts List

X14DBT-FLAP2 (For SuperServer Only) Coming Soon
