X14SBH-AP

X14SBH-AP

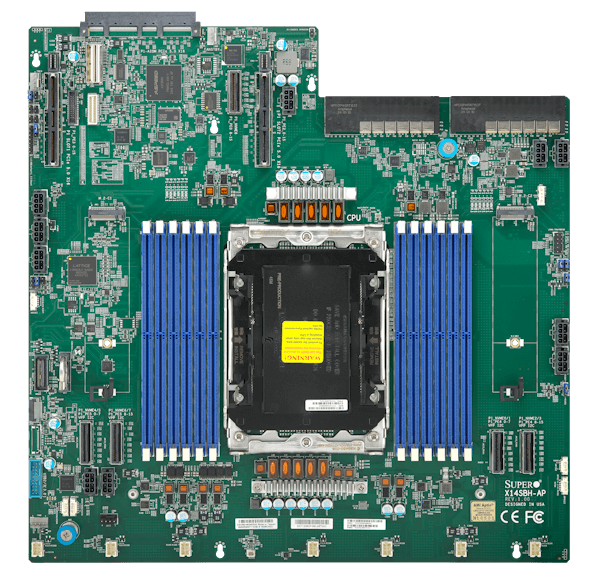

X14 UP Hyper Server Board

Key Features


  1. Intel® Xeon® 6900-series processors with P-cores, Single Socket LGA-7529 (Socket BR) supported, CPU TDP supports Up to 500W TDP
  2. Up to 3TB ECC RDIMM, DDR5-8800MT/s (1DPC) in 12 DIMM slots
  3. 5 PCIe 5.0 x8 via MCIO connectors
  4. 2 PCIe 5.0 x16 4C
    1 PCIe 5.0 x16 AIOM
    M.2 Interface: 2 PCIe 5.0 x2
    M.2 Form Factor: 2280, 22110, 25110
    M.2 Key: M-Key
  5. AIOM for LAN
  6. Onboard TPM9672: TCG2.0, FIPs 140-2 Level 2, Intel TXT and Microsoft Windows certification
...
...

Optimized Servers


SYS-112HA-TN SYS-212HA-TN
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X14SBH-AP
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 13" x 12.89" (33.02cm x 32.74cm)
Processor
CPU
Core Count
  • Up to 128C
Note
  • Supports up to 500W TDP CPUs
System Memory
Memory
  • Slot Count: 12 DIMM Slots
  • Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM
DIMM Sizes
  • MRDIMM:32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • RDIMM:32GB, 48GB, 64GB, 96GB, 128GB
  • 3DS RDIMM:256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
IPMI
  • ASPEED AST2600 BMC
Network Controller
  • AIOM for LAN
Input / Output
LAN
  • 1 RJ45 LAN port(s)
USB
  • 3 USB 3.2 Gen1 port(s) (Header)
TPM
  • 1 TPM Header
  • 1 TPM 2.0 Onboard
Expansion Slots
PCI-Express (PCIe) Configuration
  • 1 PCIe 5.0 x16 AIOM slot
  • 2 PCIe 5.0 x16 4C slots
  • 5 PCIe 5.0 x8 via MCIO Connector slots
M2
  • 2 M.2 PCIe 5.0 x2 slots (M-Key 2280/22110/25110)
System BIOS
BIOS Type
  • AMI 64MB UEFI
BIOS Features
  • ACPI 6.5; SMBIOS 3.7.0 or later; UEFI 2.9
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +12V
  • +3.3V
  • +5V
  • +5V standby
  • Monitors CPU voltages
  • Supports system management utility
  • System level control
  • VBAT
LED
  • CPU/system overheat LED
  • UID/remote UID LED
Temperature
  • CPU thermal trip support
  • Monitoring for CPU and chassis environment
  • PECI
  • Thermal monitor 2 (TM2) support
FAN
  • Fan speed control
Other Features
  • ACPI power management
  • Chassis intrusion detection
  • Control of power-on for recovery from AC power loss
  • M.2 NGFF connector
  • UID
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C to 50°C (32°F to 122°F )
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Resources
Servers (Optimized for X14SBH-AP)
SYS-112HA-TN
SYS-212HA-TN
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List
Optional Parts
Part Number Qty Description
CPU carrier SKT-1554H-BK00-FXC 1 CPU carrier for  Intel® Xeon® 6 processors (UCC)
SKT-1554H-BK00-LTS 1 CPU carrier for  Intel® Xeon® 6 processors (UCC)

X14SBH-AP New
