SuperServer E301-9D-8CN8TP

  Products  Systems   Embedded/IoT   [ E301-9D-8CN8TP ]








Integrated Board
Super X11SDV-8C-TP8F

Views: | Angled View | Top View

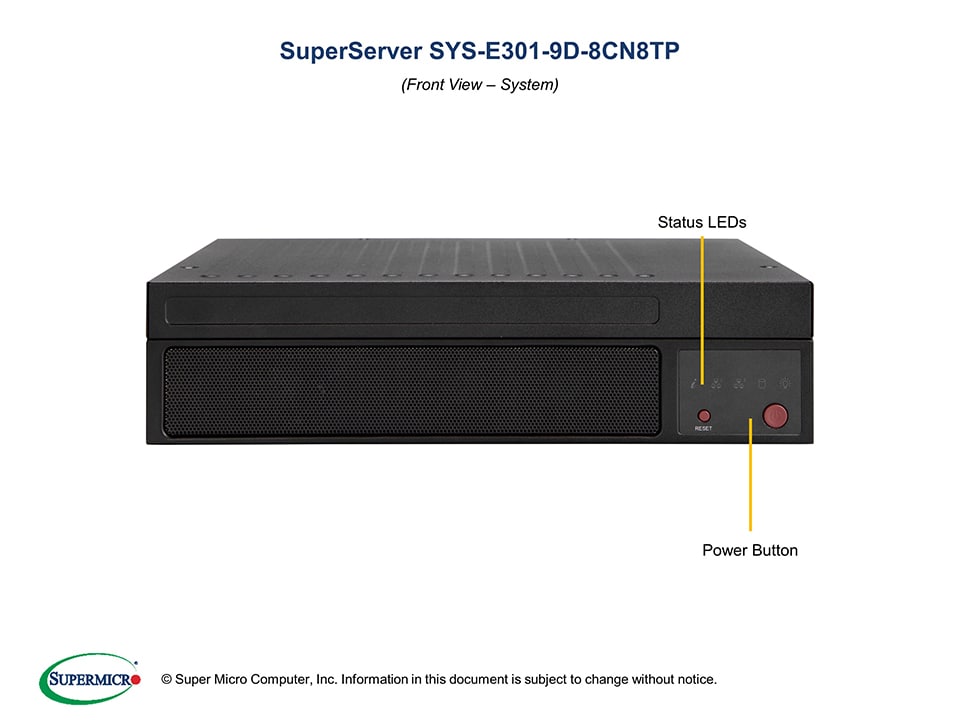

| Front View | Rear View |

 Key Features

• SDN-WAN, vCPE controller box

• NFV Edge Computing Server

• Virtualization Server

• FireWall Applications

• IoT Edge Computing



1. Intel® Xeon® processor D-2146NT,

    8-Core, 16 Threads, 80W
2. System on Chip
3. 4x 7mm SSD
4. 1 M.2 slot M key for SSD, 2242/80,

    1 M.2 B Key for SSD/ WAN card,

    1 Mini-PCI-E with mSATA Support,

    1 PCI-E 3.0 x8 slot
5. Up to 512GB ECC LRDIMM,

    up to 256GB ECC/non-ECC RDIMM

    DDR4-2666Mz; in 4 DIMM slots
6. 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+

    and 1 dedicated LAN for IPMI 2.0
7. 1 VGA, 2 USB 3.0
8. 3x 40x28mm 4-PIN PWM Fan
9. DC Power adapter
10. Built in Intel QAT up to 40Gbps

    Crypto/Compression




 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix   Quick-References Guide  Drive Options


Product SKUs
SYS-E301-9D-8CN8TP
  • SuperServer E301-9D-8CN8TP (Black)

Motherboard


Super X11SDV-8C-TP8F

Processor/Cache
CPU
  • Intel® Xeon® processor D-2146NT,

    CPU TDP support 80W
Cores / Cache
  • 8 Cores, 16 Threads

System Memory
Memory Capacity
  • Up to 512GB DDR4 ECC LRDIMM
  • Up to 256GB DDR4 ECC/non-ECC RDIMM
  • 4 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC/Non-ECC RDIMM
  • Operating speed up to 2400MHz
DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
  • LRDIMM: 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors

      (using ECC memory)

On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps) ports via SoC controller
Network Controllers
  • Quad 1GbE with Intel I350-AM4
  • Dual 10GBase-T with Intel X557
  • Dual 10G SFP+ via SoC
IPMI
  • Support for Intelligent Platform
  • Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • Aspeed AST2500 BMC

Input / Output
SATA
  • SoC controller for 4 SATA3 (6Gbps) ports
LAN
  • 2x 10G SFP+ ports
  • 2x 10GBase-T LAN ports
  • 4x 1GbE LAN ports
  • 1 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Display
  • 1 VGA port
TPM
  • 1 TPM 2.0 header
Chassis
Form Factor
  • Compact
Model
  • CSE-E301

Dimensions
Width
  • 10.43" (264.8mm) / 15" (381mm) - pkg.
Height
  • 2.6" (66mm) / 10.87" (276mm) - pkg.
Depth
  • 8.9" (226mm) / 5.59" (142mm) - pkg.
Weight
  • Gross Weight: 7.5 lbs (3.4 kg)
  • Net Weight: 3.45 lbs (1.56 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED (Hard drive activity LED)

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x8 slot

Drive Bays
Internal
  • 4x 7mm SSD

System Cooling
Fans
  • 3x 40x28mm 4-PIN PWM Fan

Power Supply
DC Power Adapter

System BIOS
BIOS Type
  • 128Mb SPI Flash with AMI BIOS
BIOS Features
  • PCI 3.0
  • ACPI 5.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.8
  • UEFI 2.4
  • RTC (Real Time Clock) Wakeup

Management
Software
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SUM
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI Power Management
  • +12V DC Power Input
  • Control of power-on for recovery from AC power loss
  • CPU thermal trip support for processor protection
  • M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
Fan
  • Fans with tachometer status monitoring
  • Status monitor for speed control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       0°C to 35°C (32°F to 95°F)
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X11SDV-8C-TP8F

CSE-E301 		1

1		 Super X11SDV-8C-TP8F Motherboard

Embedded Server BOX for Flex-ATX, Mini-ITX 1U height
Drive Tray MCP-220-30101-0N 2 Dual 2.5" fixed HDD bracket for E301
Cable CBL-SAST-0664 1 MINI SAS HD-4 SATA,6G,INT,20CM,20CM SB,30AWG
Cooling Fan FAN-0065L4 3 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Power Adapter MCP-250-10133-0N 1 180W DC power adapter with US power cord 18AWG 6ft
Cable CBL-PWEX-0983 1 PWR EXT,1X4F/P2.50 TO 4x SATA POWER, 40CM, 22AWG,RoHS
Optional Parts List
  Part Number Qty Description
Riser Card RSC-RR1U-E8 - RSC-RR1U-E8 (Rev 4.00) Riser Card
Chassis Parts MCP-290-30002-0B - CSE-E300 Rackmount kit (150W/180W adapter supported)
Hide Parts List
