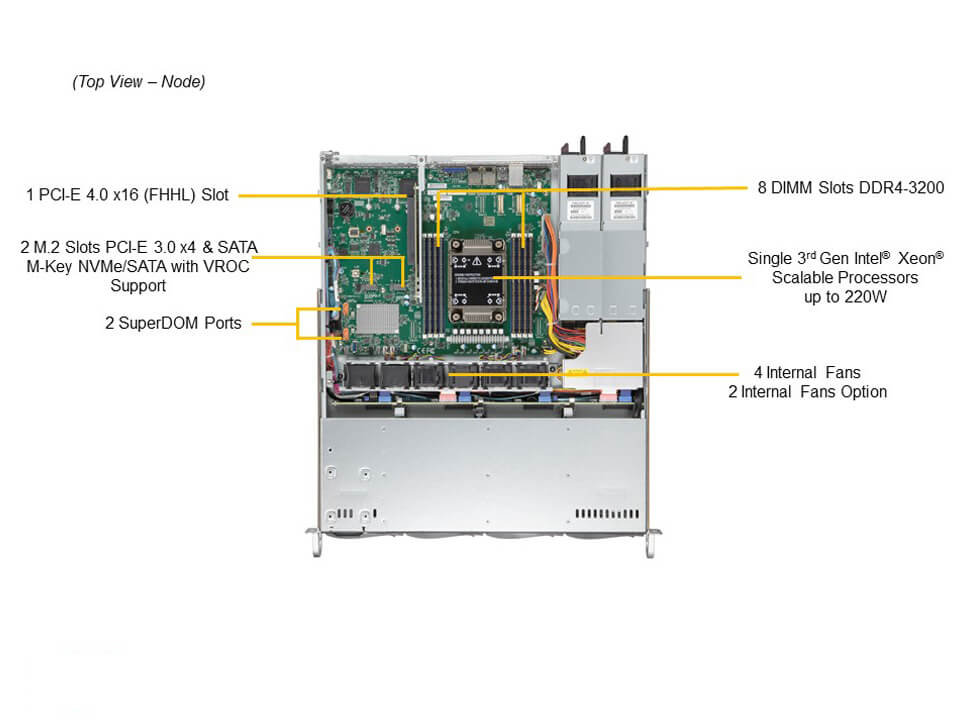

Schedule Access| Standard Parts (Parts Included) | |||
| Part Number | Qty | Description | |
| Motherboard / Chassis |
MBD-X12SPO-F CSE-813MF2TS-R407CBP2 |
1 1 |
Super X12SPO-F Motherboard 1U Chassis |
| Backplane | BPN-SAS3-815TQ-N4 | 1 | 1U 4-Port Hybrid Backplane Support 4x3.5"SAS3/SATA3/NVMe |
| Cable | CBL-SAST-0811 | 1 | MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG |
| CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | |
| CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Manual | MNL-2267-QRG | 1 | 510P-M/MR Quick Reference Guide |
| Riser Card | RSC-S-6G4 | 1 | 1U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
| Heatsink / Retention | SNK-P0077P | 1 | 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms |
| *Power Supply | PWS-407P-1R | 2 | AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH |
| MCP-250-00016-0V | 1 | Redundant Silver plastic PDB cover for SC813M,113M | |
| *Power Distributor | PDB-PT813M-2424 | 1 | Power Distributor With 24pin for SC813M |
| *Peripheral Drive | CSE-PT93L-B | 1 | Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS |
| *Fan | FAN-0154L4 | 4 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH |
| *Front Panel | FPB-FP813-D | 1 | Front control board dual color for SC815,SC813M (C) |
| *Drive Tray(s) | MCP-220-00075-0B | 4 | Black gen 5.5 hot-swap 3.5" HDD tray |
| *Rear Window | MCP-240-00086-0N | 1 | STD rear window for SC113 redundant PWS |
| *Parts | MCP-260-00078-0N | 1 | 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF |
| MCP-340-00001-01 | 2 | Dummy fan 40x28mm | |
| *Rail Set | MCP-290-00102-0N | 1set | Outer rail, quick-release type, 25.6 |
| MCP-290-00108-0N | 1set | Inner rail, front, short, quick-release type | |
| MCP-290-00110-0N | 1set | Inner rail, extension (quick) for 1U 17.2 | |
| *Fan Holder | MCP-320-00060-0N | 1 | Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15") |
Notes:
|
|||
| Optional Parts List | |||
| Part Number | Qty | Description | |
| 3.5" to 2.5" Converter Tray(s) | MCP-220-00043-0N | - | Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black |
| 3.5'' to 2.5" NVMe Drive Tray(s) | MCP-220-00138-0B | - | Tool-less Hot-swap Gen-5.5 NVMe 3.5'' to 2.5'' drive tray, Orange tab, Black |
| Add-on Card for additional M.2 | AOC-SLG3-2H8M2 | - | Standard LP, PCIe 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1 |
| Cooling Fan(s) | FAN-0154L4 | - | 40x40x28 mm, 22.5K RPM, Middle Cooling Fan |
| DVD-ROM / DVD-RW | DVM-TEAC-DVDRW-SBT5 | 1 | PHILPS slim DVD-RW SATA drive |
| DVM-TEAC-DVD-SBT5 | 1 | TEAC slim DVD-ROM SATA drive | |
| DVD-ROM Accessory | MCP-220-81502-0N + 1pc CBL-0099 (max 1pc) | 1 | Slim SATA DVD mounting kit |
| Front Bezel | CSE-PTFB-813-02B | 1 | Black Front Bezel w/ Round Venting Holes |
| CSE-PTFB-813LB | 1 | Black Front Bezel | |
| Hot-swap 2.5" kit (DVD slot) | MCP-220-81506-0N + 1pc CBL-0099 (max 1pc) | 1 | Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor |
| Hot-swap 2.5" kit (FDD slot) | MCP-220-81504-0N | 1 | Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor |
| Inlet Thermal Sensor | MCP-280-00034-0N | 1 | Universal Thermal sensor kit with 40cm I2C cable |
| Intel VROC RAID Key for NVMe | AOC-VROCPREMOD | 1 | Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5 |
| AOC-VROCSTNMOD | 1 | Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10 | |
| AOC-VROCINTMOD | 1 | Intel SSD Only Upgrade module; RAID 0/1/10/5 | |
| NVMe Cable(s) | CBL-SAST-1264-85 | - | Slimline x8 (STR) to 2x Oculink x4 (STR),64CM,85 OHM,Ro |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Storage Control Card and Cable(s) | AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1275A-100 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 |
| AOC-S3108L-H8iR-16DD | 1 | Standard LP, 8 Internal ports (12Gb/s) PCIe 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 | |
| AOC-S3008L-L8I | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 63HDD; RAID 0, 1, 10 | |
| Storage Control Card and Cable(s) (HBA) | AOC-S3008L-L8E | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 122HDD; HBA |
| AOC-S3808L-L8IT + 1x CBL-SAST-1275A-100 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA | |
| TPM | AOM-TPM-9670H-S-O | 1 | TPM 2.0, horizontal form factor, provisioned for server |
| AOM-TPM-9671H-S-O | 1 | TPM 1.2, horizontal form factor, provisioned for server | |
