SuperServer SYS-420GU-TNXR (Complete System Only)

DP Intel Universal GPU System with NVIDIA HGX A100 4-GPU

SYS-420GU-TNXR Main SYS-420GU-TNXR Angle SYS-420GU-TNXR Top SYS-420GU-TNXR Front SYS-420GU-TNXR Rear
Integrated Board: X12DGU
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots; Up to 8TB DRAM; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM
  4. Highest GPU communication using NVIDIA® NVLINK™
    Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e)
    4U system with NVIDIA® HGX™ A100 4-GPU
    6 PCIe Gen 4.0 X16 LP Slots
  5. Flexible networking options
  6. Up to 10x 2.5" Hot-swap  NVMe/SATA drive bays
    1 M.2  NVMe/SATA via Intel® C621A PCH chipset (for boot drive only)
  7. 5 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  8. 4x 3000W redundant Titanium level power supplies
...
...
SYS-420GU-TNXR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-420GU-TNXR
Motherboard
Super X12DGU
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 onboard GPU(s)
Supported GPU
CPU-GPU Interconnect
  • PCIe 4.0 x16 Switch Dual-Root
GPU-GPU Interconnect
  • NVIDIA® NVLink®
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-458GTS-R3K06P
chassisWeight
  • Net Weight: 105 lbs (48 kg)
  • Gross Weight: 140 lbs (64 kg)
Dimensions and Weight
Height
  • 7" (175.6 mm)
Width
  • 17.67" (449 mm)
Depth
  • 32.79" (833 mm)
Package
  • 14.57" (H) x 27.55" (W) x 49.6" (D)
Weight
  • Gross Weight: 140 lbs (64 kg)
  • Net Weight: 105 lbs (48 kg)
Available Color
  • Black Front & Silver Body

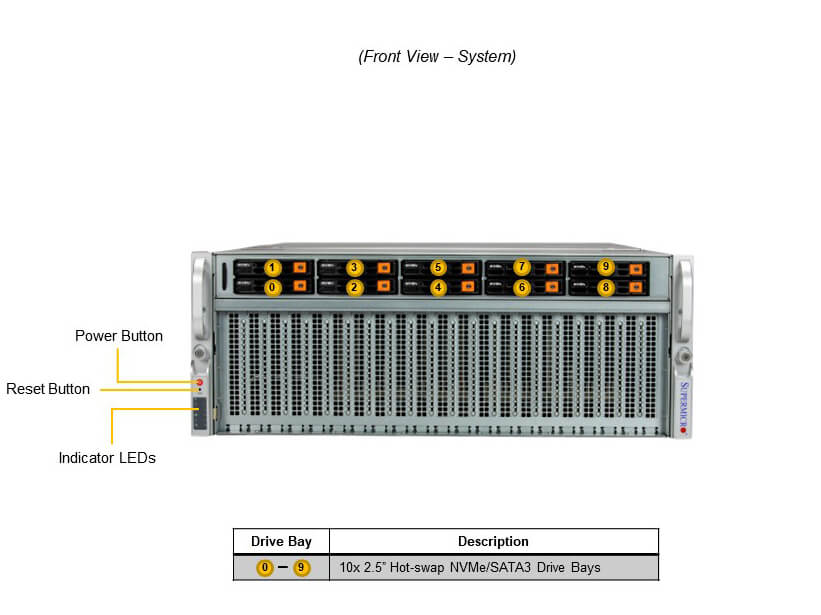

Front Panel
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Buttons
  • Power On/Off button
  • System Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bay(s)
    • 10 front hot-swap 2.5" NVMe/SATA drive bay(s)
  • View Drive Options
M.2
System Cooling
Fans
  • 5 removable heavy-duty Fan(s)
Power Supply
4x 3000W Redundant Titanium Level power supplies
Dimension (WxHxL)
  • 106.5 x 82.1 x 245.5 mm
+12V
  • Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3A / Min: 0A
AC Input
  • 3000W: 0240Vdc / 50-60Hz (for CQC only)
  • 2880W: 200-207Vac / 50-60Hz
  • 3000W: 207-240Vac / 50-60Hz
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Global Services & Support OSNBD3/2/1 - 3/2/1-year onsite NBD service
OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
Redstone 40G GPU Kit MCP-310-45805-0B 1 CSE-458G 3pcs mylar air block set for Redstone
CBL-SAST-1290L4F-85 2 [NR] SlimSAS (x8 to LP x8),STR,FFC, 90CM,100 OHM
CBL-SAST-1275L4F-85 2 [NR] SlimSAS (x8 to LP x8),STR,FFC, 75CM,100 OHM
CBL-SAST-1255L4F-85 2 [NR] SlimSAS (x8 to LP x8),STR,FFC, 60CM,100 OHM
CBL-SAST-1240L4F-85 2 [NR] SlimSAS (x8 to LP x8),STR,FFC, 40CM,100 OHM
CBL-PWEX-1096-43 1 Surlok 5.7MM and RA-PD 3.6MM harness,Left Exit,4AWG,43
AOM-PCIE4-SXM4-Q-P 1 PCIe Transition board for nVidia, Redstone, GPU module,RoHS
SNK-P4009P 4 3U Passive GPU Heat Sink for NVIDIA Redstone SXM4 Module
CBL-PWEX-1117-60 1 MiniFit,2x2, P4.2,F to MiniFit,2x2, P4.2,F,23CM,10A/pin
GPU-NVTHGX-A100-SXM4-4 1 NVIDIA RedstoneGPU Baseboard,4 A100 40GB SXM4 (w/o HS)
MCP-240-45808-0N 1 Sheet-metal tray for Redstone UBB assembly in SC458G chassis
Redstone 80G GPU Kit MCP-310-45805-0B 1 CSE-458G 3pcs mylar air block set for Redstone
SNK-P4009P 4 3U Passive GPU Heat Sink for NVIDIA Redstone SXM4 Module
CBL-PWEX-1117-60 1 MiniFit,2x2, P4.2,F to MiniFit,2x2, P4.2,F,23CM,10A/pin
GPU-NVTHGX-A100-SXM4-48 1 NVIDIA RedstoneGPU Baseboard,4 A100 80GB SXM4 (w/o HS)
MCP-240-45808-0N 1 Sheet-metal tray for Redstone UBB assembly in SC458G chassis
AOM-PCIE4-SXM4-Q-P 1 PCIe Transition board for nVidia, Redstone, GPU module,RoHS
CBL-PWEX-1096-43 1 Surlok 5.7MM and RA-PD 3.6MM harness,Left Exit,4AWG,43
CBL-SAST-1240L4F-85 2 [NR] SlimSAS (x8 to LP x8),STR,FFC, 40CM,100 OHM
CBL-SAST-1255L4F-85 2 [NR] SlimSAS (x8 to LP x8),STR,FFC, 60CM,100 OHM
CBL-SAST-1275L4F-85 2 [NR] SlimSAS (x8 to LP x8),STR,FFC, 75CM,100 OHM
CBL-SAST-1290L4F-85 2 [NR] SlimSAS (x8 to LP x8),STR,FFC, 90CM,100 OHM
Software SFT-DCMS-Single - DataCenter Management +A17:D53Package (per node license)
