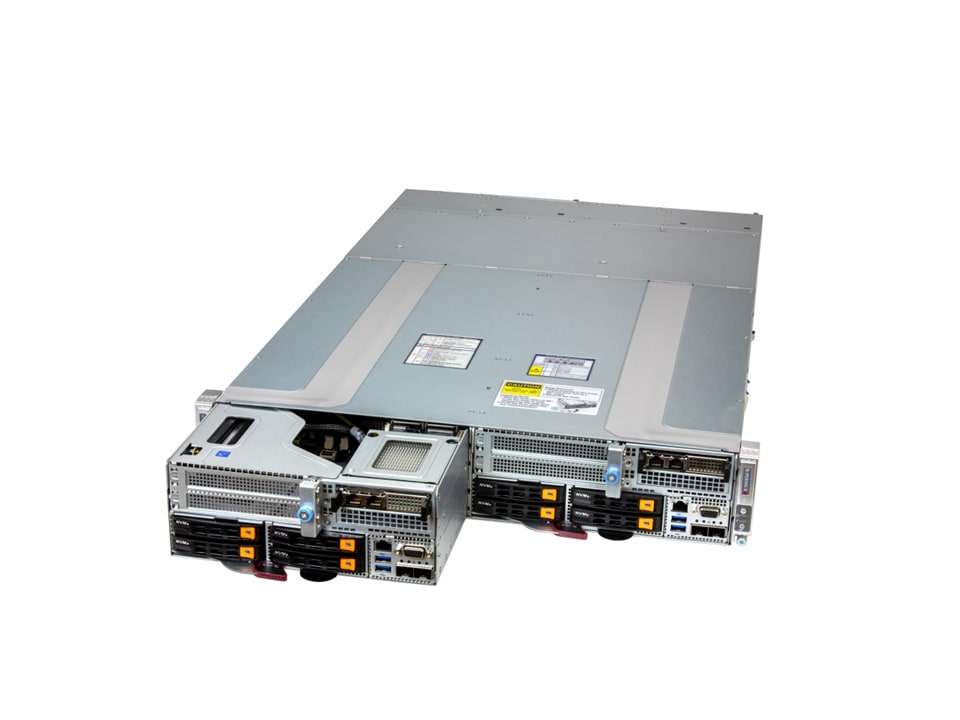

SuperServer AS -2116GT-DTNF

2U 2-Node GrandTwin with front I/O and double-width GPU support

Integrated Board: H14SST-GE
Learn more

Key Applications

  • HPC
  • IoT Gateway
  • Deep Learning/AI/Machine Learning Development
  • Scale-Out Object Storage
  • Cloud Gaming
  • Telco Edge
  • MEC (Multi-Access Edge Computing)
  • Multi-Purpose CDN
  • Cluster Node
  • GPU Virtualization (VDI)
  • HPC cluster computer nodes

Key Features

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  1. Single Socket SP5 AMD EPYC™ 9005 Series Processors up to 500W with air cooling
  2. Up to 12 DIMMs, 6400 MT/s 3TB DDR5 memory in 1DPC
  3. Up to 2 PCIe 5.0 x16 FHHL slots or 1 PCIe 5.0 x16 FH/10.5"L Double Width slot
    Flexible networking with AIOM support
    GrandTwin front IO module offers additional value for networking expansion(10G/25G/200G)
  4. Up to 4 front hot-swap 2.5" NVMe/SATA drive bays or up to 6 front hot-swap 2.5" NVMe drive bays
    *NVMe/SATA support requires additional parts from the optional parts list
  5. 2 Redundant 2200W Titanium Level power supplies
    (Power supply full redundancy based on configuration and application load)
...
...
AS-2116GT-DTNF
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
A+ Server AS -2116GT-DTNF
Motherboard
Super H14SST-GE
Processor (per Node)
CPU
Core Count
  • Up to 192C/384T; Up to 512MB Cache
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 1 double-width or 2 single-width GPUs
System Memory (per Node)
Memory
  • Slot Count: 12 DIMM slots/1 Channels
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices (per Node)
Chipset
  • System on Chip
Network Connectivity
Input / Output (per Node)
USB
  • 2 USB 3.0 ports
Video
  • 1 VGA port
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 64MB Flash ROM
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GT222BG-R2K21BP
Dimensions and Weight
Height
  • 3.46" (88 mm)
Width
  • 17.67" (449 mm)
Depth
  • 28" (711.2 mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Gross Weight: 77.3 lbs (35.1 kg)
  • Net Weight: 57.3 lbs (26 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Buttons
  • Power On/Off button
  • UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 (in x16) FHHL slot
  • Option A*
    • 1 PCIe 5.0 x16 (in x16) FHHL slot
  • Option B*
    • 1 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slot
  • Option C*
    • 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)

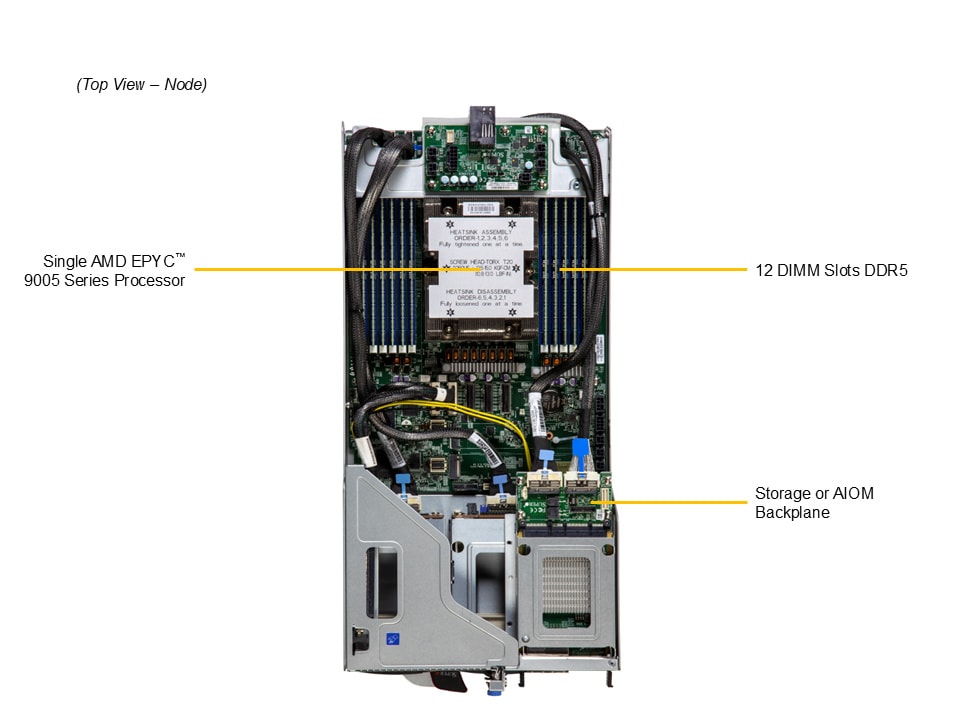

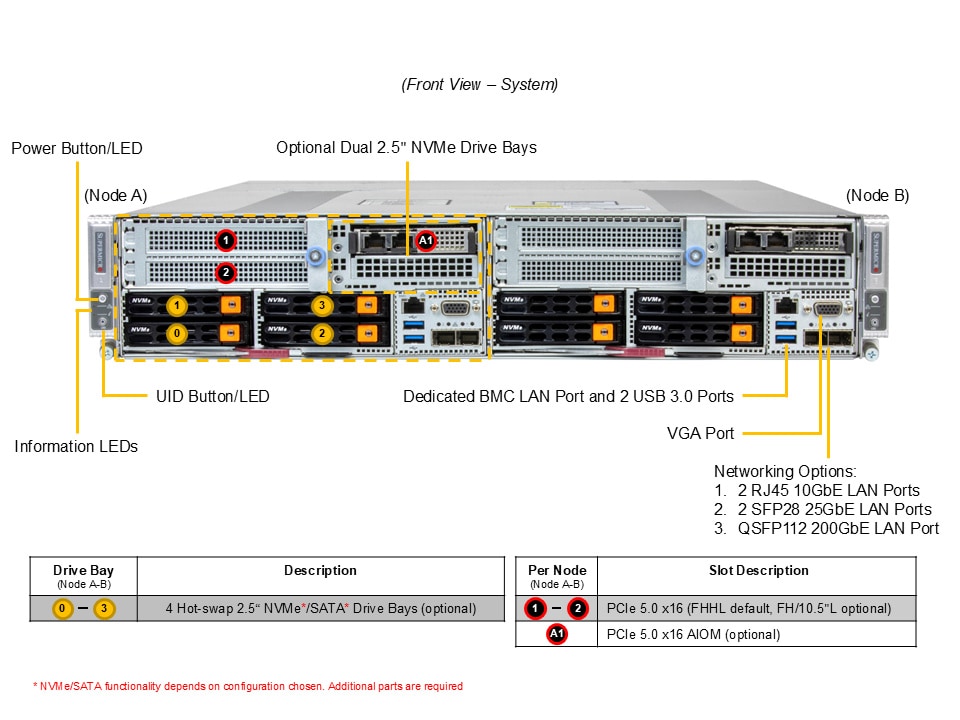

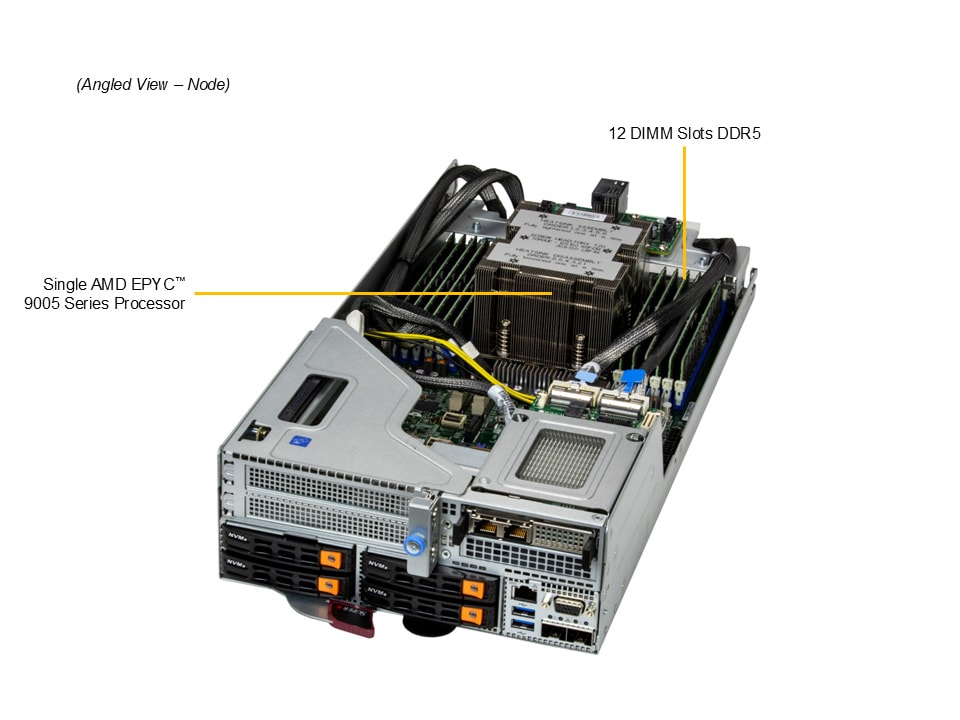

  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • View AOC Options
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SATA* drive bays
  • Option A: Total 6 bays
    • 6 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays
  • (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • Up to 2x 17.6K RPM Heavy Duty 8cm Fan(s)

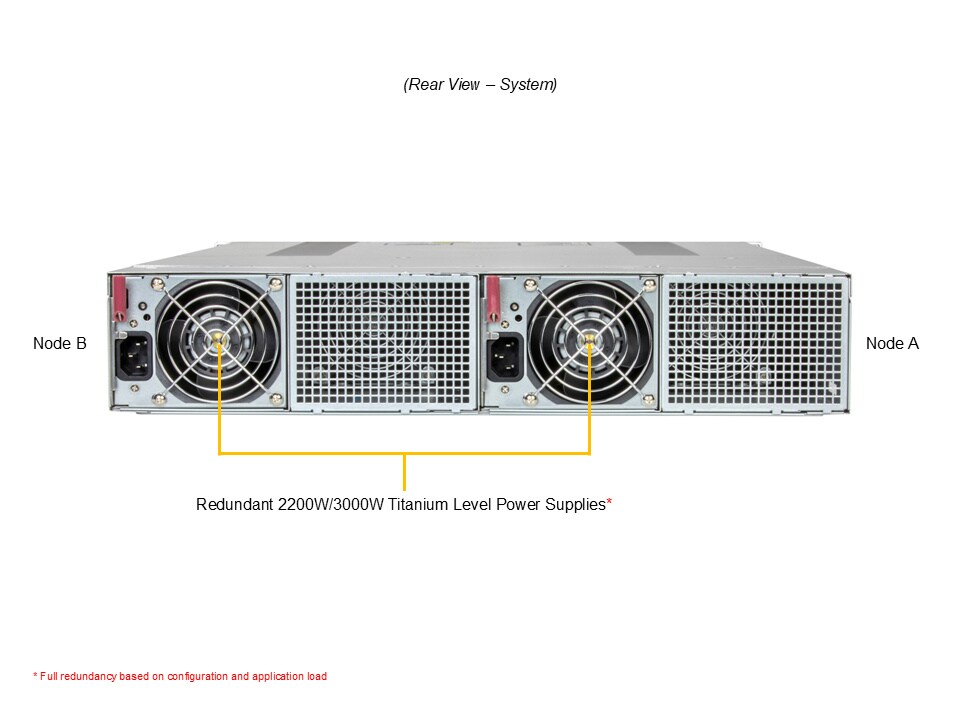

Power Supply
2x 2200W
2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)106.5 x 84 x 245.3 mm
Input100-127Vdc (1200W for the Rest of the World)
1200W: 100-127Vac / 50-60Hz
2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)
200-220Vdc (1800W for the Rest of the World)
200-220Vdc (2090W for North America - UL & cUL)
1800W: 200-220Vac / 50-60Hz
220-230Vdc (1980W for the Rest of the World)
1980W: 220-230Vac / 50-60Hz
220-240Vdc (2200W for North America - UL & cUL)
2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
230-240Vdc (2090W for the Rest of the World)
2090W: 230-240Vdc / 50-60Hz (for CQC only)
2090W: 230-240Vac / 50-60Hz (for TUV/CB)
+12VMax: 100A / Min: 0A (100Vac-127Vac)
Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)
Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
Max: 174.17A (230Vac-240Vac)
12V SBMax: 2A / Min: 0A
Output TypeBackplanes (gold finger)
2x 3000W
2x 3000W Redundant (1 + 1) Titanium (certification pending) Level (96%) power supplies
Dimension (WxHxL)106.5 x 84 x 245.3 mm
Input3000W: 200-240Vac / 50-60Hz
2880W: 240-240Vdc / 50-60Hz (for CQC only)
+12VMax: 250A / Min: 0A (200Vac-240Vac)
Max: 240A / Min: 0A (240Vdc-240Vdc) (for CQC safety rating only)
12V SBMax: 3A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
4 NVME MCP-220-00167-0B • 4 Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
CBL-PWEX-1137YB-30 1 MicroHi(2x4 to 2x2Y),Ph3.0, 30/30cm,9.5A/p,16AWG,RoHS
CBL-PWEX-1131-20 1 MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
CBL-MCIO-1340M5-1 • 1 MCIO x8 (STR to STR), semi-flat, 40cm,32AWG,RoHS
CBL-MCIO-1245M5 • 2 MCIO x8 (STR to STR),45cm,85OHM,RoHS
CBL-MCIO-1237M5 1 MCIO x8 (STR to STR),37cm,85OHM,RoHS
BPN-NVME5-826N-B2B 2 2-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
4 SATA CBL-PWEX-0990Y-20 1 MicroFit 2x4,PH3.0 to 2 1X4,PH5.08, 20cm, 4A/pin,20AWG,R
MCP-220-00147-0B • 4 Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design)
CBL-PWEX-1131-20 1 MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
CBL-MCIO-1340M5-1 • 1 MCIO x8 (STR to STR), semi-flat, 40cm,32AWG,RoHS
CBL-MCIO-1245M5 • 1 MCIO x8 (STR to STR),45cm,85OHM,RoHS
CBL-MCIO-1217REQT4S2-85 1 MCIO X8/RE to 4 SATA+2 SB, 17/10cm, 85Ohm, RoHS
BPN-SAS3-826TQ-B2B 2 2-Port 12Gbps Backplane for 2x2.5" SAS/SATA HDD/SSD
6 NVME MCP-220-00167-0B • 6 Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
CBL-MCIO-1218M5 • 1 MCIO x8 (STR to STR),18CM,85OHM,RoHS
CBL-MCIO-1237M5 1 MCIO x8 (STR to STR),37cm,85OHM,RoHS
CBL-MCIO-1245M5 • 1 MCIO x8 (STR to STR),45cm,85OHM,RoHS
CBL-PWEX-1131-20 1 MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
CBL-PWEX-1137YB-30 1 MicroHi(2x4 to 2x2Y),Ph3.0, 30/30cm,9.5A/p,16AWG,RoHS
BPN-NVME5-826N-B2B 3 2-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
GrandTwin I/O Module 2x10GbE AOC-GTG-I2TN-O 1 Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville X710-AT2, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node)
AOC-GTG-I2T-O 1 Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville X710-AT2, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node)
AOC-GTG-B2T-O 1 Grand Twin I/O card 2-Port 10GbE RJ45, Broadcom BCM57416, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node)
GrandTwin I/O Module 2x25GbE AOC-G25G-M2SN-O 1 Grand Twin I/O card 2-Port 25GbE SFP28, Mellanox CX-4 Lx EN, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node)
Power Supply PWS-3K01A-BR • 0-2 3000W Titanium Power Supply; LxWxH: 245.3x106.5x82.1mm, C20 inlet
SPI Capable TPM 2.0 AOM-TPM-9672V-O • 0-1 AOM-TPM-9672V- TPM 2.0 with 10 pins SPI

GrandTwin A+ Server AS -2116GT-DTNF
