SuperServer SYS-110D-8C-FRDN8TP

Intel Xeon Processor, 8-Core, 600W -48 Vdc redundant PWS, 1U edge platform

Integrated Board: X12SDV-8C-SPT8F
Learn more

Key Applications

  • Intel® QuickAssist Technology
  • Networking Security Appliance

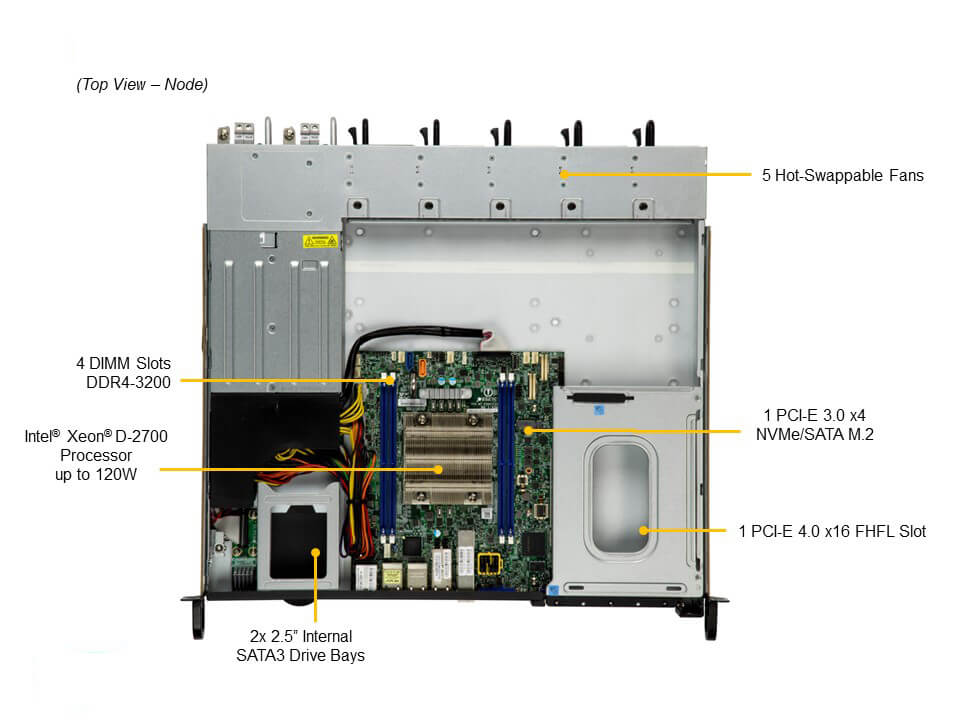

Key Features

  1. Intel® Xeon® Processor D-2733NT, CPU TDP 80W
  2. Up to 256GB Registered ECC RDIMM, DDR4-2667MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2667MHz, in 4 DIMM slots
  3. 2x Internal 2.5" drive bays(2x PCIe 4.0 NVMe x8 SlimSAS and 1x OCuLink options)
  4. 4x GbE, 2x 25G SFP28 and 2x 10G Base-T
  5. 1x M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)
  6. 5x 40x56mm Hot-swap Counter-rotation PWM Fans
  7. Redundant 600 W, -48 Vdc
...
...
SYS-110D-8C-FRDN8TP
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-110D-8C-FRDN8TP
Motherboard
Super X12SDV-8C-SPT8F
Processor
CPU
  • Single FCBGA-2579
  • Intel® Xeon® Processor D-2700 Series
Note
  • Supports up to 80W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 1 single-width GPU
Supported GPU
  • NVIDIA PCIe: L4
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (1DPC): Up to 256GB/512GB 2667MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® SoC
Network Connectivity
  • 4 RJ45 1GBASE-T with Intel® I350
  • 2 SFP28 25GbE with Intel® SoC
  • 2 RJ45 10GBASE-T with Intel® X550
  • View AOC Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 4 RJ45 1 GbE LAN ports (Intel® I350)
  • 2 RJ45 10 GbE LAN ports (Intel® X550)
  • 2 SFP28 25 GbE LAN ports (Intel® SOC)
USB
  • 2 ports
Video
  • 1 VGA port
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature
  • CPU thermal trip support, PEPI Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-515M-R000NP2
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 15.7" (399 mm)
Package
  • 7.9" (H) x 26.7" (W) x 23.8" (D)
Weight
  • Gross Weight: 29 lbs (13.15 kg)
  • Net Weight: 18 lbs (8.16 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 2 bays
    • 2 internal fixed 2.5" SATA drive bays
M.2
System Cooling
Fans
  • Up to 5 Counter-rotating, Hot-swappable 40x40x56mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
2x 600W
2x 600W Redundant (1 + 1) Typical 90%+ Level (92%) power supplies
Dimension (WxHxL)54.5 x 40 x 220 mm
Input600W: -44--65Vdc
+12VMax: 50A
Max: 50A / Min: 0A
5V SBMax: 3A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
SlimSAS x8 to PCIe 2x SFF-8639&PWR,G4,55CM,85OHM,Ro CBL-SAST-0953-1 • 1 SlimSAS x8 to PCIe 2x SFF-8639&PWR,G4,55CM,85OHM,Ro
