SuperServer SYS-E300-13AD5

Mini-1U embedded system with 14th/13th/12th Gen Intel® Core™ CPU up to 65W TDP

Integrated Board: X13SAV-D5LVDS
Learn more

Key Applications

  • Healthcare
  • Surveillance Security Server
  • AI Inference
  • Digital Signage / PoS

Key Features

  1. Single LGA-1700 14th/13th/12th Gen Intel® Core i9/Core i7/Core i5/Core i3/Pentium/Celeron processor up to 65W with air cooling
  2. Support for up to 1 single-width PCIe GPU accelerator cards
  3. Up to 2 DIMMs supporting up to 64GB DDR5-5600 in 2DPC
  4. 1 RJ45 1GbE + 1 RJ45 2.5GbE
  5. Up to 1 PCIe 5.0 x16 LP slots (Optional)
  6. Support up to 1x 2.5" drive bays (Optional)
  7. 1 180W power supply
  8. Fan-based Embedded chassis with 8.89" (225.8mm) depth
...
...
SYS-E300-13AD5
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-E300-13AD5
Motherboard
Super X13SAV-D5LVDS
Processor
CPU
  • Single L0 (LGA-1700)
  • Intel® Core™ 3/5/7 (Series 2) and 14th/13th/12th Gen Core i3/i5/i7/i9 Processors
Core Count
  • Up to 24C/32T; Up to 36MB Cache
Note
  • Supports up to 65W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • 1 single-width GPU
System Memory
Memory
  • Slot Count: 2 DIMM slots
  • Max Memory (2DPC): Up to 64GB 5600MT/s non-ECC DDR5 SO-DIMM
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® Q670E

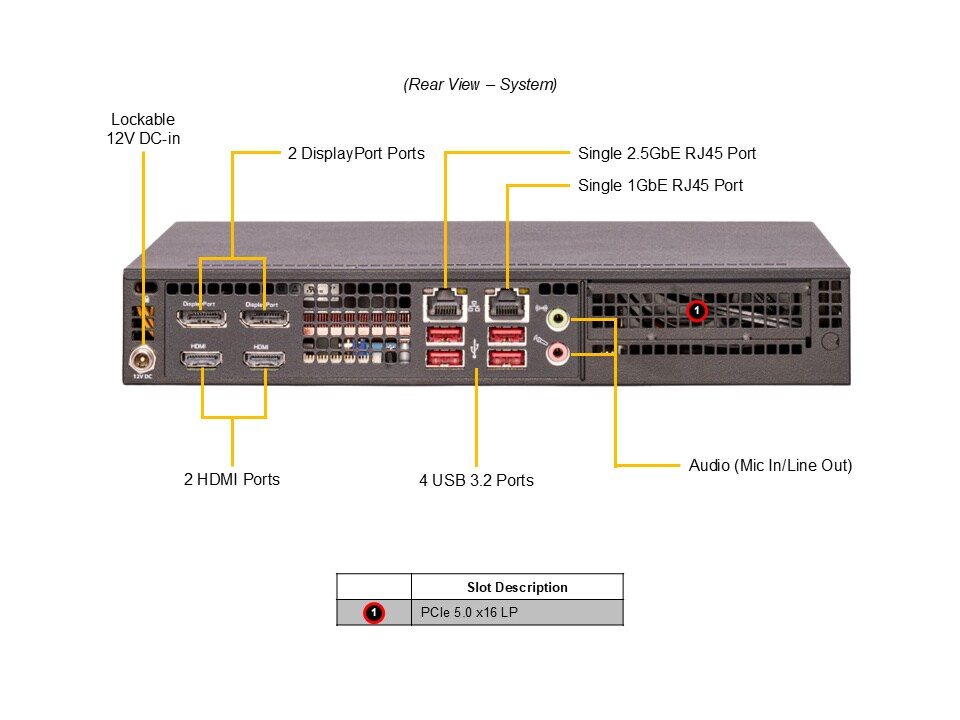

Input / Output
LAN
  • 1 RJ45 1 GbE LAN port (Intel® I210-AT)
  • 1 RJ45 2.5 GbE LAN port (Intel® I226-LM)
USB
  • 4 USB 3.2 Gen2 Type-A ports(Rear)
Video
  • 1 HDMI 2.0b port(Rear)
  • 1 HDMI 1.4 port(Rear)
  • 2 DisplayPort ports(Rear)
Audio
  • Line Out
  • Mic in
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • SPI dual/quad speed support
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Chassis
Form Factor
  • Fan-based Embedded
Model
  • CSE-E300
Dimensions and Weight
Height
  • 1.69" (43 mm)
Width
  • 10.43" (264.8 mm)
Depth
  • 8.89" (225.8 mm)
Package
  • 10.87" (H) x 15" (W) x 5.59" (D)
Weight
  • Gross Weight: 7.5 lbs (3.4 kg)
  • Net Weight: 3.7 lbs (1.6 kg)
Palletized Packing (W x H x L)
  • 54.33" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm)
Available Color
  • Black

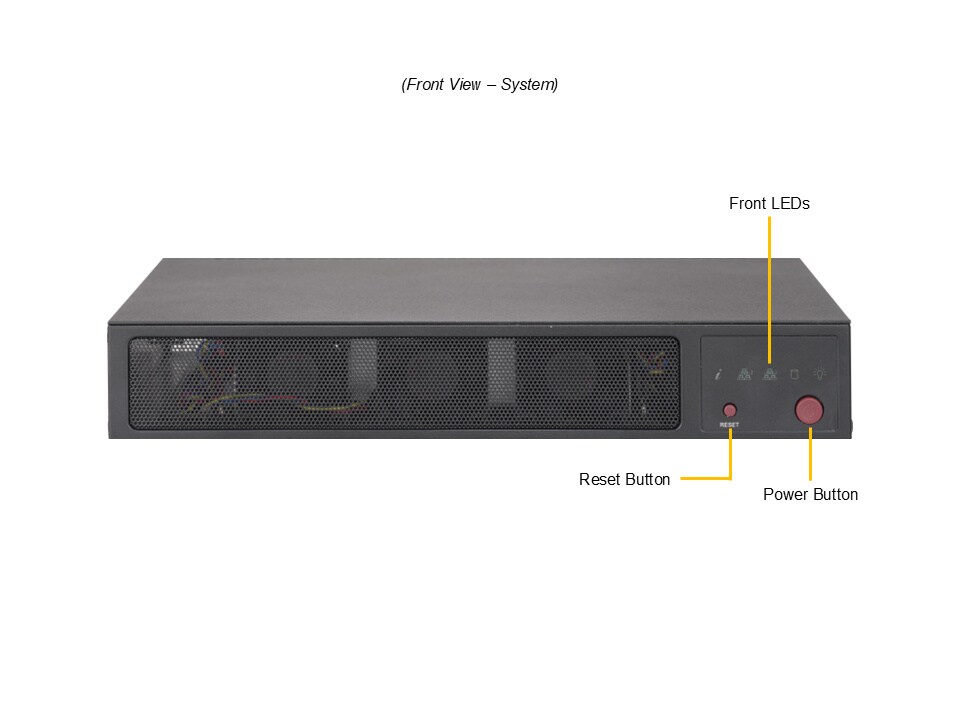

Front Panel
LED
  • HDD Status
  • LAN1 activity
  • LAN2 activity
  • Power status
  • WIFI activity
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default*
    • 1 PCIe 5.0 x16 (in x16) LP slot
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
M.2
  • 1 M.2 PCIe 3.0 x1 slot (E-key 2230)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 1 bay
    • 1 internal fixed 2.5" SATA* drive bay
  • (*SATA support may require additional storage controller and/or cables)
M.2
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280)
System Cooling
Fans
  • Up to 1 CPU heatsink with Φ80x15mm Fan(s)
  • Up to 2x 4-PIN PWM 40x40x28mm Fan(s)
Power Supply
1x 180W
1x 180W power supply
Dimension (WxHxL)151.3 x 25.4 x 75.6 mm
Input180W: 100-240Vac / 47-63Hz
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s airflow
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Dual 2.5" drive bay kits CBL-SAST-0933 • 1 OcuLink v 1.0 to 4x SATA 7-pin,INT, 50CM,32AWG,RoHS
CBL-SAST-0886 1 SATA 15pin x2 to 4pin /P2.5,40CM,22AWG,RoHS
Expansion slot kits RSC-S-6G5 1 1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
GPU air shroud MCP-310-30001-0B 1 Air shroud for NVIDIA Low profile GPU card(T4/A2/L4)
Rackmount kits MCP-290-30002-0B • 1 CSE-E300 Rackmount kit with power adapter holder
Table Vertical Stand MCP-290-30006-0B 1 CSE-E300 Vertical Stand,RoHS
