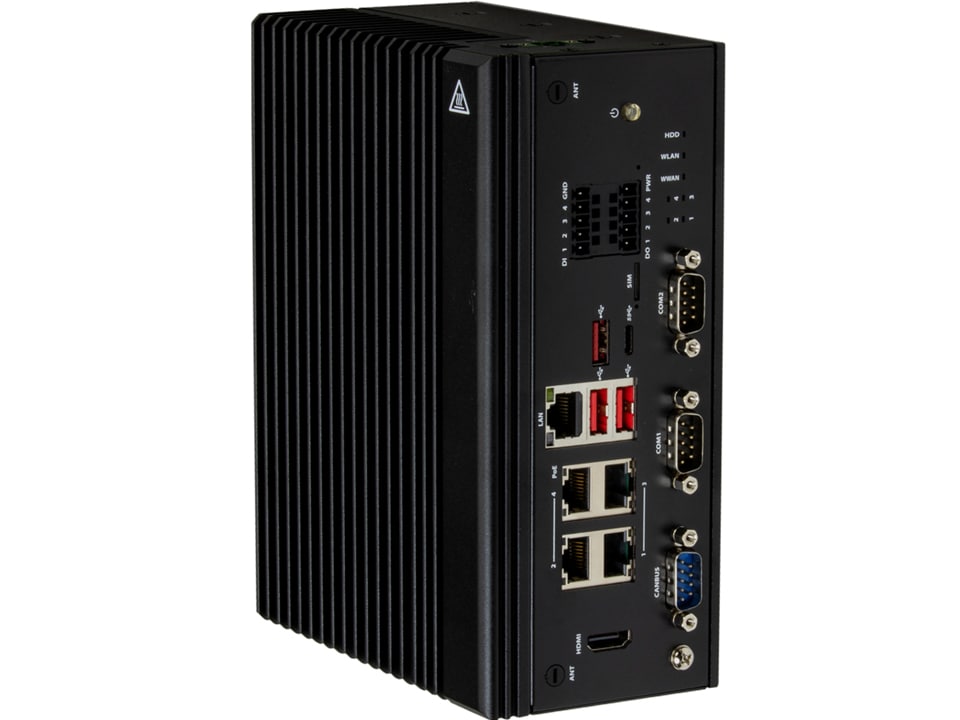

SuperServer ARS-E103-JONX-L2

Compact fanless edge AI platform, with 8-core CPU. Up to 157 TOPS.

Key Applications

  • Artificial Intelligence (AI)
  • Imaging and Computer Vision
  • Industrial Automation, Retail, Smart Medical Expert Systems
  • Healthcare
  • Digital Signage Kiosk, Interactive info system

Key Features

  1. Arm® Cortex®-A78AE v8.2 64-bit CPU up to 40W with air cooling
  2. Up to 8GB LPDDR5X onboard memory
  3. 4 RJ45 1GbE + 1 RJ45 10GbE
  4. Fanless Embedded chassis with 5.5" (140mm) depth
...
...
ARS-E103-JONX-L2
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
ARS-E103-JONX-L2
Motherboard
Super AOM-JSOR-002
Processor
CPU
  • Arm® Cortex®-A78AE v8.2 64-bit CPU
Core Count
  • 6C/6T; 4MB Cache
Note
  • Supports up to 40W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: 16GB ECC LPDDR5X
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • 4 RJ45 1GbE with Intel® I210-IT
  • 1 RJ45 1GbE with SoC
  • No NIC option supported

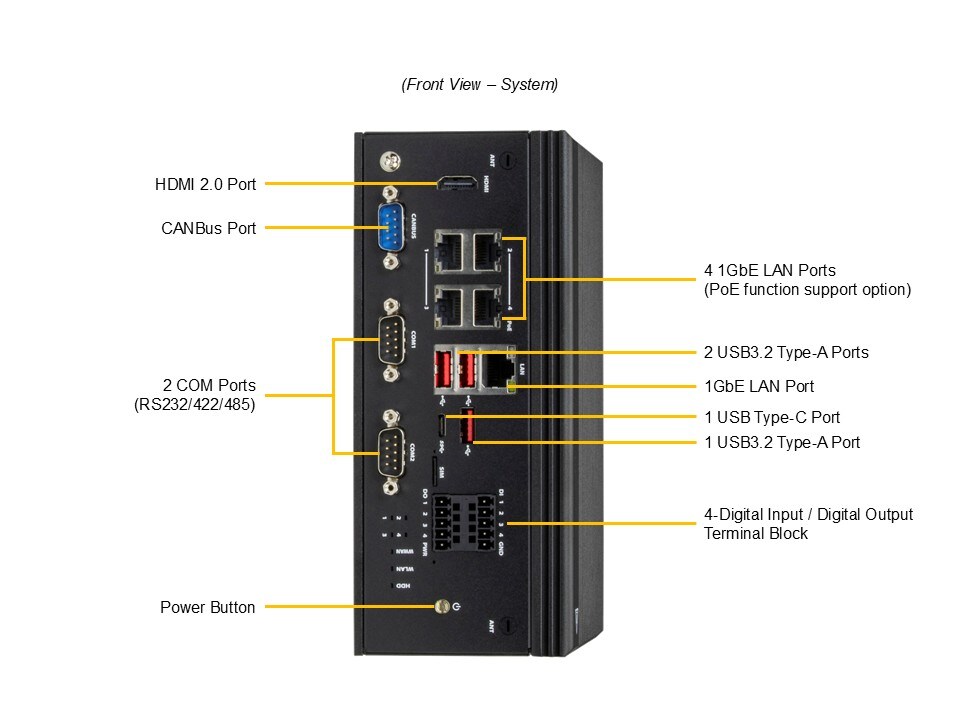

Input / Output
LAN
  • 4 RJ45 1 GbE LAN ports (Intel® I210-IT)
  • 1 RJ45 1 GbE LAN port (SoC)
USB
  • 1 USB 3.2 Gen2 Type-C port(Front)
  • 3 USB 3.2 Gen2 Type-A ports(Front)
Video
  • 1 HDMI 2 port(Front)
Serial
  • 2 COM RS232/RS422/RS485 ports(Front)
Others
  • 1 CANBus port
  • 1 4 DI/4 x DO (terminal block) port
Management
Power configurations

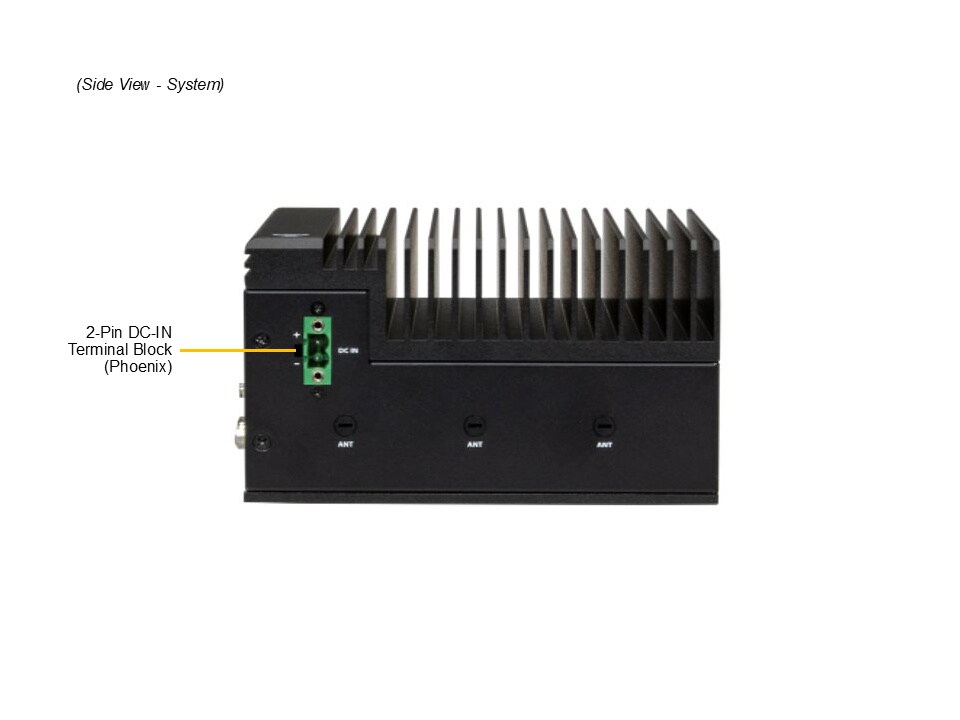

  • +9~36V DC Power Input
Chassis
Form Factor
  • Fanless Embedded
Model
  • CSE-E102L

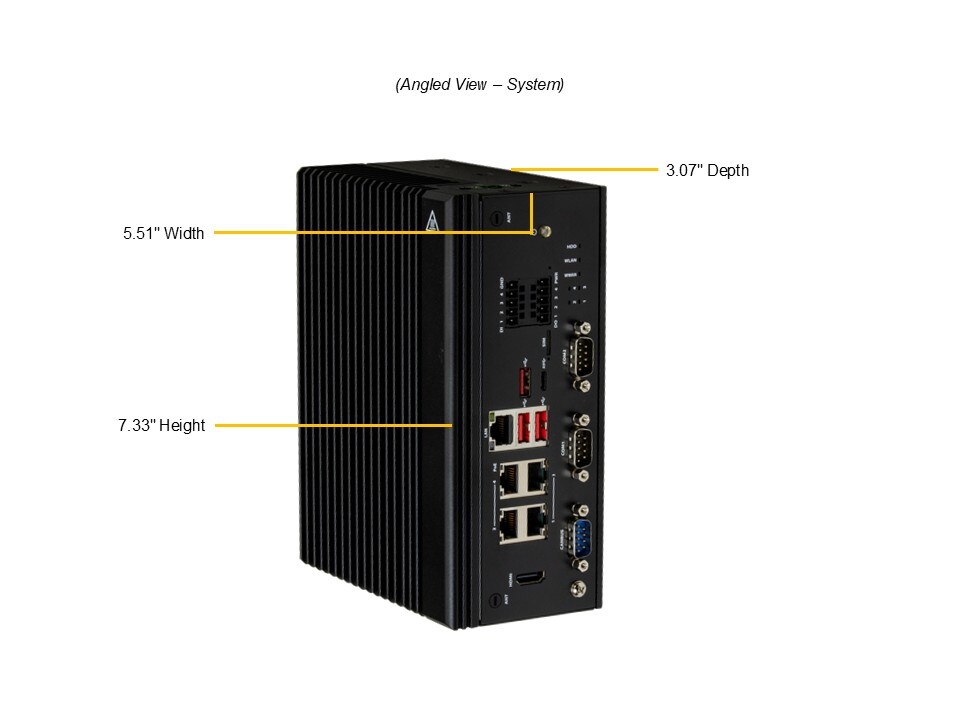

Dimensions and Weight
Height
  • 3.15" (80 mm)
Width
  • 7.28" (185 mm)
Depth
  • 5.5" (140 mm)
Package
  • 7.87" (H) x 11.42" (W) x 9.06" (D)
Weight
  • Gross Weight: 4.3 lbs (1.95 kg)
  • Net Weight: 3.7 lbs (1.68 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
LED
  • Power status
Expansion Slots
M.2
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280(default))
  • 1 M.2 PCIe 4.0 x1 slot (E-key 2230(default); USB 2.0)
  • 1 M.2 slot (B-key 3052(default)/3042; USB 3.0)
Drive Bays / Storage
M.2
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280(default))
System Cooling
Fans
  • N/A
Power Supply
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: -25°C to 60°C (-40°F to 131°F) with 0.7 m/s airflow
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Din Rail Kit MCP-290-10201-0N • 1 CSE-E101/E102/E50 Mounting Hardware Clip for 35mm DIN Rail
