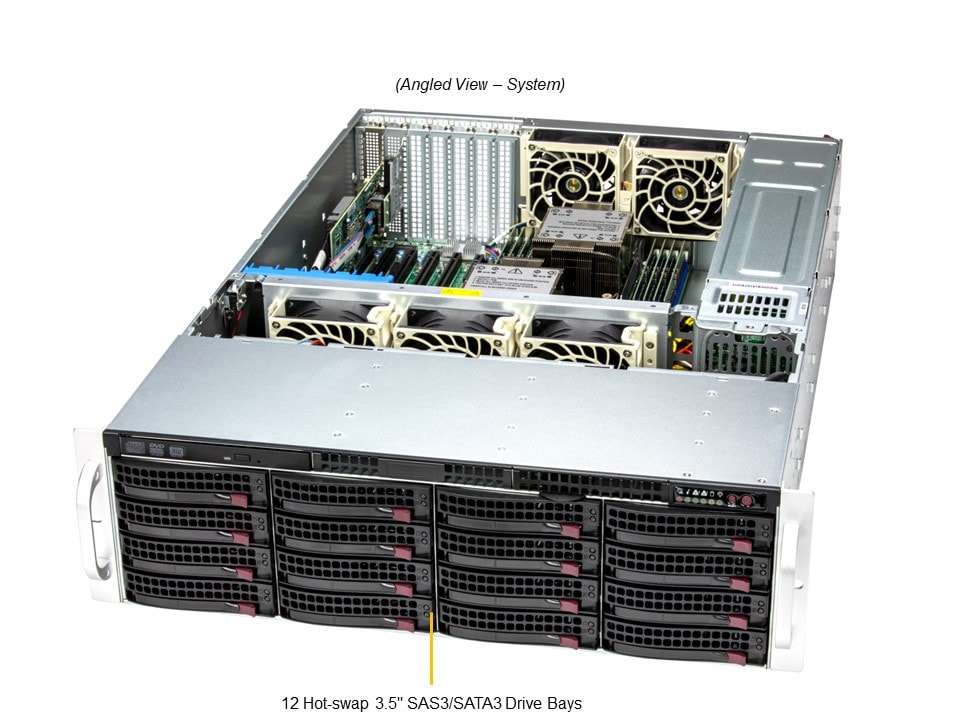

SuperServer SSG-631E-E1CR16L

3U front-loading storage server with 16 hot-swap 3.5" SAS/SATA bays and PCIe 5.0

Integrated Board: X13DEI-T
Learn more

Key Applications

  • Enterprise Server
  • iSCSI SAN
  • HPC, Data Center
  • Database Processing & Storage
  • Corporate Database
  • Appliance Optimized Storage Building Blocks

Key Features

  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  2. Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
  3. 2x 10 GbE onboard via Broadcom BCM57416
    1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  4. 16x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
  5. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
  6. 1200W Redundant Power Supplies Titanium Level (96%)
  7. HBA Controller support via Broadcom® 3808
...
...
SSG-631E-E1CR16L
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SSG-631E-E1CR16L
Motherboard
Super X13DEI-T
Processor
CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports (Broadcom® BCM57416) (IPMI shared on LAN port 1)
USB
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port(Rear)
Serial
  • 1 COM port(rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-836BTS-R1K23BP2
Dimensions and Weight
Height
  • 5.2"
Width
  • 17.2"
Depth
  • 25.5"
Package
  • 13" (H) x 27" (W) x 35" (D)
Weight
  • Gross Weight: 79 lbs (48 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 4 PCIe 5.0 x16 (in x16) FHHL slots
    • 2 PCIe 5.0 x8 (in x8) FH/10.5"L slots
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 18 bays
    • 16 front hot-swap 3.5" SAS/SATA drive bays
    • 2 rear hot-swap 2.5" SATA drive bays
  • View Drive Options
M.2
Peripheral Bays
  • 1 slim DVD bay (optional)
System Cooling
Fans
  • Up to 5 Heavy Duty 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
2x 1200W
2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Cable Management Arm MCP-290-00073-0N • 1 Supermicro Cable Management Arm
Converter Tray MCP-220-00043-0N • 1 2.5" HDD TRAY IN 4TH GENERATION 3.5" HOT SWAP TRAY
DVD Drive CBL-SAST-1251-100 1 Slimline x8 (STR) to 4x SATA,60/50/50/60CM,SB 5CM,100 OH
DVM-HLDS-DVDRW-SBT2 1 BLACK HLDS SLIM DVDRW SATA DRIVE,RoHS
MCP-220-81502-0N • 1 Slim SATA DVD mounting kit
Front USB3.0 & COM Ports Tray MCP-220-00129-0B 1 Black 2x USB3.0/COM port tray in slim FDD bay, with both side of rails/brackets
Network Cards AOC-S25G-b2S-O 1 Std LP 2-port 25G SFP28, Broadcom BCM57414
AOC-S25G-i2S-O 1 Std. Low Profile 25G dual port SFP28, based on Intel XXV710
AOC-S25G-M2S-O • 1 Std LP 2-port 25G SFP28, Mellanox ConnectX-4 LX EN
AOC-STG-b2T-O • 1 Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS
AOC-STGS-I2T-O • 1 Std LP 2-port 10G RJ45, Intel X550
Power Cord CBL-PWCD-0300-IS 1 PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579 1 Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0579-1 • 1 Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
TPM AOM-TPM-9670V-O • 1 TPM 2.0, vertical form factor, provisioned for server
VROC AOC-VROCPREMOD • 1 Intel VROC Premium, RAID0,1,5,10,HF,RoHS
AOC-VROCSTNMOD 1 Intel VROC HW key (RSTe) standard upgrade module,HF,RoHS
