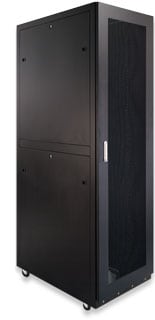

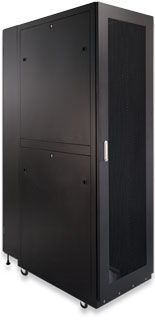

42U Rack Cabinet - The Most Flexible 42 Rack Solution
Supermicro's new SuperRack® systems were designed from the ground for ease of installation, maintenance, and scaling. They offer effortless rear access and cabling arrangements for hot-swap-capable servers, such as our Twin and Double-Sided Storage® families. If you're looking for rack that's convenient, flexible, reliable, customizable, and compatible, SuperRack® is the ideal choice.
The SuperRack® system offers the following advanced features:
Heavy Load Support for High Density Server Solutions
With a certified static/dynamic load support of up to 5500 lbs (2500 kg), SuperRack systems can support a greater load than the average of around 2755 lbs (1250 kg).
Versatility, Flexibility, and Expandability
(see slideshow to the right)
Unlike many of the traditional fixed-size racks available today, SuperRacks can be scaled in any direction to match your configuration, cabling, airflow, and cooling requirements, all without the use of tools. Thus re-configuring your rack can be achieved virtually effortlessly to adapt to your changing IT environment and scale with you.
SuperRacks also offer front and rear access hot-plug capability that, when combined with the scalability, will significantly improve your service experience and reduce or eliminate down time.
Convenience Using the "Per U" Design Concept
SuperRacks offer a ground-breaking Per-U design concept that greatly simplifies cable management and minimizes integration time, regardless of your cabling and server configuration,
SuperRack Building Blocks
Building block-based design and intuitive installation process lead to reduced overall deployment schedule. These building blocks include 130+ accessories and add-on selections to fit your application and scale with your business.
Compatible, Reliable, and Compliant
SuperRacks are compliant with ANSI/EIA RS-310-C/D/E standards and compatible with APC InfraStruXure products.
Using the SuperRack with our complete line of server systems and solutions, you'll enjoy one-stop shopping for all your IT
hardware needs.
 |
|
|
Net Weight:
Maximum Height:
Maximum Width:
Maximum Depth:
Net Depth with Stabilizing Feet:
Shipping Weight:
Shipping Height:
Shipping Width:
Shipping Depth:
Weight Capacity (static load):
Weight Capacity (dynamic load):
Minimum Mounting Depth:
Maximum Mounting Depth:
Rack Height:
Color:
Units per Pallet:
Vertical Posts:
Front Door:
Rear Door:
Roof:
EIA Mounting Rails:
Side Panel:
|
94.04 kg / 207.60 lbs
2092.70 mm / 82.38 in
598.00 mm / 23.54 in
1000.00 mm / 39.37 in
1000.00 mm / 39.37 in
121.85 kg / 268.63 lbs
2230.00 mm / 87.79 in
640.00 mm / 25.19 in
1030.00 mm / 40.55 in
2500.00 kg / 5500 lbs
2500.00 kg / 5500 lbs
100.00 mm / 3.93 in
1075 mm / 42.32 in
42U
Black
1
16 gauge
18 gauge
18 gauge
x
14 gauge
18 gauge
|
|
 |
|
|
Net Weight:
Maximum Height:
Maximum Width:
Maximum Depth:
Net Depth with Stabilizing Feet:
Shipping Weight:
Shipping Height:
Shipping Width:
Shipping Depth:
Weight Capacity (static load):
Weight Capacity (dynamic load):
Minimum Mounting Depth:
Maximum Mounting Depth:
Rack Height:
Color:
Units per Pallet:
Vertical Posts:
Front Door:
Rear Door:
Roof:
EIA Mounting Rails:
Side Panel:
|
117.44 kg / 258.91 lbs
2092.70 mm / 82.38 in
598.00 mm / 23.54 in
1225.00 mm / 48.22 in
1225.00 mm / 48.22 in
150.18 kg / 331.08 lbs
2230.00 mm / 87.79 in
640.00 mm / 25.19 in
1260.00 mm / 49.60 in
2500.00 kg / 5500 lbs
2500.00 kg / 5500 lbs
100.00 mm / 3.93 in
1075 mm / 42.32 in
42U
Black
1
16 gauge
18 gauge
18 gauge
x
14 gauge
18 gauge
|
|
14U Mini Rack Cabinet
Our Mini Rack Cabinet, CSE-RACK14U, is optimized for office, small/medium business (SMB), research and academic institutions or professional studio environments (movie animation, music production, etc.). The 14U space supports any combination of standard rack mount servers or equipment in a compact form factor offering ease of maintenance and flexibility for different IT applications.
The CSE-RACK14U Mini Rack Cabinet's desk-side (30.64" h) design features security and mobility. It's sleek and compact Element ID design makes it suitable for customers looking for IT solutions in a dynamic office environment.
|
|
 |
|
Key Features
• 14U Rack units; supports 19" rackmount servers with regular square mounting holes
• Ideal for office environments - 30.64 inches high, same height as regular office furniture
• Lockable front door and rear door, provides extra security for IT facilities
• Mobility - Casters with brakes, easy to move
• Stability - Supporting posts on the four corners
• Detachable "front door and rear door" design, easy for maintenance
• Re-useable and environmental friendly shipping box
• Rear door included
|
|
|
|
