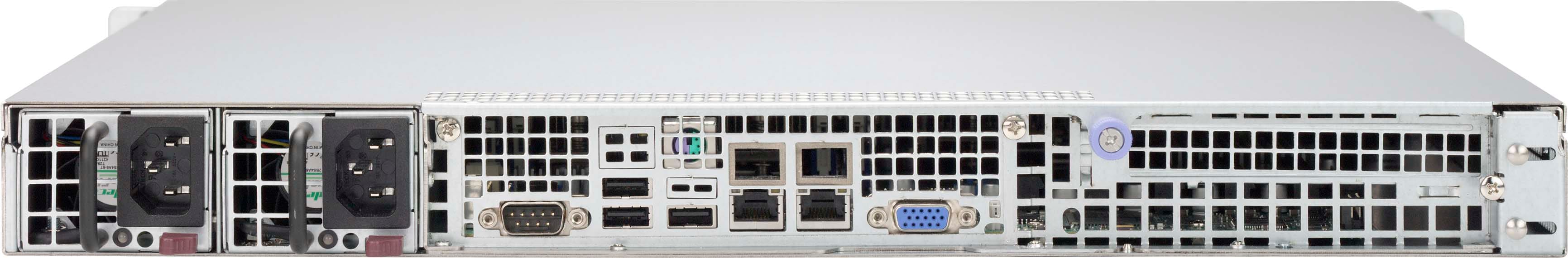

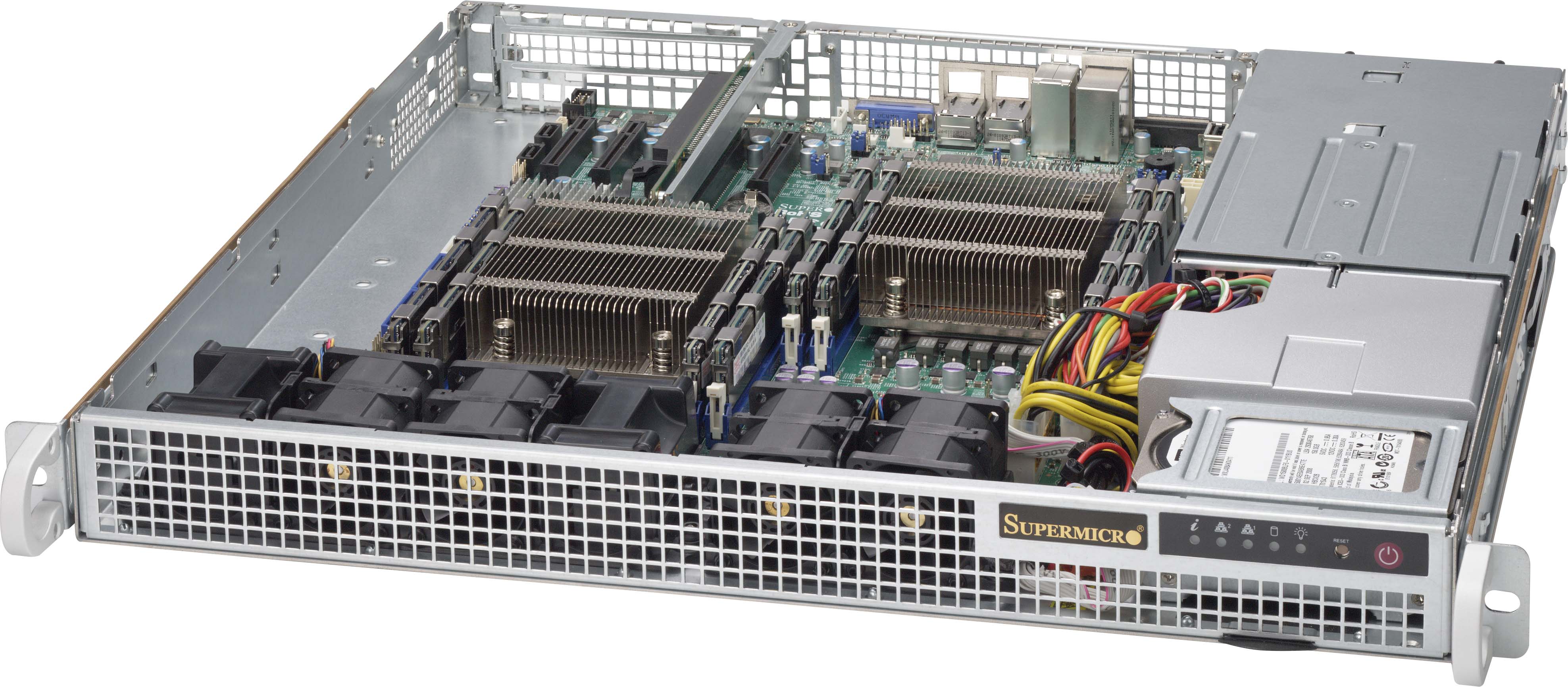

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. Support STD MB, size up to E. ATX 12" x 13".
  2. Up to 2 x 2.5" fixed with bracket
  3. SAS or enterprise SATA HDD only recommended
  4. 1U 400W Redundant single output power supply, W/PMbus, gold level
  5. Up to , 1 full height expansion slot(s)
  6. 4 x 40x56mm PWM fan(s)
  7. Optional 2 x fans for AOC cooling
Specifications
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
CSE-514-R400C
  • SuperChassis 514-R400C

Form Factor
  • Support STD MB, size up to E. ATX 12" x 13".
    •
    Processor Support
  • Dual and Single Intel® and AMD processors
    		•

    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 16.9" (429 mm)
    Gross Weight
    • 25.2 lbs (11.43 kg)
    Packaging (W x H x L)
    • 27" (686 mm) x 8" (203 mm) x 24" (610 mm)
    Available Color
    • No Paint

    Expansion Slots
    • Up to
    • 1 full height expansion slot(s)

    Drive Bays
    • Up to 2 x 2.5" fixed with bracket
    • SAS or enterprise SATA HDD only recommended

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Power Status LED
    Systems Cooling
    Fans
    • 4 x 40x56mm PWM fan(s)
    • Optional 2 x fans for AOC cooling

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 400W Redundant single output power supply, W/PMbus, gold level
    Power Efficiency
    • 92%
    Total Output Power and Input
    • 400W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 220 x 54.5 x 40.25 mm
    Output Type
    • Backplanes (gold finger)
    -12V
    • Max: NAA
    +12V
    • Max: 33A / Min: 0.5A (100Vac - 240Vac)
    +5Vsb
    • Max: 3A / Min: 0A
    +12Vsb
    • Max: NAA
    Power Distributor
    • PDB-PT514-2824
    • O/P: 12V/54
    • +5V Max: 25
    • +3.3V Max: 25
    • -12V Max: 0.6
    Certification
    • Gold Certified  Gold Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • TUV/CB
    • UL/CUL
    Components
    Standard Parts List
      Part Number Qty Description
    Cable(s)CBL-0156L1ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE
    Cable(s)CBL-0260L2US POWER CORD 18 AWG, PBF
    Fan(s)FAN-0156L4440x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
    Front PanelMCP-280-51201-0N1Front control board (FP512) for SC512 (surface-mounted LED)
    Cooling Fan & AccessoryMCP-320-00027-0B24Plastic pin for 40x28, 40x56 fan
    Cooling Fan & AccessoryMCP-320-81801-0B3SC818G 2x 4056 fan tray,HF,RoHS,PBF
    Cooling Fan & AccessoryMCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Drive Tray(s)MCP-220-51401-0N1Dual 2.5 HDD bracket (bracket base not follow std 2.5" HDD screw holes)
    Power DistributorPDB-PT514-282411U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH
    Part(s)MCP-260-00078-0N11U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
    Mounting Rail(s)MCP-290-00102-0N1setOuter rail, quick-release type, 25.6" to 33.05"
    Mounting Rail(s)MCP-290-00108-0N1setInner rail, front, short, quick-release type
    Rear WindowMCP-240-00086-0N1STD rear window for SC113 redundant PWS
    Optional Parts List
      Part Number Qty Description
    Rail MCP-290-00056-0N - Quick-release outer rail for square hole short-depth rack (19"~26.4")
    Chassis parts MCP-120-00078-0N - Optional shorter 1U riser card bracekt for X9DRL-7F/EF
    Fan Kit CBL-0296L - 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    Motherboard (for CSE- 514-R400C)
    X10DRL-i X10DRL-CT X10DRD-iNTP X10DRD-iTP
    X10DRD-LTP X10DRL-iT X10DRL-C X10DRD-iNT
    X10DRD-iT X10DRD-i X10DRD-LT X10DRD-L
    X11SSZ-TLN4F X11SSZ-F X11SSZ-QF X10SRM-TF
    X10SRM-F X11SSW-4TF X11SSW-TF X9DRD-iF
    X9DRD-LF
    = Most optimized Chassis for SuperServer Configuration
    Blue color = Compatible
    Green color = Global SKU & Compatible
    Red dot & green color = Optimized + Global SKU
    Servers (for CSE- 514-R400C)
    6018R-MDR
