SuperServer SYS-542T-2R

UP full rackmount tower workstation for media/video live-streaming, broadcasting, and CDN applications

Key Applications

  • CDN, Edge Nodes
  • CDN Optimized
  • Media/Video Streaming
  • Cloud Video Streaming
  • Video-on-Demand
  • Web Cache, CDN, Video Streaming
  • •Video processing & streaming
  • content Delivery Network (CDN)
  • Video and Music Production

Key Features

  1. Intel Xeon 6 SoC with P-Cores, 36C, Media Transcoding Accelerator at 235W
  2. Support for up to 1 triple-width PCIe GPU or 2 double-width PCIe GPU accelerator cards
  3. Up to 4 DIMMs supporting up to 256GB DDR5-6400 MT/s
  4. 2x 100GbE QSFP28 +1x IPMI shared LAN 1x GbE RJ45
  5. Up to 1x PCIe 5.0 x16 FHFL + 1x PCIe 5.0 x 16 FHFL or 2x PCIe 5.0 x8 FHFL + 1x PCIe 4.0 x8 FHFL + 1x PCIe4.0 x2 (physical x4)
  6. Up to 16 front fixed 3.5"/2.5" NVMe/SAS/SATA drive bays
  7. 2 Redundant 1200W Titanium Level Hot-plug power supplies
...
...
SYS-542T-2R
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SuperWorkstation SYS-542T-2R

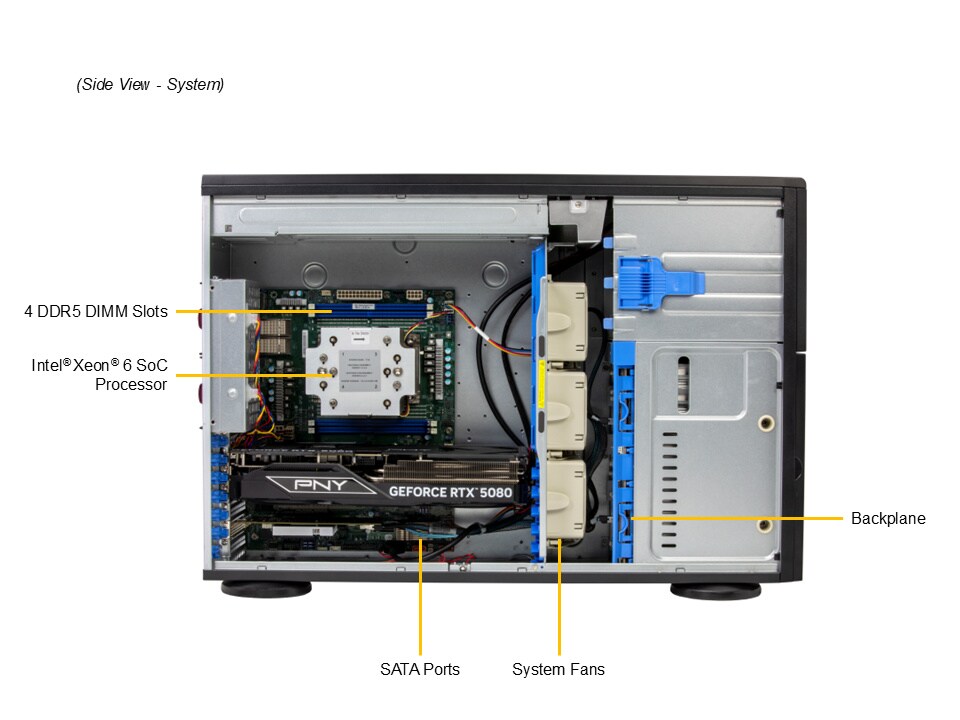

Motherboard
Super X14SDI-36C-SP3F
Processor
CPU
  • Intel® Xeon® 6 SoC
Core Count
  • 36C/72T; 144MB Cache
Note
  • Supports up to 235W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 triple-width or 2 double-width GPUs
Supported GPU
  • NVIDIA: GeForce RTX 5080, GeForce RTX 5090
  • NVIDIA PCIe: NVIDIA RTX PRO™ 4000 Blackwell, NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition
  • Intel: Arc™ Pro B50 Graphics, Arc™ Pro B60 Graphics
  • View GPU Options
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (1DPC): 2TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
SAS
  • SAS (12Gbps) ; RAID 0/1/5/6/10/50/60 support
Chipset
  • System on Chip
Network Connectivity
  • 2 QSFP28 100GbE with Intel® SoC
  • 1 RJ45 1GbE with Intel® I210-IT
  • View AOC Options
Input / Output
LAN
  • 1 RJ45 1 GbE LAN port (Intel® I210-IT) (IPMI shared on LAN port 1)
  • 2 QSFP28 100 GbE LAN ports (Intel® SOC)
USB
  • 2 USB 3.2 Gen1 Type-A ports(front)
  • 4 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
FAN
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-745BTS-R000NDBP2
Dimensions and Weight
Height
  • 17.8" (452 mm)
Width
  • 7" (178 mm)
Depth
  • 25.5" (647 mm)
Package
  • 24.6" (H) x 14" (W) x 31.3" (D)
Weight
  • Gross Weight: 62 lbs (28.12 kg)
  • Net Weight: 59 lbs (26.76 kg)
Available Color
  • Black
Expansion Slots

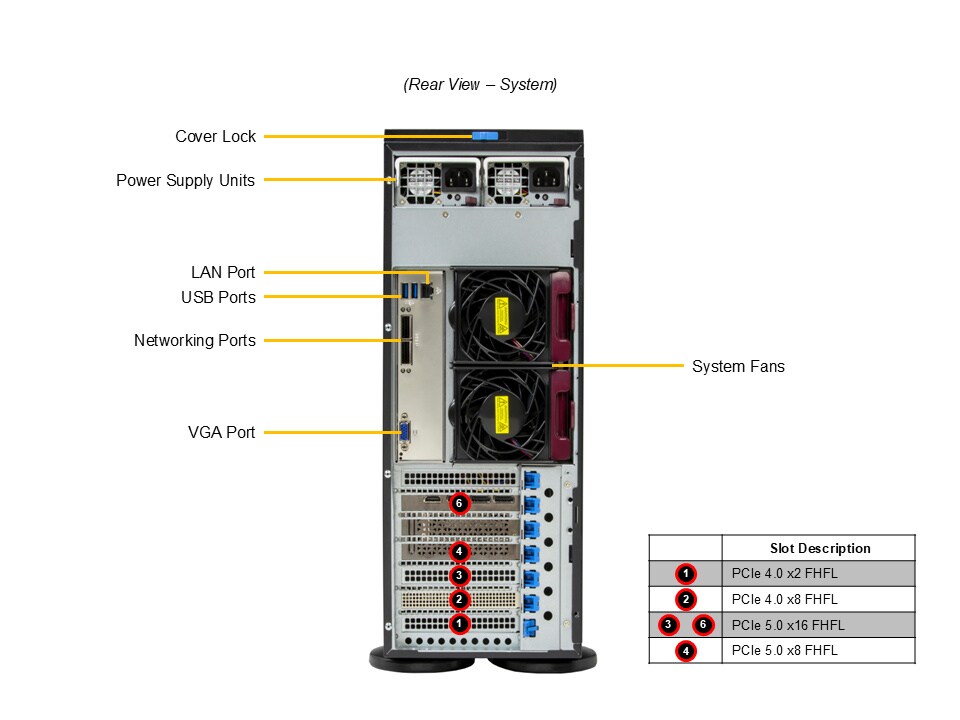

PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x16 FHFL slots
    • 1 PCIe 4.0 x8 FHFL slot
    • 1 PCIe 4.0 x2 (in x4) FHFL slot
  • View AOC Options
M.2
  • 1 M.2 PCIe 4.0 x4 slot (M-key 2280/22110)
  • 1 M.2 PCIe 4.0 x2 slot (M-key 2280/22110)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front fixed 3.5"/2.5" 24G SAS*/NVMe/SAS*/SATA drive bays
  • Option A: Total 16 bays
    • 8 front fixed 3.5"/2.5" 24G SAS*/SAS/SATA drive bays
    • 8 front fixed 2.5" 24G SAS*/NVMe*/SAS/SATA drive bays
  • (*24G SAS/NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View Drive Options
M.2
  • 2 M.2 NVMe slots (M-key 2280/22110; VROC required for RAID)
Peripheral Bays
  • 1 DVD bay
System Cooling
Fans
  • 1 Exterior 80mm Fan(s) (optional)
  • 5 Acoustic Optimized （Hot Swap） 80mm Fan(s)
  • 5 Heavy Duty（Hot Swap） 80mm Fan(s) (optional)
Power Supply
2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
2x 2200W
2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Total Output Power(for CCC only)
(for UL/cUL use only)
Input1200W: 100-127Vac
1200W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
1980W: 220-230Vac / 50-60Hz
2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
2200W: 230-240Vac
2090W: 230-240Vac / 50-60Hz
2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12VMax: 100A / Min: 0A (100Vdc-127Vdc)
Max: 100A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 174.17A / Min: 0A (230Vac-240Vac)
Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SBMax: 1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
24G SAS4 RAID controller kit AOC-S4116L-H16IR-16DD-O - Low Profile x8 PCIe Gen 4.0, 16 internal SAS4 ports HW RAID
Cooling Fan accessory MCP-320-00040-0N 1 Single external hot-swap rear fan holder
DVD Kit DVM-TEAC-DVDRW24-HBT 1 BLACK TEAC 5.25" HH 24X DVD-RW SATA DRIVE
DVD-RW Drive DVM-TEAC-DVDRW24-HBT 1 BLACK TEAC 5.25" HH 24X DVD-RW SATA DRIVE
Exterior Cooling Fan FAN-0166L4-3 1 80x80x38 mm, 13.5K RPM, Rear Exhaust Fan for SYS-740A-T, RoH
Gen4 8-ports SAS Raid controller kit AOC-S3908L-H8IR-16DD-O • - 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
Middle Cooling Fan FAN-0182L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 4U Chassis
NVMe cable CBL-MCIO-1260-M5 - MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS
OOB License SFT-OOB-LIC • - License for out of band management
Passive GPU Cable CBL-PWEX-1363Y-11 - 12V-2x6+4S to 2 PCIe 2X4M,PH4.2,11cm,6.25A/p,16AWG,RoHS
Power Supply PWS-2K20A-1R 2 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
Rail Mount Kit CSE-PT26L-B • - 4U Chassis Rail Kits SC743,745 (w/ 2pcs Black Chassis Ears)
Rear Cooling Fan FAN-0148L4 2 80x80x38 mm, 11K RPM SC747 GPU Server Rear Exhaust Fan,HF,RoHS/REACH,PBF
SuperCap kit for AOC-S3908L-H8IR-16DD BTR-CVPM05 • - Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender
