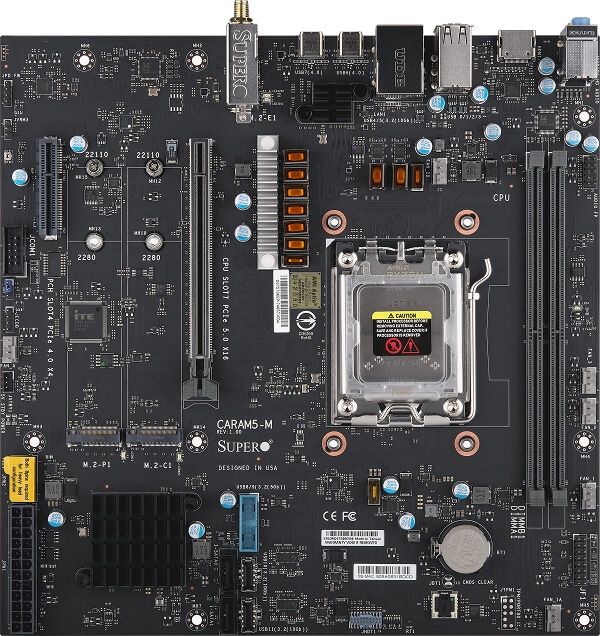

CARAM5-M

CARAM5-M
UP AI PC/Desktop Board with Wi-Fi 7 and Bluetooth® 5.4
SuperO

Key Features


  1. AMD Ryzen™ 9000 Series Processors, LGA-1718 (AM5 Socket), Up to 170W TDP
  2. AMD B850 chipset
  3. 2 DDR5 5600MT/s Non-ECC UDIMM, Up to 96GB
  4. 1 PCIe 5.0 x16 attached to CPU, 1 PCIe 4.0 x4 attached to B850
  5. M.2 Interface: 1 PCIe 5.0 x4, 1 PCIe 4.0 x4 (RAID 0 &1)
  6. M.2 Form Factor: 2280/22110
  7. M.2 Key: M-key
  8. 1 HDMI 2.1, 2 USB 4.0 Type-C (DP 2.0 Alt Mode)
  9. Single 5G LAN with Realtek® Ethernet RTL8126
  10. Wi-Fi 7 + Bluetooth® 5.4
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-CARAM5-M
Physical Stats
Form Factor
  • Micro-ATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • Single AM5 (LGA-1718)
  • AMD Ryzen™ 9000 Series Processors
Core Count
  • Up to 16C/32T
Note
  • Supports up to 170W TDP CPUs
System Memory
Memory
  • Slot Count: 2 DIMM Slots
  • Max Memory (1DPC): Up to 96GB 5600MT/s non-ECC DDR5 UDIMM
DIMM Sizes
  • UDIMM:8GB, 16GB, 24GB, 32GB, 48GB
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • AMD B850
SATA
  • 2 SATA (6Gbps) ; RAID 0/1 support
Network Controller
  • Single LAN with 5G Realtek® Ethernet RTL8126
Input / Output
LAN
  • 1 RJ45 5 GbE LAN port(s) (5G Realtek® Ethernet RTL8126)
USB
  • 4 USB 2.0 Type-A port(s) (Rear)
  • 2 USB 3.2 Gen 2 Type-A port(s) (Rear)
  • 2 USB 4.0 Type-C port(s) (Rear)
  • 2 USB 3.2 Gen 2 Type-A port(s) (Header)
  • 2 USB 3.2 Gen 1 Type-A port(s) (Header)
Video
  • 1 HDMI 2.1 port(s) (Rear)
  • 2 USB 4.0 (DP 2.0 Alt Mode) port(s) (Rear)
Serial
  • 1 COM port(s) (header)
Audio
  • ALC 888S HD Audio
Others
  • 2 Wi-Fi 7 + Bluetooth® 5.4 Antenna(s) port(s)
Expansion Slots
PCI-Express (PCIe) Configuration
  • 1 PCIe 4.0 x4 slot
  • 1 PCIe 5.0 x16 (in x16) slot
M2
  • 1 M.2 PCIe 5.0 x4 slot (M-key 2280/22110; RAID 0/1)
  • 1 M.2 PCIe 4.0 x4 slot (M-key 2280/22110; RAID 0/1)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
BIOS Features
  • Plug and Play (PnP)
  • SMBIOS 3.0 or later
  • USB Keyboard support
  • ACPI 6.0 or later
Management
Software
Power Configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
  • Wake-On-LAN
  • S3/S4/S5
PC Health Monitoring
Voltage
  • +12V,+3.3V,+5V,+5V standby,3.3V standby,VBAT,Vcore
LED
  • HDD activity LED
  • Power/suspend-state indicator LED
Temperature
  • CPU temperature
  • CPU thermal trip support
  • peripheral temperature
  • System temperature
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • 6 fans with tachometer status monitoring
  • Fan speed control
Other Features
  • 8-pin 12v DC power connector
  • ACPI power management
  • ATX power connector
  • Control of power-on for recovery from AC power loss
  • CPU thermal trip support for processor protection
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 0°C to 50°C (32°F to 122°F )
Resources
Parts List
Optional Parts
Part Number Qty Description
I/O Shield MCP-260-00205-0B 1 -
