H14SSL-NT

H14SSL-NT

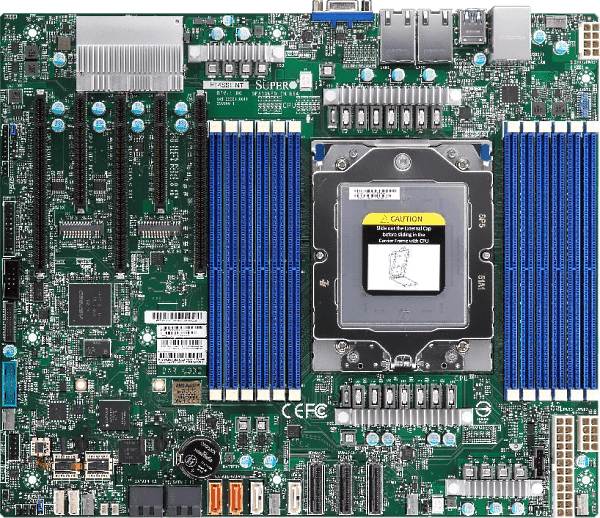

H14 UP Mainstream Server Board

Key Features


  1. AMD EPYC™ 9005 series Processors
  2. System on Chip
  3. Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s (Please check System Memory Section for detail)
  4. 3 PCIe 5.0 x162 PCIe 5.0 x8
  5. 2x 10GBase-T LAN Ports via Broadcom BCM57416
  6. Up to 6 USB 3.0 ports(4 rear + 2 via header)
  7. 8 SATA3
  8. ASPEED AST2600 BMC graphics
  9. 6 PWM 4-pin Fans with tachometer status monitoring
  10. M.2 Interface: 2 PCIe 4.0 x4M.2 Form Factor: 2280, 22110
...
...

Optimized Servers


AS-2116S-TNRT AS-2116S-FTNRT
Specifications Resources Parts List
Specifications
Product SKUs
MBD-H14SSL-NT
Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 10.1" (30.48cm x 25.65cm)
Processor
CPU
Core Count
  • Up to 192C/384T
Note
  • Supports up to 500W TDP CPUs
System Memory
Memory
  • Slot Count: 12 DIMM Slots
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM/3DS RDIMM
DIMM Sizes
  • RDIMM/3DS RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
Network Controller
  • Dual LAN with Broadcom BCM57416 10GBase-T
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3 port(s) (Header)
  • 4 USB 3 port(s)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (header)
TPM
  • 1 TPM header
Others
  • 1 MCIO (PCIe 5.0 x8/SATA3) Hybrid port(s)
  • 2 MCIO (PCIe 5.0 x8/SATA3) port(s)
Expansion Slots
PCI-Express (PCIe) Configuration
  • 3 PCIe 5.0 x16 (in x16) slots
  • 2 PCIe 5.0 x8 slots
M2
  • 2 M.2 PCIe 4.0 x4 SATA slots (M-key 2280/22110)
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +12V,+3.3V,+5V,+5V standby,1.8V standby,3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,VBAT,VRM temperature
LED
  • BMC/IPMI Heartbeat LED
  • UID/remote UID LED
FAN
  • 6x 4-pin fan headers (up to 6 fans)
Other Features
  • RoT
Resources
Servers (Optimized for H14SSL-NT)
AS -2116S-TNRT
WIE -2116S-FTNRT
...
Component Options
Geprüfte AOC-Liste
Liste der getesteten HDDs/SSDs
Getestete Speicherliste
Software
Treiber-CD herunterladen
Laden Sie die neuesten Treiber und Dienstprogramme herunter
OS-Kompatibilität
Documentation
Motherboard-Handbuch
Kurzreferenz
Parts List
Standard Parts (Bulk Package)
Part Number Qty Description
I/O Shield MCP-260-00073-0N 1 Standard I/O Shield
SATA Cables CBL-0044L • 6 57.5CM SATA FLAT S-S PBF
Standard Parts (Retail Package)
Part Number Qty Description
I/O Shield MCP-260-00073-0N 1 STD I/O SHIELD
SATA Cables CBL-0044L • 6 57.5 cm SATA FLAT S-S PBF

H14SSL-NT New
