SuperServer SSG-522B-ACR12L

2U UP front-loading storage server with 12 direct-attached hot-swap 3.5" SAS/SATA/NVMe bays (SAS HBA) and PCIe 5.0

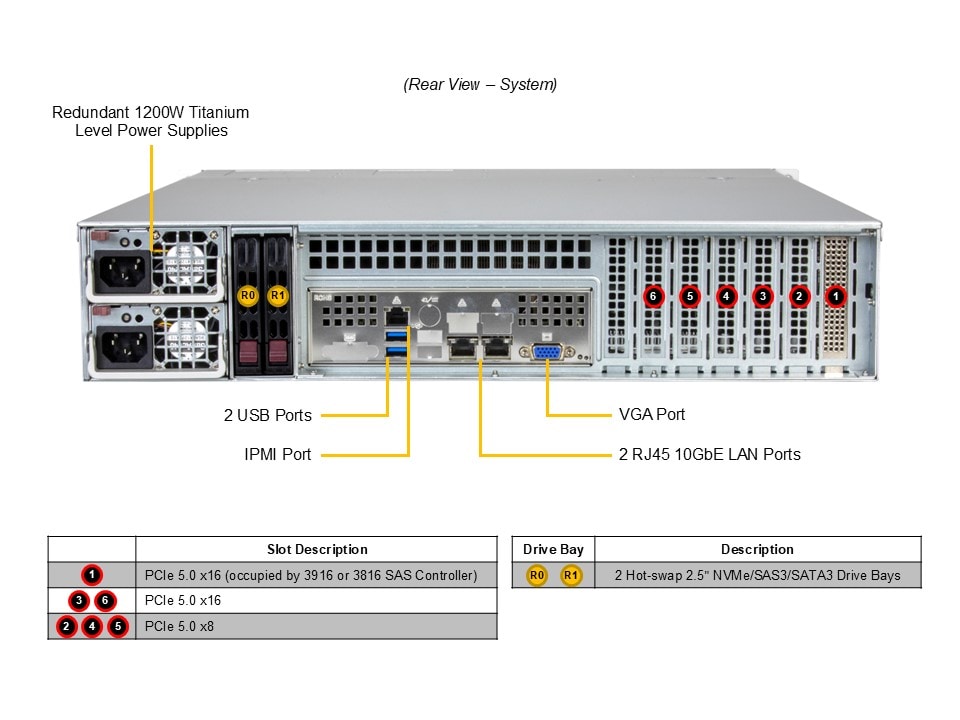

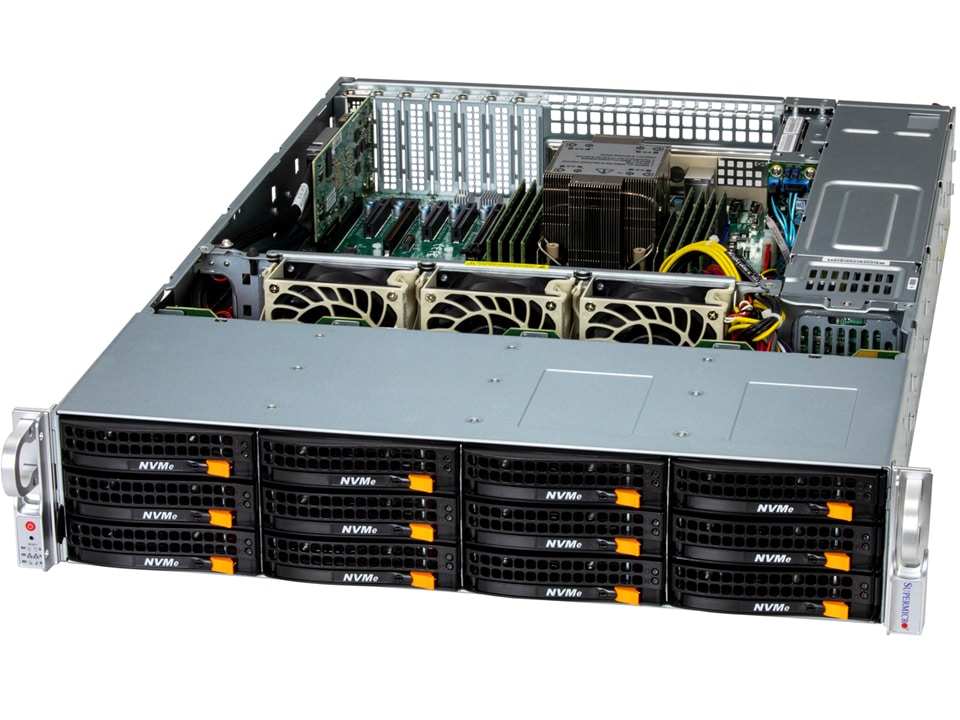

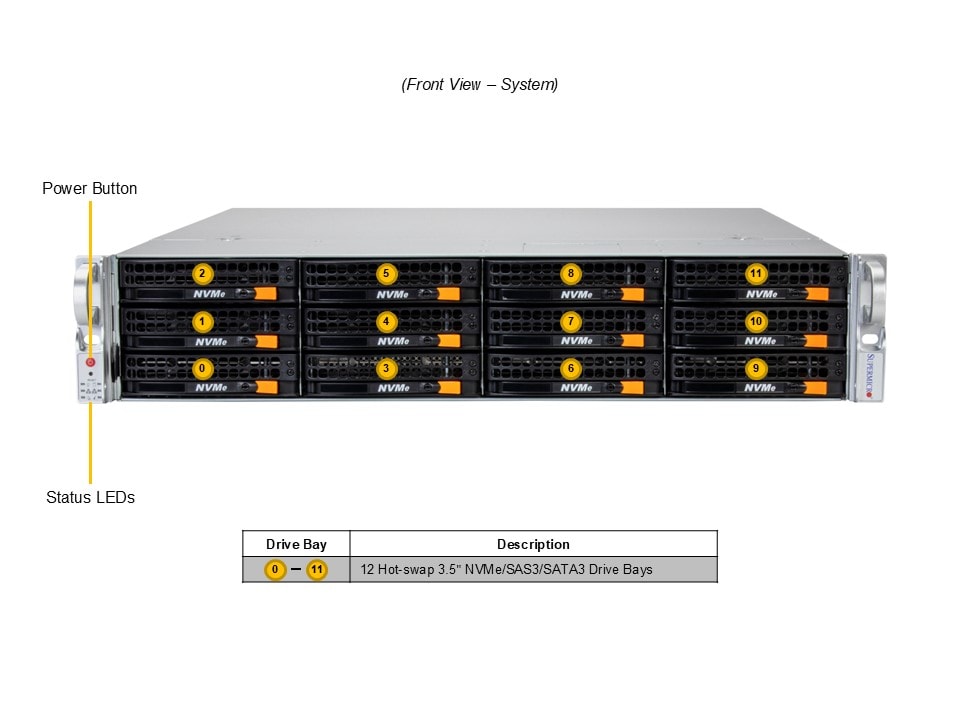

SSG-522B-ACR12L Haupt SSG-522B-ACR12L Winkel SSG-522B-ACR12L oben SSG-522B-ACR12L Vorderseite SSG-522B-ACR12L Hinten
Integrated Board: X14SBI-TF
Mehr erfahren

Key Applications

  • General Purpose Computing
  • Data Center Enterprise Applications
  • iSCSI SAN
  • Database Processing & Storage
  • Corporate Database
  • Appliance Optimized Storage Building Blocks

Key Features

  1. HBA by Broadcom® SAS3816 on both front and rear drive bays
  2. Single Intel® Xeon® 6700/6500 series processor up to 350W TDP
  3. Up to 2TB DDR5-6400MT/s ECC Registered in 8 DIMM slots (1DPC)
  4. 2 onboard 10GbE ports via Intel® X550 and 1 GbE port for BMC via Aspeed AST2600
  5. Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots *
    * Slot 1 is occupied by system's default controller
  6. 2U all hybrid hot-swap NVMe/SAS3/SATA3 front(3.5" x 12) and rear(2.5" x 2) drive bays *
    * up to total 12 NVMe ports in the system
  7. 1200W Redundant Titanium Level (96%) Hot-plug power supplies
...
...
SSG-522B-ACR12L
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SSG-522B-ACR12L
Motherboard
Super X14SBI-TF
Processor
CPU
Core Count
  • P-cores: Up to 86C/172T; Up to 336MB Cache
  • E-cores: Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory
Memory
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • 4 x SlimSAS
SAS
  • SAS (12Gbps) via Broadcom® 3816; (IT mode)
NVMe
  • NVMe; RAID 0/1 support(Intel® VROC RAID key required)
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 2 RJ45 10 GbE LAN ports (Intel® X550)
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 2 USB 3.2 Gen1 ports(Header)
  • 2 USB 3.2 Gen1 ports(Rear)
Video
  • 1 VGA port(Rear)
Serial
  • 1 COM port(header)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB UEFI
BIOS Features
  • ACPI 6.5
  • SMBIOS 3.7 or later
  • UEFI 2.9
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
  • Runtime BMC Protections
  • Supply Chain Security: Remote Attestation
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826BTS-R1K23LPBP2
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.6" (650 mm)
Package
  • 11.5" (H) x 26.5" (W) x 34" (D)
Weight
  • Gross Weight: 58 lbs (26.3 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Color
  • Black
Front Panel
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 14 bays
    • 12 front hot-swap 3.5" NVMe*/SAS/SATA drive bays
    • 2 rear hot-swap 2.5" NVMe*/SAS/SATA drive bays
  • (*NVMe support may require additional storage controller and/or cables)
  • Antriebsoptionen anzeigen
M.2
System Cooling
Fans
  • 3 Heavy Duty PWM 80x80x38mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Zeitplan Zugang
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
2x 2.5" NVMe Drive Kit (Rear) BPN-NVME5-826N-B2B 1 2-Port PCIe5 U.2 NVMe SSD Backplane
CBL-MCIO-1215AM5LRE • 1 MCIO x8 (RE to LE), 15CM, LNRVS, Gen5, 85Ohm, RoHS
CBL-PWEX-1123-30 1 MicroHi, 2x2F P3.0 to 1x4M, P5.08, 30cm, 9A/p, 16AWG, RoHS
3.5" to 2.5" Converter Tray (Front) MCP-220-00043-0N - Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
Intel VROC RAID Key for NVMe AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
SFT-SDDC-SINGLE 1 SuperCloud Composer (per node license)
TPM AOM-TPM-9670V-S-O 1 TPM 2.0, vertical form factor, provisioned for server

UP Storage SuperServer SSG-522B-ACR12L Coming Soon
