A4SAN-E-WOHS

A4SAN-E-WOHS

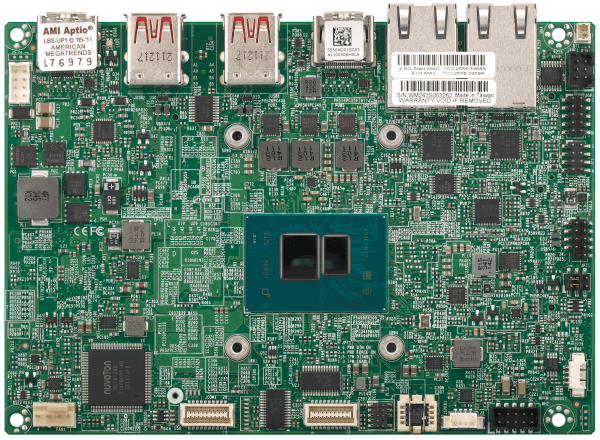

3.5" SBC Embedded Motherboard
Intel® Atom® Processor  x7433RE

Key Features


  1. Intel® Atom® Processor x7433RE (9W, 4C)
  2. DDR5 4800 MHz, SODIMM x 1, Up to16GB, In-Band ECC supported
  3. M.2 M-Key 2242/2280, M.2 E-key 2230, M.2 B-key 2240/3052/2280
  4. Dual 2.5GbE, M.2 B-key w/ nano SIM & 5G module supported
  5. 9-36V wide range power with RVP and TVS
  6. 4 USB3.2, 2 USB2.0, 4COM ports, audio with AMP, SMBus/I2C, 8bit GPIO
  7. 2 HDMI, 1 48bit LVDS, Intel HD Graphics 3 independent displays
  8. Wide temperature support from -40°C to 85°C
...
...

Optimized Servers


SYS-E100-14AM-E SYS-E100-14AM-E-TB2 SYS-E101-14AM-E
Specifications Resources Parts List
Specifications
Product SKUs
MBD-A4SAN-E-WOHS
Physical Stats
Form Factor
  • 3.5" SBC
Dimension
  • 5.7" x 4" (14.6cm x 10.16cm)
Processor
CPU
  • Single FCBGA-1264
  • Intel® Atom® Processor  x7433RE
Core Count
  • Up to 4C; Up to 6MB Cache
Note
  • Supports up to 9W TDP CPUs
System Memory
Memory
  • Slot Count: 1 DIMM Slots
  • Max Memory (1DPC): Up to 16GB 4800MT/s non-ECC DDR5 SO-DIMM
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Controller
  • Dual LAN with Intel® Ethernet Controller I226-IT
Input / Output
USB
  • 4 USB 3.2 Gen2 port(s) (Rear)
  • 1 USB 2 port(s) (Header)
Video
  • 2 HDMI port(s)
  • 1 48-bit LVDS port(s)
  • 1 port(s)
TPM
  • 1 TPM Chip
Others
  • 1 8-bit GPIO header port(s)
  • 1 HD Audio header (Mic-in/Headphone-out) port(s)
  • 1 SMBus/I2C header port(s)
  • 1 Speaker w/ 3W amp. port(s)
Expansion Slots
M2
  • 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242(default)/2280/3052; USB 3.0; nano SIM holder)
  • 1 M.2 PCIe 3.0 x1 slot (E-key 2230(default); USB 2.0)
  • 1 M.2 PCIe 3.0 x1 SATA slot (M-key 2242(default)/2280)
Management
Software
System Management Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management
  • Control of power-on for recovery from AC power loss
  • Force Power On by Jumper
  • +9~36V DC Power Input
PC Health Monitoring
FAN
  • 1x 4-pin fan header (up to 1 fan)
Resources
Servers (Optimized for A4SAN-E-WOHS)
SYS-E100-14AM-E
SYS-E100-14AM-E-TB2
SYS-E101-14AM-E
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List
Standard Parts (Bulk Package)
Part Number Qty Description
DC IN Power cable CBL-PWEX-1029 1 DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
Standard Parts (Retail Package)
Part Number Qty Description
Audio Cable CBL-OTHR-0986 1 Audio Cable 20cm
COM Cable CBL-CDAT-0665 2 COM Cable 20cm
DC IN Power cable CBL-PWEX-1029 1 DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
QRG MNL-2690-QRG 1 Motherboard Quick Reference Guide
USB Cable CBL-CUSB-0983 1 USB2.0 cable 20cm
Optional Parts
Part Number Qty Description
DC IN Power Cable (DC Jack) CBL-PWEX-1110-15 1 DC power jack,vertical to 2x4, 2.0mm, 15cm
Heatspreader MCP-350-10105-0B 1 Aluminum block Heatspreader for A4SAN
Power Adapter MCP-250-10134-0N 1 60W Lockable AC to DC power adapter without power cord

A4SAN-E-WOHS New
